RAM Double Ball Mount with 2 Diamond Base Plates - C Series (1.5" Ball) - Medium

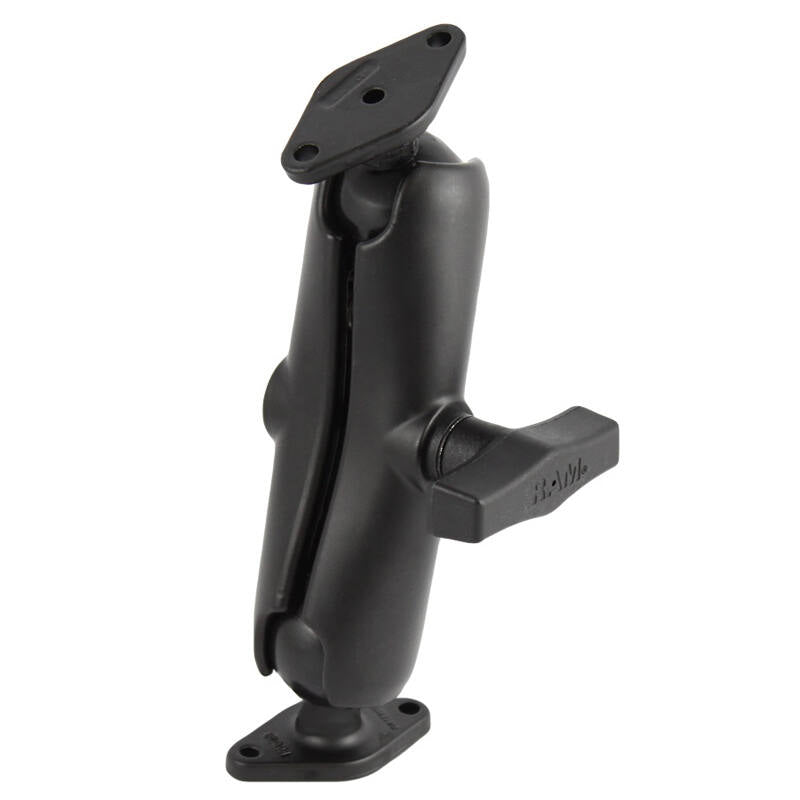

RAM-102U RAM® Double Ball Mount with Two Diamond Plates – C Size Medium

The RAM-102U is a drill-down mounting solution built from a C Series double socket arm and two diamond AMPS base plates, giving near-infinite adjustment for heavier device holders and cradles in vehicles, boats, and aircraft.

Key Features

• Drill-down mounting solution; choose either diamond plate, both featuring the 2-hole AMPS pattern
• Includes two diamond ball bases and a C Series medium-length double socket arm
• RAM® ball-and-socket technology allows near-infinite adjustability
• Powder-coated, marine-grade aluminium construction
• Backed by RAM Mounts' lifetime warranty

Works With

Either diamond plate bolts down using the 2-hole AMPS pattern, while the matching 1.5" ball connects to any RAM® cradle or holder built for a C Size (1.5") ball, including many third-party holders with the AMPS pattern.

Dimensions & Specifications

• Arm length: 144.5mm (5.69") overall, 118.4mm (4.66") socket-to-socket
• Diamond plate: 61.7 x 33.3mm (2.43 x 1.31")
• Hole pattern: 2-hole AMPS, 48.6mm (1.912") centre-to-centre
• Ball size: 1.5" rubber ball, C Size
• Material: powder-coated marine-grade aluminium
• Weight: 458g (1.01 lbs)
• Load rating: 1.814kg (4 lbs) standard use, 1.36kg (3 lbs) heavy-duty use

What's Included

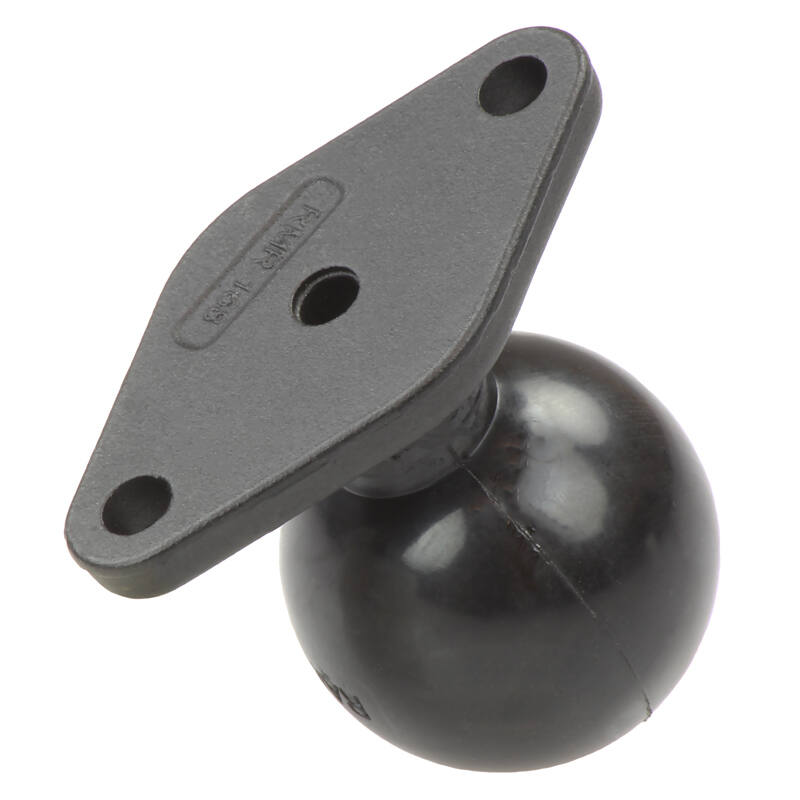

• RAM-238U diamond base with 1.5" ball (x2)
• RAM-201U double socket arm for C Size 1.5" balls

FAQs

Q: What size screws do the diamond plates take?
A: The 2-hole AMPS pattern most commonly takes #8, #10, M4, or M5 screws. If you're pairing this with a RAM® holder, the holder comes with the hardware needed; surface-mount hardware for your own application isn't included.
