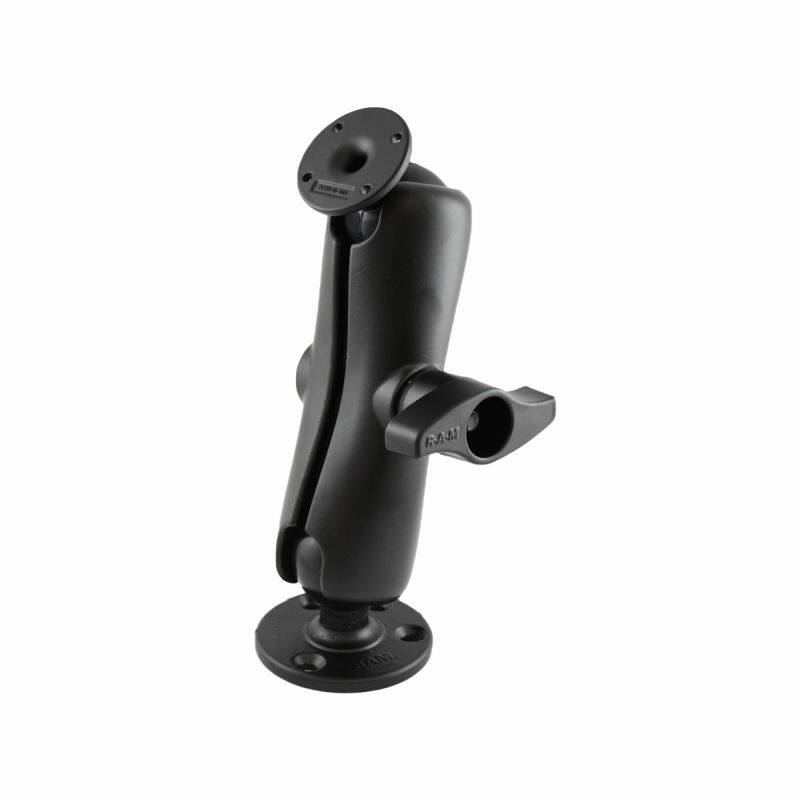

RAM-D-101-254U RAM® Double Ball Mount with Round AMPS Plate and Large Round Plate - D Series
Features
* Drill-down mounting solution; choose either round plate featuring the AMPS hole pattern for attachment to compatible device holders
* Includes two round ball bases - one large 93.5mm diameter and a smaller 61.7mm one which incorporates the universal AMP's hole pattern
* Included D size medium length double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
The RAM-D-101-254U consists of a 93.5mm / 3.68" diameter round base, STANDARD length double socket arm and 61.7mm / 2.43" diameter round base.

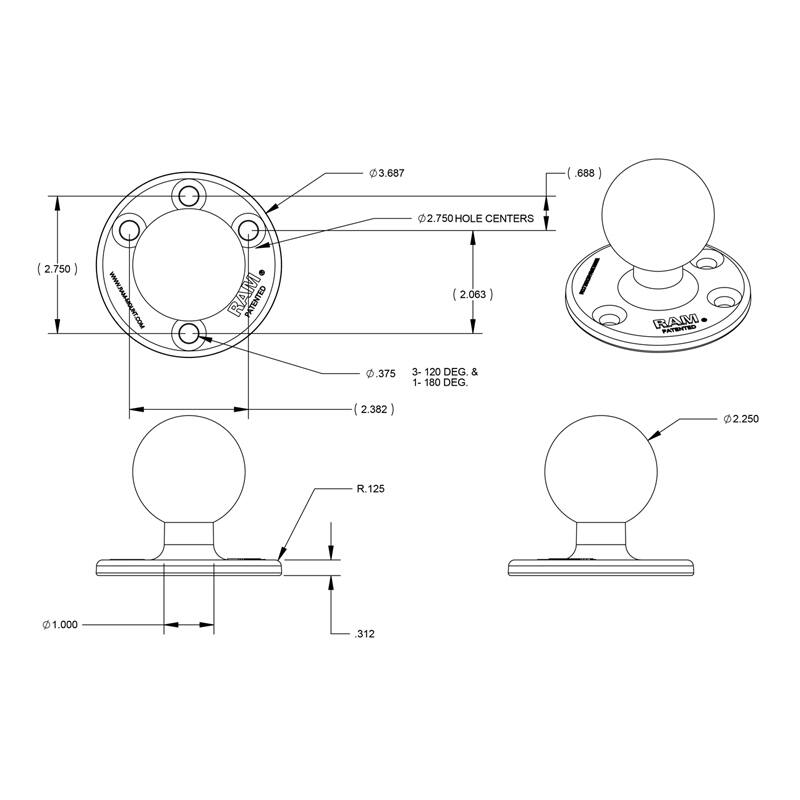

The 93.5mm (3.68") diameter round base has pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. The 61.7mm (2.43") diameter round base contains the universal AMPs hole pattern. Designed into the mount is a 2.25" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm.
Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.
Product Dimensions
Overall Height: 282.6mm (11.125")
Arm Dimensions:
Overall Length:
8.375" (21.27cm)
Socket-To-Socket Length:
6.5625" (16.66cm)
Hole Pattern

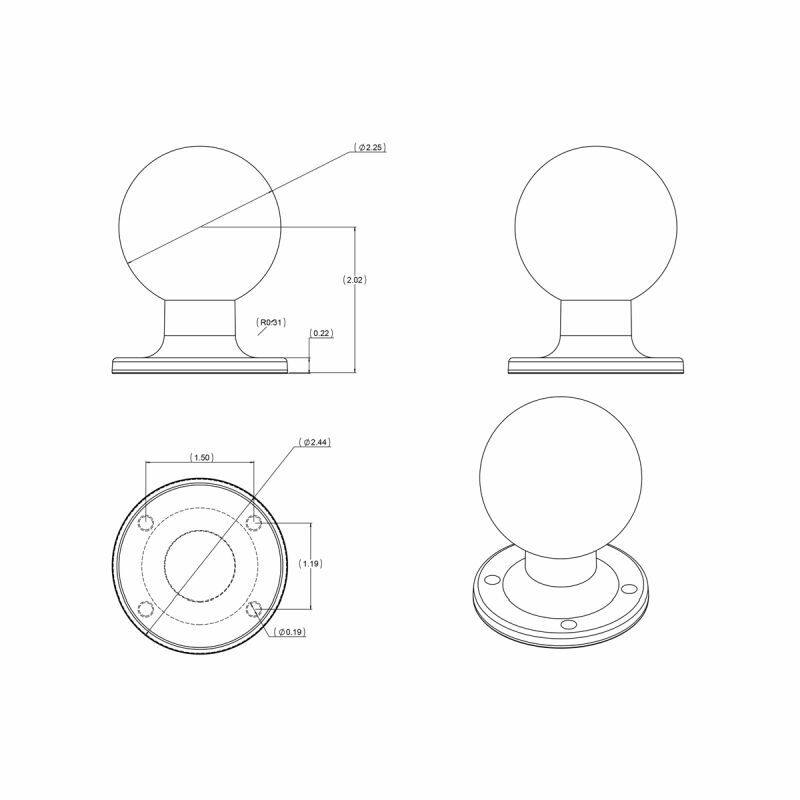

Smaller Plate:
4-Hole AMPS: 1.181" x 1.496"
Larger Plate:
See Drawing
Ball/Socket Size
D Size (2.25")
Materials
Marine-grade aluminium
Weight Capacity
Standard Use:
2.72kg (6 lbs)
Heavy-Duty Use:
2.26kg (5 lbs)
Components:

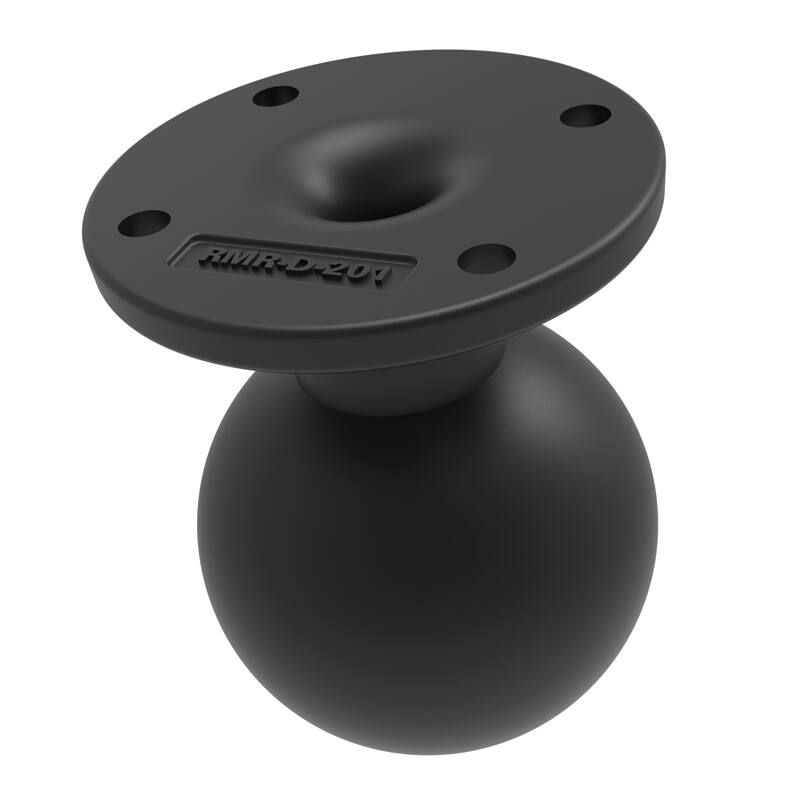

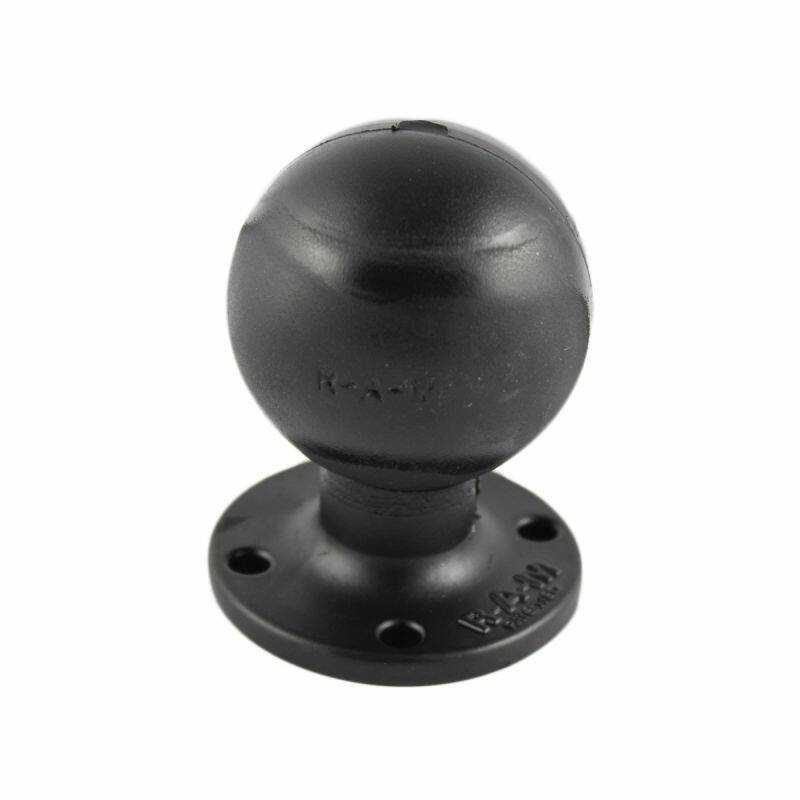

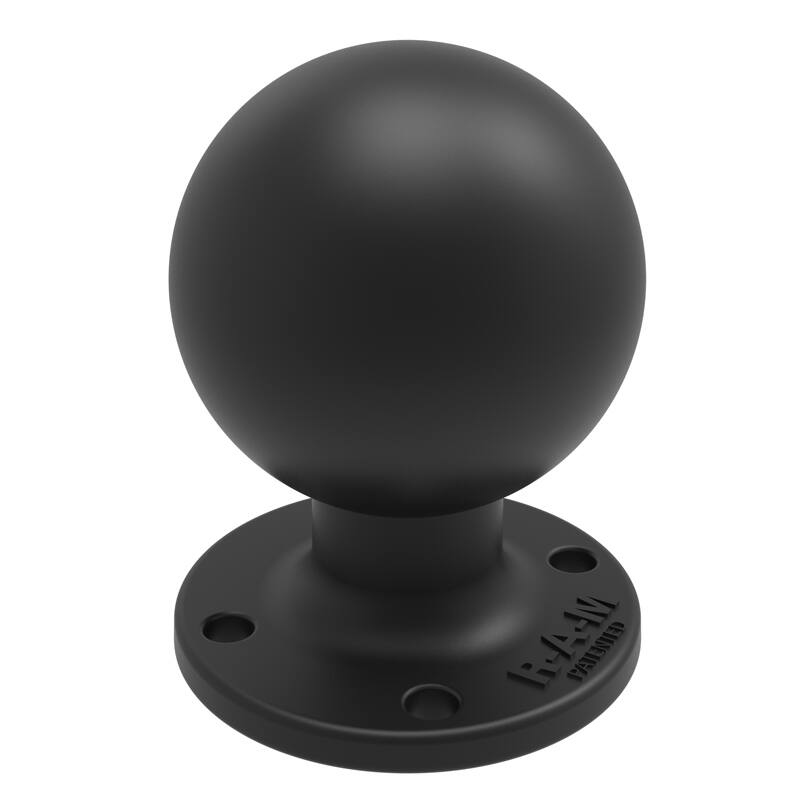

RAM-D-254U RAM Round Plate with 2.25"/57mm D Sized Ball

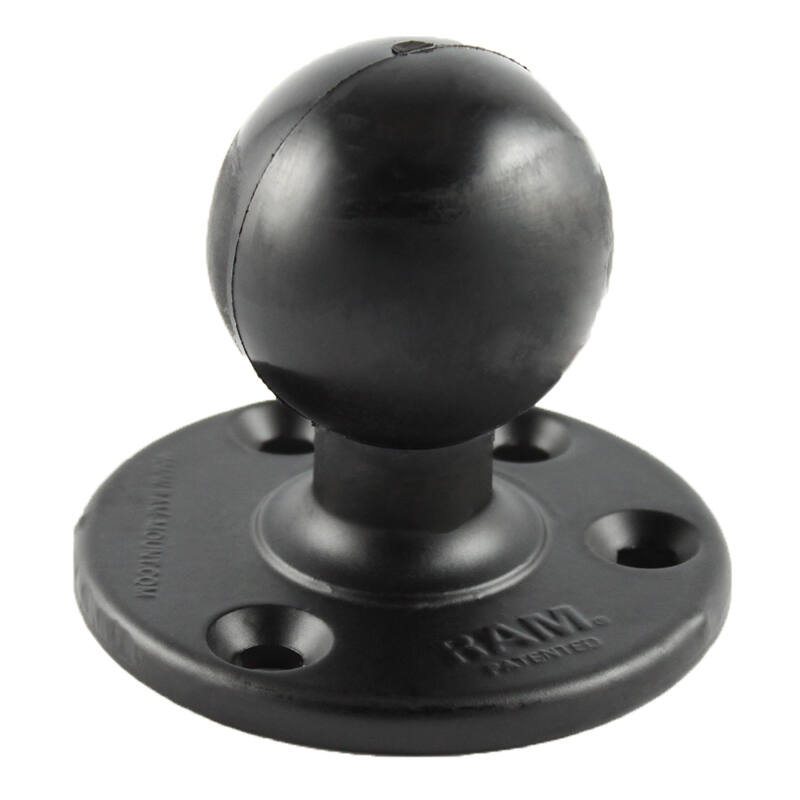

RAM-D-202U RAM 93.5mm Diameter Round Plate with D Size 2.25"/57mm Ball

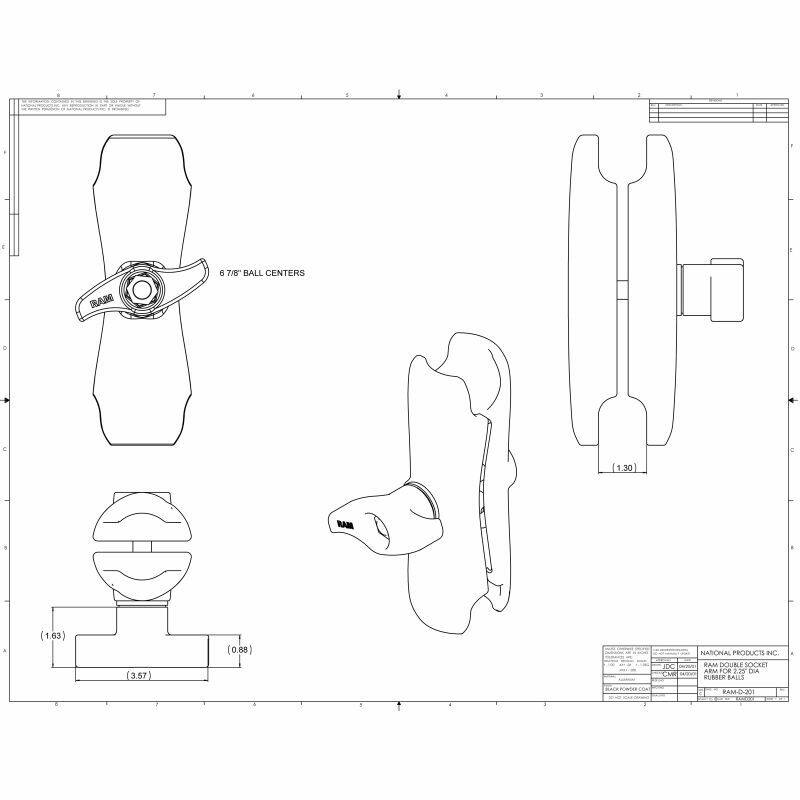

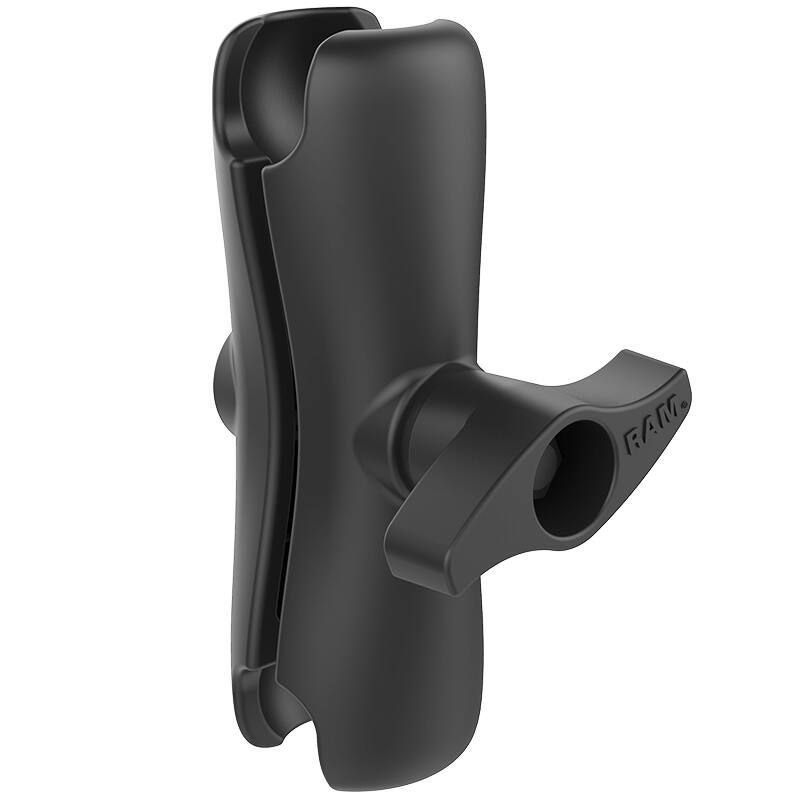

RAM-D-201U RAM Medium Length Double Socket Arm for D Size 2.25" Balls
