RAM Double Ball Mount with 2 Round Base Plates - B Series (1" Ball) - Long

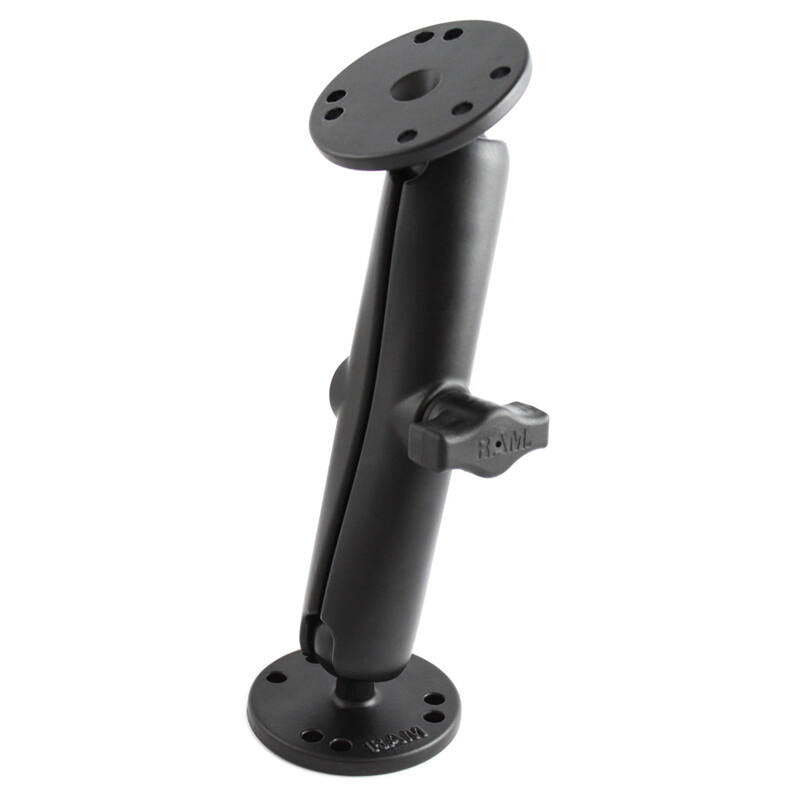

RAM-B-101U-C RAM® Double Ball Mount with Two Round Plates – B Size Long

The RAM-B-101U-C is a drill-down mounting solution built from a long B Series double socket arm and two round AMPS base plates, giving extra reach with near-infinite adjustment for RAM® cradles and holders.

Key Features

• Drill-down mounting solution; choose either round plate, both featuring the universal AMPS hole pattern
• Includes two round ball bases and a long B Size double socket arm for extended reach
• Ball-and-socket technology allows near-infinite adjustability
• Powder-coated, marine-grade aluminium construction
• Backed by RAM Mounts' lifetime warranty

Works With

Either round plate bolts down using the AMPS hole pattern, while the matching 1" ball connects to any RAM® cradle or holder built for a B Size (1") ball, including all iPad cradles and many third-party AMPS holders.

Dimensions & Specifications

• Overall height: 185.7mm (7.31")
• Arm length: 152mm (6") overall, 134mm (5.25") socket-to-socket
• Round base: 63.5mm (2.5") diameter
• Hole patterns: 4-hole AMPS 30 x 38mm; 3-hole AMPS 120° 46.0mm
• Ball size: 1" rubber ball, B Size
• Material: powder-coated marine-grade aluminium
• Weight: 340g (0.75 lbs)

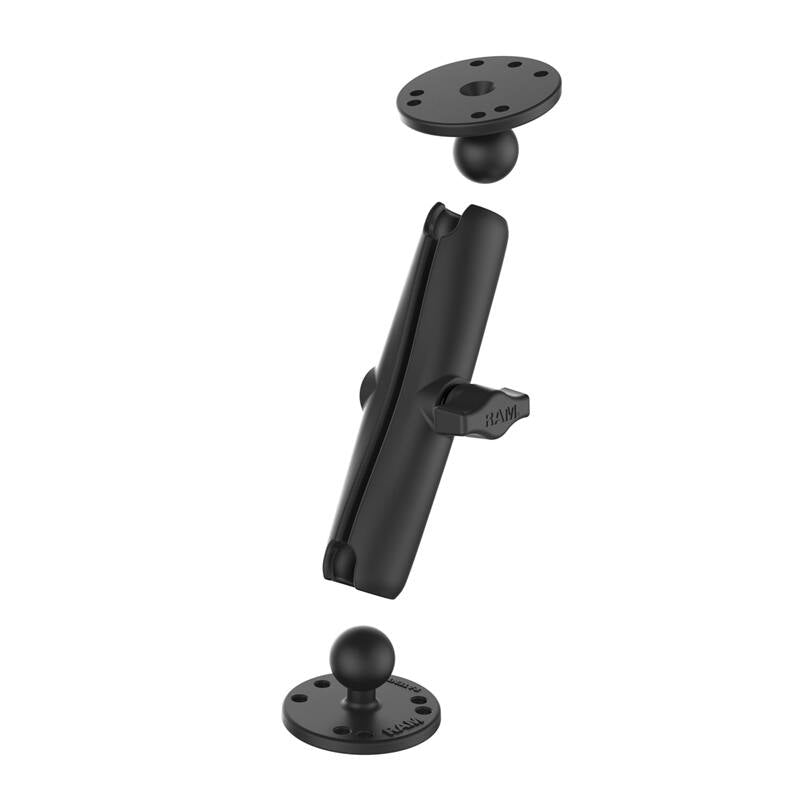

What's Included

• RAM-B-202U round base with 1" ball (x2)
• RAM-B-201U-C long double socket arm for B Size 1" balls

FAQs

Q: What size screws are needed for the holes on the round plates?
A: The most common sizes are #8, #10, M4, and M5 screws. If you're pairing this with a RAM® holder, the holder comes with the hardware needed.
