RAM Mounts

RAM Double Ball Mount with 2 Round Base Plates - B Series (1" Ball) - Medium

RAM Double Ball Mount with 2 Round Base Plates - B Series (1" Ball) - Medium

SKU:RAM-B-101U

Regular price $75.23 NZD
Regular price Sale price $75.23 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

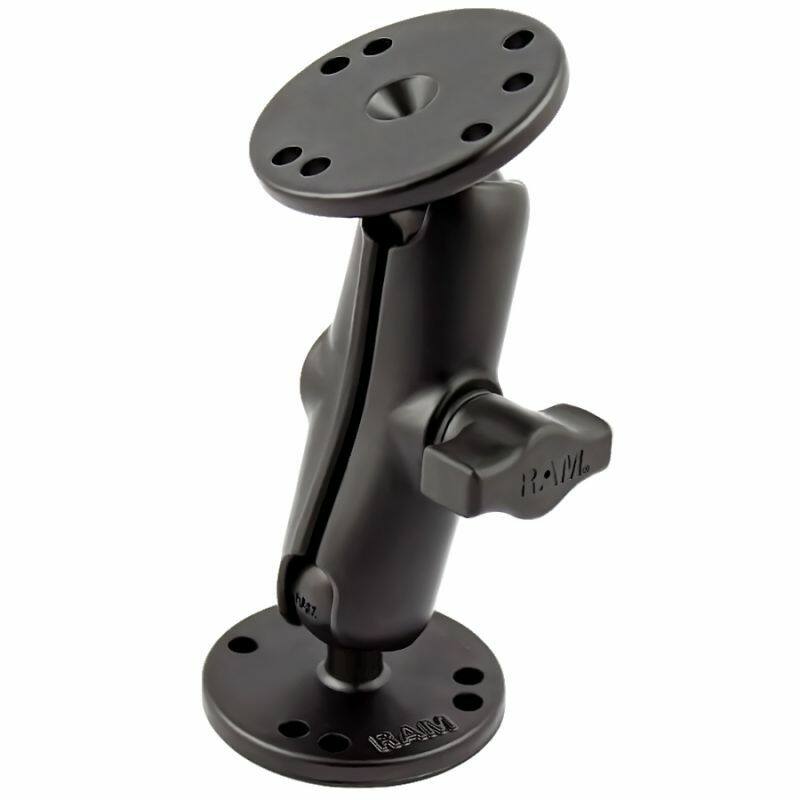

RAM-B-101U RAM® Universal Double Ball Mount with Two Round Plates - B Size Medium


Features

* Drill-down mounting solution; choose either round plate featuring the AMPS hole pattern for attachment to compatible device holders
* Includes two round ball bases and B size medium length double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

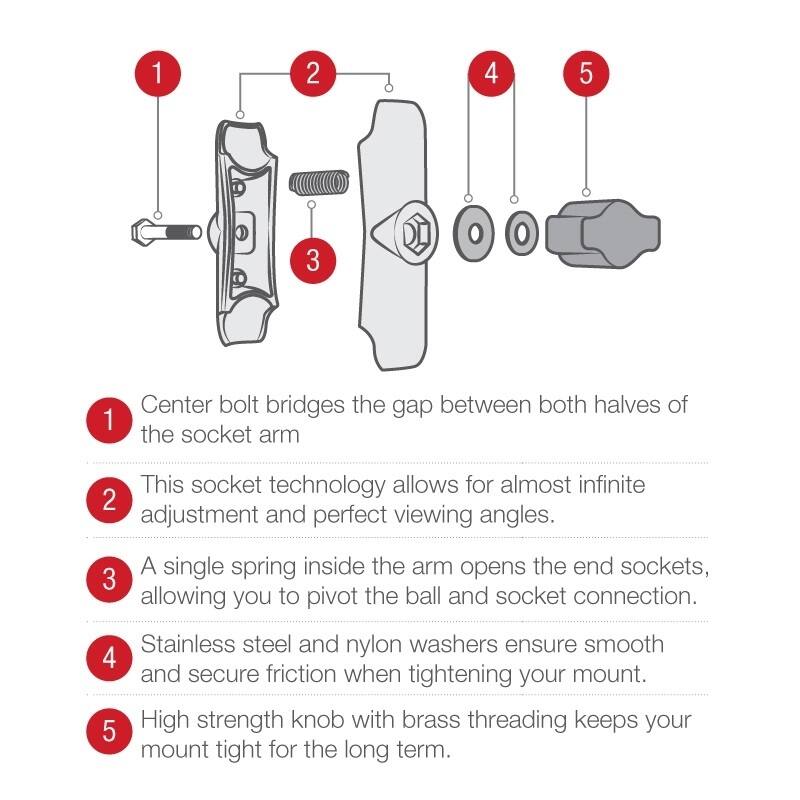

The RAM-B-101U consists of a double socket arm and two 63mm diameter round bases that contain the universal AMPS hole pattern. The mount is designed with a 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the round base adaptor will connect to many RAM cradles, including all iPad cradles.

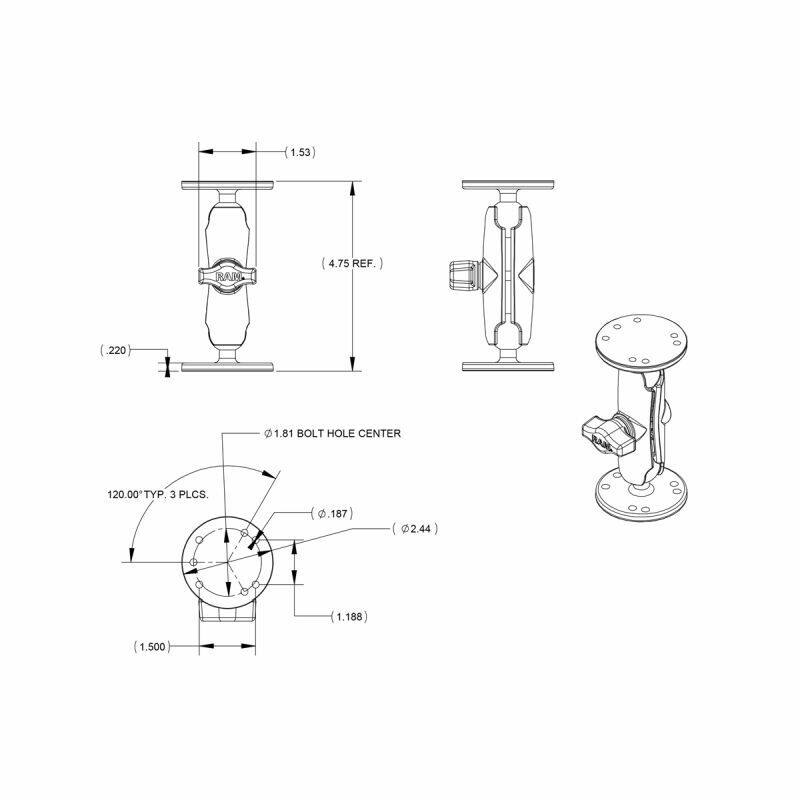

Specs & Features

Round Plate Hole Patterns
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)



Material:
Powder Coated Marine Grade Aluminium

Ball Size
1" Rubber "B" Ball Size

Overall Height:
127mm (5" )

Socket To Socket Length
76.2mm (3")

Weight
231 grams (0.51 lbs)

Components:

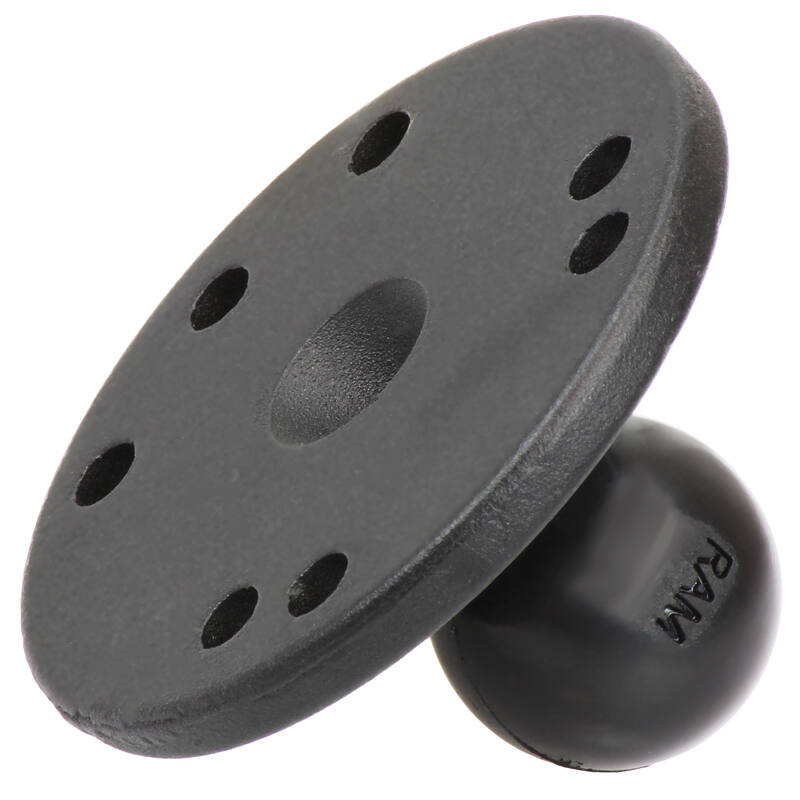

RAM-B-202U x 2 - 2.5" Round Plate with the AMPs Hole Pattern with B Size 1" Ball
RAM-B-201U - Double Socket Arm for B Size 1" Balls


YouTube:
https://youtu.be/4IpgFq-mGMw


QUESTIONS & ANSWERS
Q: What size screws are needed for the holes on this ball plate?
A: The most common screw sizes are #8, #10, M4 and M5 screws. However, if you are pairing this with any RAM® Holder, the holder will come with the necessary hardware to connect to your mount.
