RAM Double Ball Mount with 2 Round Base Plates - B Series (1" Ball) - Short Arm

RAM-B-101U-A Universal Double Ball Mount with Two Round Plates – B Size Short

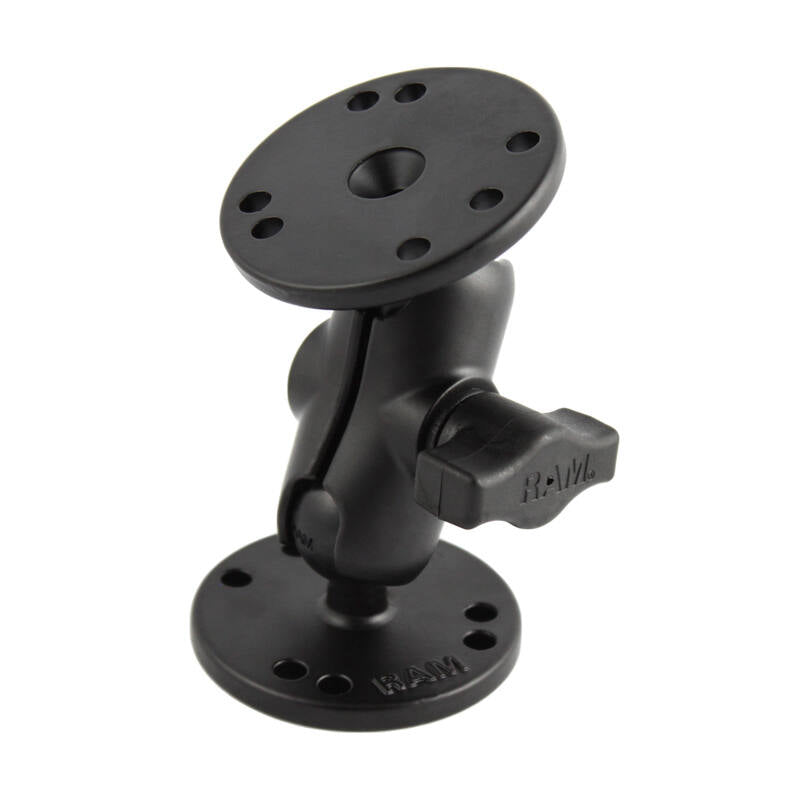

The RAM-B-101U-A is a drill-down mount with a short 60.5mm double socket arm and two round AMPS base plates, giving near-infinite adjustability with a 1" B-Size ball at each end.

Key Features

• Two round AMPS base plates, compatible with many RAM® cradles including all iPad cradles
• Short double socket arm for a compact footprint
• Ball-and-socket adjustment at both ends
• Powder-coated marine-grade aluminium construction
• Lifetime warranty

Dimensions & Specifications

• Overall height: 99.3mm (3.75")
• Arm overall length: 60.5mm (2.38"); socket-to-socket: 51mm (2")
• Round plate hole pattern — 4-hole AMPS: 1.181" x 1.496" (30mm x 38mm); 3-hole 120°: 1.812" (46.0mm)
• Material: powder-coated marine-grade aluminium
• Ball size: 1" rubber ball, B-Size
• Weight: 199g (0.44 lbs)
• Weight capacity — standard use: 907g (2 lbs); heavy-duty use: 454g (1 lb)

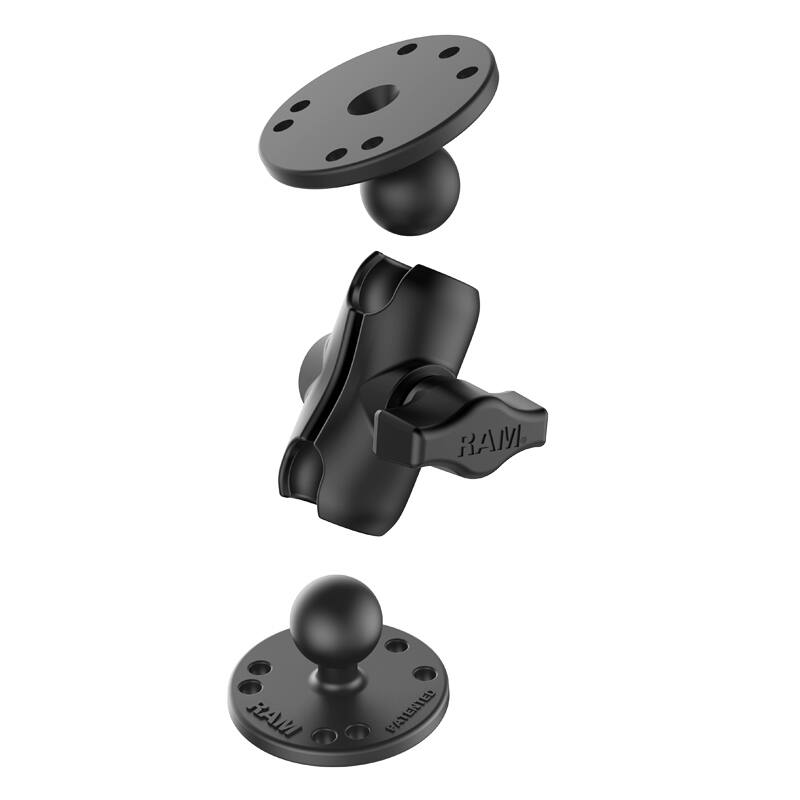

Components

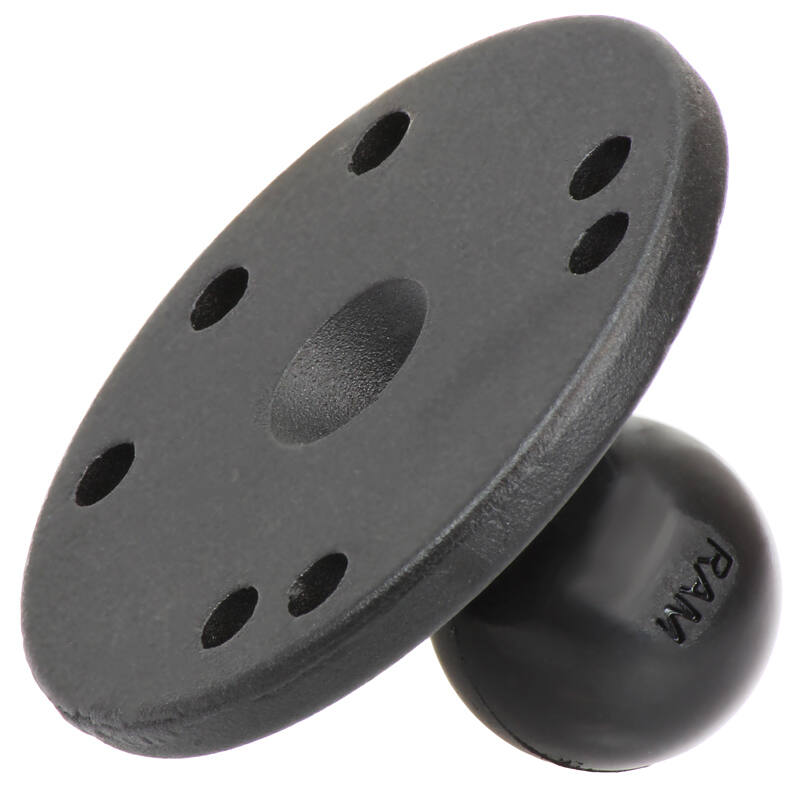

• RAM-B-202U 2.5" round plate (x2)
• RAM-B-201U-A short double socket arm

FAQs

This arm feels short — does it have the pin spring like other lengths? No — this short-arm version does not include the pin spring found on the medium and long arm variants.

What if I need a longer arm? The same configuration is available with a standard 96mm arm (RAM-B-101U) or a longer 152mm arm (RAM-B-101U-C).

How fast does this ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.

Videos

Watch the double ball mount overview · RAM short double socket arm overview
