RAM Double Ball Mount with 2 Round Base Plates - C Series (1.5" Ball) - Long Arm

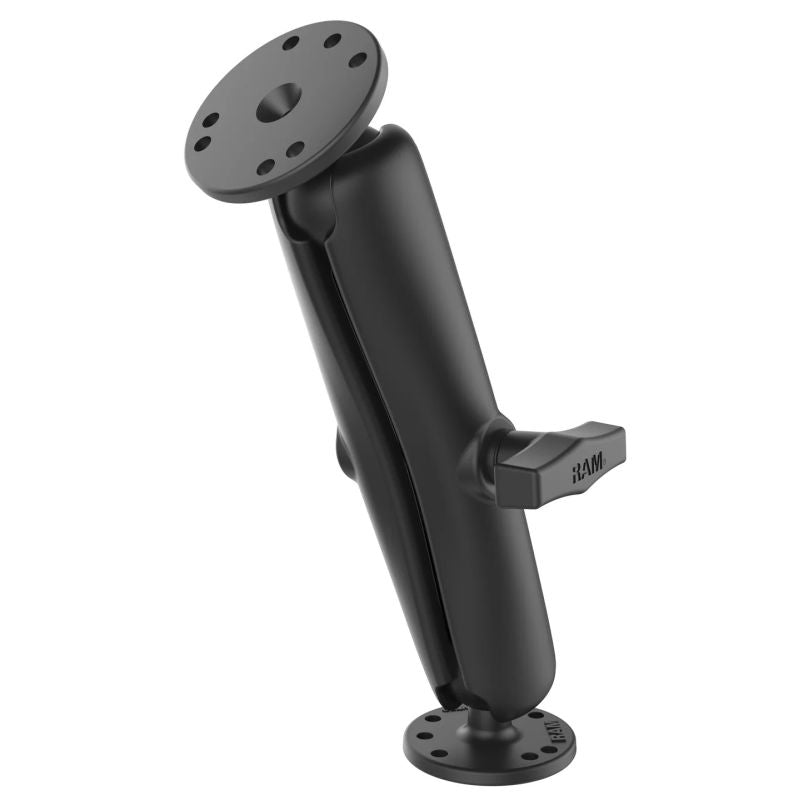

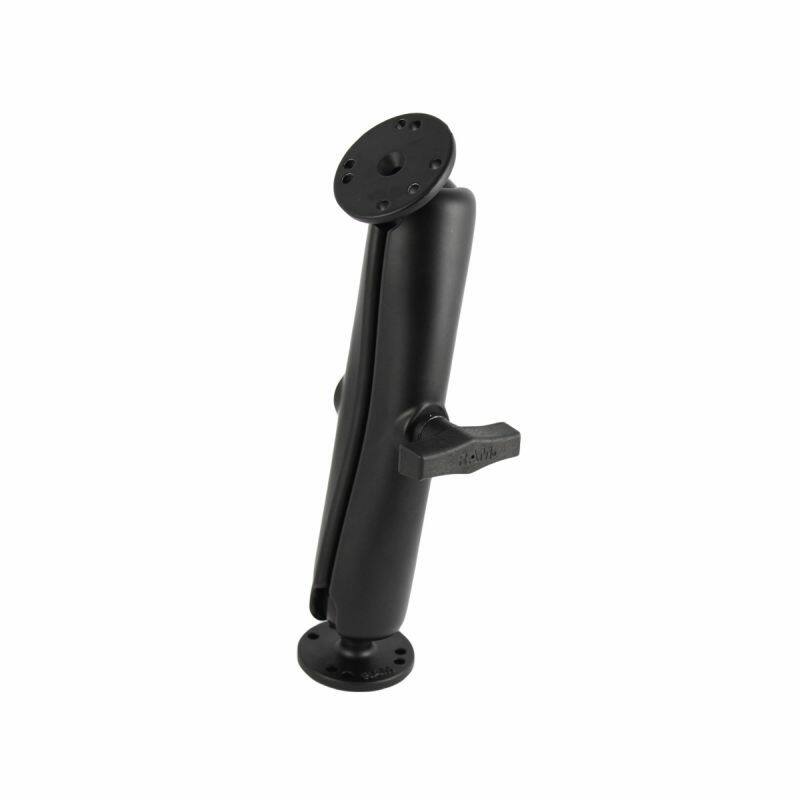

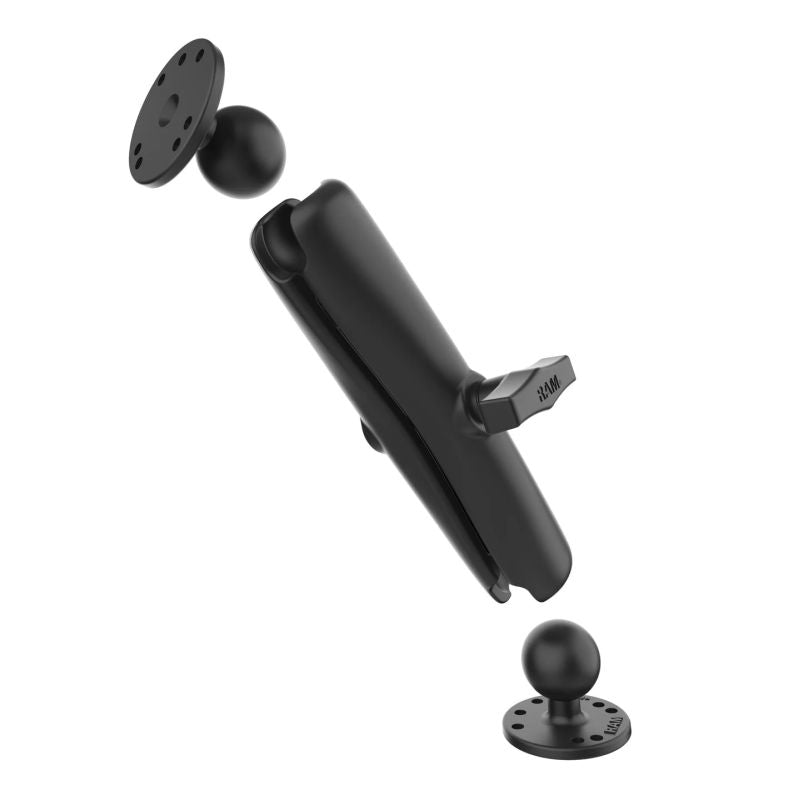

RAM-101U-D RAM® Double Ball Mount with Two Round Plates – C Size Long

The RAM-101U-D is a drill-down mounting solution built from a long C Series double socket arm and two round AMPS base plates, giving maximum reach with near-infinite adjustment for device holders and cradles.

Key Features

• Drill-down mounting solution; choose either round plate, both featuring the universal AMPS hole pattern
• Includes two round ball bases and a long C Series double socket arm for extended reach
• RAM® ball-and-socket technology allows near-infinite adjustability and dampens shock and vibration
• Powder-coated, marine-grade aluminium construction
• Backed by RAM Mounts' lifetime warranty

Works With

Either round plate bolts down using the AMPS hole pattern, while the matching 1.5" ball connects to any RAM® cradle or holder built for a C Size (1.5") ball, including many third-party AMPS holders.

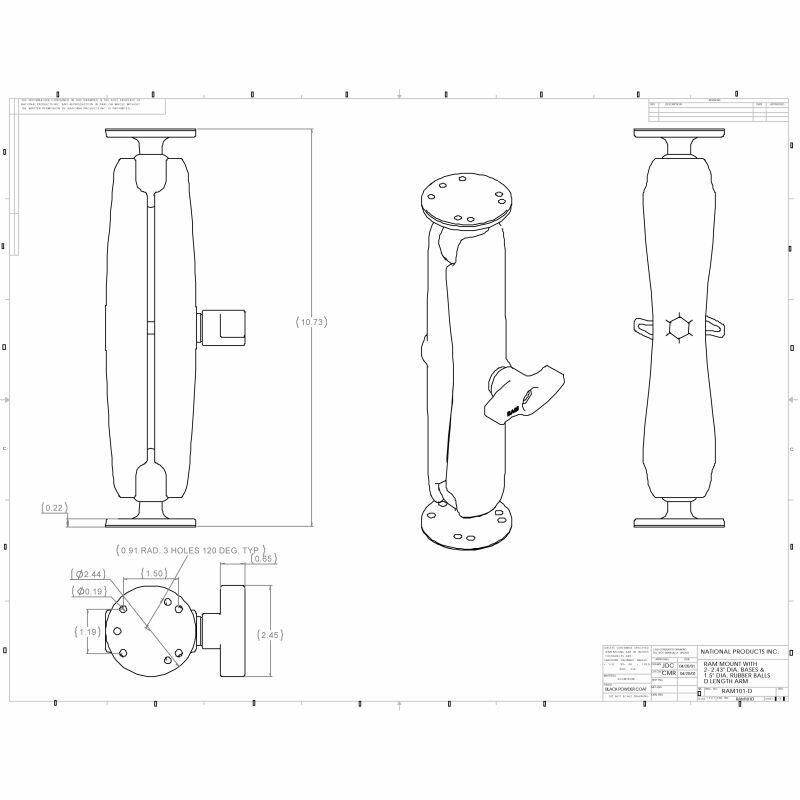

Dimensions & Specifications

• Overall length: 276mm (10.85")

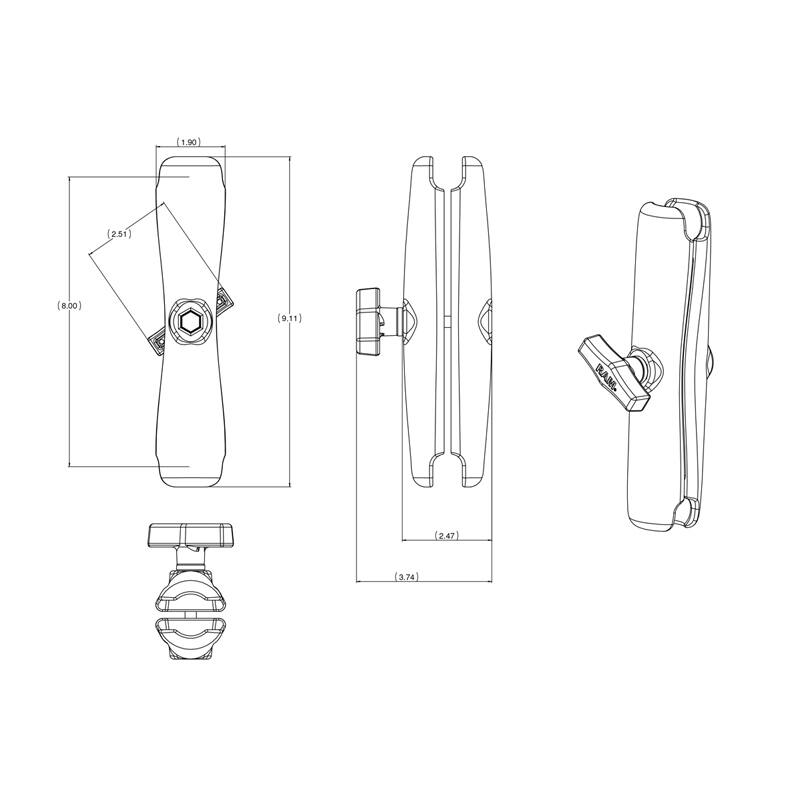

• Arm length: 232mm (9.125") overall, 203mm (8") socket-to-socket
• Round base: 63.5mm (2.5") diameter
• Hole patterns: 4-hole AMPS 30 x 38mm; 3-hole AMPS 120° 46.0mm
• Ball size: 1.5" rubber ball, C Size
• Material: powder-coated marine-grade aluminium
• Weight: 957g (2.11 lbs)
• Load rating: 1.814kg (4 lbs) standard use, 1.36kg (3 lbs) heavy-duty use

What's Included

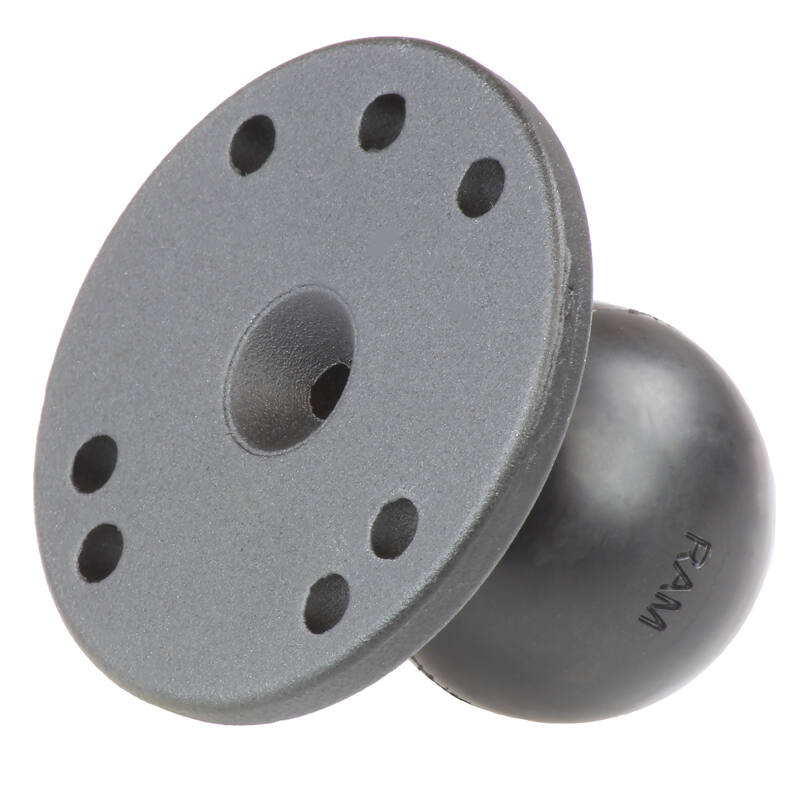

• RAM-202U round base with 1.5" ball (x2)

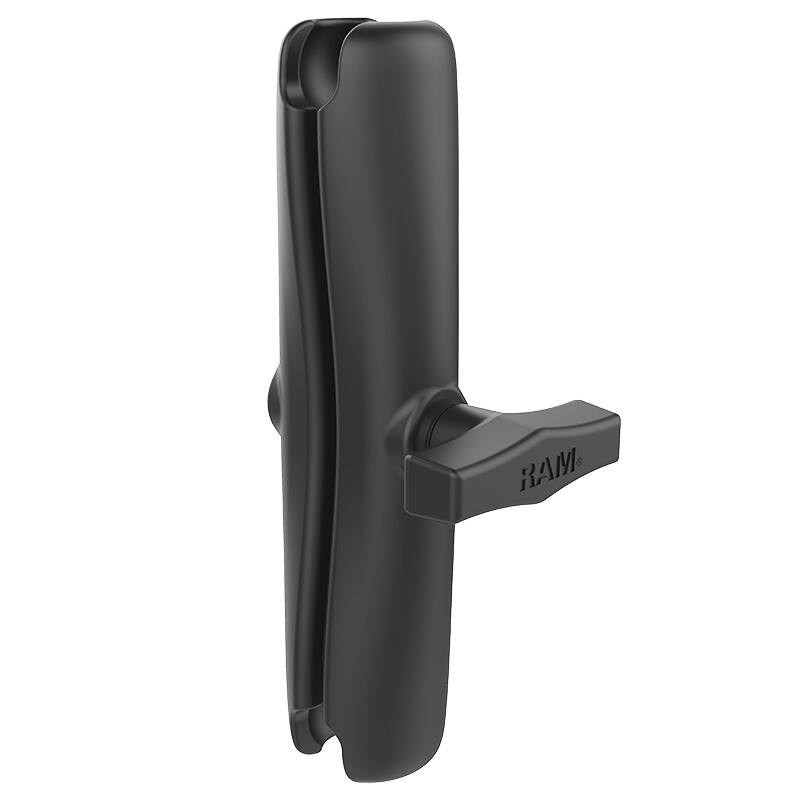

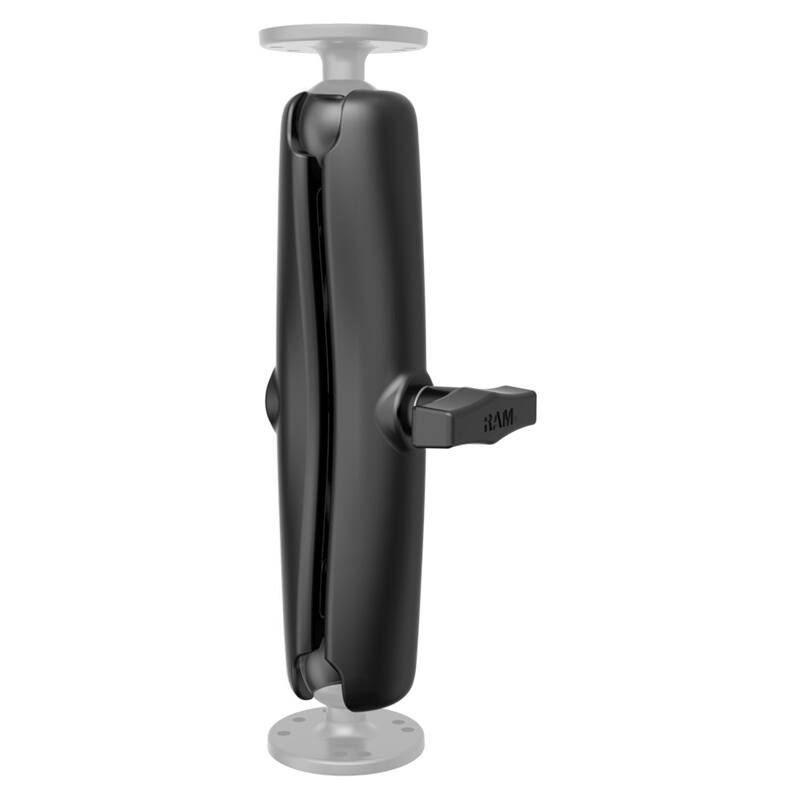

• RAM-201U-D long double socket arm for C Size 1.5" balls

Installation Video

Watch on YouTube
