RAM Mounts

RAM Double Ball Mount with 2 Round Base Plates - C Series (1.5" Ball) - Medium

RAM Double Ball Mount with 2 Round Base Plates - C Series (1.5" Ball) - Medium

SKU:RAM-101U

Regular price $125.81 NZD
Regular price Sale price $125.81 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

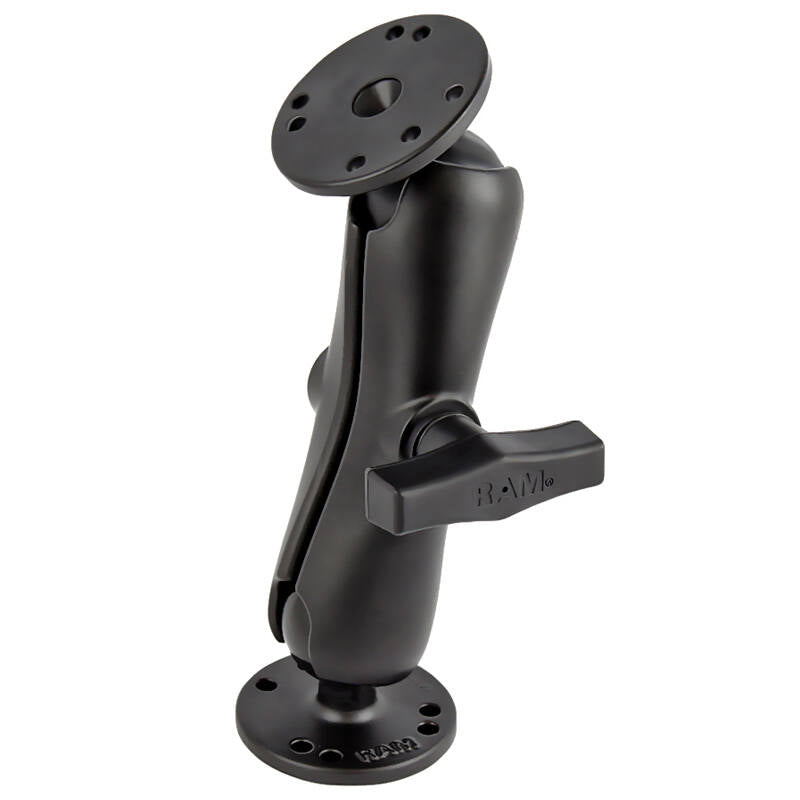

RAM-101U RAM® Double Ball Mount with Two Round Plates

Features

* Drill-down mounting solution; choose either round plate featuring the AMPS hole pattern for attachment to compatible device holders

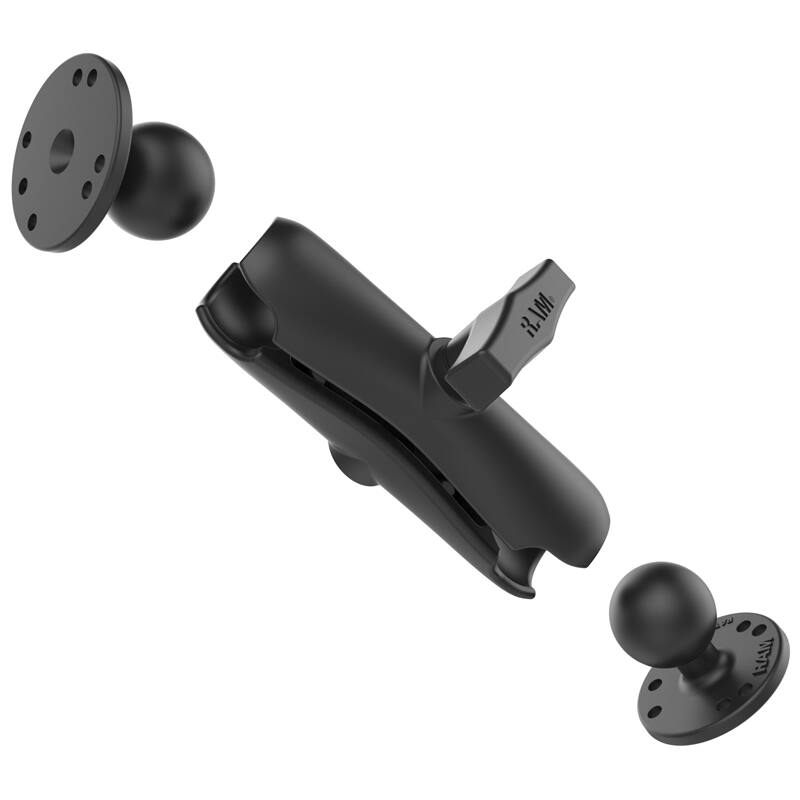

* Includes two round ball bases and C size medium length double socket arm
* RAM ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty


The RAM-101U consists of a double socket arm and two 2.5" diameter round bases that contain the universal 3 and 4 hole AMPS patterns.

The mount is designed with a 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

The hole pattern found on the round base adapter will connect to many RAM cradles, including all iPad cradles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.

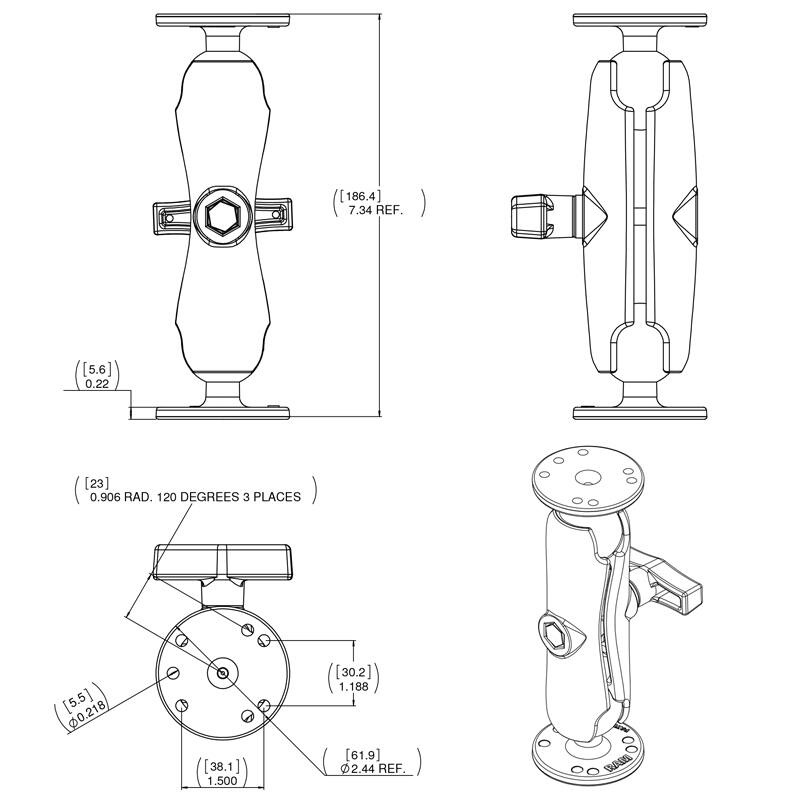

Specs & Features

Overall Length:
187 mm (7.35")

Arm Length:
Overall Length:
143mm (5.625")
Socket-To-Socket Length:
114mm (4.5")

Weight Capacity:
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)

Hole Patterns:
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)

Material:
Powder Coated Marine Grade Aluminium

Ball Size:
1.5" Rubber Ball Size

Weight:
499 grams (1.1 lbs.)

Components:

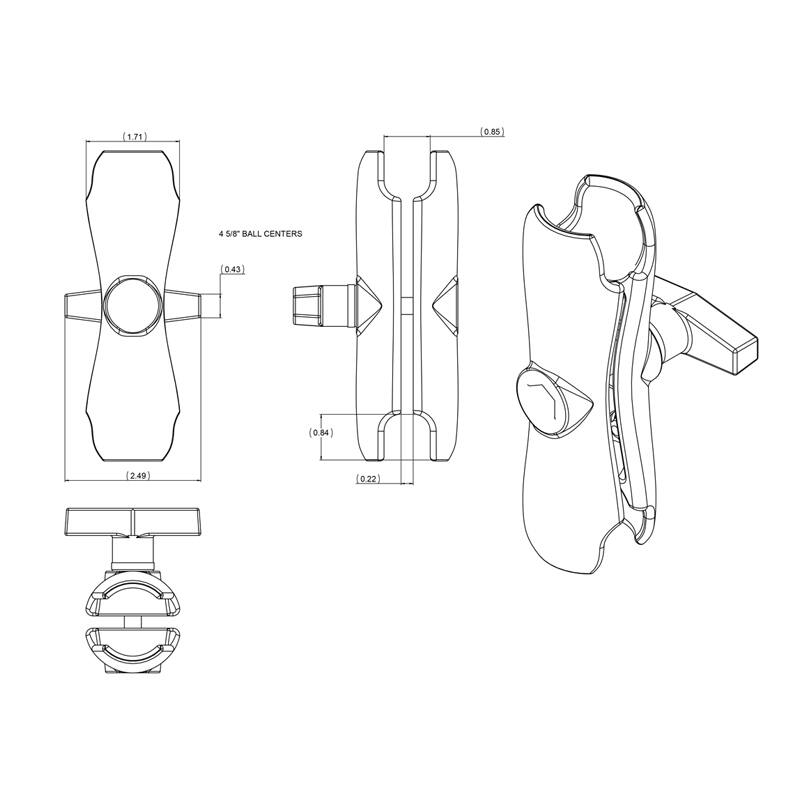

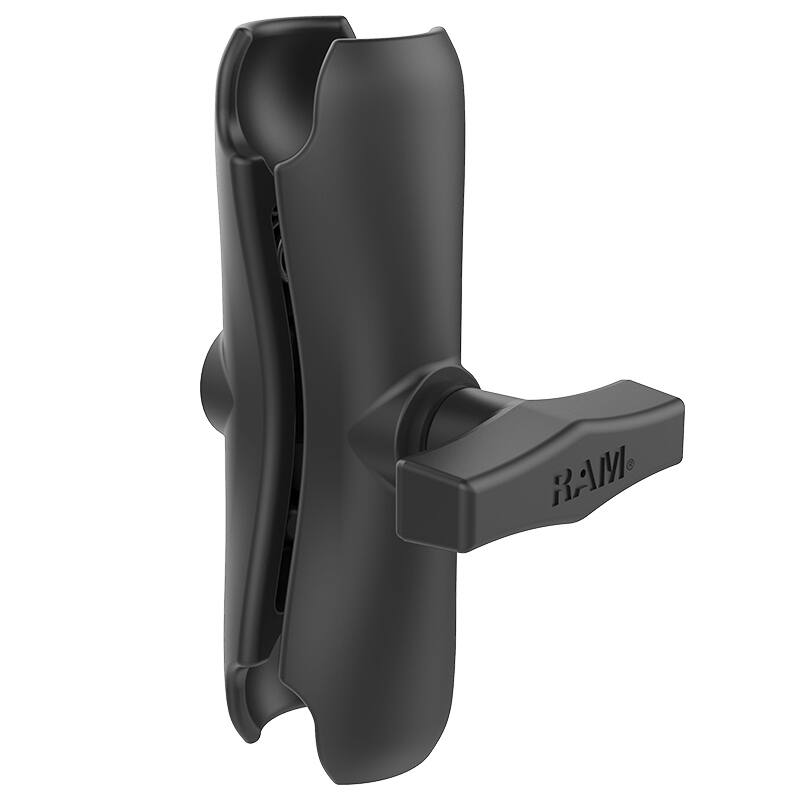

RAM-201U - RAM Medium Length Double Socket Arm for C Size 1.5" Balls

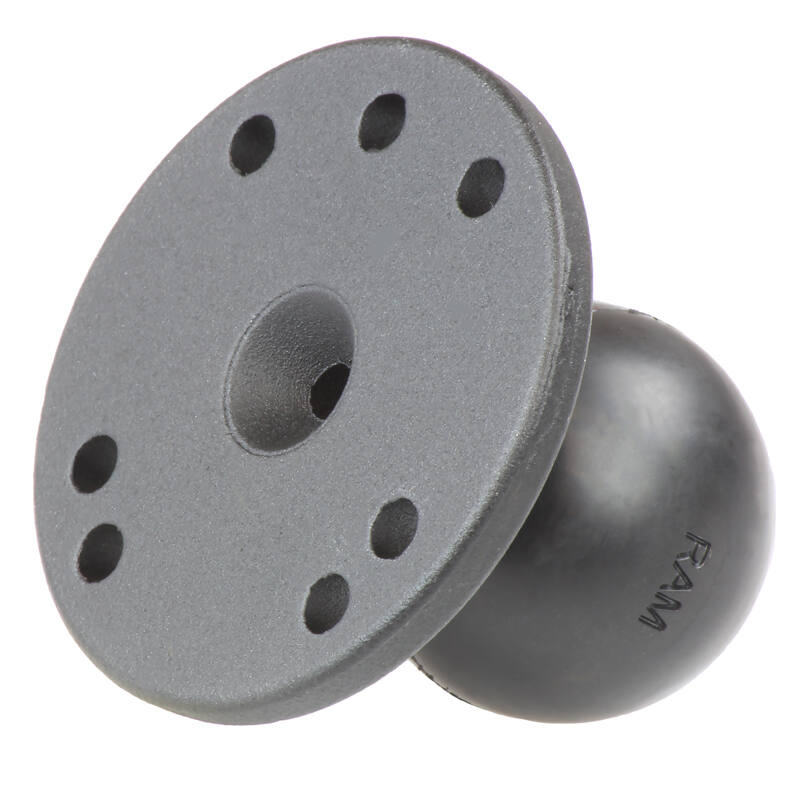

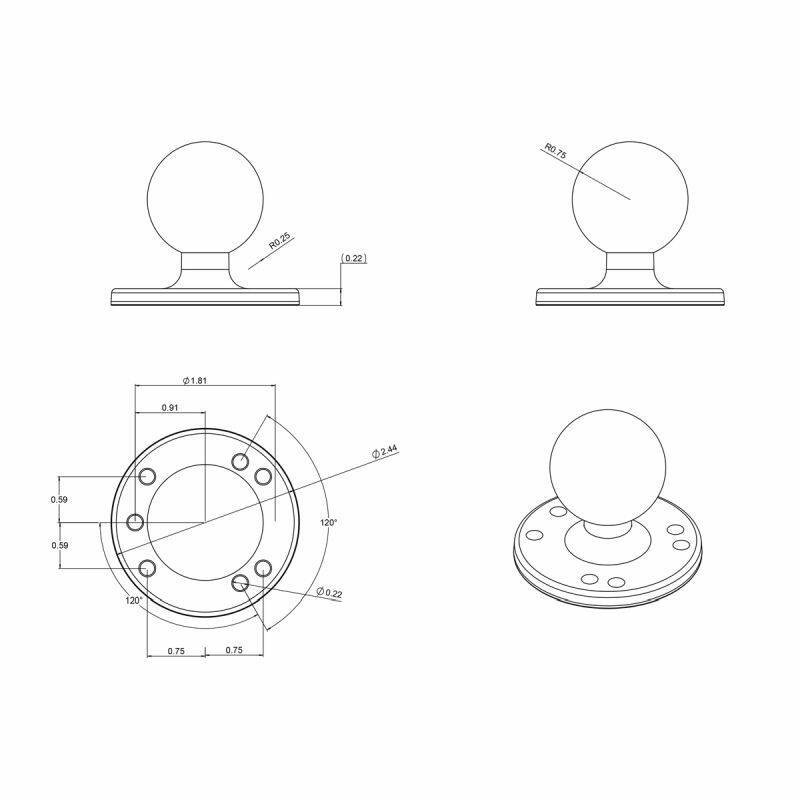

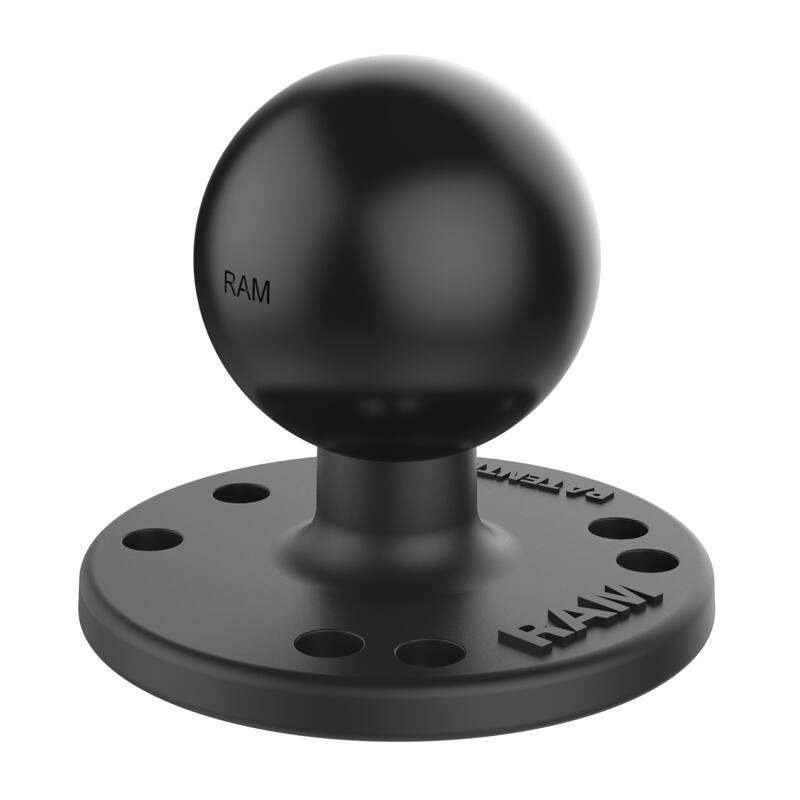

RAM-202U - RAM 2.5" Round Plate with AMPs Hole Pattern & C Size 1.5" Ball
