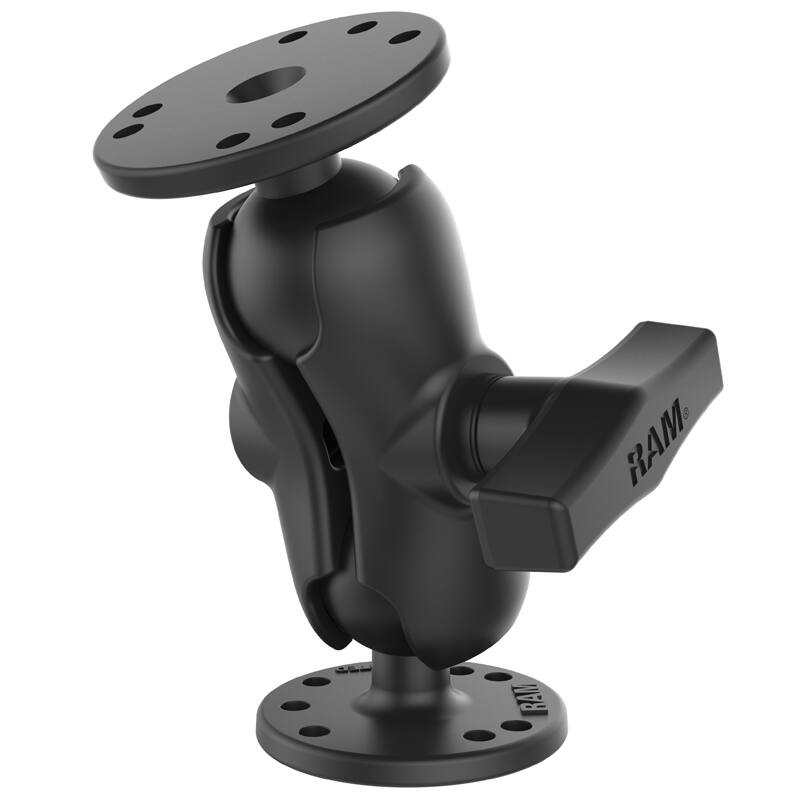

RAM-101U-B RAM® Double Ball Mount with Two Round Plates – C Size Short

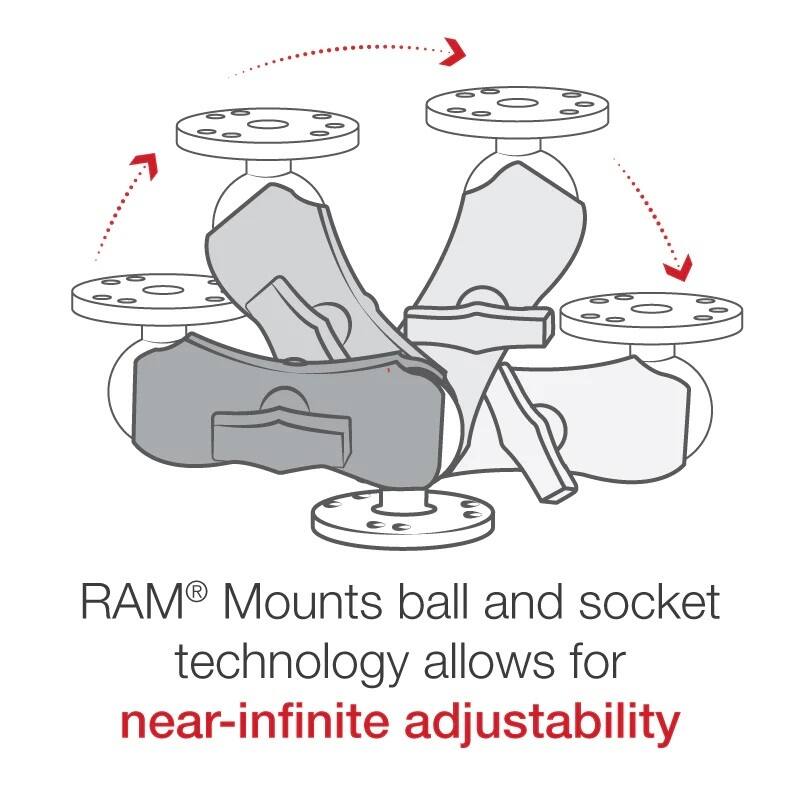

The RAM-101U-B is a drill-down mounting solution built from a short C Series double socket arm and two round AMPS base plates, giving a compact, near-infinitely adjustable mount for device holders and cradles.
Key Features
Drill-down mounting solution; choose either round plate, both featuring the universal AMPS hole pattern
Includes two round ball bases and a short C Series double socket arm for a low-profile fit
Powder-coated, marine-grade aluminium construction
Backed by RAM Mounts' lifetime warranty
Works With
Either round plate bolts down using the AMPS hole pattern, while the matching 1.5" ball connects to any RAM® cradle or holder built for a C Size (1.5") ball, including many third-party AMPS holders.

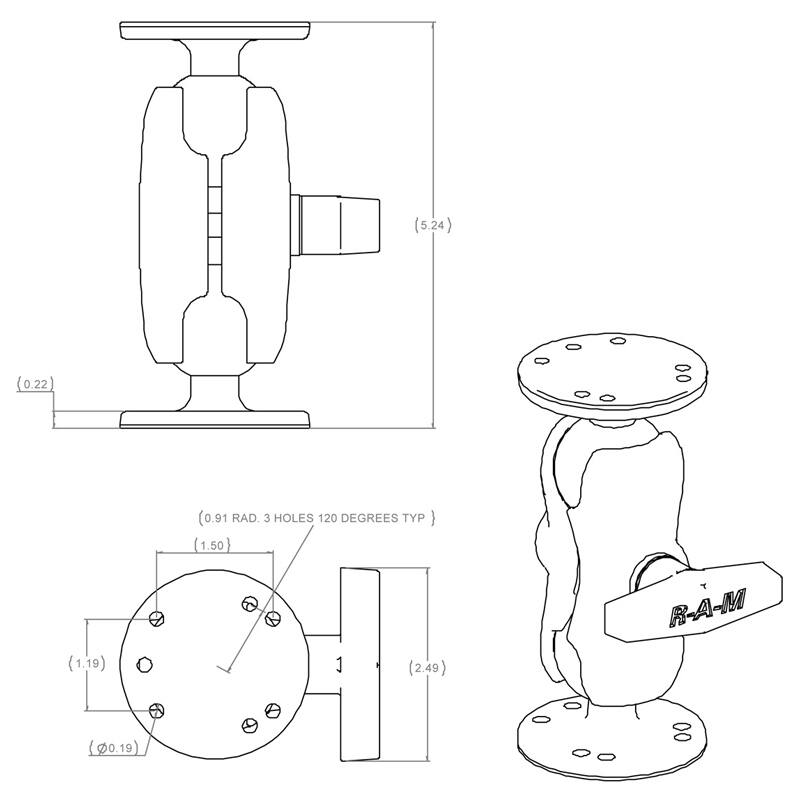

Dimensions & Specifications
Overall height: 132.7mm (5.23")

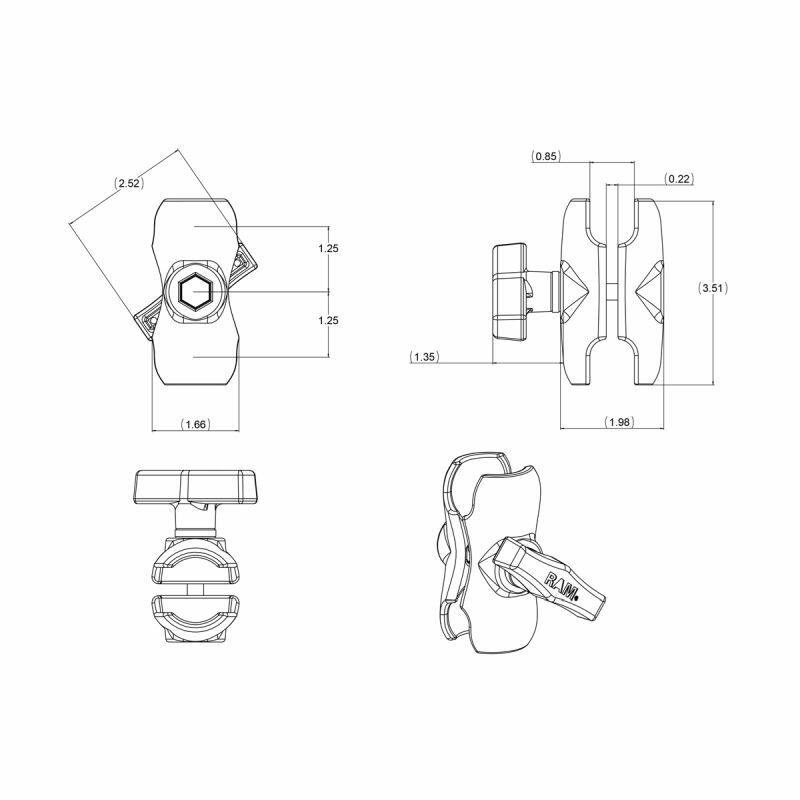

Arm length: 90mm (3.56") overall, 63.5mm (2.5") socket-to-socket
Load rating: 1.814kg (4 lbs) standard use, 1.36kg (3 lbs) heavy-duty use
What's Included

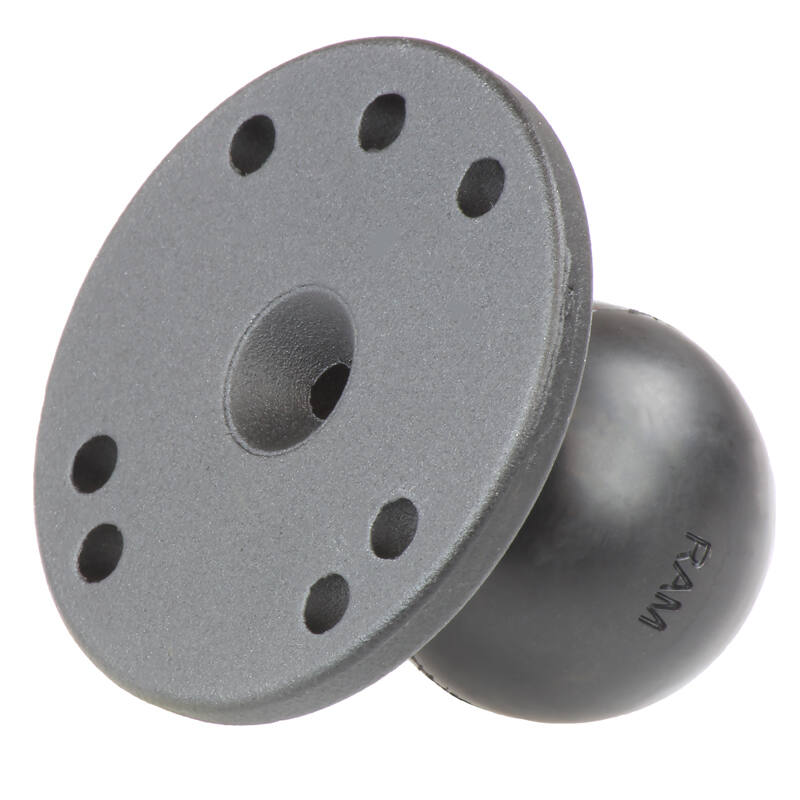

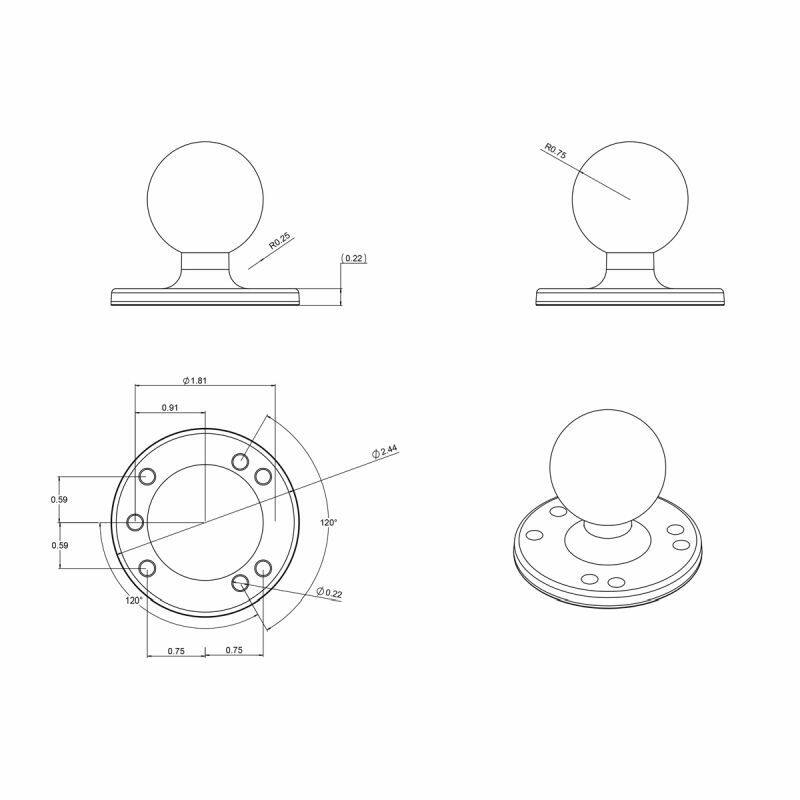

RAM-202U round base with 1.5" ball (x2)

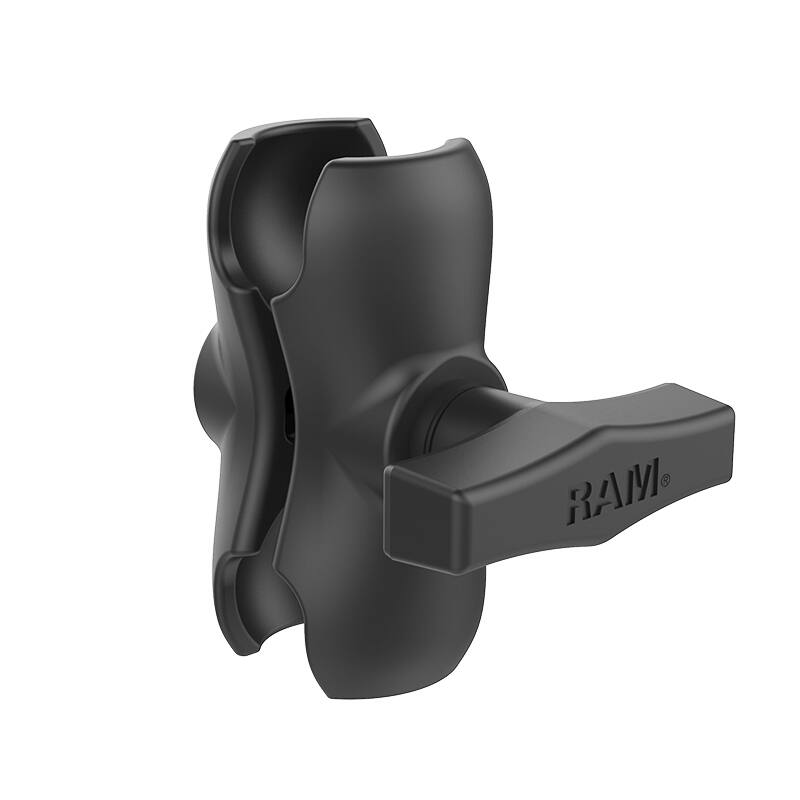

RAM-201U-B short double socket arm for C Size 1.5" balls
FAQs
Q: Does this include the hardware to bolt it to a surface? A: No. Because these mount to such a wide range of surfaces, surface-mount hardware isn't included; if you're pairing it with a RAM® holder, that holder comes with its own ball-plate hardware.
