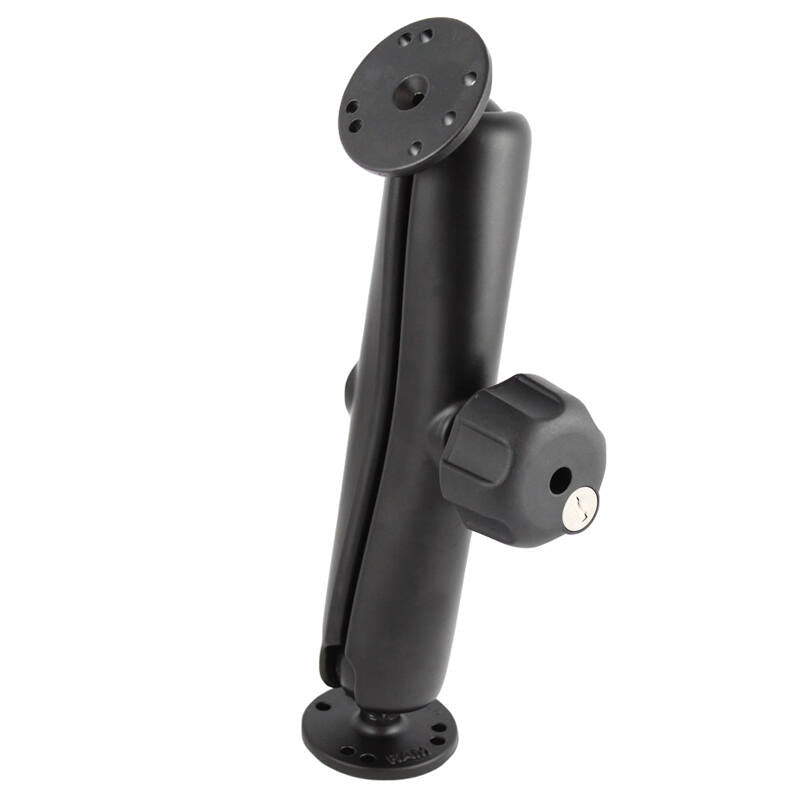

RAM-101U-DL RAM® Double Ball Mount with Key Lock Knob
Features
* Drill-down mounting solution; choose either round plate featuring the AMPS hole pattern for attachment to compatible device holders
* Includes two round ball bases and C size long length double socket arm; ball and socket technology allows for near-infinite adjustability
* Includes the RAM locking knob which allows you to disengage the screwing of the knob.
* You can lock it in place and feel safe that your mounted device will stay right where you left it.
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
This consists of a LONG (232mm) double socket arm, and two (2) round 2.5" diameter round basse with the universal AMPS hole pattern. Rubber ball, socket technology dampens shock and vibration, as well as allows for almost infinite adjustment, perfect viewing angles.
It includes the RAM locking knob which includes a brass 5/16"-18 thread, for 1.5" socket arms; this allowing you to disengage the screwing of the knob. Once you have set your mount in the location you need, you can lock it in place and feel safe that your mounted device will stay right where you left it.
Specs & Features
Hardware Included
(2) Keys
Hole Pattern
4-Hole AMPS: 30mm x 38mm (1.181" x 1.496")
3-Hole 120-Degree: 46.0mm (1.812") Diameter

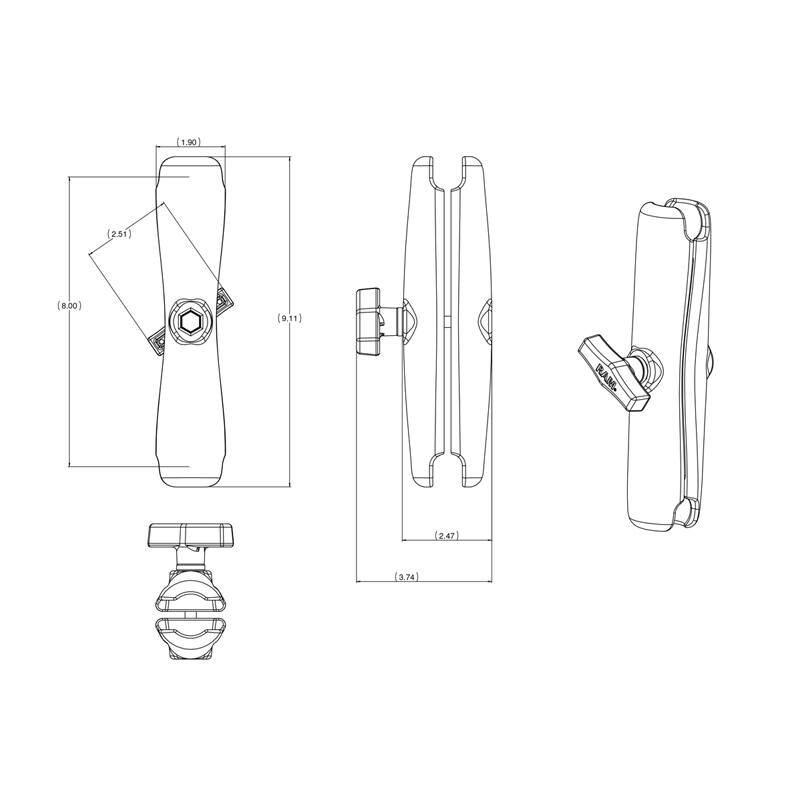

Arm Dimensions:
Overall Length: 232mm (9.125" )
Socket-To-Socket Length: 203mm (8")
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1.5" "C" size Rubber Ball Size
Weight:
1.0kg (2.21 lbs.)
Weight Capacity
Standard Use: 1.81kg (4 lbs)
Heavy-Duty Use: 1.36kg (3 lbs)
COMPONENTS:

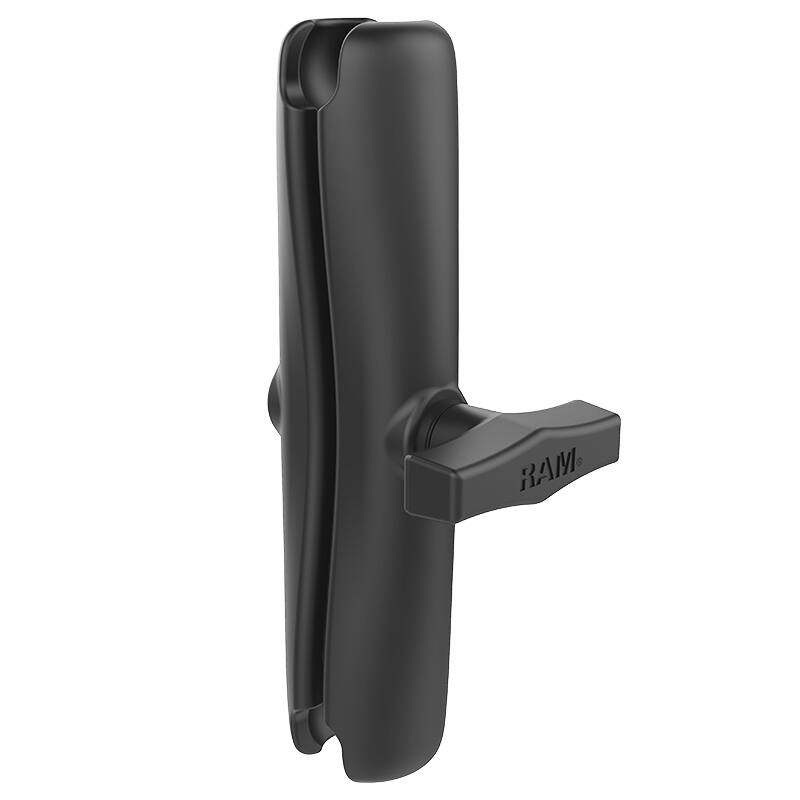

RAM-201U-D Long Double Socket Arm for 1.5" Balls
RAM-202U 2.5" / 63mm DIA. BASE 1.5" Ball (x2)

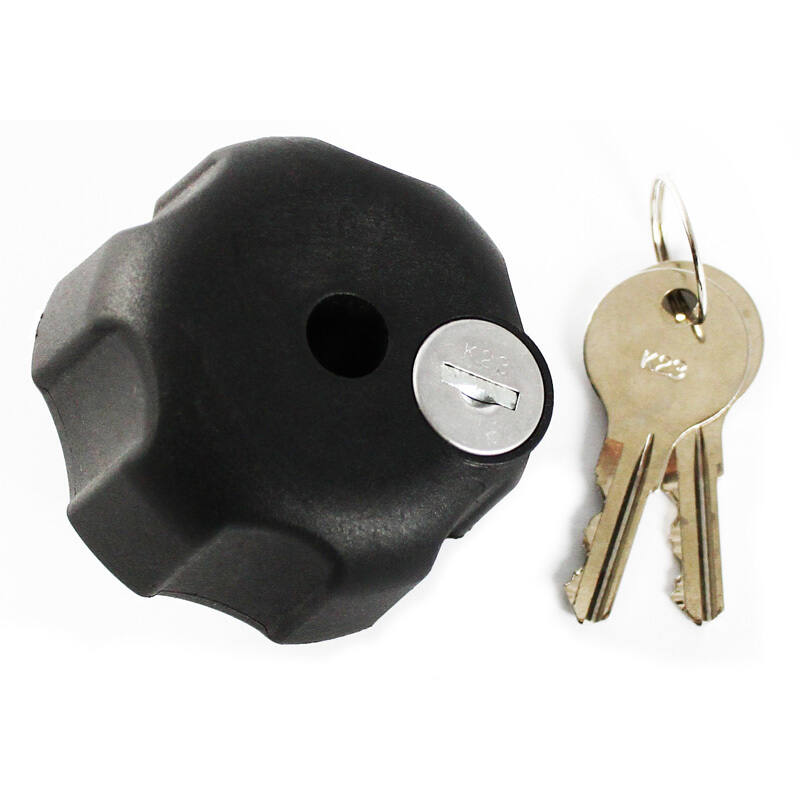

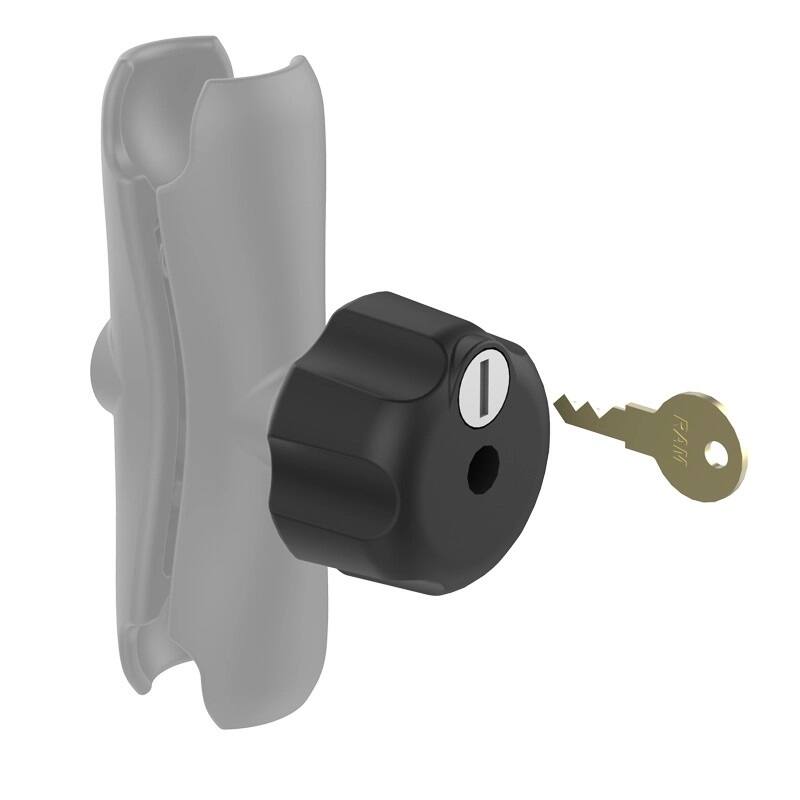

RAM-KNOB5LU RAM Key Lock Knob with Brass Insert for C Size Socket Arms
