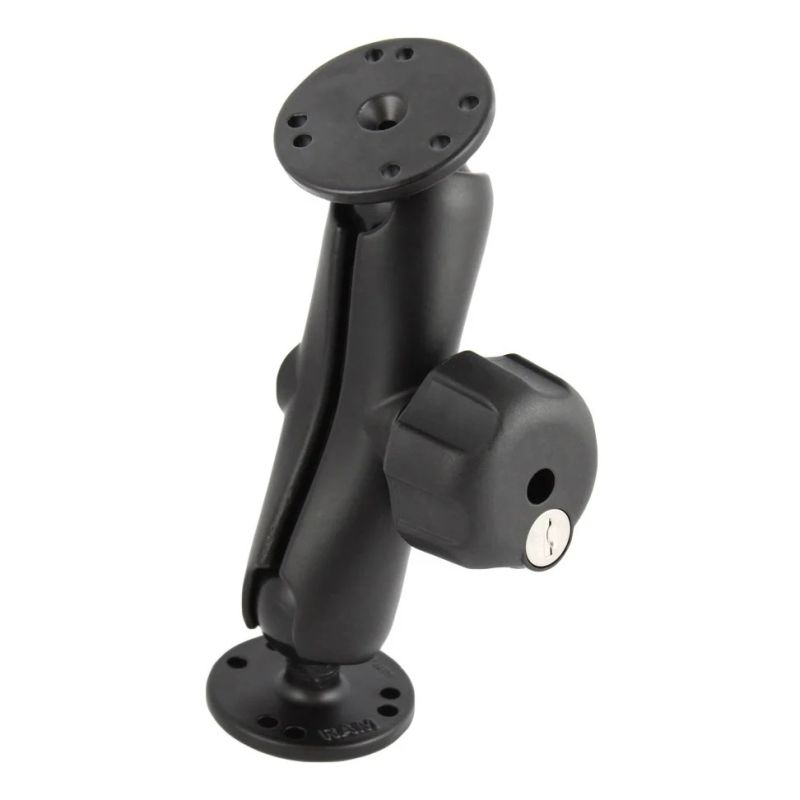

RAM Double Ball Mount with 2 Round Base Plates - C Series - Locking - Medium

RAM-101U-L RAM® Double Ball Mount with Key Lock Knob - Medium

Features

* Drill-down mounting solution; choose either round plate featuring the AMPS hole pattern for attachment to compatible device holders
* Includes two round ball bases and C size medium length double socket arm; ball and socket technology allows for near-infinite adjust-ability
* Includes the RAM locking knob which allows you to disengage the screwing of the knob.
* You can lock it in place and feel safe that your mounted device will stay right where you left it.
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

This consists of a medium (143mm) double socket arm, and two (2) round 2.5" diameter round base with the universal AMPS hole pattern. Rubber ball, socket technology dampens shock and vibration, as well as allows for almost infinite adjustment, perfect viewing angles.

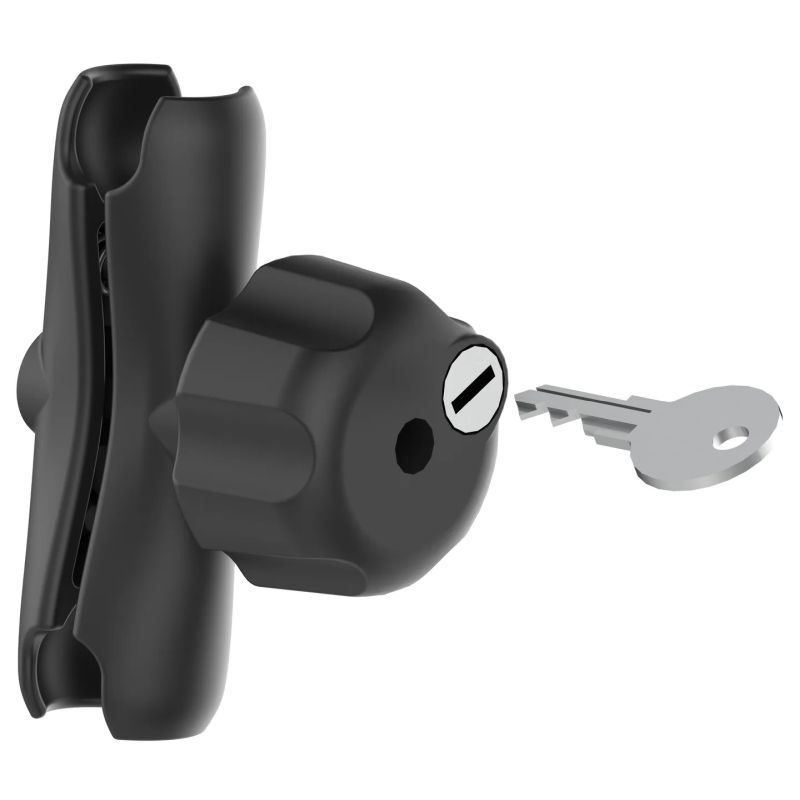

It includes the The RAM locking knob, includes a brass 5/16"-18 thread, for 1.5" socket arms; this allowing you to disengage the screwing of the knob. Once you have set your mount in the location you need, you can lock it in place and feel safe that your mounted device will stay right where you left it.

Specs & Features

Hardware Included
(2) Keys

Hole Pattern
4-Hole AMPS: 30mm x 38mm / 1.181" x 1.496"
3-Hole 120-Degree: 46.0mm / 1.812" Diameter

Dimensions:
Overall Length: 143mm / 5.625"
Socket-To-Socket Length: 114mm / 4.5"

Material:
Powder Coated Marine Grade Aluminium

Ball Size:
1.5" "C" size Rubber Ball Size

Weight:
585 grams / 1.29lbs

Weight Capacity
Standard Use: 1.81kg / 4 lbs
Heavy-Duty Use: 1.36kg / 3 lbs

COMPONENTS:
RAM-201U Double Socket Arm for 1.5" Balls
RAM-202U 2.5" / 63mm DIA. BASE 1.5" Ball (x2)

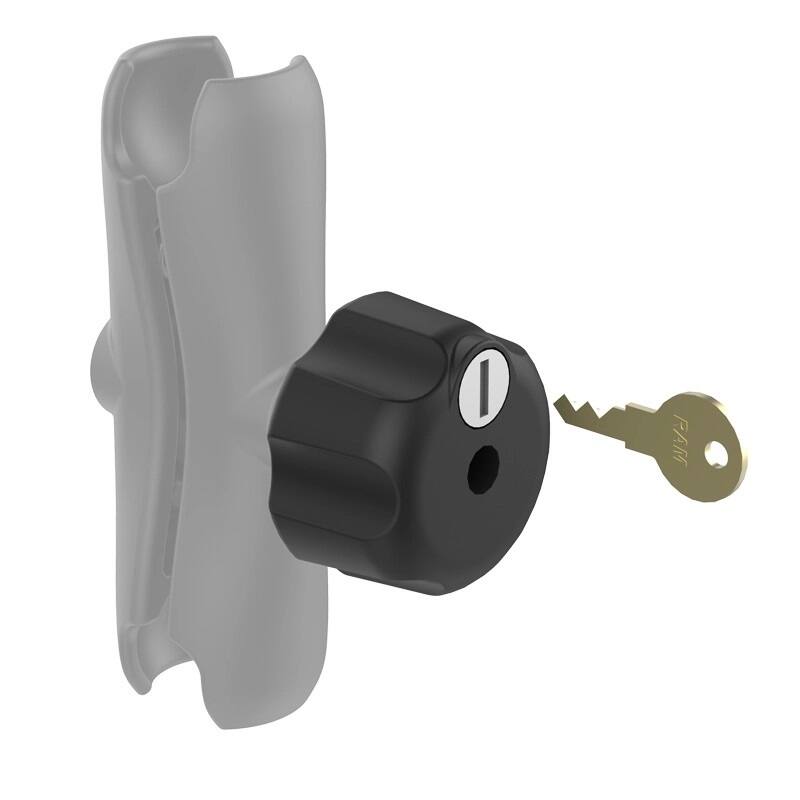

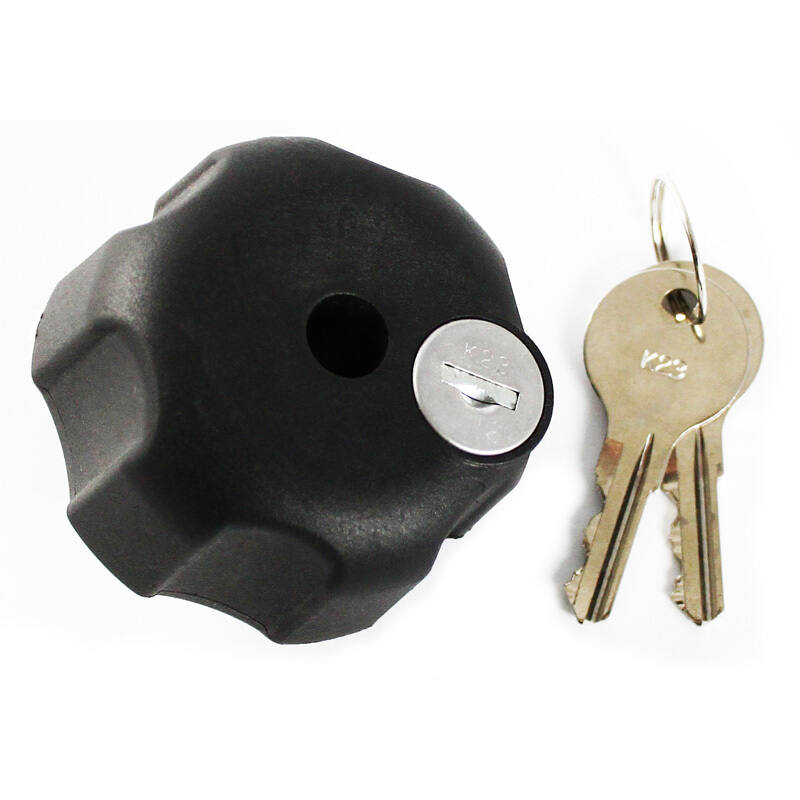

RAM-KNOB5LU RAM Key Lock Knob with Brass Insert for C Size Socket Arms
