RAM Mounts

RAM Double Ball Mount with 2 Round Base Plates - D Series (2.25" Ball) - Short

RAM Double Ball Mount with 2 Round Base Plates - D Series (2.25" Ball) - Short

SKU:RAM-D-101U-C-v

Regular price $276.04 NZD
Regular price Sale price $276.04 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

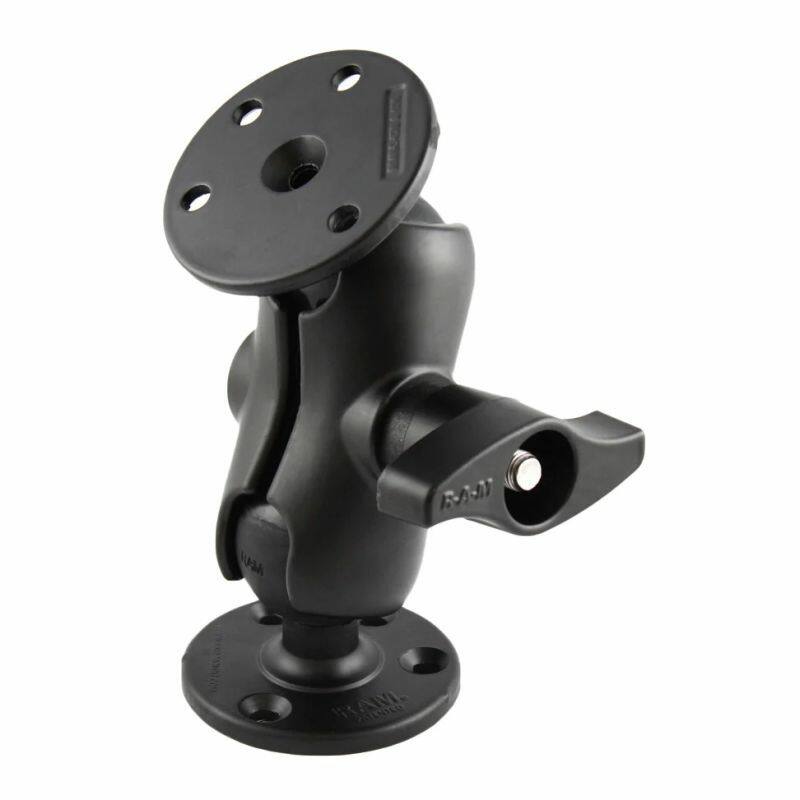

RAM-D-101U-C RAM® Double Ball Mount with Two Large Round Plates - D Size Short

Features

* Drill-down mounting solution; choose either round plate featuring the AMPS hole pattern for attachment to compatible device holders
* Includes two round ball bases and D size short length double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty



The RAM-D-101U-C consists of two 93.5mm (3.68") diameter round base and SHORT length (129mm) double socket arm. The round bases have pre-drilled holes, including two holes at 180 degrees and three holes at 120 degrees. Designed into the mount is a 2.25" (57mm) diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm. Rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles.


Specs & Features

Arm Dimensions:
Overall Length:
128.6mm (5.0625")
Socket-To-Socket Length:
87.0mm (3.1875")


Weight Capacity
Standard Use: 2.72kg (6 lbs)
Heavy-Duty Use: 2.26kg (5 lbs)


Plate Size
93.5mm (3.68")

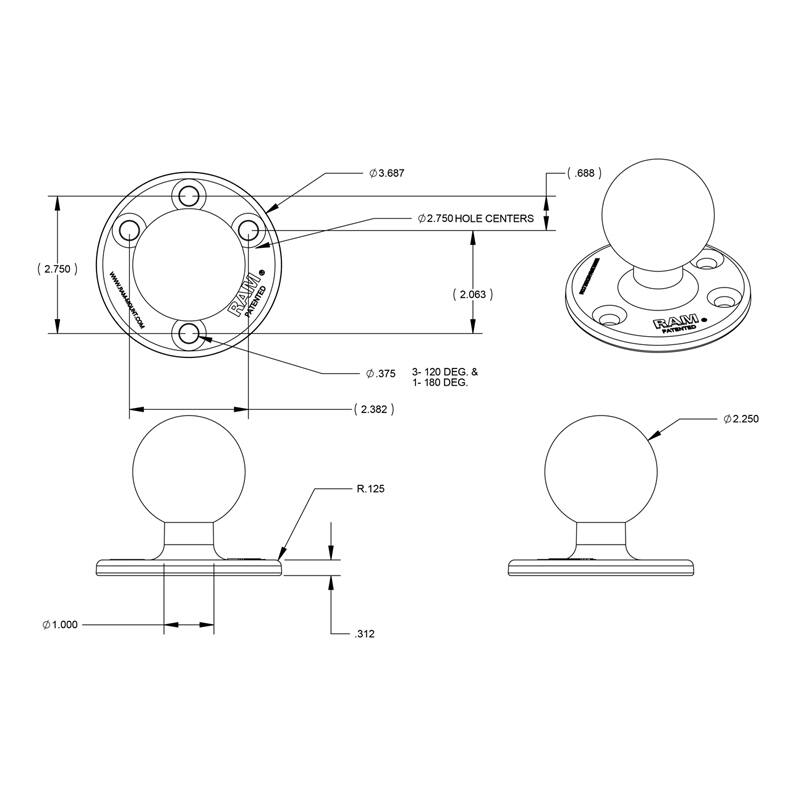

Hole Pattern (see drawing)
2 hole - 180 degrees
3 holes - 120 degrees

Material:
Powder Coated Marine Grade Aluminium

Ball Size:
2.25" (57mm) Rubber Ball "D" Size

Weight:
1.36kg (3.0 lbs.)


Components:

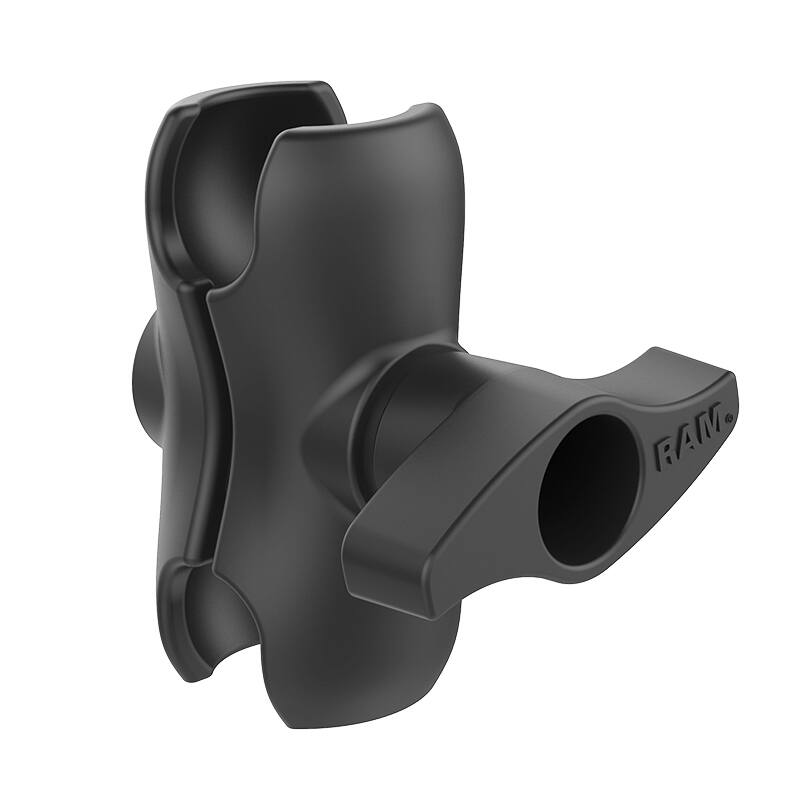

RAM-D-201U-C - short double socket arm

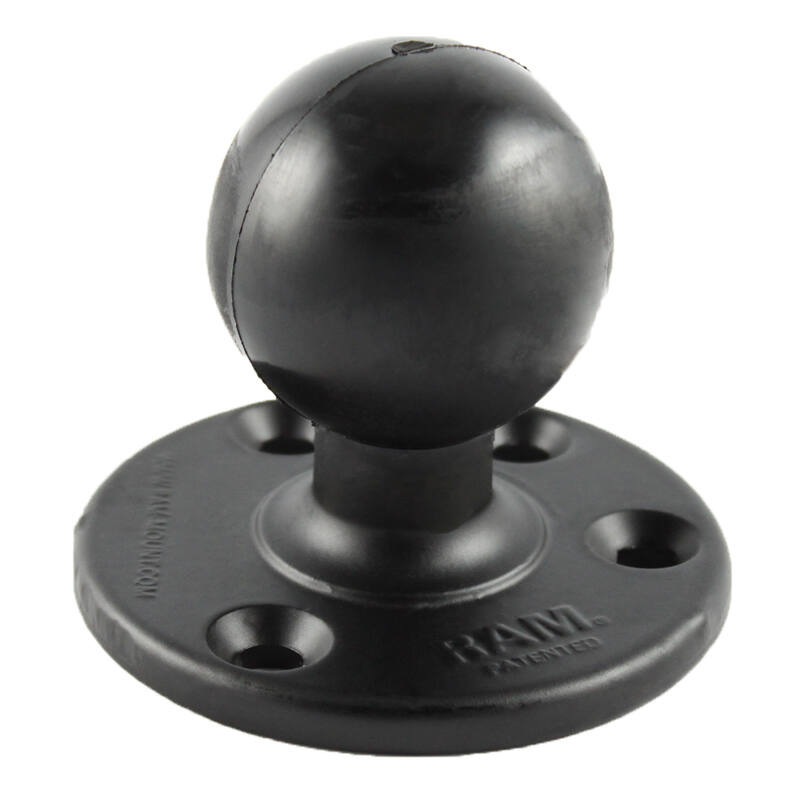

RAM-D-202U - 3.68" / 93.5mm round base (x2)
