RAM Double Ball Mount with 2 Round Base Plates - E Series (3.68" Ball)

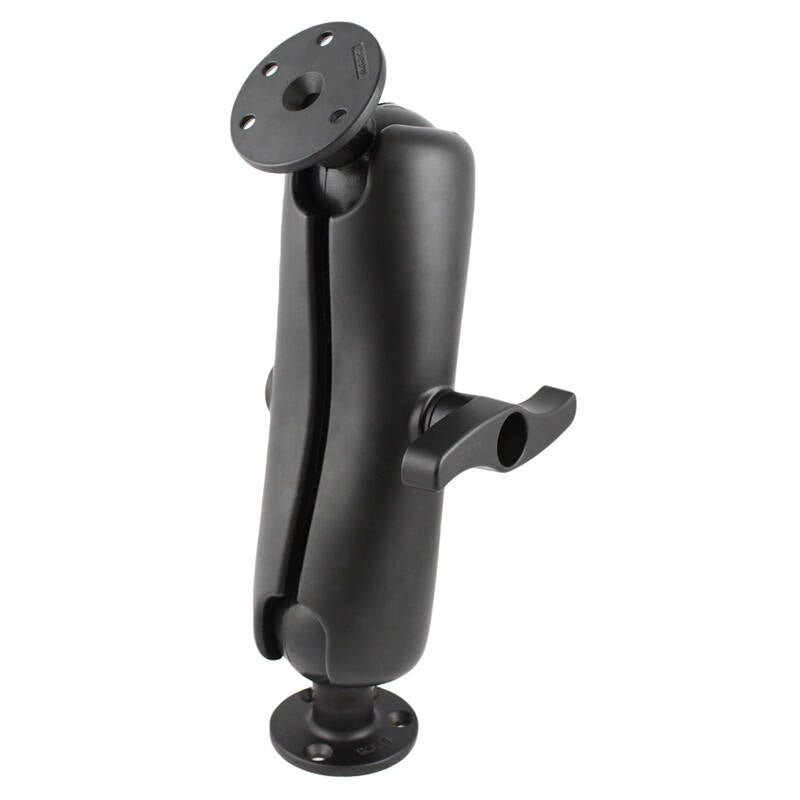

RAM-E-101U RAM® Double Ball Mount with Two Large Round Plates

The RAM-E-101U pairs two 93.5mm (3.69") round drill-down bases with a medium-length E Series double socket arm. Built from RAM's largest, strongest components, it's designed for big loads in marine, industrial and military settings where a smaller ball just won't hold.

Key Features

• Two 93.5mm (3.69") round drill-down bases, each with pre-drilled mounting holes
• Medium-length E Series double socket arm (320.7mm overall) joins the two bases
• Large E size 3.38" (85.5mm) rubber balls at both socket ends
• Ball-and-socket design allows near-infinite adjustment and positioning
• Powder-coated, marine-grade aluminium construction
• Backed by RAM Mounts' lifetime warranty

Works With

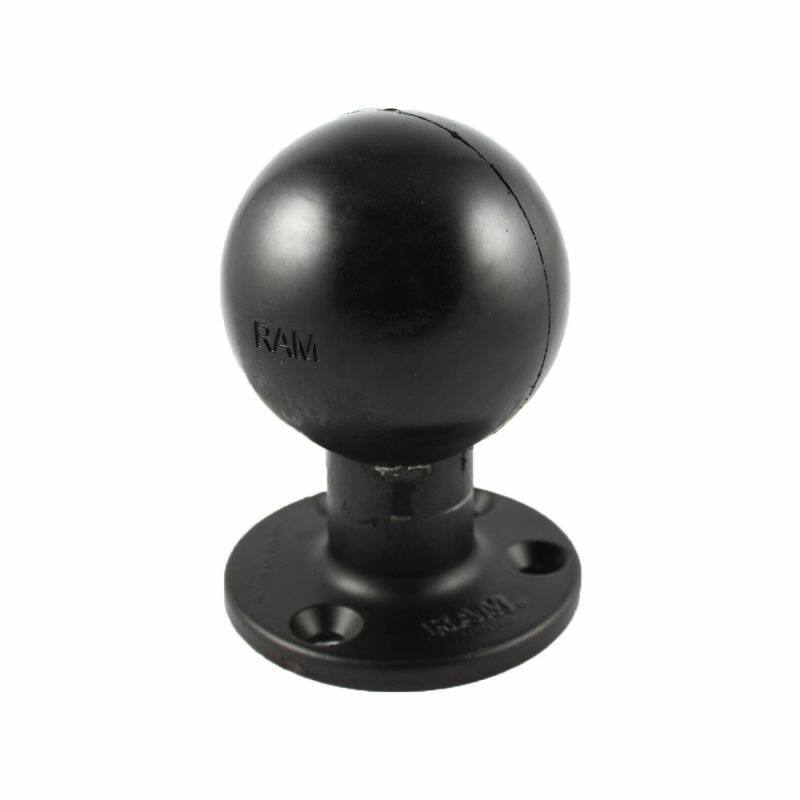

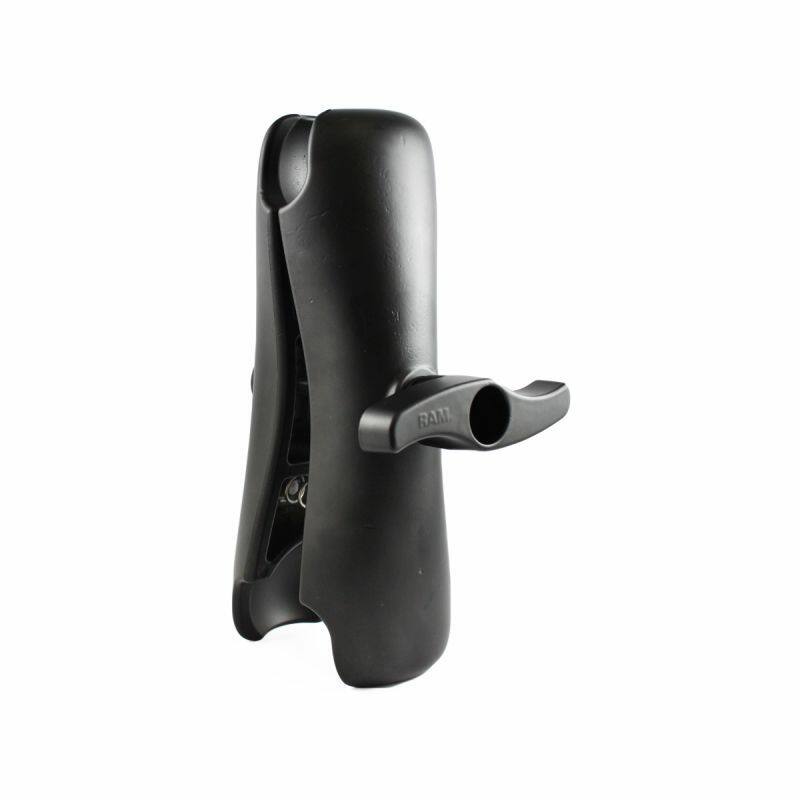

Either end bolts straight to a flat surface; this complete kit is built from a RAM-E-202U base on each end and a RAM-E-201U arm in between, so it pairs with any other E size RAM® component if you want to extend or customise the setup.

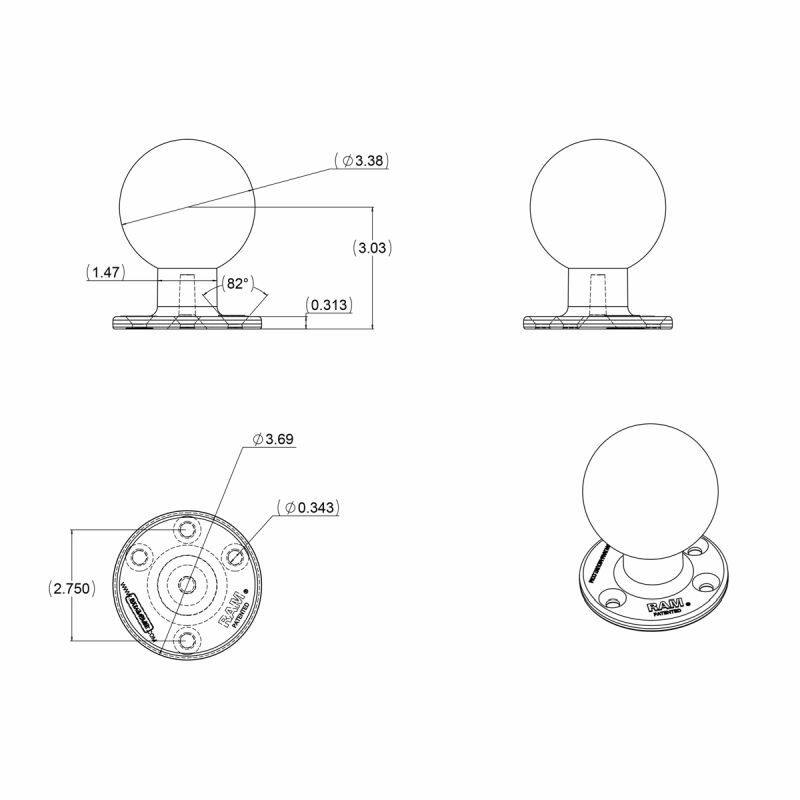

Dimensions & Specifications

• Arm overall length: 320.7mm (12.625")
• Arm socket-to-socket length: 250.8mm (9.875")
• Round plate diameter: 93.5mm (3.69") each
• Mounting holes: two at 180 degrees, three at 120 degrees, on each plate
• Ball size: E Size 3.38" (85.5mm) rubber ball
• Material: powder-coated marine-grade aluminium
• Weight: 4.77kg (10.51 lb)
• Weight capacity: 6.8kg (15 lb) standard use, 4.53kg (10 lb) heavy-duty use

FAQs

Does it include mounting hardware?
No. These bases are used on so many different surfaces that fixings are left to you; a local hardware store can match the right screws or bolts to your application.

How fast does it ship?
If it's shown in stock here, it ships from our Auckland warehouse, normally within one business day. If it's shown as out of stock, get in touch and we may be able to get it in for you.
