RAM-B-101-DEX2U RAM® Double Ball Mount with AMPS Plate
Features
* Drill-down mounting solution - the round plate featuring the AMPS hole pattern
* Rectangular plate has 4 Hole AMPs pattern
* Includes B size medium length double socket arm
* Ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

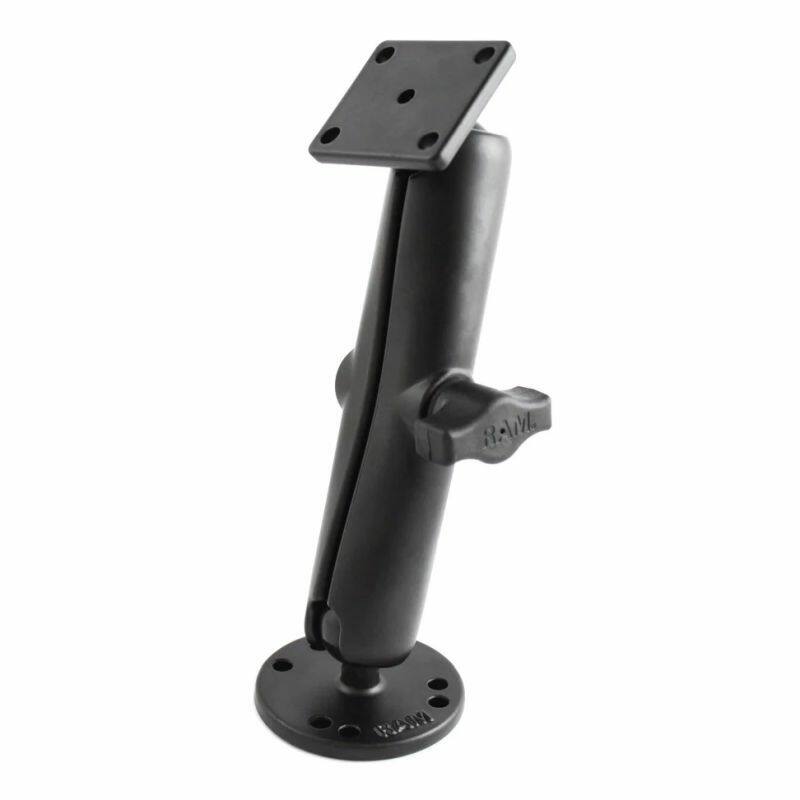

The RAM-B-101-DEX2U consists of a long length B-size arm a 2.5" diameter round plate with universal AMPS hole pattern and a rectangular plate with universal AMPS hole pattern.
Specs & Features
Overall Height:
18.57cm / 7.3125"
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Hole Pattern (Rectangular Plate)
4 Hole AMPs
1.181" x 1.496" (30mm x 38mm)
Hole Pattern (Round Plate)
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
Material:
Powder Coated Marine Grade Aluminium
Ball Size
1" Rubber "B" Ball Size
Weight:
340 grams / 0.75 lbs.
Weight Capacity
Standard Use: 907 grams (2 lbs)
Heavy-Duty Use: 454 grams (1 lb)
Components:
RAM-B-201U-C - long double socket arm

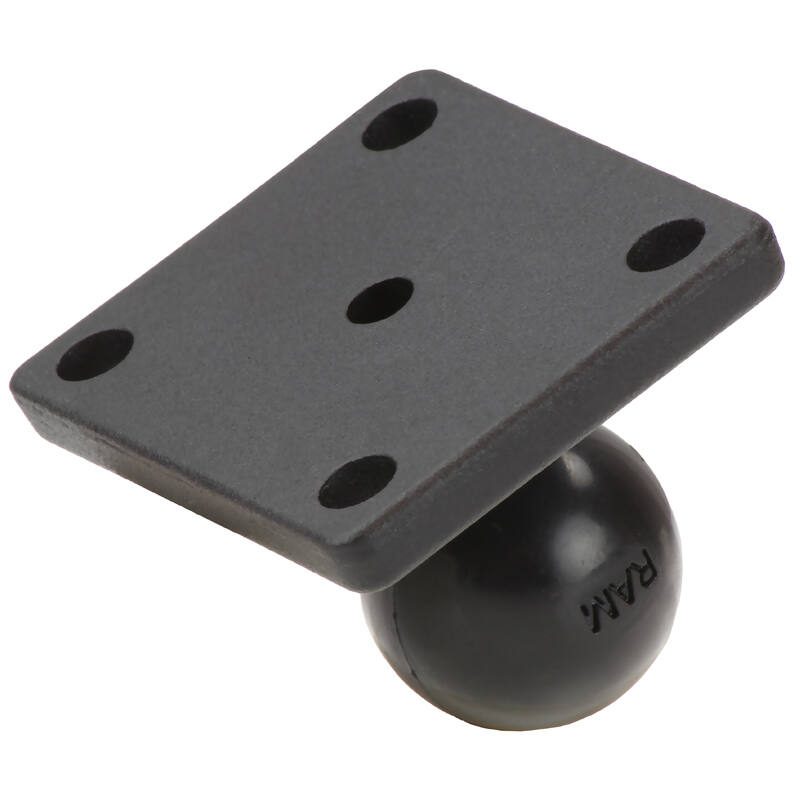

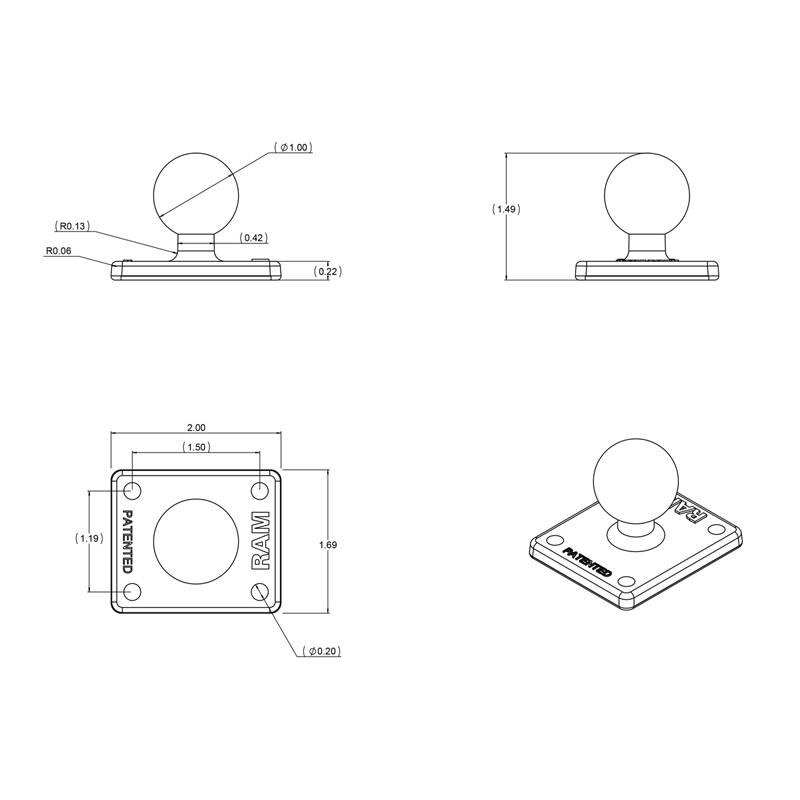

RAM-B-347U - RAM 50 x 43mm" Base with 1" Ball that Contains the Universal AMPs Hole Pattern
RAM-B-202U - round base with 1" ball
YouTube:
https://youtu.be/4IpgFq-mGMw
