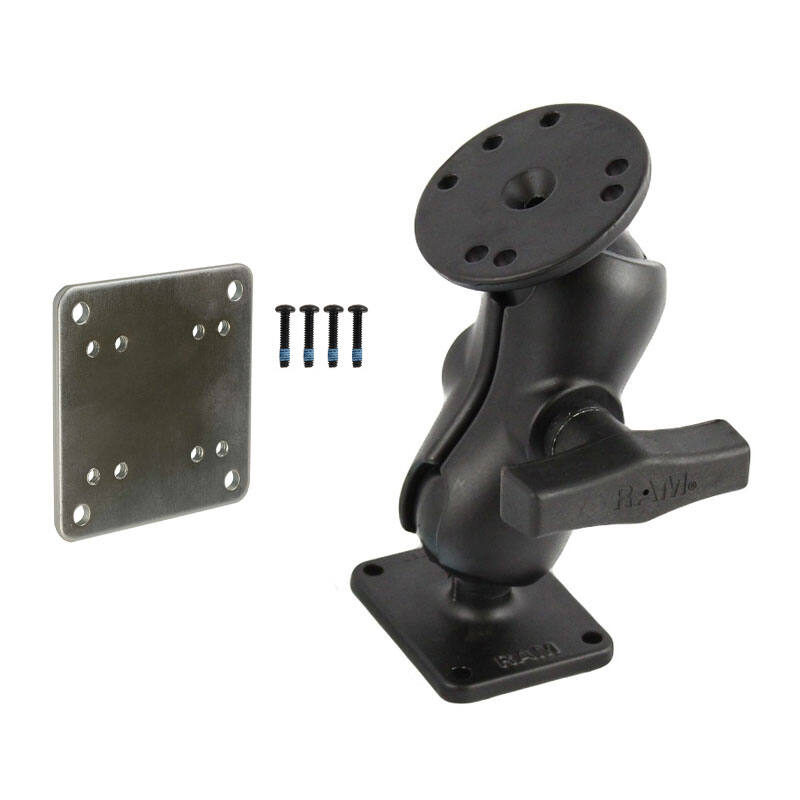

RAM-101U-B-XAT1 RAM® Drill-Down Dashboard Mount with Backing Plate - C Size Short
Features
* Drill-down double ball mount with 2.10" x 2.60" steel backing plate that connects to RAM® components containing the universal AMPS hole pattern
* Includes C size 1.5" RAM® rubber ball and short length double socket arm
* RAM ball and socket technology allows for near-infinite adjustability
* Components made of powder-coated, marine-grade aluminum, and steel for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
This powder coated marine grade aluminium mount, consists of a SHORT double socket arm mount, one round 63mm (2.5") diameter round base with the universal AMPS hole pattern and one 50.8mm x 63.5mm (2 x 2.5") rectangular base. Rubber ball, socket technology dampens shock and vibration, as well as allows for almost infinite adjustment, perfect viewing angles. For most applications, mount will support up to ten pounds.
HARDWARE INCLUDED
(1) 3" x 3" Steel Backing Plate
(4) #10-24 x 1" Thread Locking Screws
PRODUCT DIMENSIONS
Arm Length:
90 mm (3.56")
Arm SOCKET-TO-SOCKET LENGTH
63.5 mm (2.5")
HOLE PATTERNS:
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
Rectangular Plate: 38mm x 50.8mm (1.5" x 2")
BALL/SOCKET SIZE
C Size (1.5")
Weight Capacity
Standard Use: 1.814kg (4 lbs)
Heavy-Duty Use: 1.36kg (3 lbs)
MATERIALS
Marine-grade aluminium
Steel
WEIGHT
0.558 kg (1.23 lbs.)
Components:

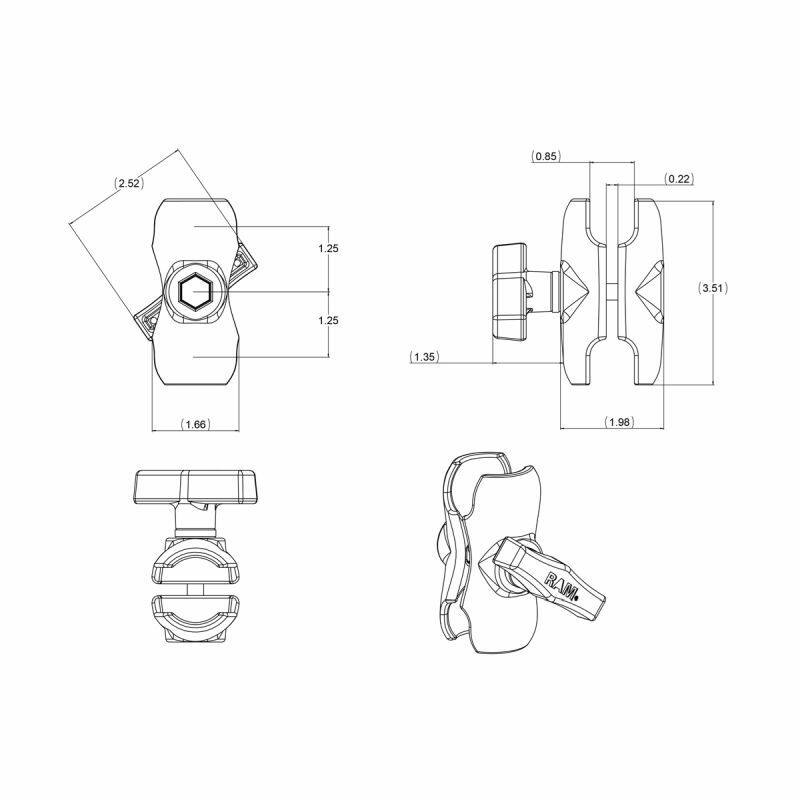

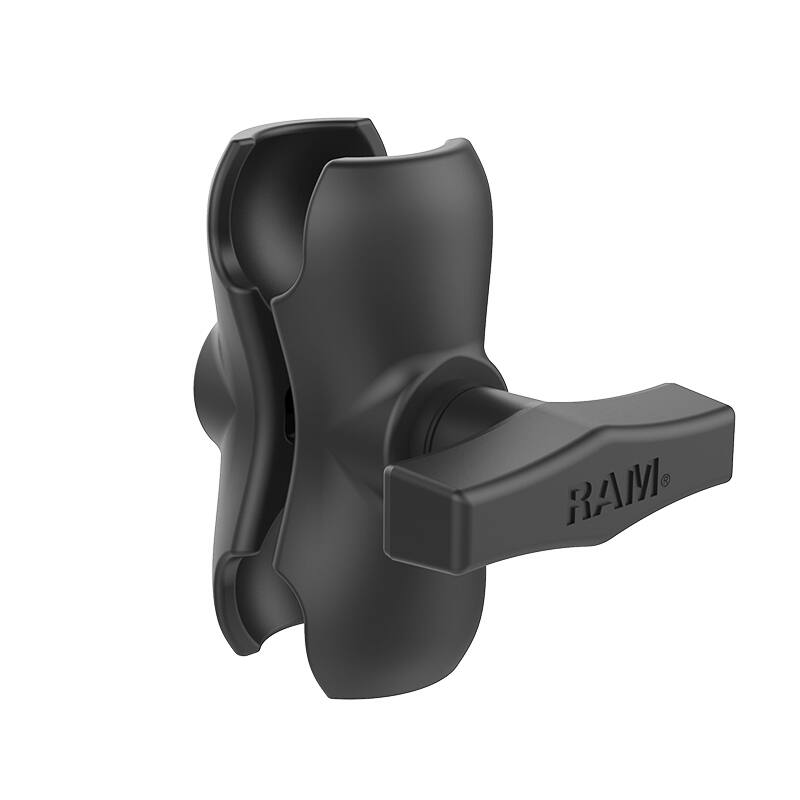

RAM-201U-B short 1.5" (C-Series) Alloy Arm
RAM-202U 2.5" / 63mm DIA. BASE 1.5" Ball

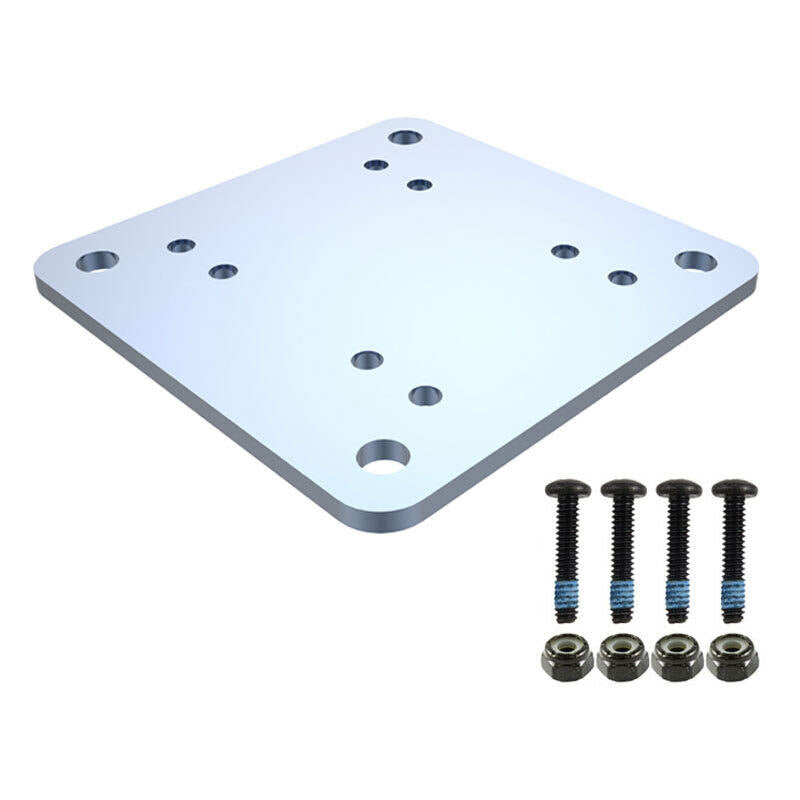

RAM-202-225BU Backing Plate Adapter

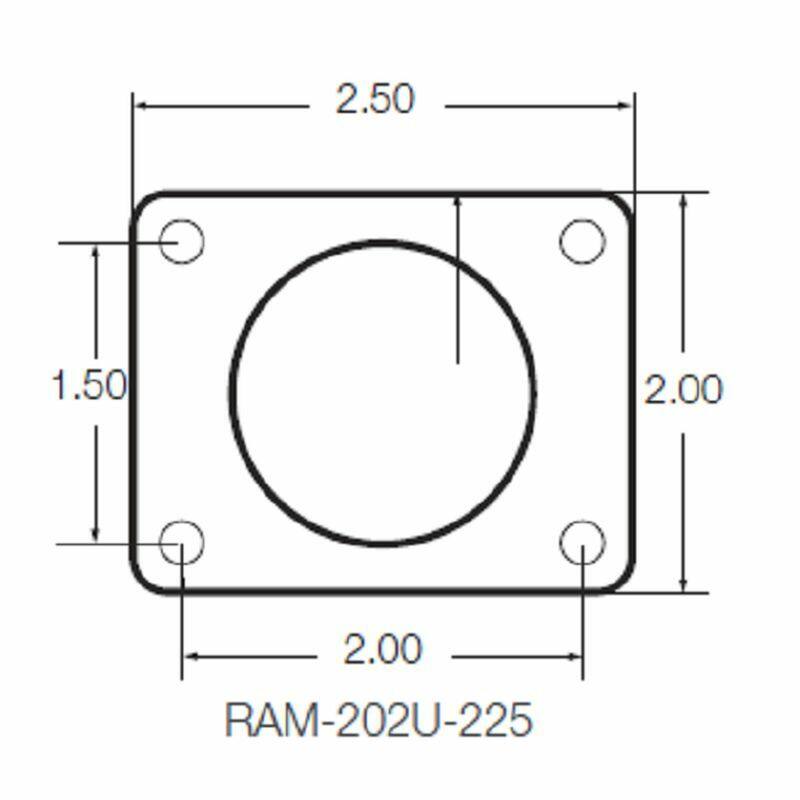

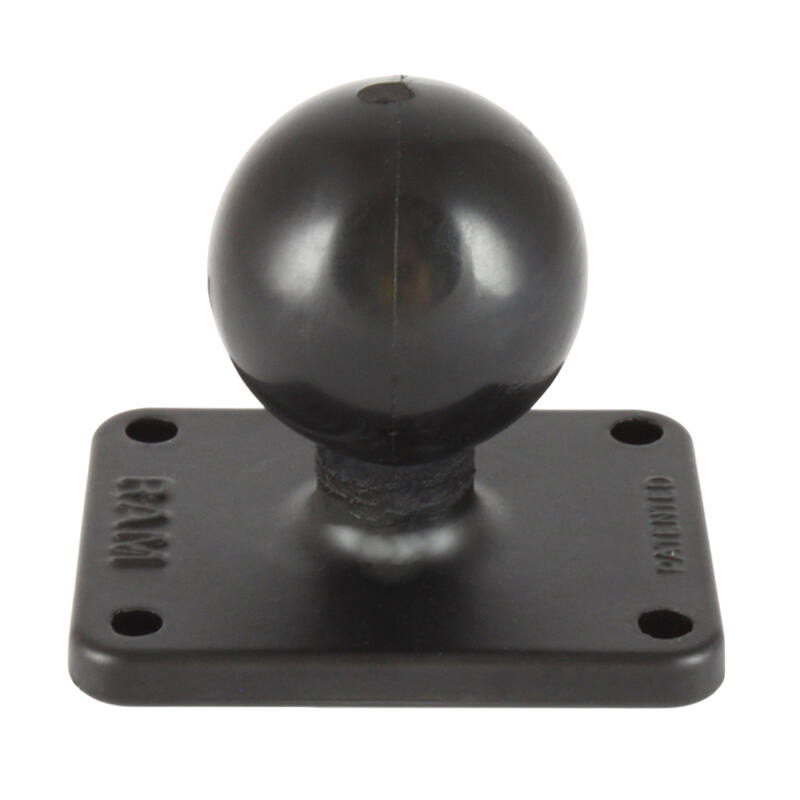

RAM-202U-225 C Size 1.5" Ball on Rectangular Plate with 38 x 50mm 4-Hole Pattern
