RAM Double Ball Mount with Round Base Plate and Rectangular Plate

RAM-101U-225 RAM® Double Ball Mount with Round & Rectangular Plates

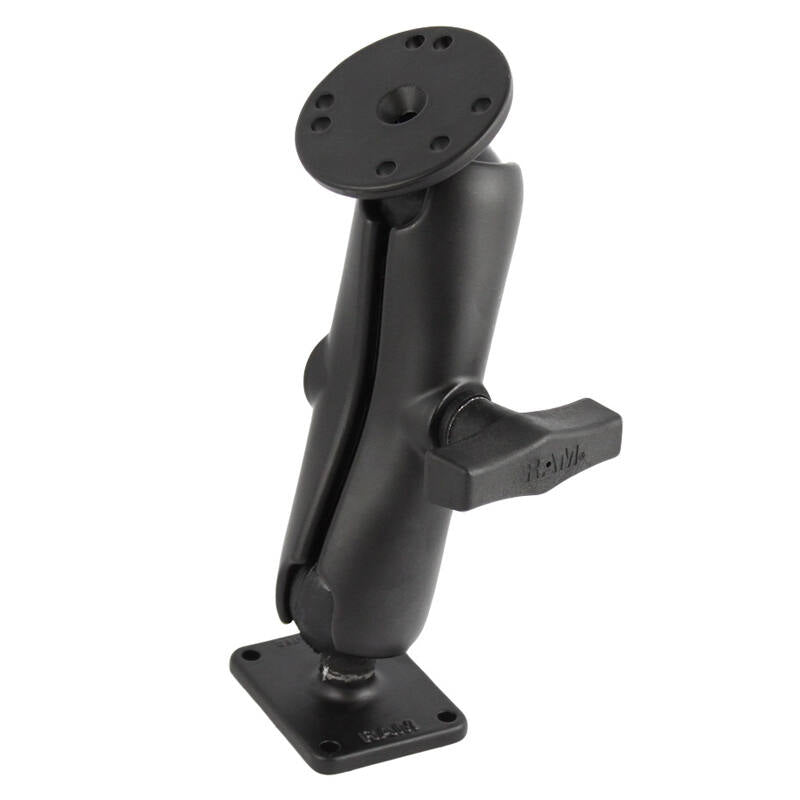

The RAM-101U-225 is a drill-down double ball mount that pairs a round AMPS base, a rectangular base and a C Series (1.5") medium double socket arm. It is built for permanent, bolt-down installs where you need a solid, adjustable mounting point for a device holder, radio, or display.

Key Features

• Complete drill-down mount: round base, rectangular base and medium arm in one kit
• Round plate carries the universal AMPS hole pattern for RAM device holders
• C Series 1.5" ball-and-socket for near-infinite adjustability, with shock and vibration damping
• Powder-coated marine-grade aluminium with a steel rectangular base
• Backed by RAM Mounts' lifetime warranty

RAM's rubber ball-and-socket joints soak up shock and vibration while letting you set almost any angle, then lock it down with the knob for the perfect viewing position.

What's in the Kit

• RAM-202U — 63mm (2.5") round base with 1.5" C ball

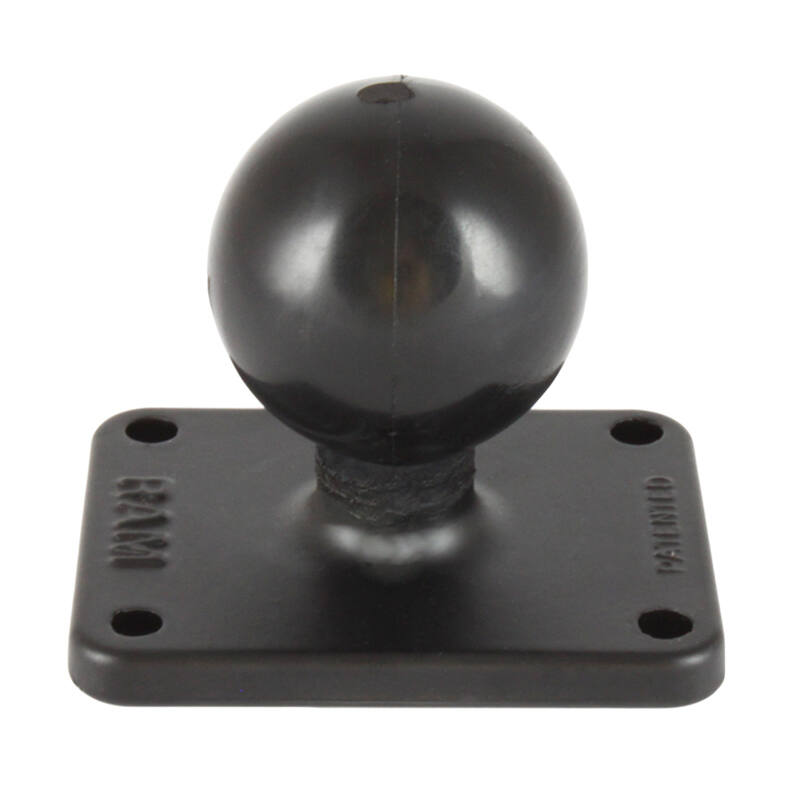

• RAM-202U-225 — rectangular base with 1.5" C ball
• RAM-201U — C Series medium double socket arm

Mounting to a thin or hollow surface? The RAM-101U-225-XAT1 is the same mount supplied with a steel backing plate.

Dimensions & Specifications

• Overall height: 187mm (7.35")
• Socket-to-socket length: 118mm (4.66")
• Ball/socket size: C Size (1.5")
• Round plate diameter: 63mm (2.5")
• Round plate hole patterns: 4-hole AMPS 30mm x 38mm (1.181" x 1.496") and 3-hole AMPS 120° 46.0mm (1.812")
• Rectangular plate hole pattern: 38.1mm x 50.8mm (1.5" x 2")
• Material: marine-grade aluminium and steel
• Weight: 0.51kg (1.12 lbs)
• Weight capacity: 1.81kg (4 lbs) standard use, 1.36kg (3 lbs) heavy-duty use
