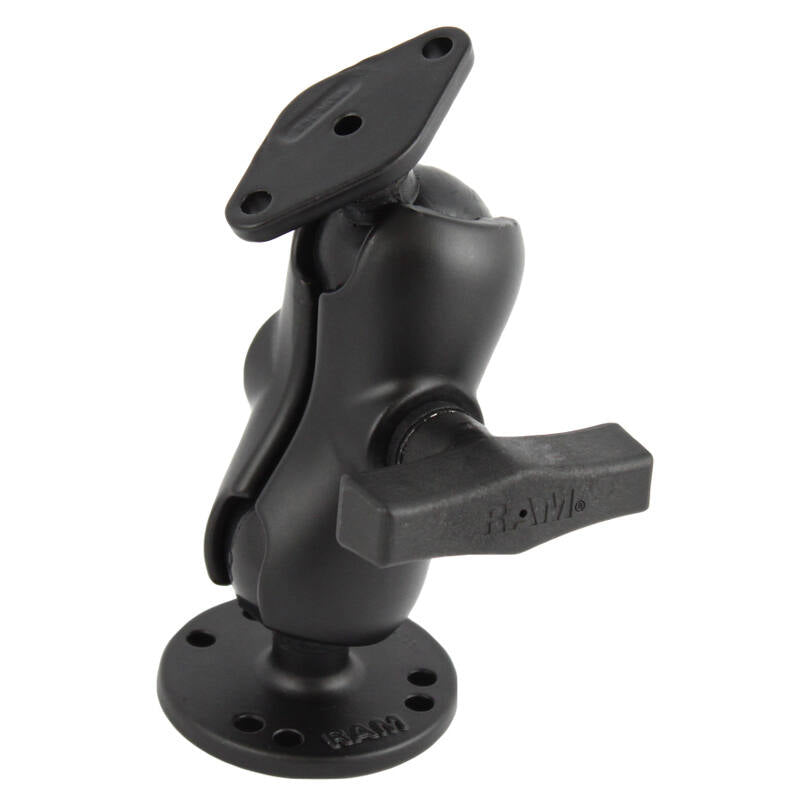

RAM-138U-B RAM® Double Ball Drill-Down Mount with Diamond Plate - Short
Features
* Drill-down mounting solution; diamond plate features 2-hole AMPS hole pattern for attachment to compatible device holders
* Includes round ball base, diamond ball base, and C size short length double socket arm
* RAM ball and socket technology allows for near-infinite adjustability
* Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
* Backed by a lifetime warranty
The RAM-138U-B consists of a 2.5" diameter round base that contains the universal AMPs hole pattern, short double socket arm and diamond base adapter. The mount is designed with a 1.5" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The hole pattern found on the diamond base adapter will connect to most RAM cradles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.
Specs & Features
Diamond Base:
2-Hole AMPs:
1.912” (48.5mm)
Round Base:
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
Overall Height:
13.27cm (5.225")
Material:
Powder Coated Marine Grade Aluminium
Ball Size
1.5" Rubber Ball Size (C Series)
Weight:
390 grams (0.86 lbs.)
Components

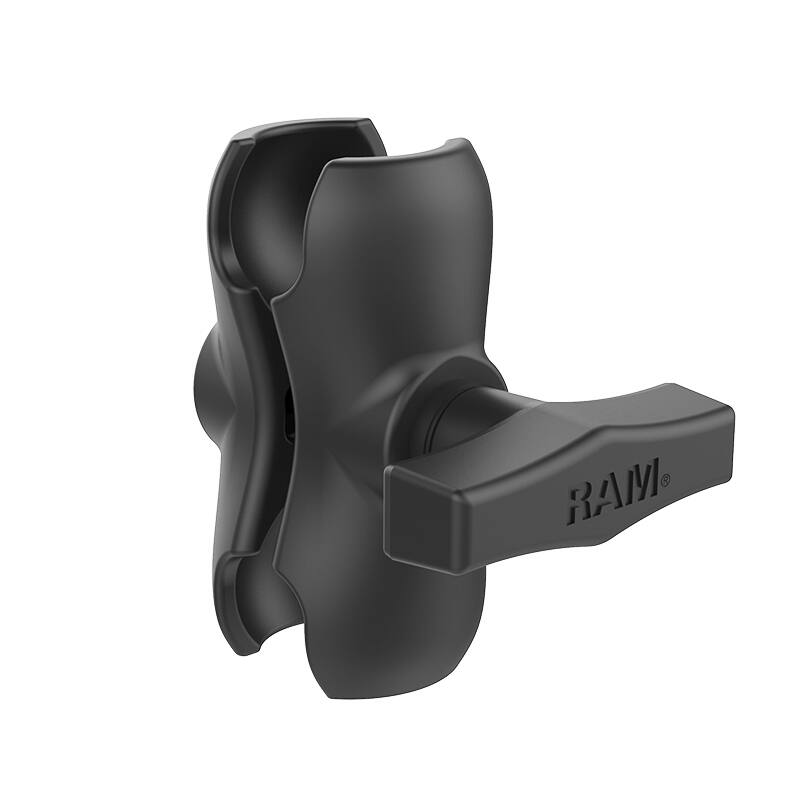

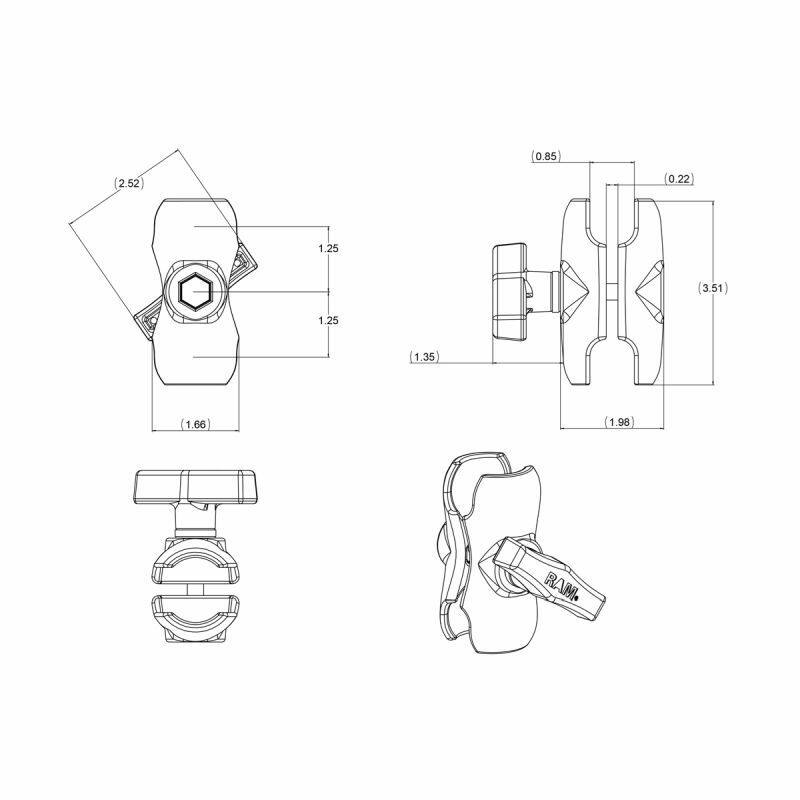

RAM-201U-B - short double socket arm
RAM-202U - round base

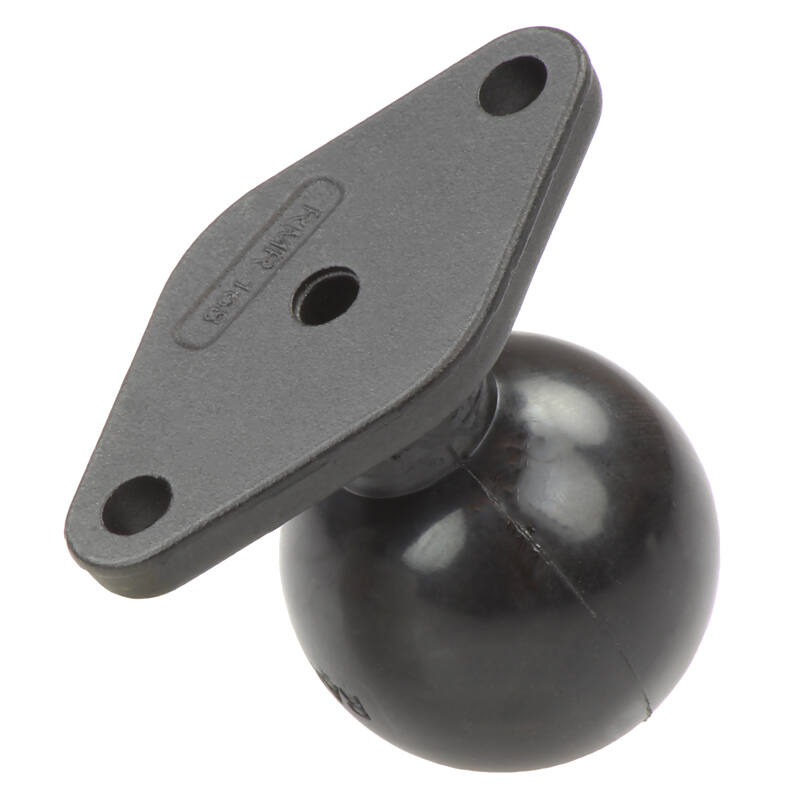

RAM-238U - diamond base
YouTube:
https://www.youtube.com/watch?v=ZWf8WSfdHcY
