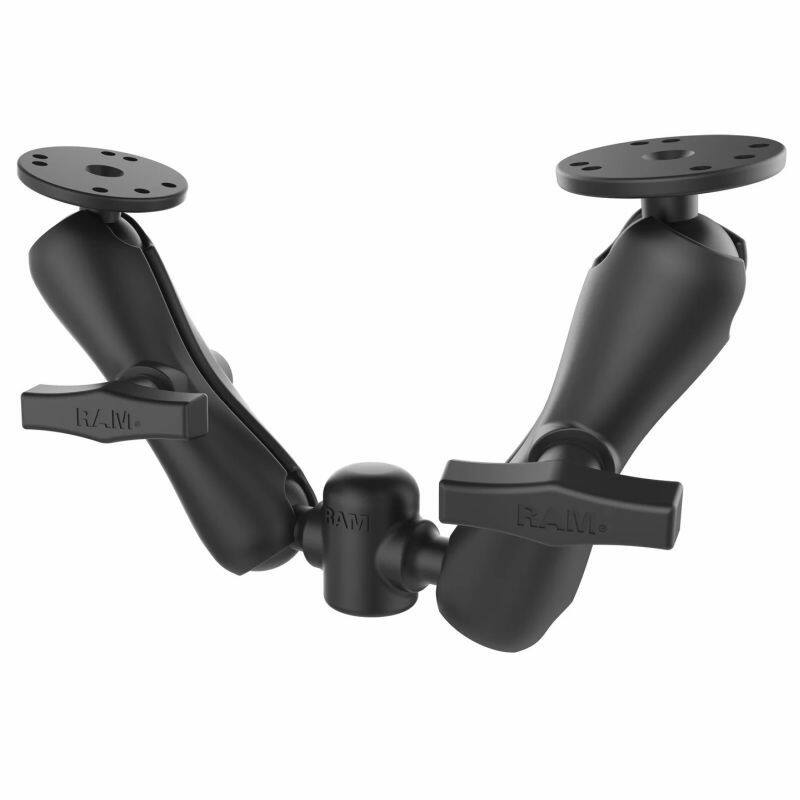

RAM-101U-CD1 RAM® 1/2" NPT Threaded Adaptor with Two C Size Double Ball Mounts
Features
* RAM® Double Ball Adaptor will attach to RAM threaded poles with 1/2" NPT Threaded Hole including RAM-PA82XX NPT Pipes
* 2.5" round plates connect to RAM® device holders containing the universal AMPS hole pattern
* Includes C size medium length double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

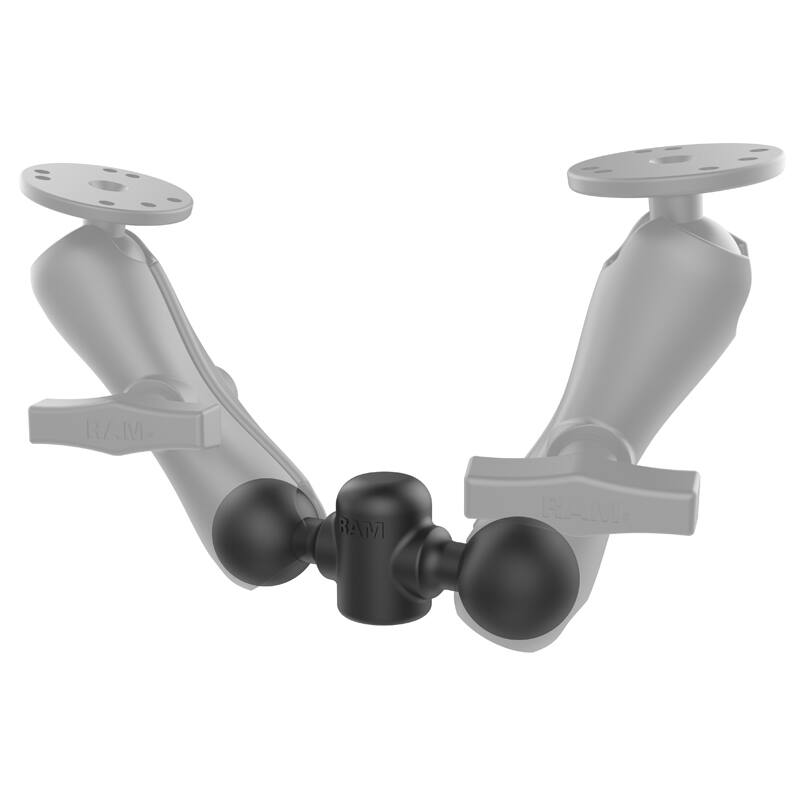

This kit has two double socket arms with 1.5 inch rubber ball mounting plates attached, and a double ball adaptor with two 1.5 inch balls.

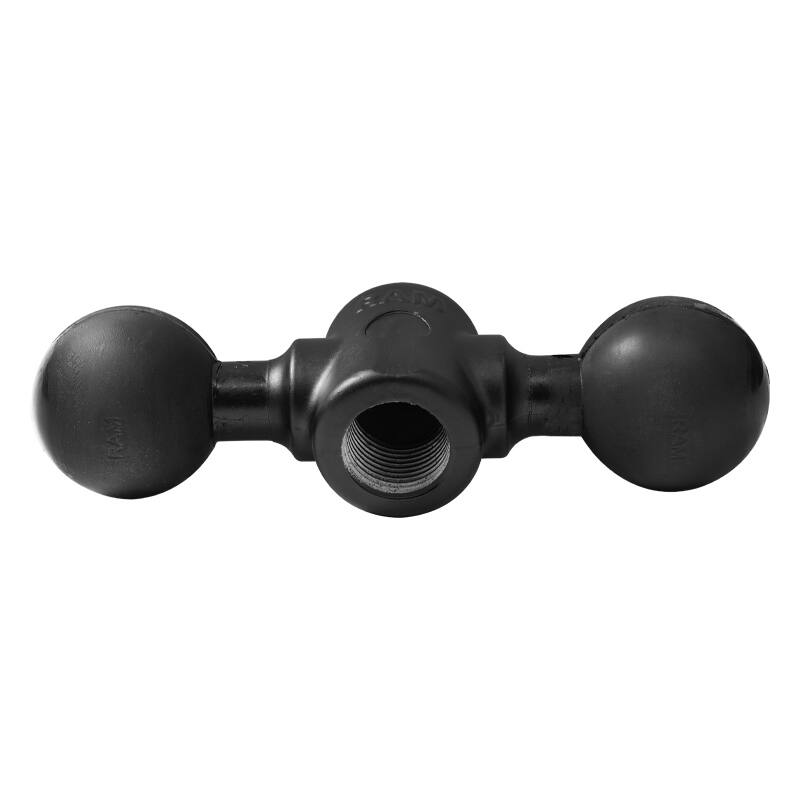

The double ball adaptor features a female 1/2" NPT threaded socket. This part will connect to 1/2" NPT Male threads, including RAM-PA82XX NPT Pipes.
The double socket arms have a socket at both ends that accommodates C-series 1.5" ball bases. A single spring inside the arm opens the end sockets allowing you to pivot the ball and socket connection. This socket technology provides for almost infinite adjustment and perfect viewing angles.
Arm Dimensions:
Overall Length:
143mm (5.625")
Socket-To-Socket Length:
114mm (4.5")
Hole pattern
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
Ball size
C Size (1.5")
Materials
Marine-grade aluminium
Weight
0.99kg (2.19 lb)
Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
Components:

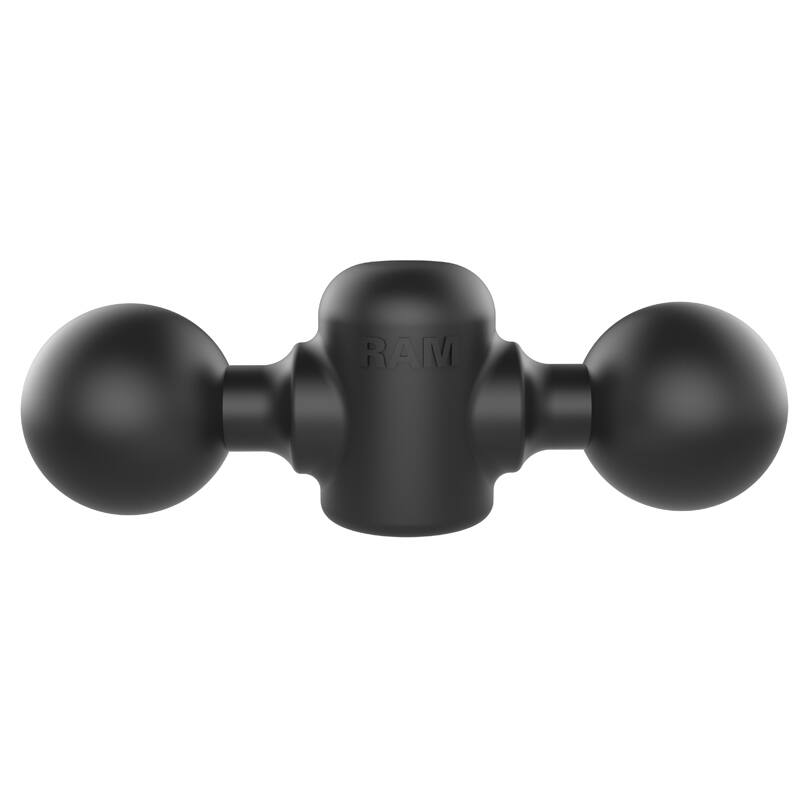

RAM-217-3U DBL. BALL BASE W/1/2" NPT HOLE NF

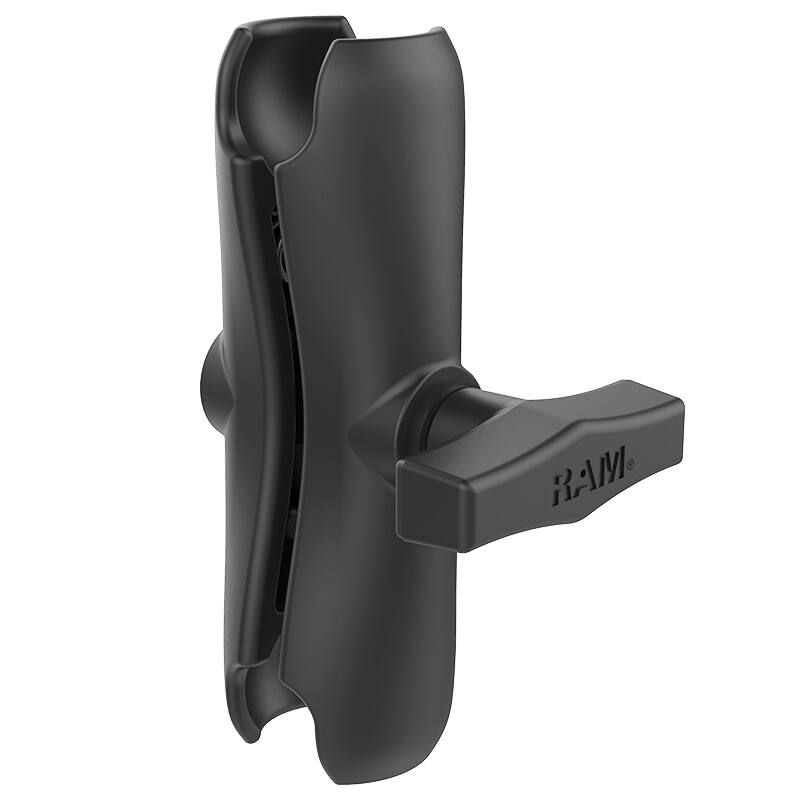

RAM-201U Standard Double Socket Arm for 1.5" Balls (x2)
RAM-202U 2.5" / 63mm DIA. BASE 1.5" Ball (x2)
