RAM Double Socket Arm - B Series (1" ball) - Short length 60mm - Composite

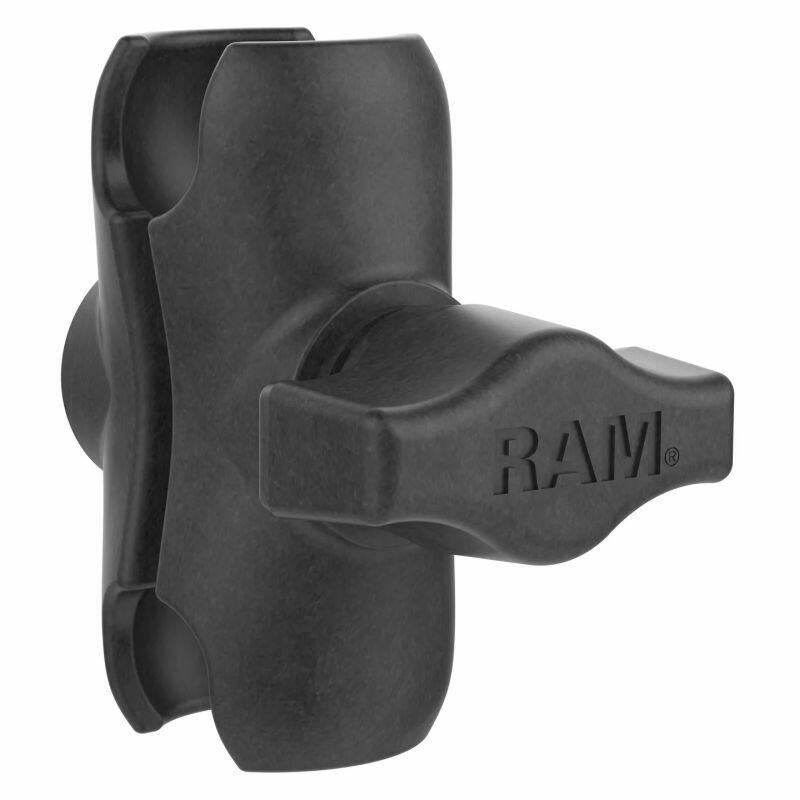

RAP-B-201U-A RAM® Composite Short Double Socket Arm – B Size

The RAP-B-201U-A is RAM's lowest-profile double socket arm, connecting two 1" B Size RAM® ball components — bases, device holders, and adapters — with near-infinite adjustability.

Key Features

• Low-profile design: 61.5mm overall length, 44.5mm socket-to-socket
• Attaches to any B Size RAM® ball component, including mounting bases and device holders

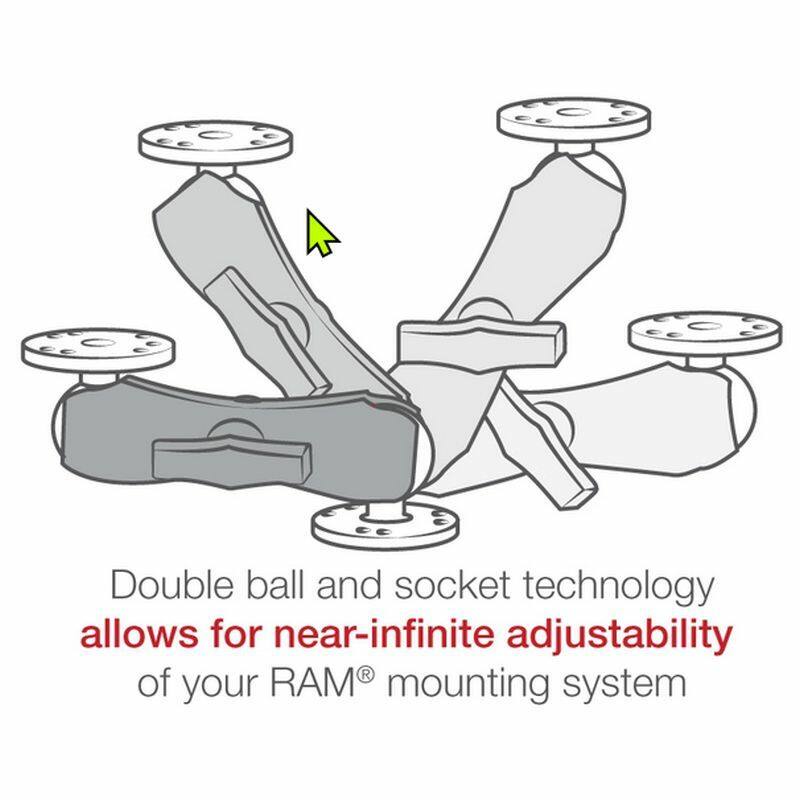

• Double ball-and-socket technology allows near-infinite adjustability
• High-strength composite construction
• Backed by RAM Mounts' lifetime warranty

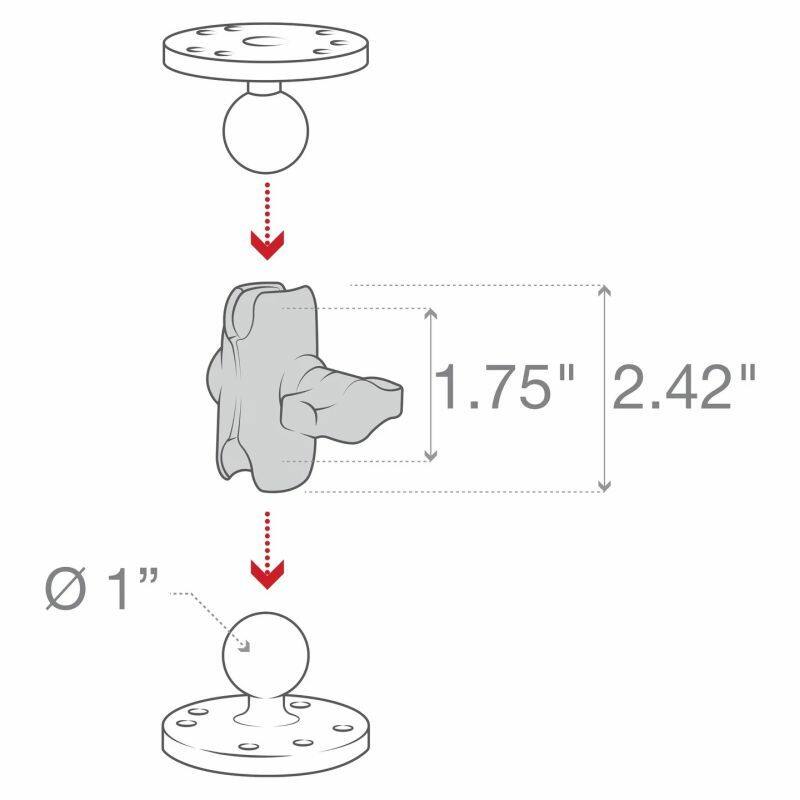

Dimensions & Specifications

• Overall length: 61.5mm (2.42")
• Socket-to-socket length: 44.5mm (1.75")
• Material: High-strength composite
• Ball size: 1" rubber ball, B Size
• Weight: 68g (0.15 lbs)
• Weight capacity: 907g standard use, 454g heavy-duty use

Note: unlike the medium and long versions, this short arm does not include the internal tension spring.

FAQs

Q: Would this be considered a light duty option?
A: Yes — this part is made from high-strength composite rather than our stronger marine-grade aluminium. It's still a great option for less rugged environments.

Installation Videos

Overview  |  Adjustability demo
