RAM Mounts

RAM Double Socket Arm - C Series (1.5" Ball) - Long length 232mm

RAM Double Socket Arm - C Series (1.5" Ball) - Long length 232mm


Regular price $122.11 NZD
Regular price Sale price $122.11 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

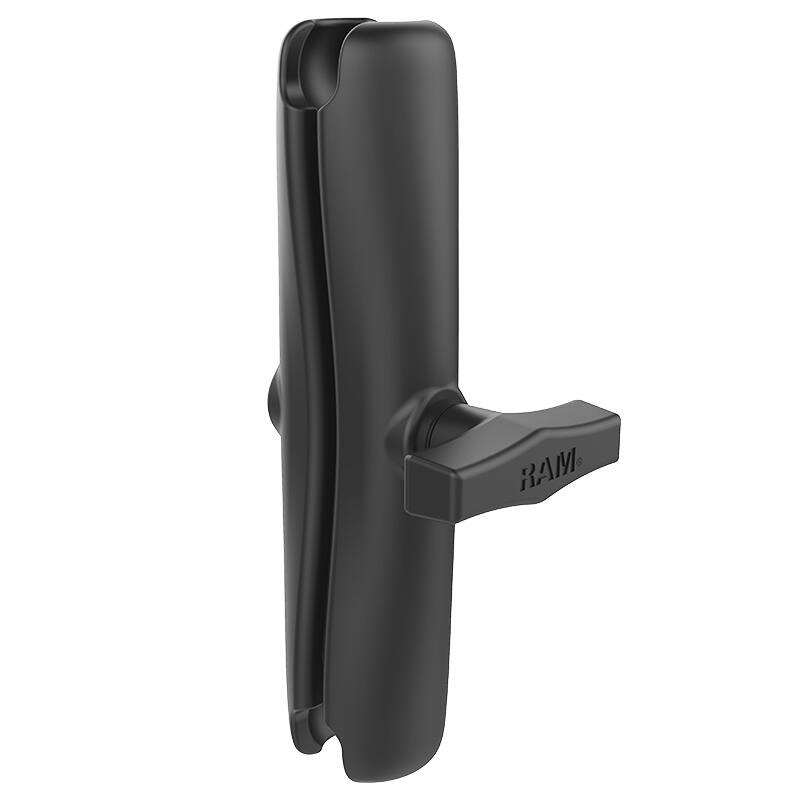

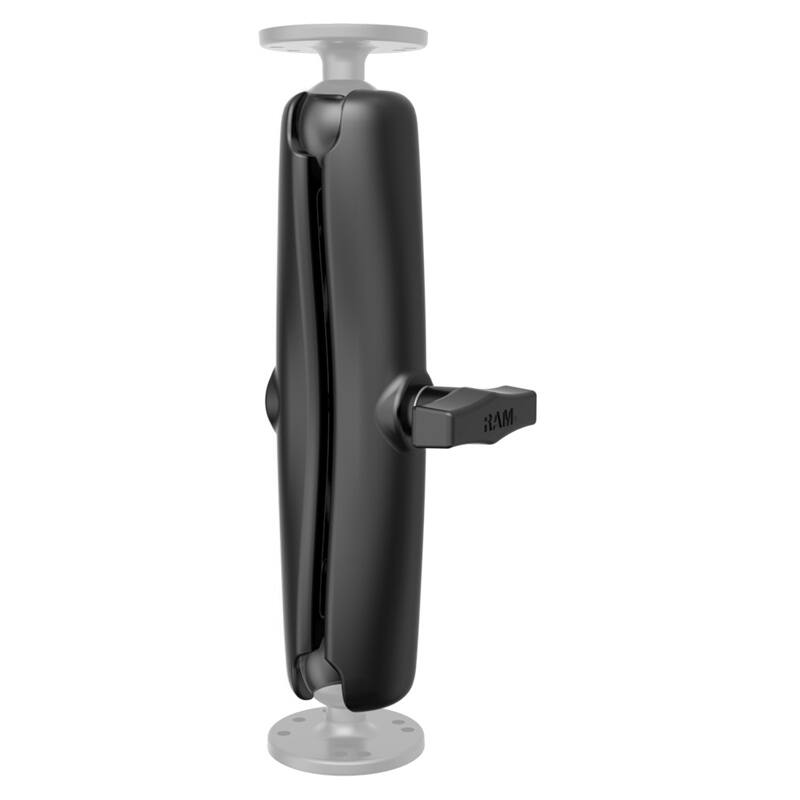

RAM-201U-D RAM® Double Socket Arm - C Size Long


* Provides an extended reach with an overall length of 232mm and a socket-to-socket length of 203mm

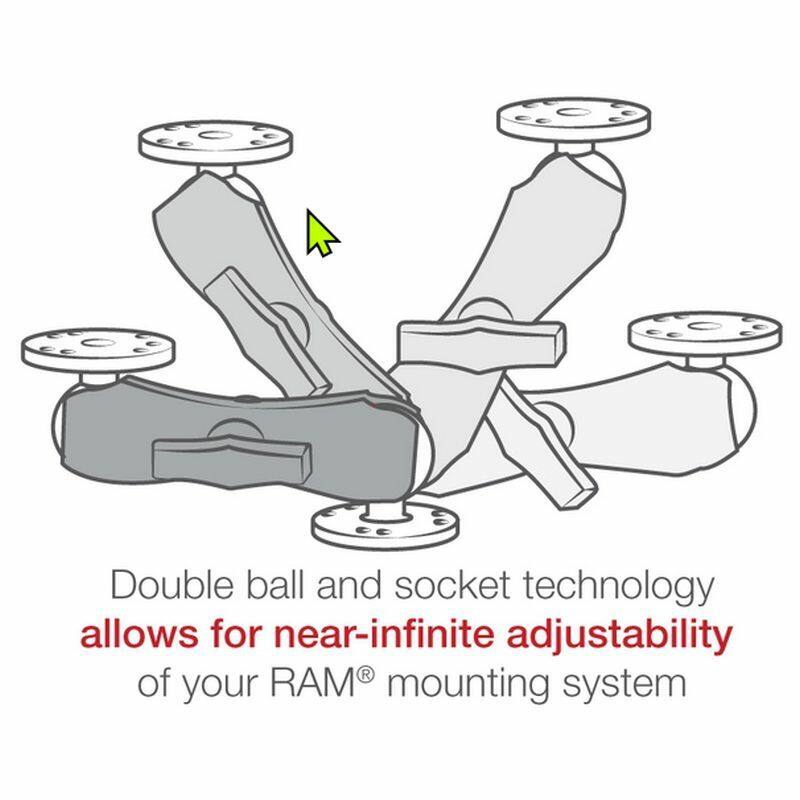

* Attaches to any C size RAM® ball component, including mounting bases and device holders; double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
* Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

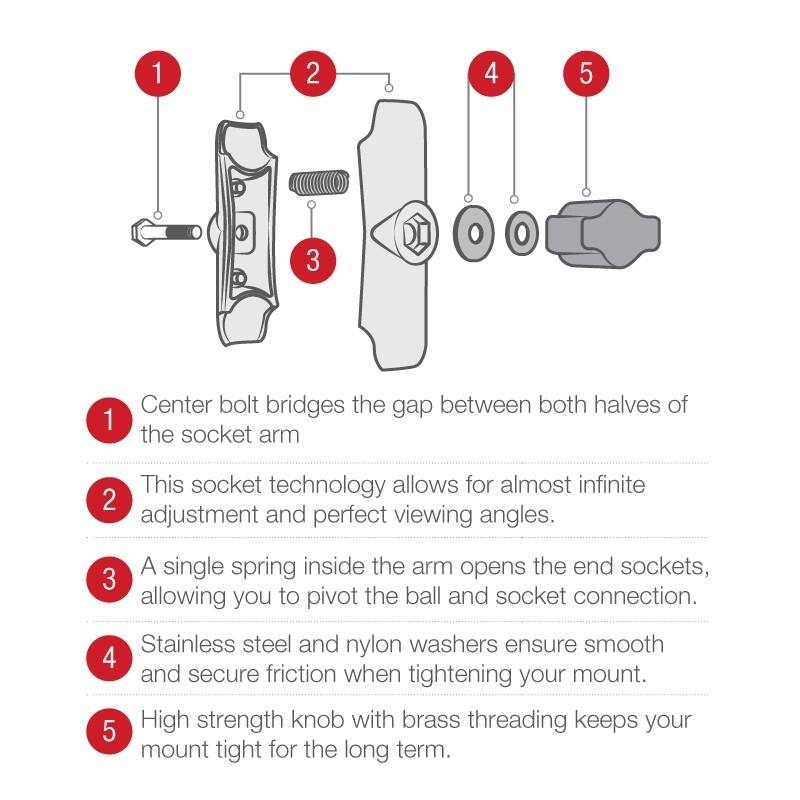

This arm has a socket at both ends that accommodates 1.5" ball bases. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. This socket technology allows for almost infinite adjustment and perfect viewing angles.

With an overall length of 232mm (9.125"), this is the longest C size RAM® double socket arm size and adds more reach to your favourite mounting solution. The easy to adjust knob allows for near-infinite adjust-ability.

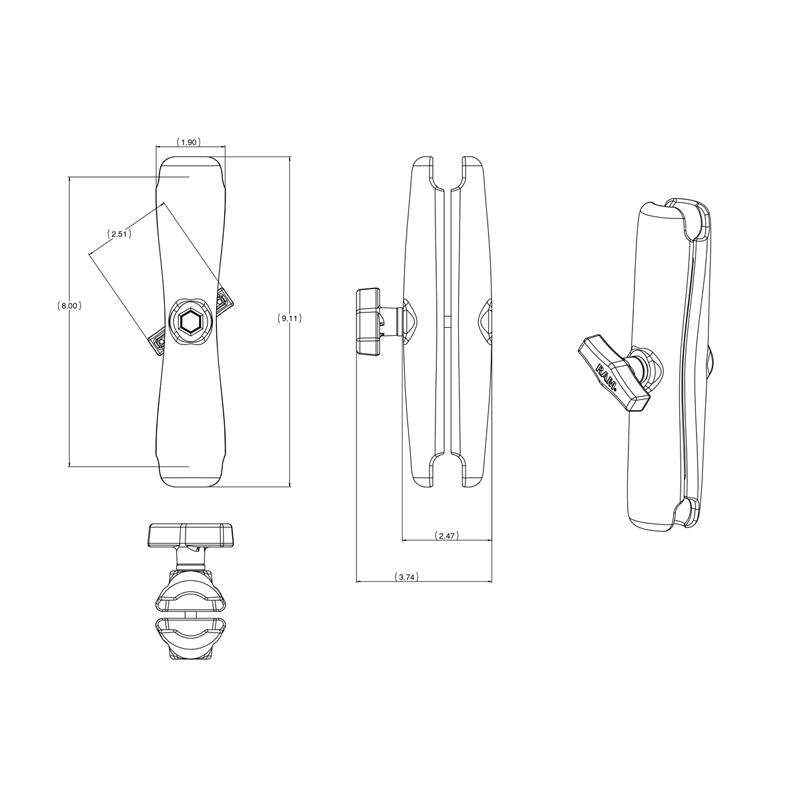

Overall Length: 232mm (9.125" )
Socket-To-Socket Length: 203mm (8")

Powder Coated Marine Grade Aluminium

Ball Size:
1.5" C Series Rubber Ball Size

0.744 kg (1.64 lbs.)

Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)



Q: Is this part number able to accommodate both the B and C size balls?
A: No, this double socket arm is just for the C size 1.5 inch ball bases.
