RAM Mounts

RAM Double Socket Arm - E Series (3.38" Balls) - Short length 186mm

RAM Double Socket Arm - E Series (3.38" Balls) - Short length 186mm


Regular price $289.36 NZD
Regular price Sale price $289.36 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

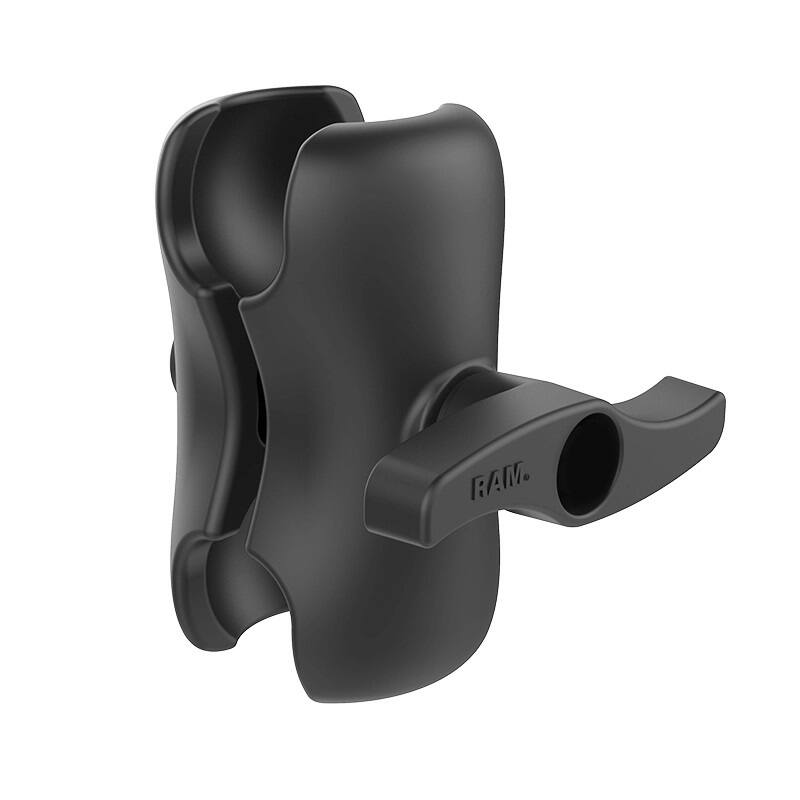

RAM-E-201U-D RAM® Double Socket Arm - E Size Short


* Short length double socket arm has an overall length of 186mm and a socket-to-socket length of 126mm
* Attaches to any E size RAM® ball component, including mounting bases and device holders
* RAM double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

The RAM-E-201U-D, short double socket arm, has a socket at both ends that accommodates 3.38" ball bases. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. This socket technology allows for almost infinite adjustment and perfect viewing angles.

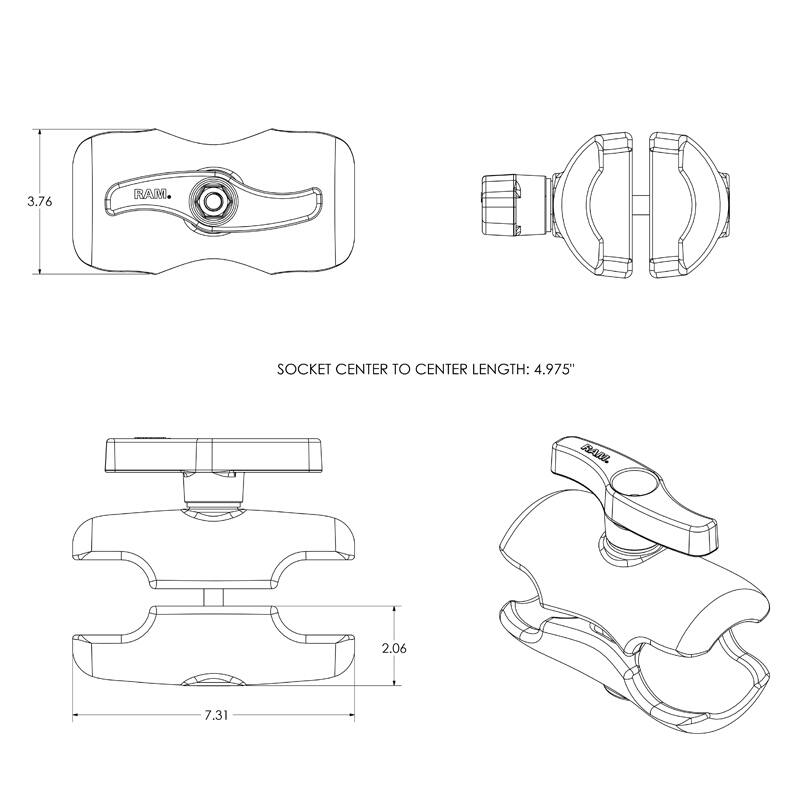

Overall Length: 185.7mm (7.31")
Socket-To-Socket Length: 126.4mm (4.975")

Specs & Features

Powder Coated Marine Grade Aluminium

Ball Size:
85.5mm Rubber Ball Size

2.0kg (4.4lbs)

Weight Capacity
Standard Use:
6.8 kg (15 lbs)
Heavy-Duty Use:
4.53 kg (10 lbs)
