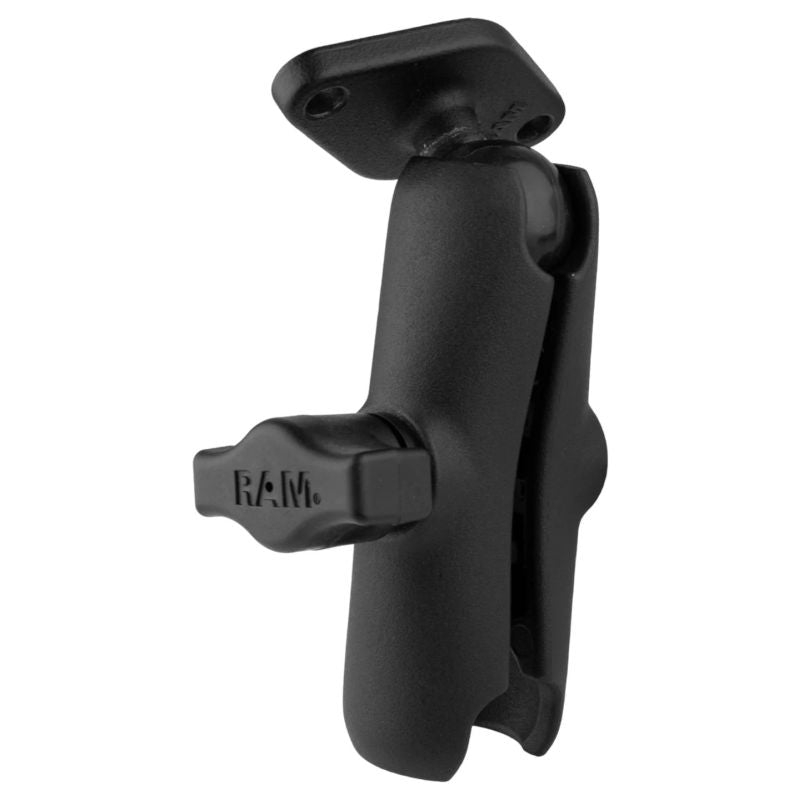

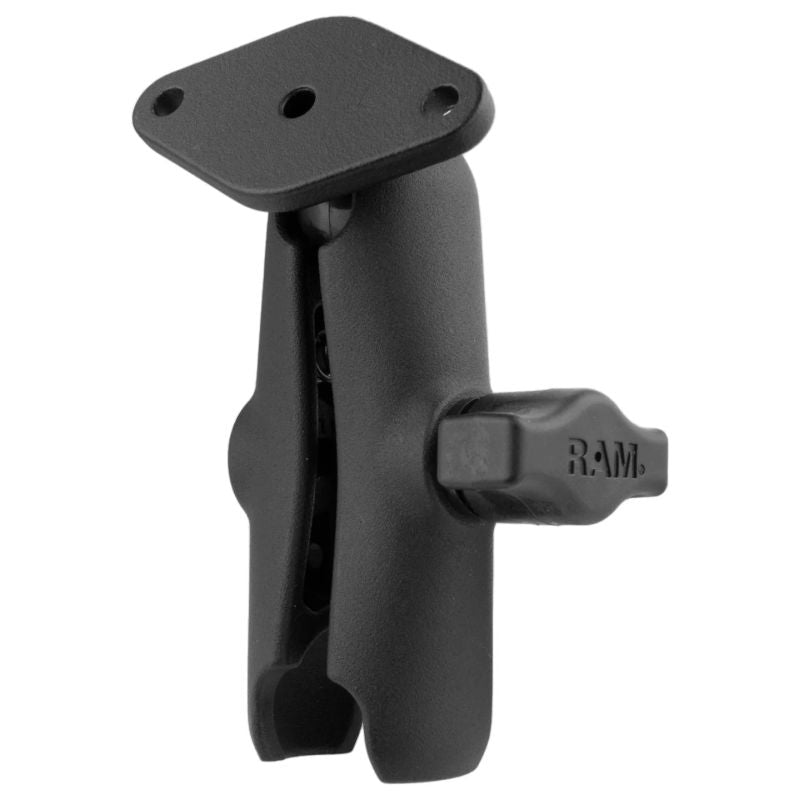

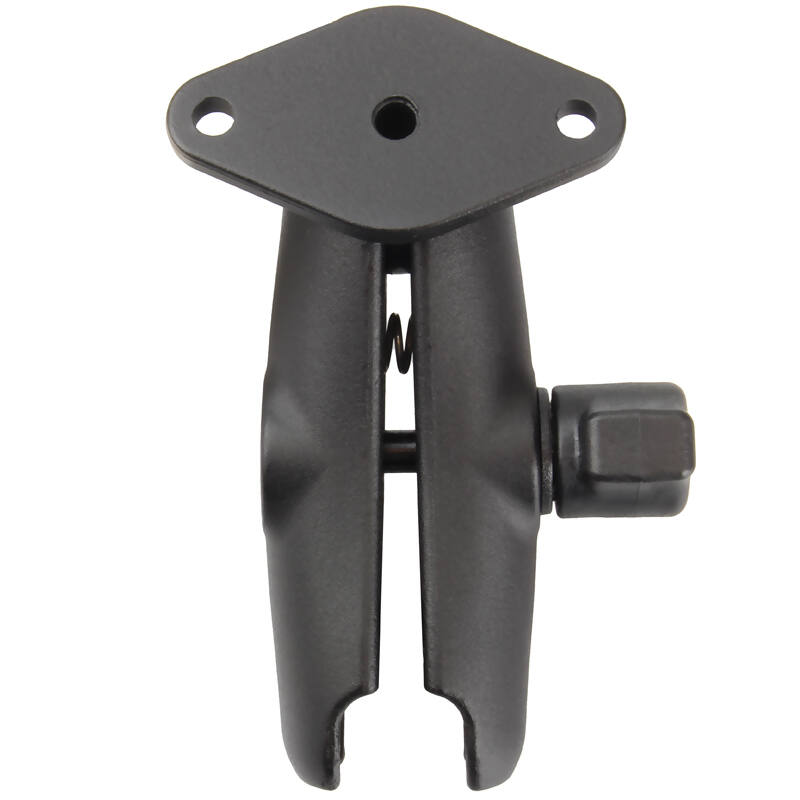

RAM-B-103-238U RAM® Double Socket Arm with Diamond Plate
Features
* Diamond plate features industry-standard 2-hole AMPS hole pattern; connects to a variety of RAM® device holders
* Includes B size medium length RAM® double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

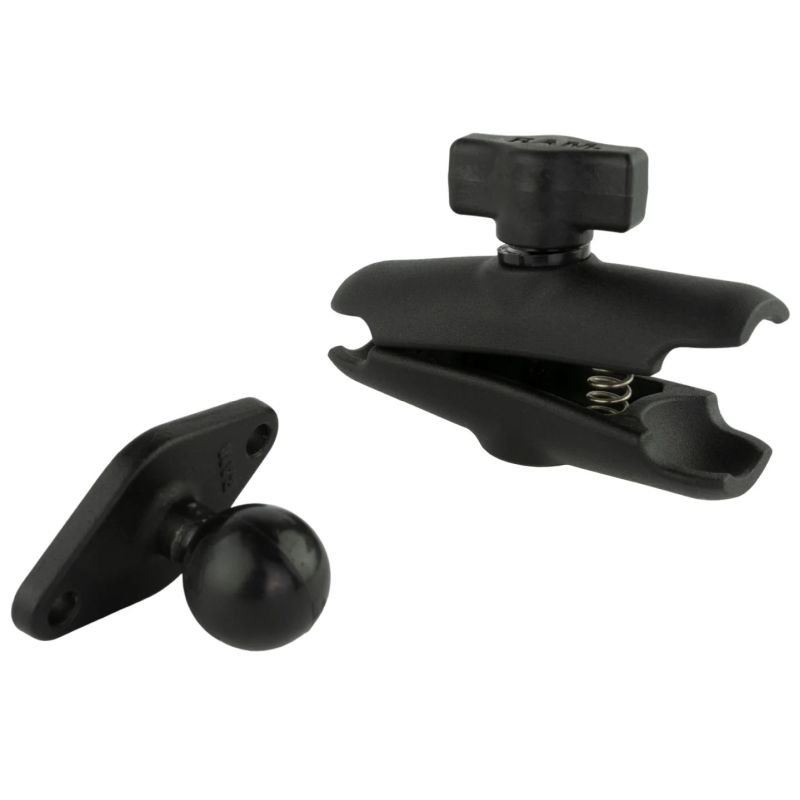

This part combines the RAM-B-201U (medium arm) with the RAM-B-238U (diamond base).

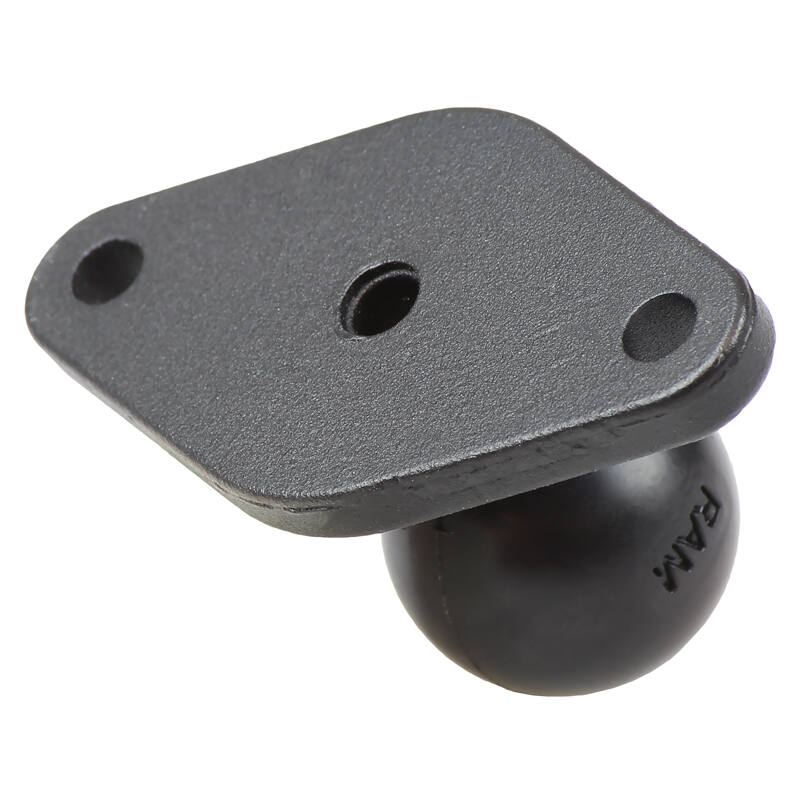

The diamond base measures 2.43" x 1.31" and contain two holes 1.912" from centre to centre, positioned at both ends of the diamond base. The hole pattern found on the diamond base will connect to many RAM cradles, as well as third party cradles including mounts with the industry standard AMPS hole pattern. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob allows for you to manoeuvre the mount to your optimum viewing position.
Specs & Features
Diamond Plate Hole Pattern
2-Hole AMPs:
1.912” (48.5mm)
Diamond Plate Size
61.7mm x 33.3mm (2.43" x 1.31")
Overall Length:
109.5mm (4.31" )
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1" Rubber "B" Ball Size
Weight:
172 grams (0.38 lbs.)
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Components:
RAM-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-238U RAM 62 X 33mm DIAMOND BASE W/ 1 BALL
