RAM-B-201-201U RAM® Double Socket Arm with Dual Extension and Ball Adaptor
Features
* Two standard RAM® double socket arms each with overall length of 94mm connected with a double-ball adaptor
* Attaches to any B size RAM® ball base, including mounting bases and device holders
* Double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
* Made of powder-coated, marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

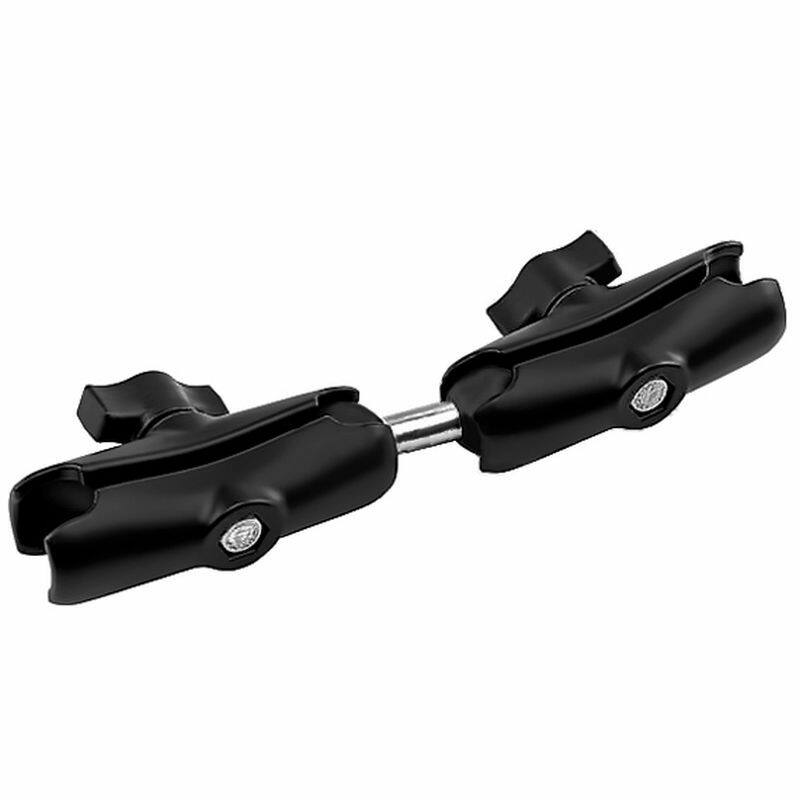

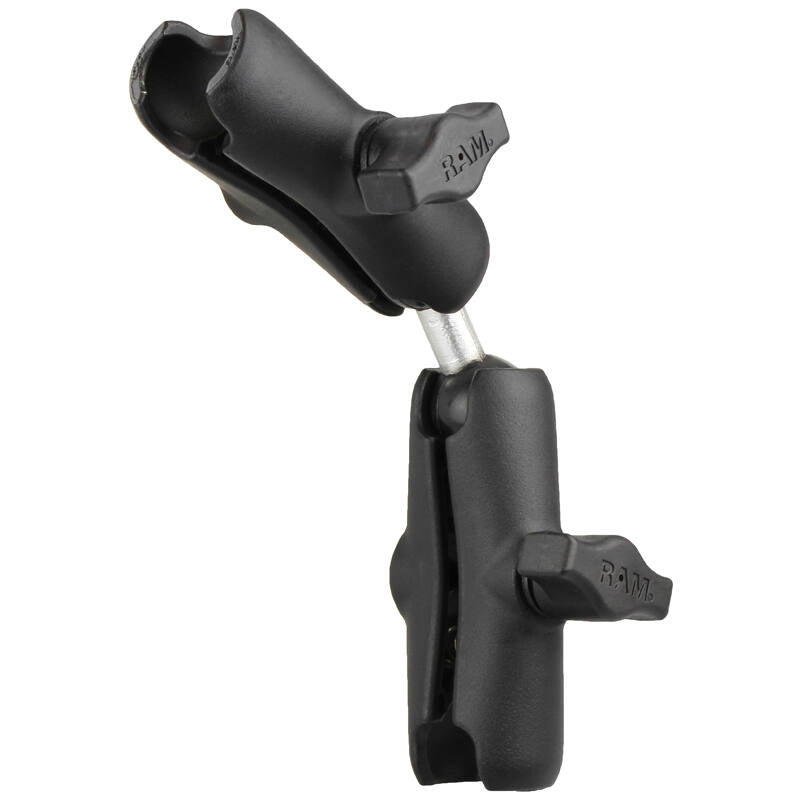

The RAM-B-201-201U consists of two standard-length double socket arms, connected by a double ball adapter. A single spring inside each arm opens the end sockets, allowing you to pivot the ball and socket connection. Ideal for use in an airplane cockpit, this arm provides the needed extension and articulation to set your device exactly where you want it.
The double socket arm is the heart of the RAM mounting system. The double socket arm suits 1" diameter (B series) ball fittings at both end. Simply choose a base style and a device adapter of your choosing.

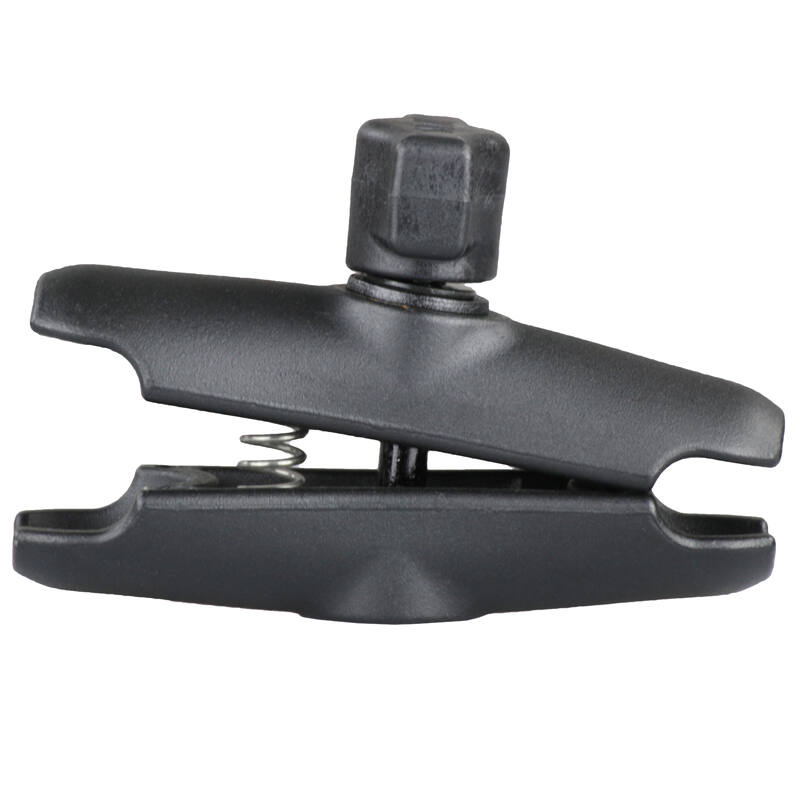

A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. This socket technology provides for almost infinite adjustment and perfect viewing angles.
Dimensions of each RAM-B-201U arm:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Overall length of complete arm assembly:
212.73mm (8.375")
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
1" Rubber Ball "B" Size
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Components:

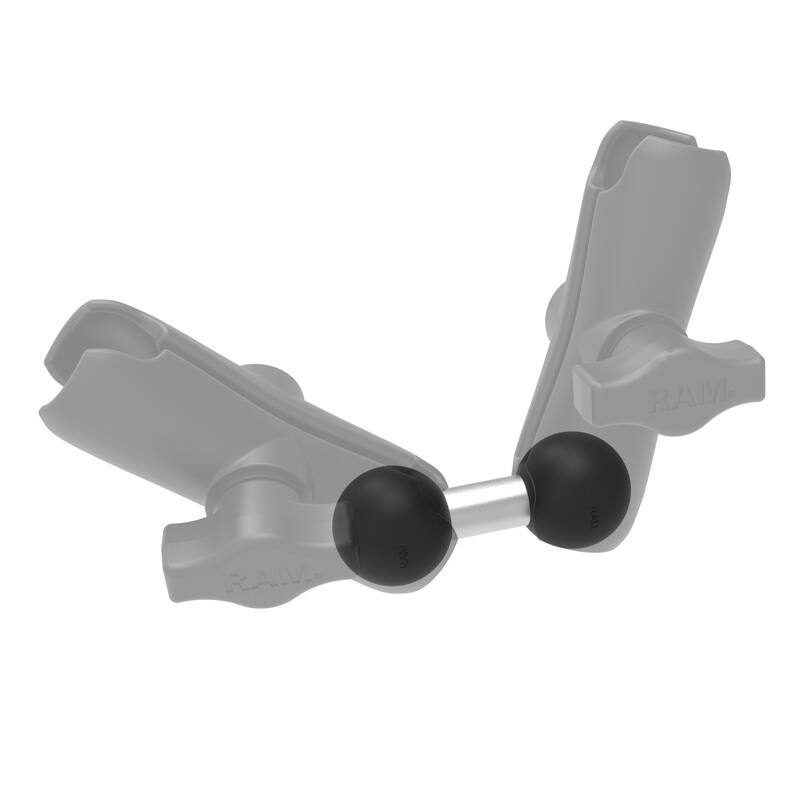

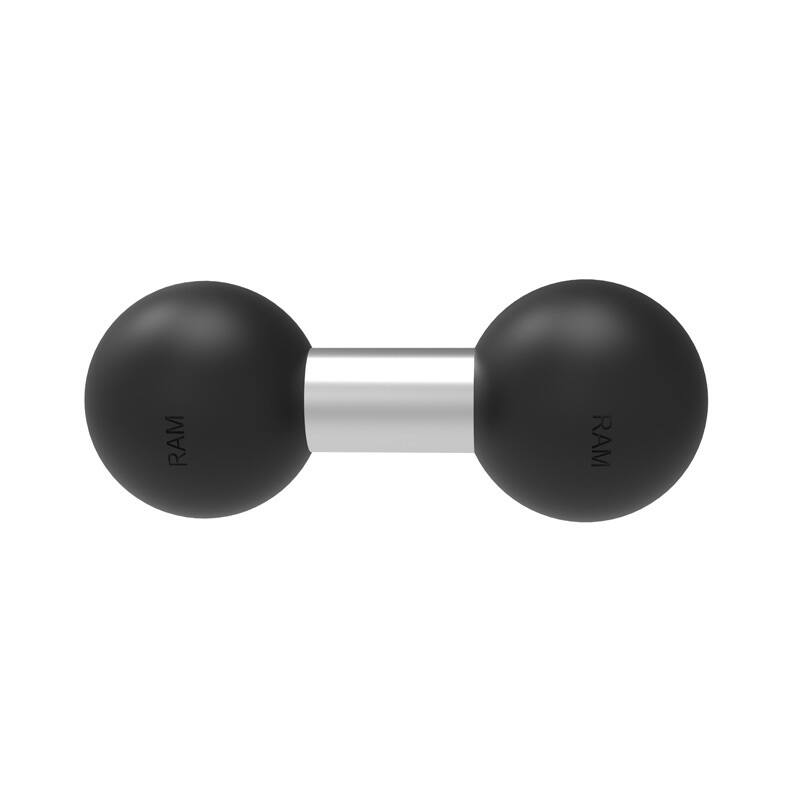

RAM-B-230U DOUBLE 1" BALL ADAPTER
RAM-B-201U x 2 DOUBLE SOCKET ARM FOR 1" BALL
