RAM Double Socket Arm with Round Base - B Series 1" Ball - Short length

RAM Double Socket Arm with Round Base - B Series 1" Ball - Short length

Regular price $57.80 NZD
Regular price Sale price $57.80 NZD
Sale Sold out
Taxes included. Shipping calculated at checkout.

39 in stock

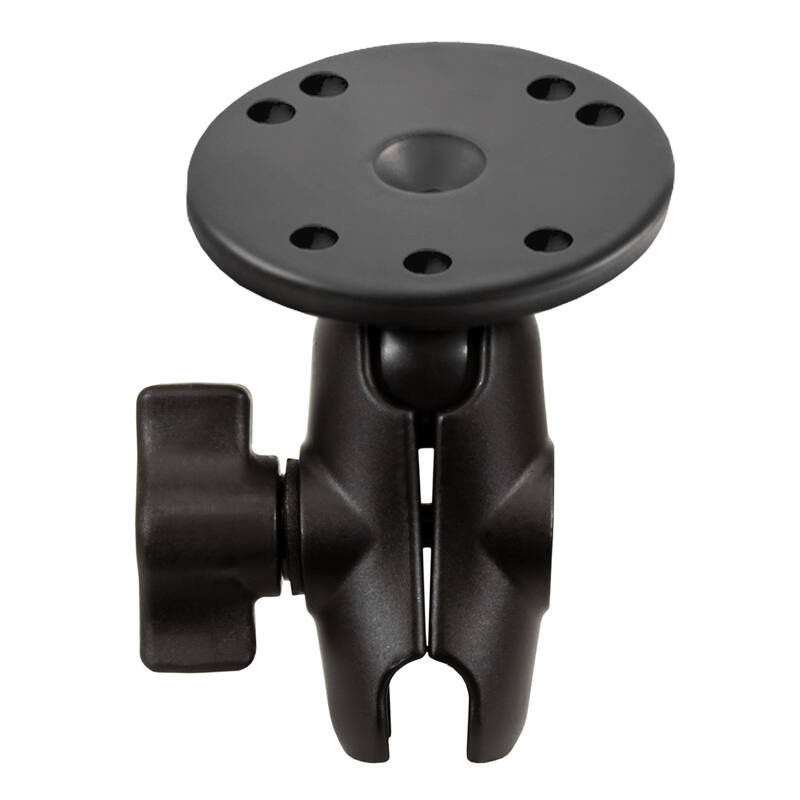

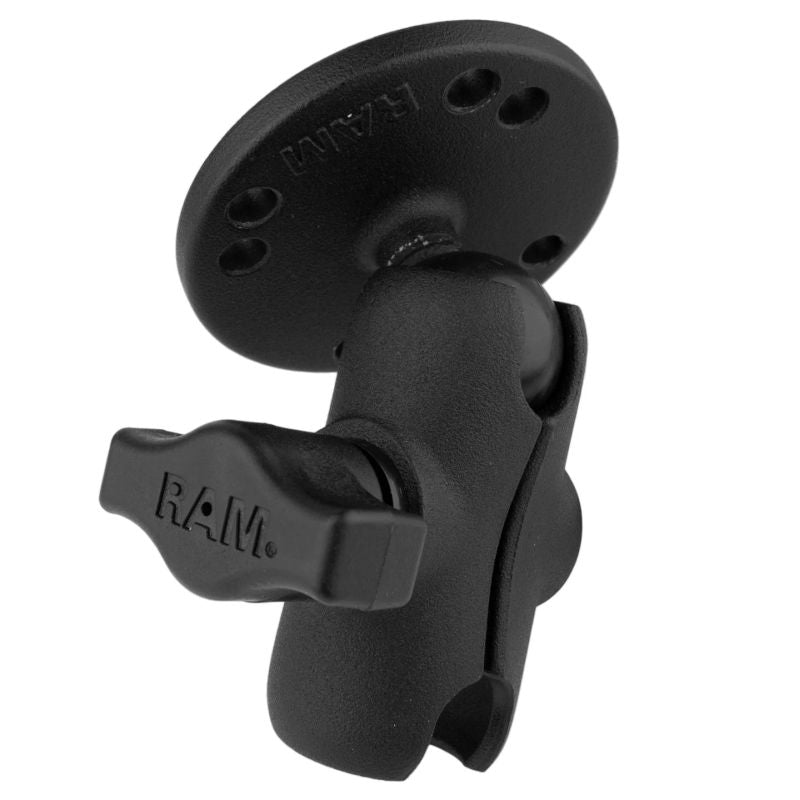

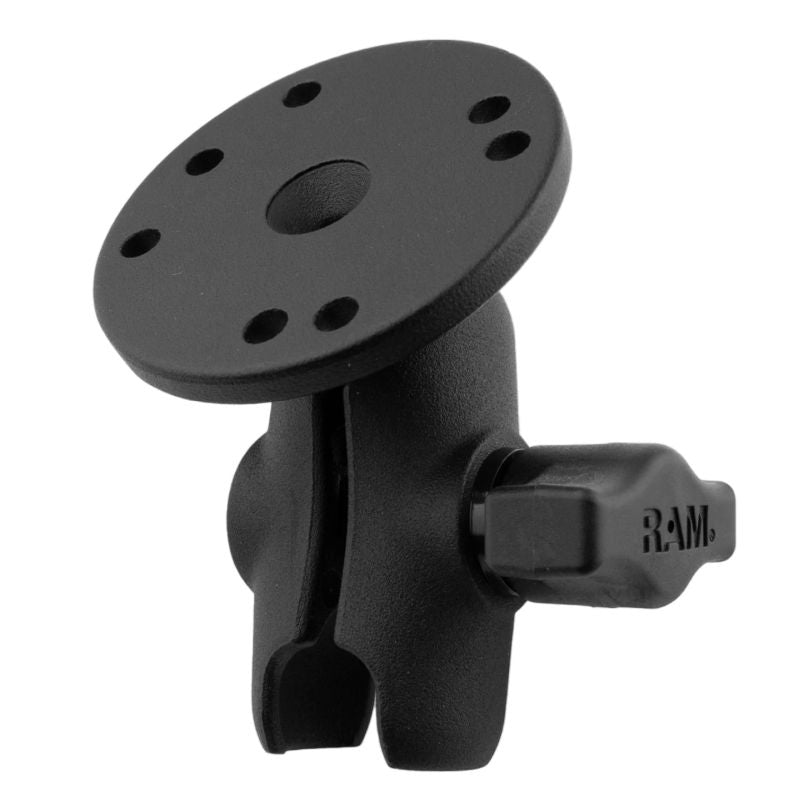

RAM-B-103U-A RAM® Double Socket Arm with Round Base – B Size Short

The RAM-B-103U-A pairs a round AMPS base with a short B Series double socket arm, leaving one socket open to accept any RAM® 1" ball base or device cradle in a compact, low-profile mount.

Key Features

  • Round base features the industry-standard AMPS hole pattern; connects to a wide range of RAM® device holders
  • Short B Size double socket arm with one open 1" socket for a low-profile fit
  • Ball-and-socket technology allows near-infinite adjustability at both ends
  • Powder-coated, marine-grade aluminium construction
  • Backed by RAM Mounts' lifetime warranty

Works With

The open socket accepts any RAM® component with a B Size (1") ball, such as device cradles, X-Grip holders, or another ball base. The round base bolts down using the 4-hole or 3-hole AMPS pattern.

Dimensions & Specifications

  • Overall length: 76.2mm (3")
  • Round base: 63.5mm (2.5") diameter
  • Hole patterns: 4-hole AMPS 30 x 38mm; 3-hole AMPS 120° 46.0mm
  • Ball size: 1" rubber ball, B Size
  • Material: powder-coated marine-grade aluminium
  • Weight: 150g (0.33 lbs)
  • Load rating: 907g (2 lbs) standard use, 454g (1 lb) heavy-duty use

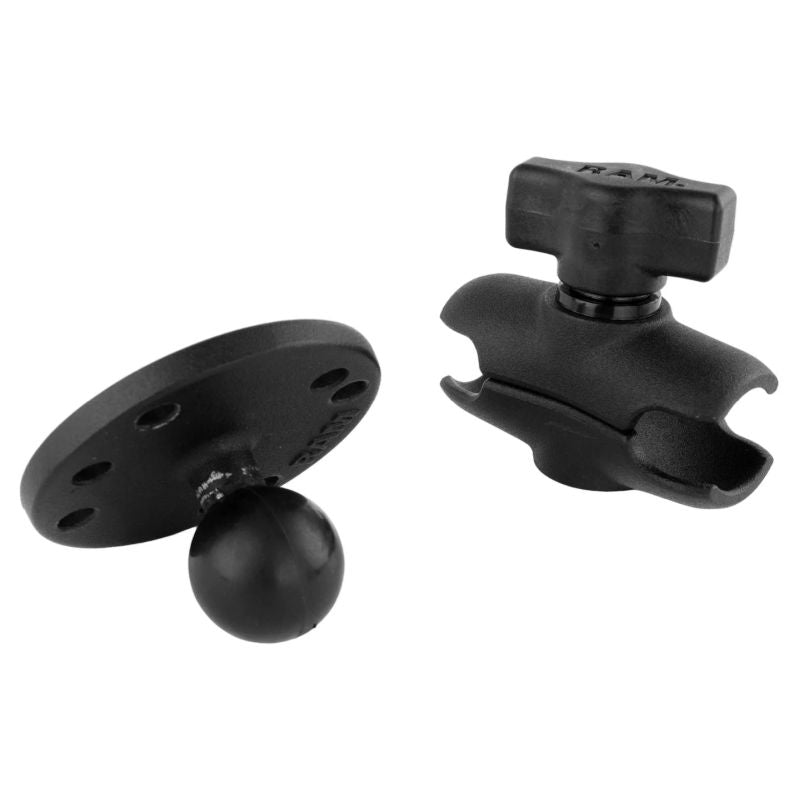

What's Included

  • RAM-B-201U-A short double socket arm for B Size 1" balls

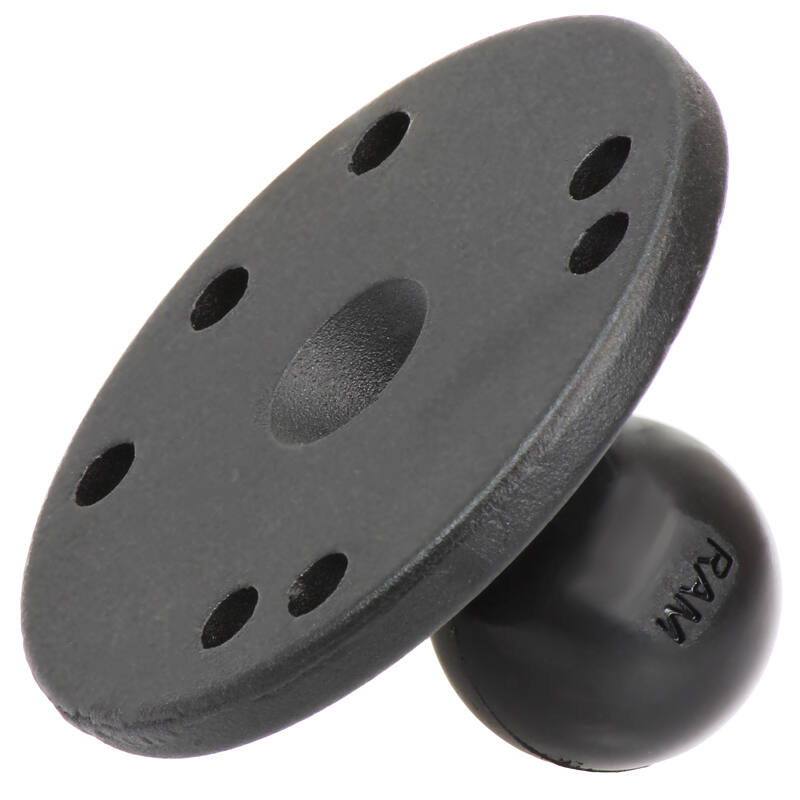

  • RAM-B-202U round base with 1" ball
