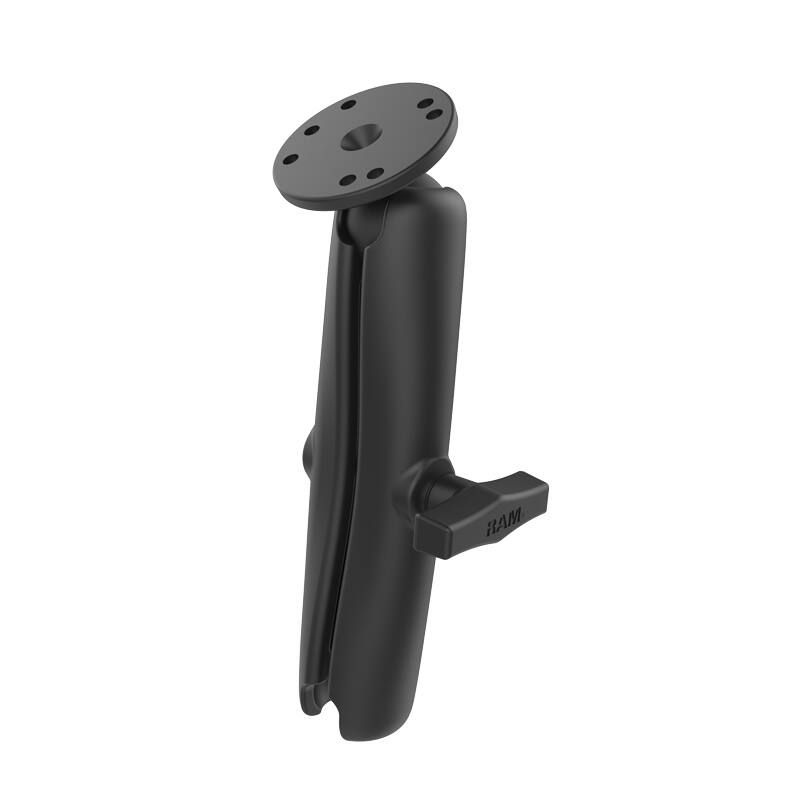

RAM-103U-D RAM® Double Socket Arm with Round Ball Plate - C Size Long
Features
* 63.5mm round plate connects to RAM® device holders containing the universal AMPS hole pattern

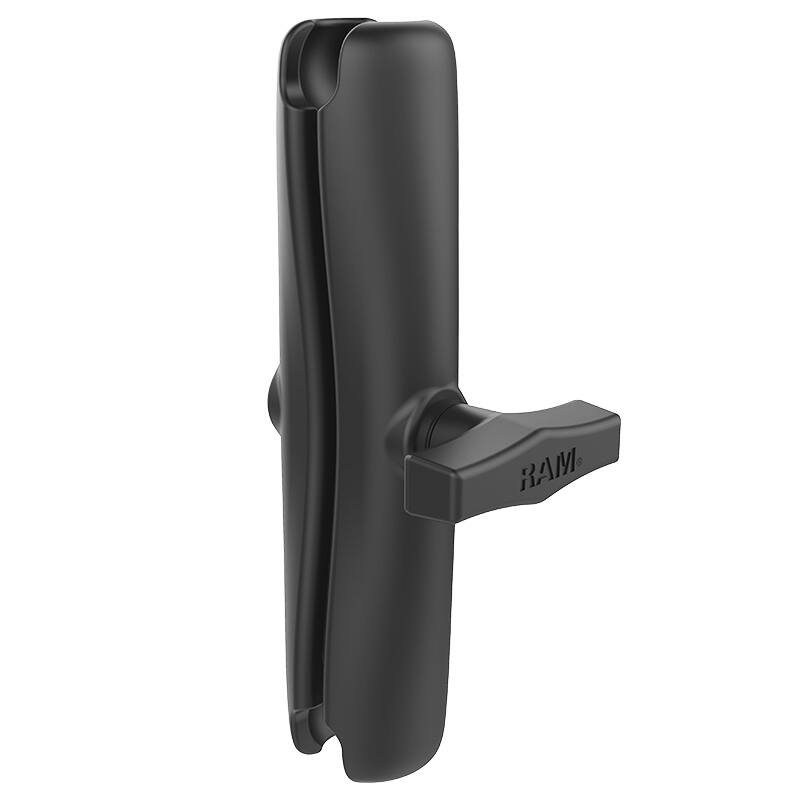

* Includes C size long length double socket arm 232mm end to end with a 203mm socket-to-socket length
* RAM® ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
This combination consists of the long length (232mm) arm. This incorporates a ball and socket system with one open socket end. This mount is designed to be used with any of the RAM mounting bases or cradles with a 1.5" diameter rubber ball.

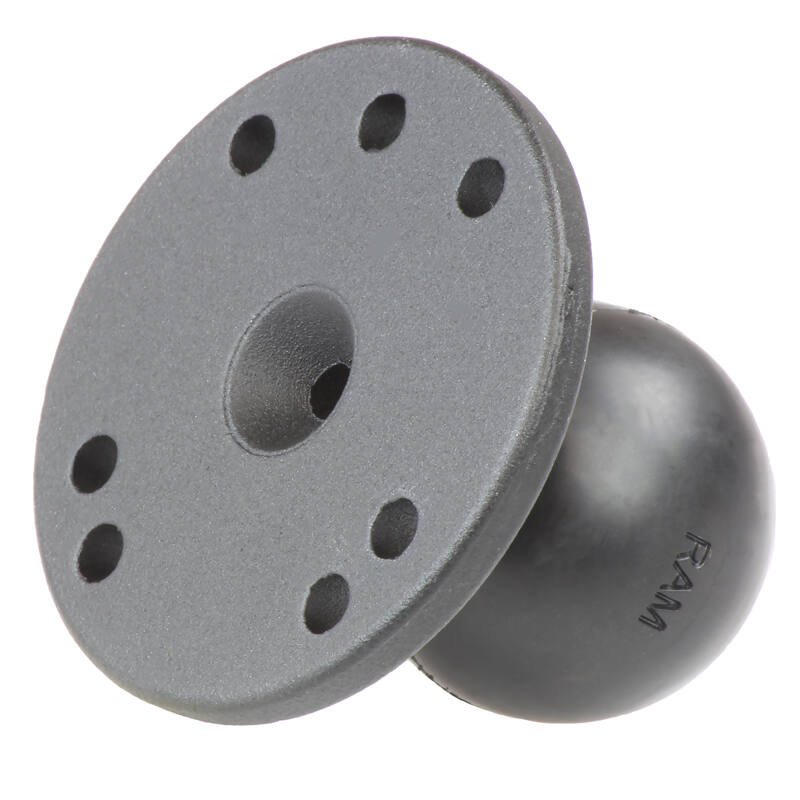

The 63.5mm (2.5") round base has a 1.5" diameter rubber ball connected at right angles to the base. The plate has pre-drilled holes in the base, including the universal 3 and 4 hole AMPS hole patterns.
Specs & Features

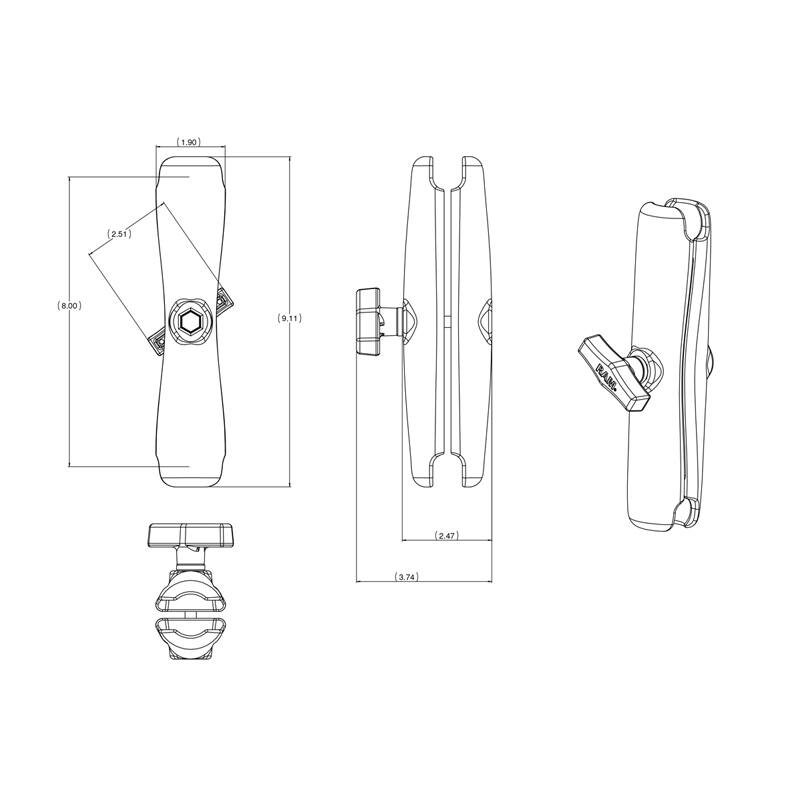

Dimensions:
Overall Length:
232mm (9.125")
Socket-To-Socket Length:
203mm (8")
Hole Patterns:
4-Hole AMPS:
1.181" x 1.496" (30mm x 38mm)
3-Hole AMPS 120- Degree
1.812” (46.0mm)
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
"C" Size 1.5" Rubber Ball Size
Weight:
844 grams (1.86 lbs)
Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
YouTube:
https://www.youtube.com/watch?v=o4Kr0dQza6w
QUESTIONS & ANSWERS
Q: Does this SKU include the hardware needed to bolt it to a flat surface?
A: No, the hardware required to install this mount is not included. Because these are mounted to such a wide variety of materials and applications we do not know what hardware to provide. The best resource for that type of information is usually a local hardware store or the manufacturer of the vehicle you are mounting to.
