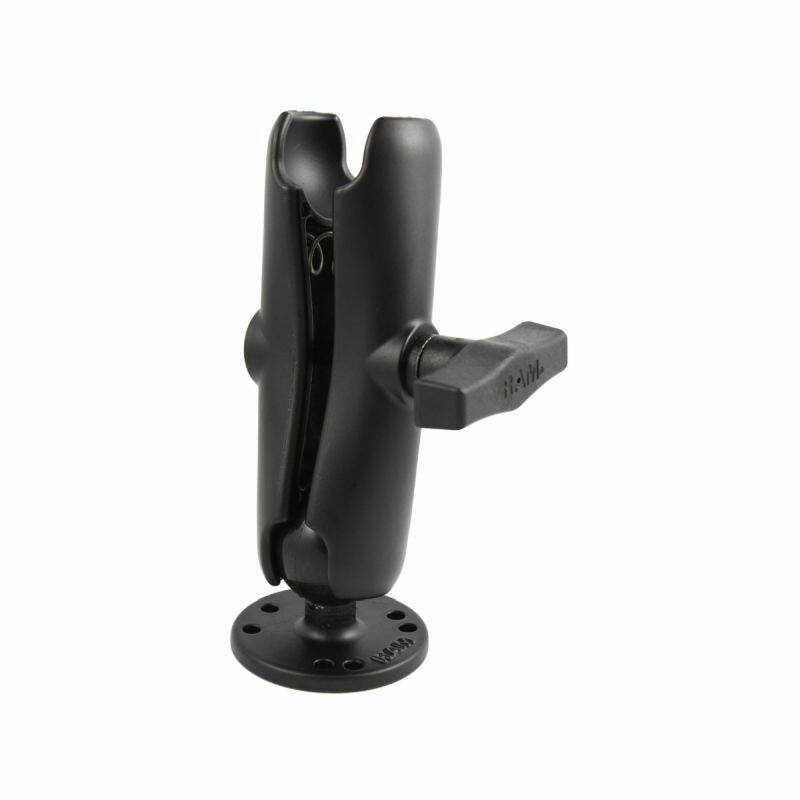

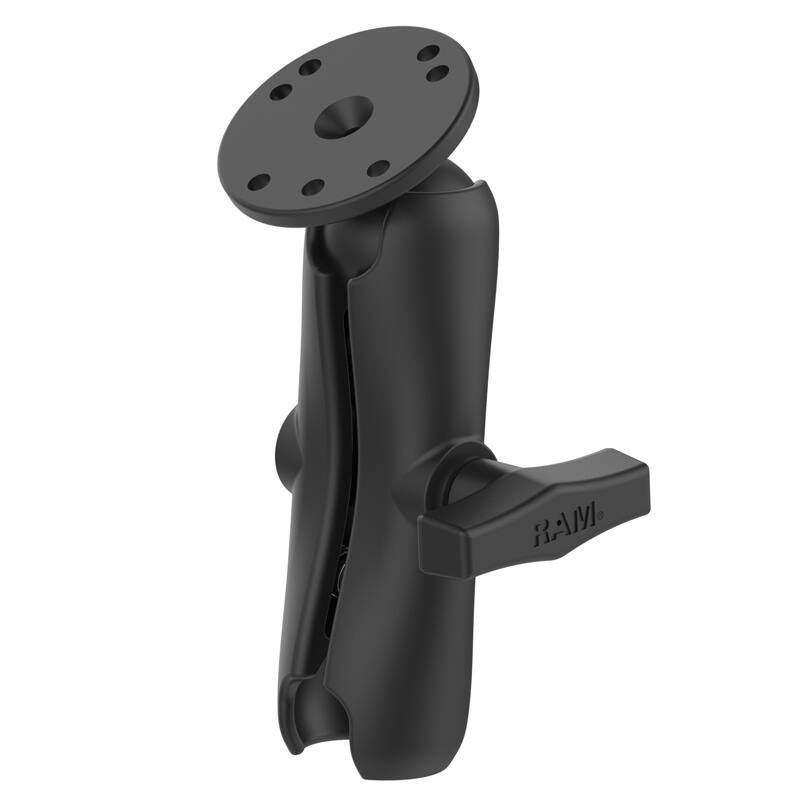

RAM-103U RAM® Double Socket Arm with Round Ball Plate - C Size Medium
Features
* 2.5" round plate connects to RAM® device holders containing the universal AMPS hole pattern
* Includes C size medium length double socket arm; ball and socket technology allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
This combination consists of the 1.5" diameter ball and socket system with one open socket end. This mount is designed to be used with any of the RAM mounting bases or cradles with a 1.5" diameter rubber ball. The RAM-202U round base has a 1.5" diameter rubber ball connected at right angles to a 63mm diameter base. The plate has pre-drilled holes in the base, including the universal AMPS hole pattern.
Specs & Features
Arm Length:
Overall Length:
143mm (5.625")
Socket-To-Socket Length:
114mm (4.5")
Hole Pattern:
4-Hole AMPS:
1.181" x 1.496"
3-Hole 120-Degree:
1.812" Diameter
Material:
Powder Coated Marine Grade Aluminium
Ball Size:
"C" Size 1.5" Rubber Ball Size
Weight:
421 grams (0.93 lbs)
Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
Components:

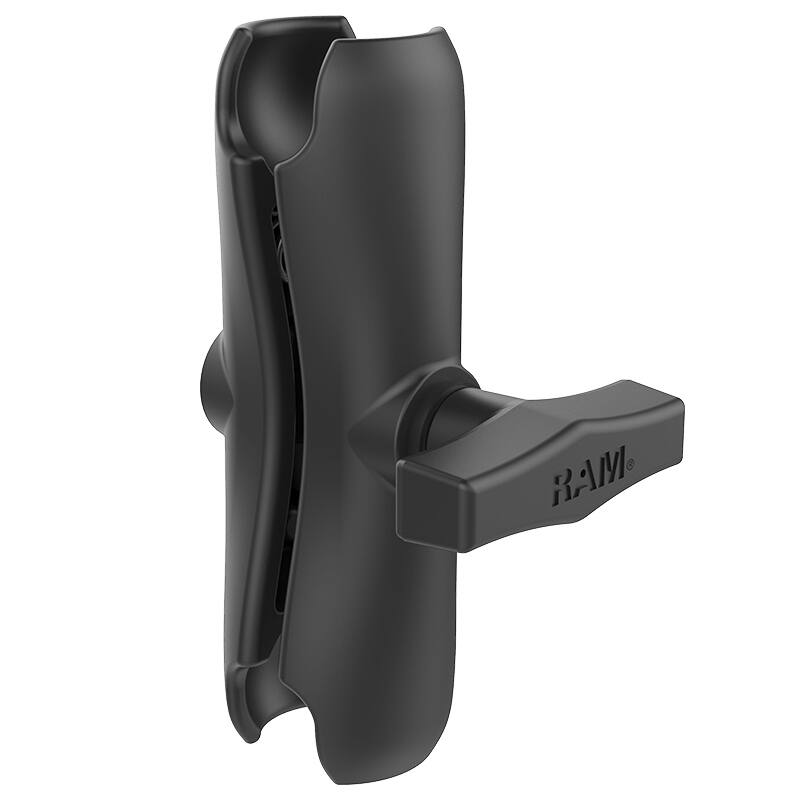

RAM-201U RAM Standard Double Socket Arm for 1.5" Balls

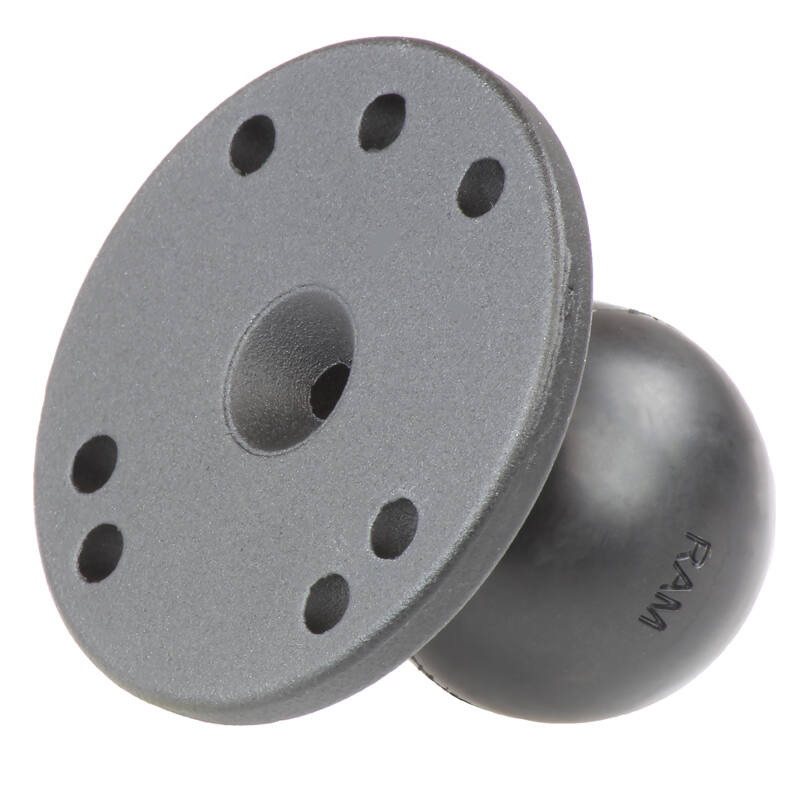

RAM-202U RAM 2.5" / 63mm DIA. BASE 1.5" Ball
YouTube:
https://youtu.be/sihcgjafFI4
QUESTIONS & ANSWERS
Q: Does this SKU include the hardware needed to bolt it to a flat surface?
A: No, the hardware required to install this mount is not included. Because these are mounted to such a wide variety of materials and applications we do not know what hardware to provide. The best resource for that type of information is usually a local hardware store or the manufacturer of the vehicle you are mounting to.
