RAM Mounts

RAM Double Socket Swivel Arm - B Series (1" Ball) - Medium Length 94mm

RAM Double Socket Swivel Arm - B Series (1" Ball) - Medium Length 94mm


Regular price $39.03 NZD
Regular price Sale price $39.03 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

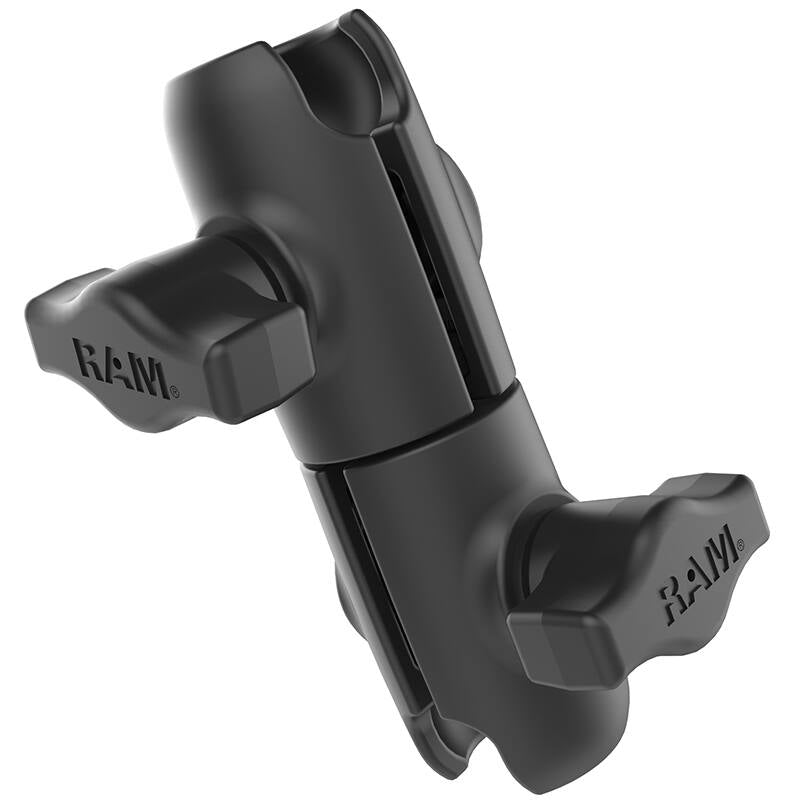

RAP-B-200-12U RAM® Composite Double Socket Swivel Arm for 1" Balls

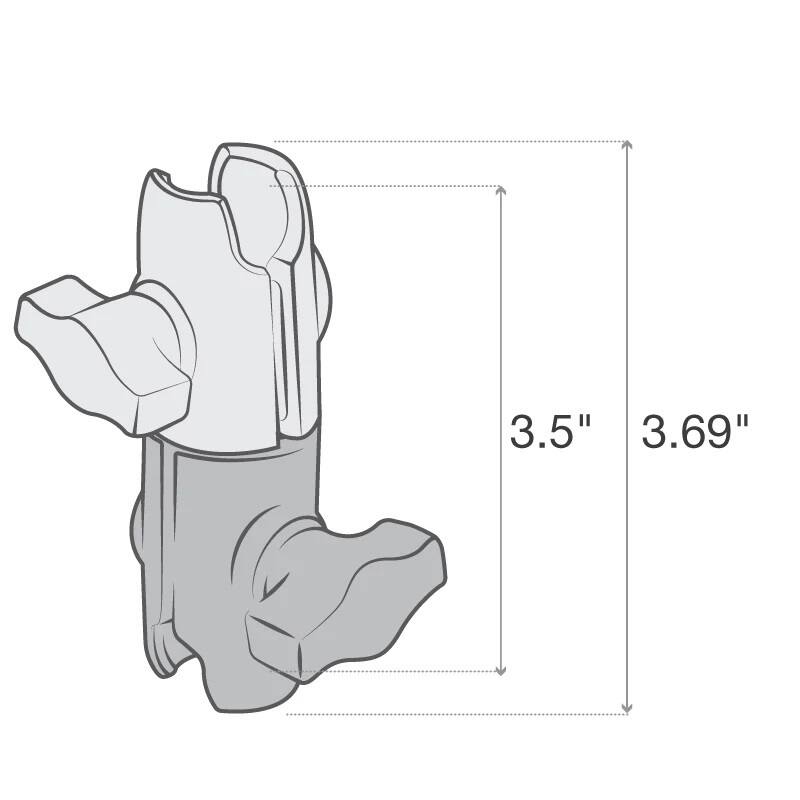

* Double socket swivel arm features 360-degree center rotation with an overall length of 94mm (3.69") and a socket-to-socket length of 89mm (3.5")
* Attaches to any B size RAM® ball component, including mounting bases and device holders

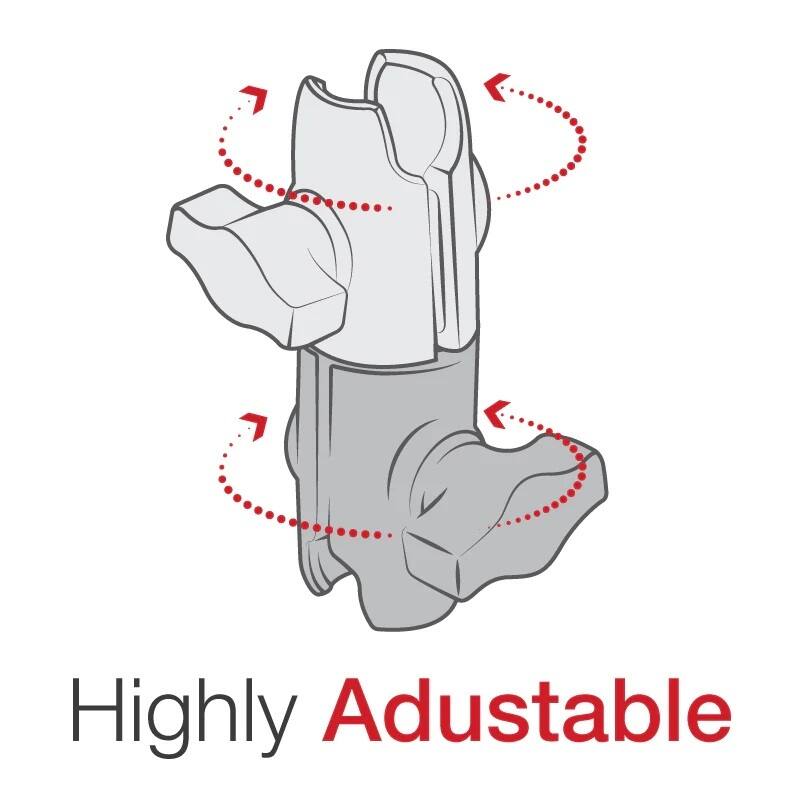

* Double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
* Backed by a lifetime warranty

The RAP-B-200-12U, double socket swivel arm, consists of double 1" diameter open ball sockets with a 360° rotation point at the centre of the arm. The rubber ball and socket at each end, and a central pivot point provides unsurpassed adjust-ability. The RAM ball sockets maximize ball coverage for optimal fit.

Specs & Features

Overall Length:
94mm (3.69")

Socket-to-Socket Length
89mm (3.5")

Ball/Socket Size
B Size (1")

Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)

High strength composite

136 grams (0.3 lbs.)
