RAM Mounts

RAM Double Socket Swivel Arm for B Size 1" Balls - Composite

RAM Double Socket Swivel Arm for B Size 1" Balls - Composite


Regular price $57.45 NZD
Regular price Sale price $57.45 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

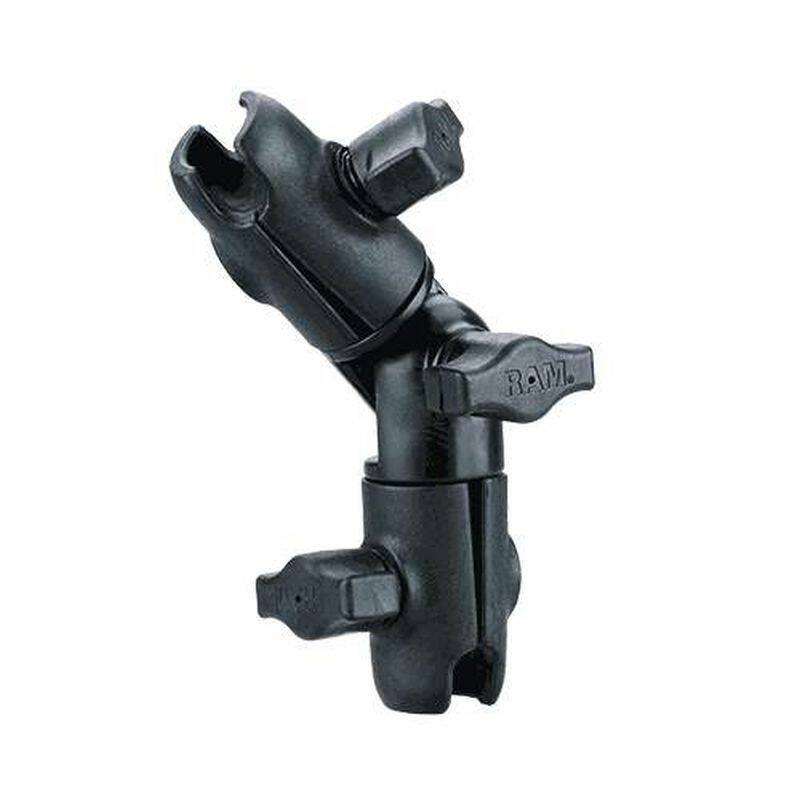

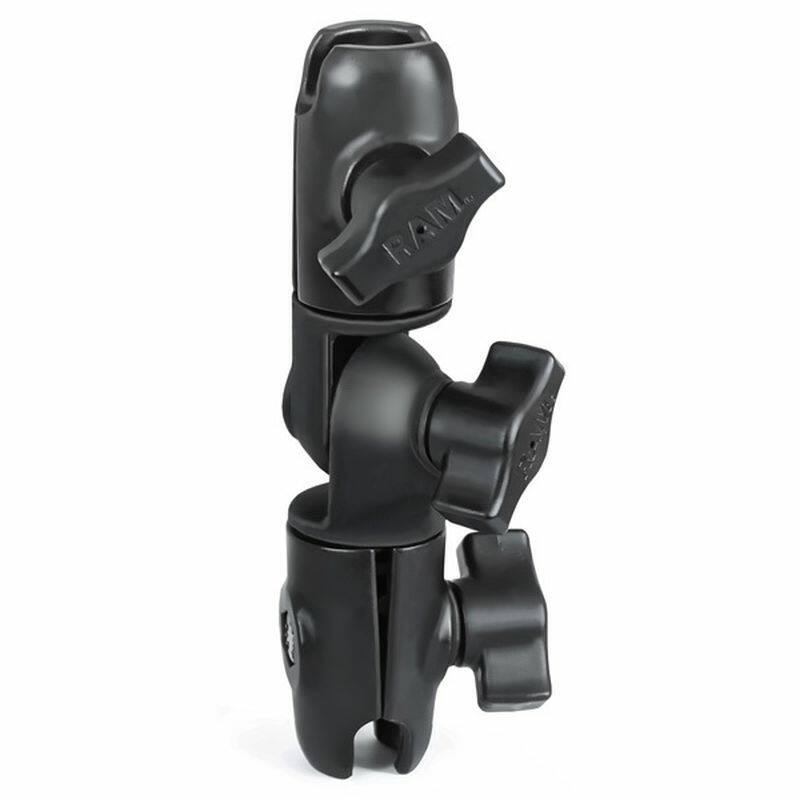

RAP-B-200-2U RAM® Composite Double Socket Swivel & Ratchet Arm

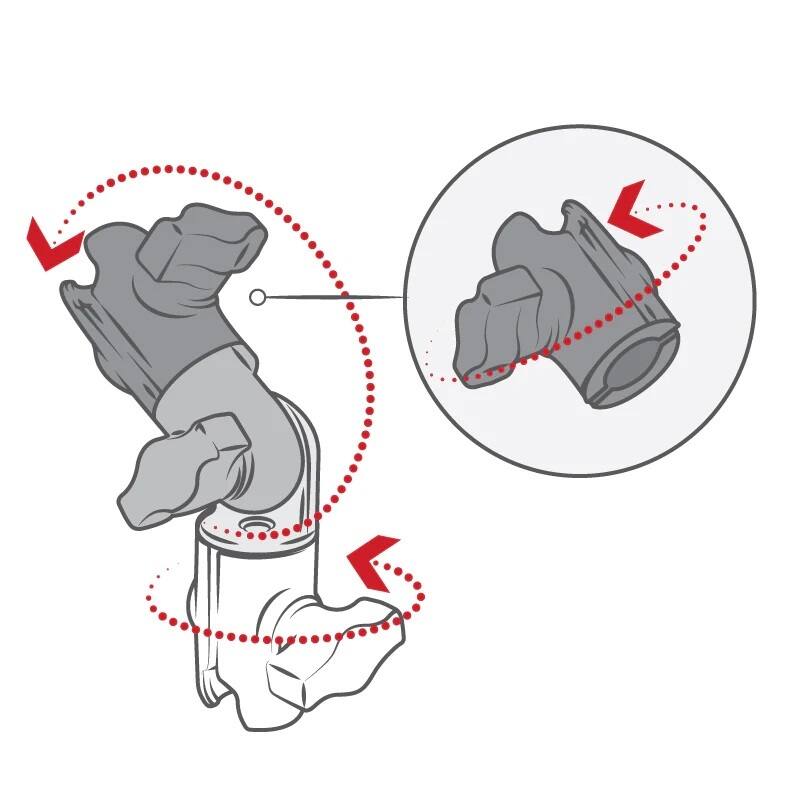

* Double socket swivel and ratchet arm features 360-degree center rotation and 180-degree swivel joint
* Overall length of 159mm and a socket-to-socket length of 140mm
* Attaches to any B size RAM® ball component, including mounting bases and device holders
* Double ball and socket technology allows for near-infinite adjustability of your RAM® mounting system
* Backed by a lifetime warranty

The RAP-B-200-2U consists of double 1" diameter open ball sockets with a 360° rotation point at the centre and a connecting swivel joint that rotates forward and back 180°. The rubber ball and socket at either end, and a central pivot point provides unsurpassed adjust-ability. The RAM ball sockets maximize ball coverage for optimal fit.

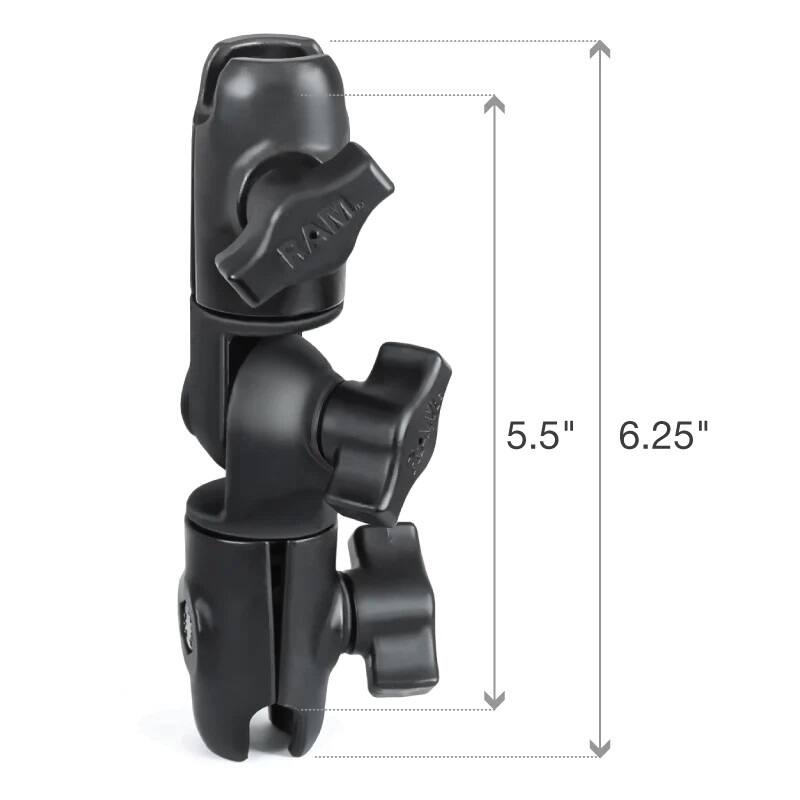

Overall Length:
158.8mm (6.25")
Socket-To-Socket Length:
139.7 mm (5.5" )

Specs & Features

High Strength Composite

Ball Size:
1" Rubber Ball "B" Size

Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)

181 grams (0.4 lbs.)
