RAM EZ-Roll’r Cradle for iPad Mini 1-3 - Dual Suction Cup Mount & Retention Knob

RAM-B-189-AP14-ALA1-KRU RAM® EZ-Roll'r™ Dual Suction Cup Mount for iPad mini 1-3

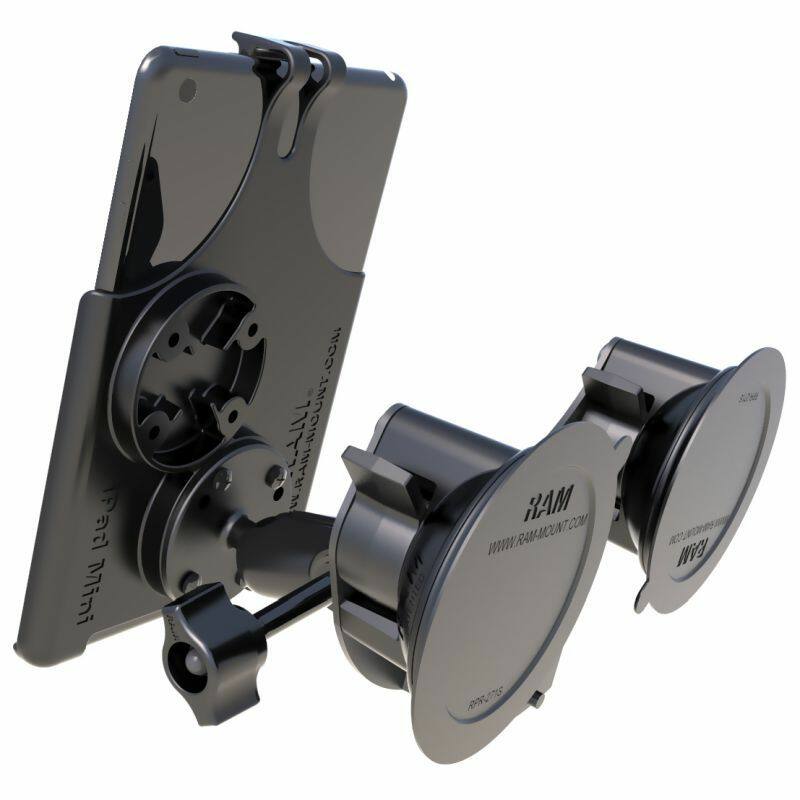

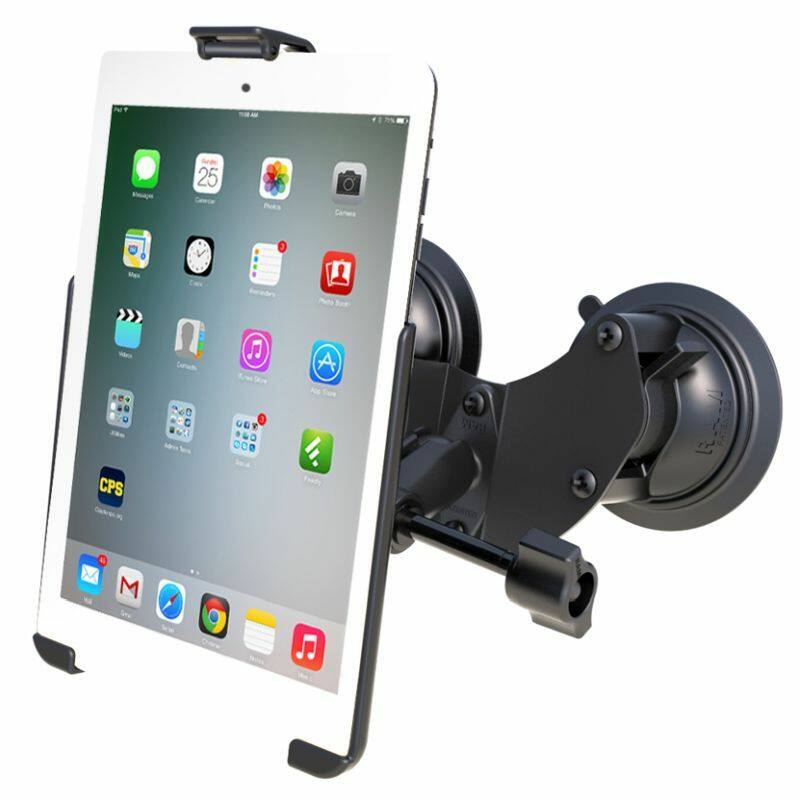

The RAM-B-189-AP14-ALA1-KRU mounts a caseless Apple iPad mini, mini 2 or mini 3 with a dual RAM® Twist-Lock™ suction cup base and extended retention knob arm — built for extra hold in higher-vibration environments such as aircraft.

Key Features

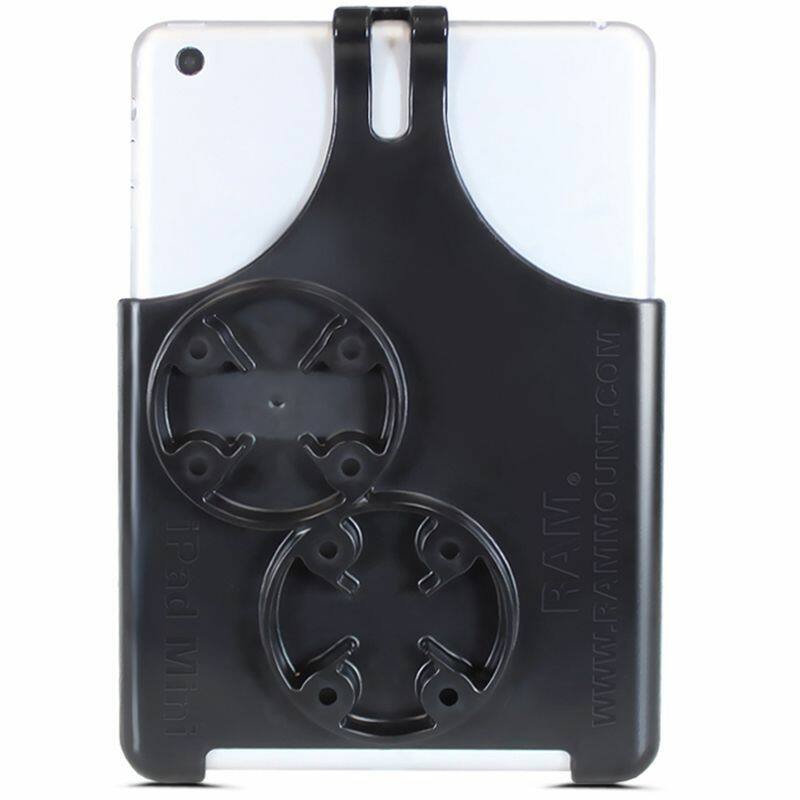

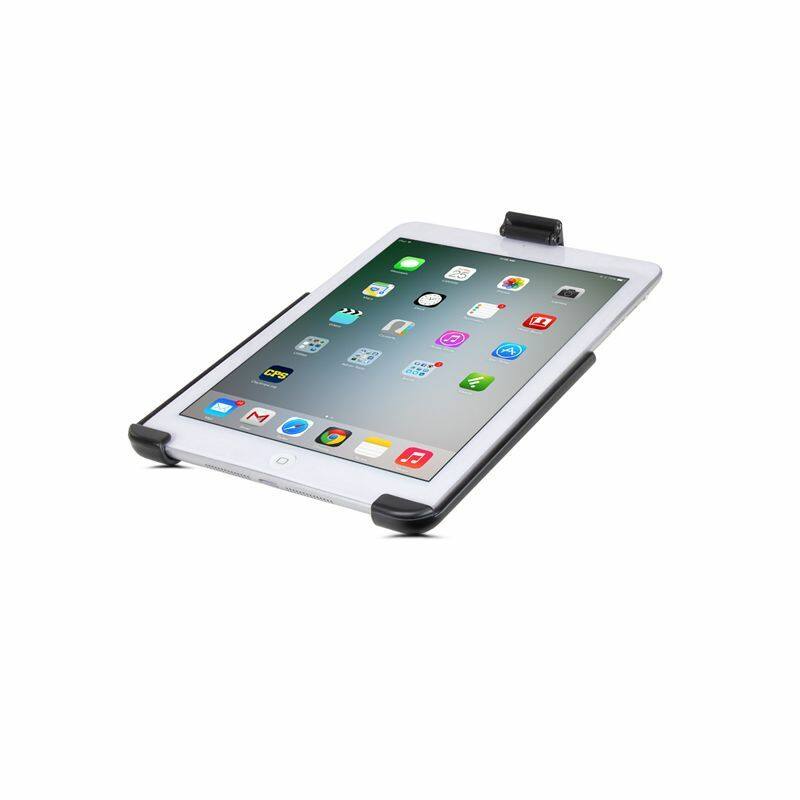

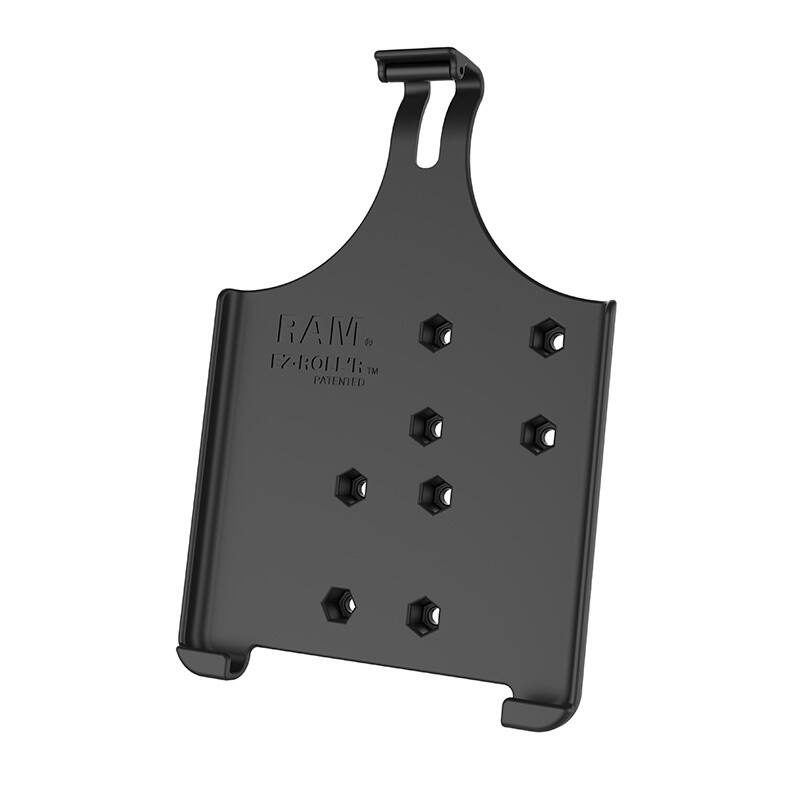

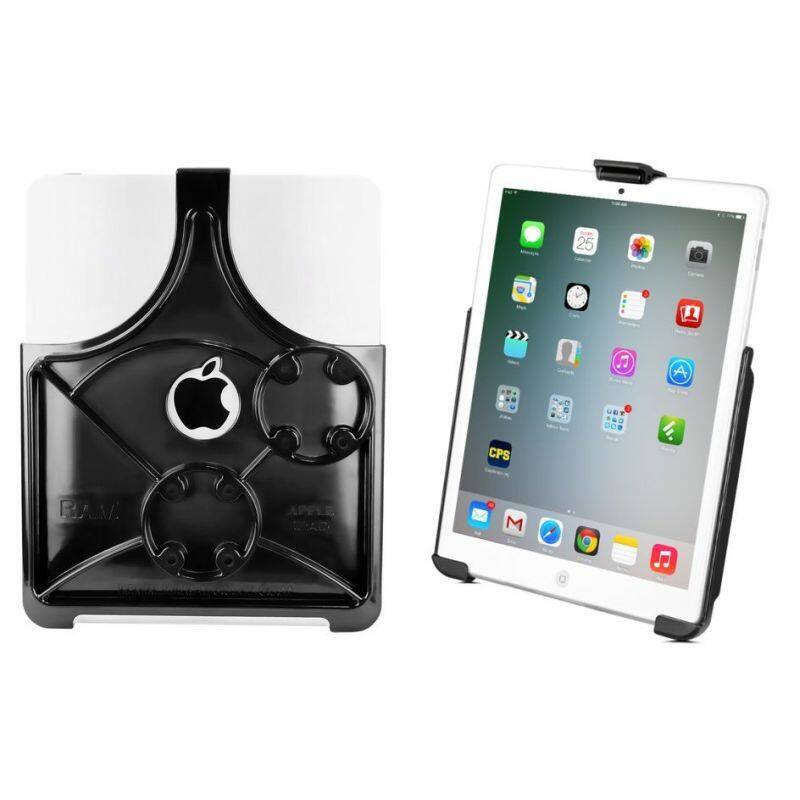

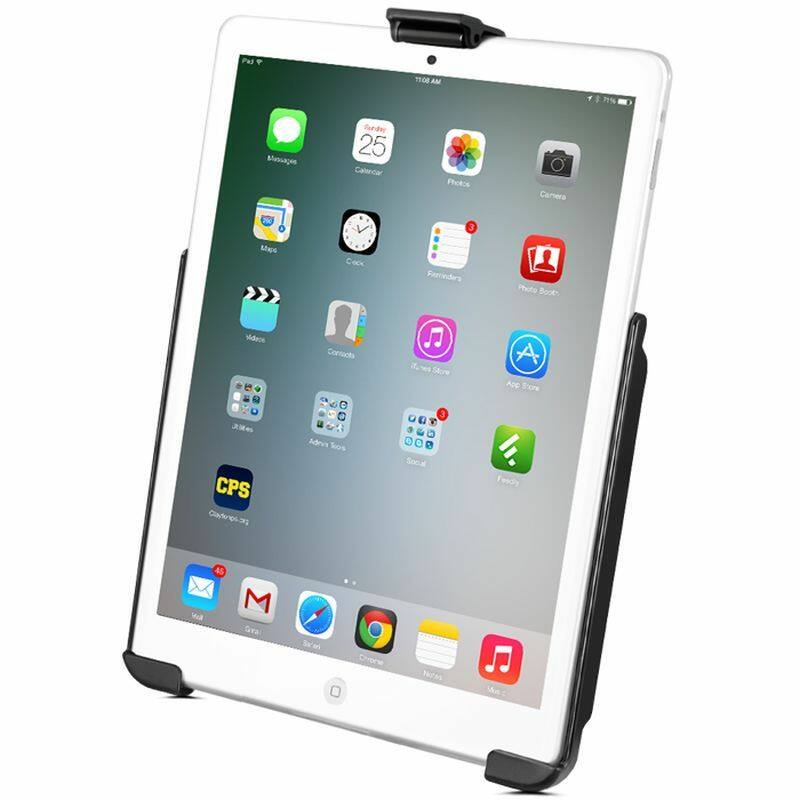

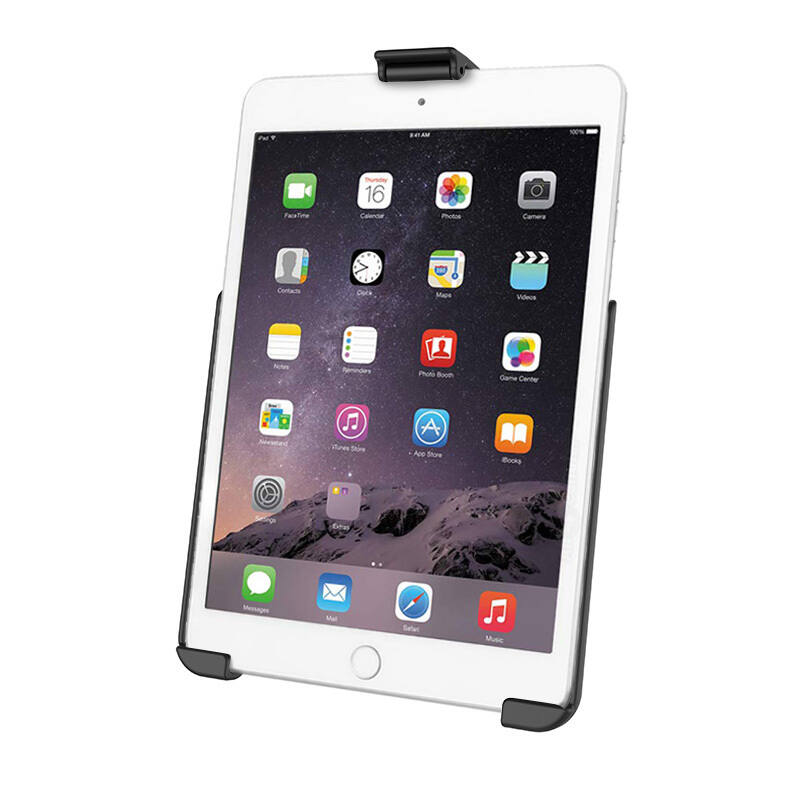

• Form-fit EZ-Roll'r™ cradle for a caseless Apple iPad mini 1-3

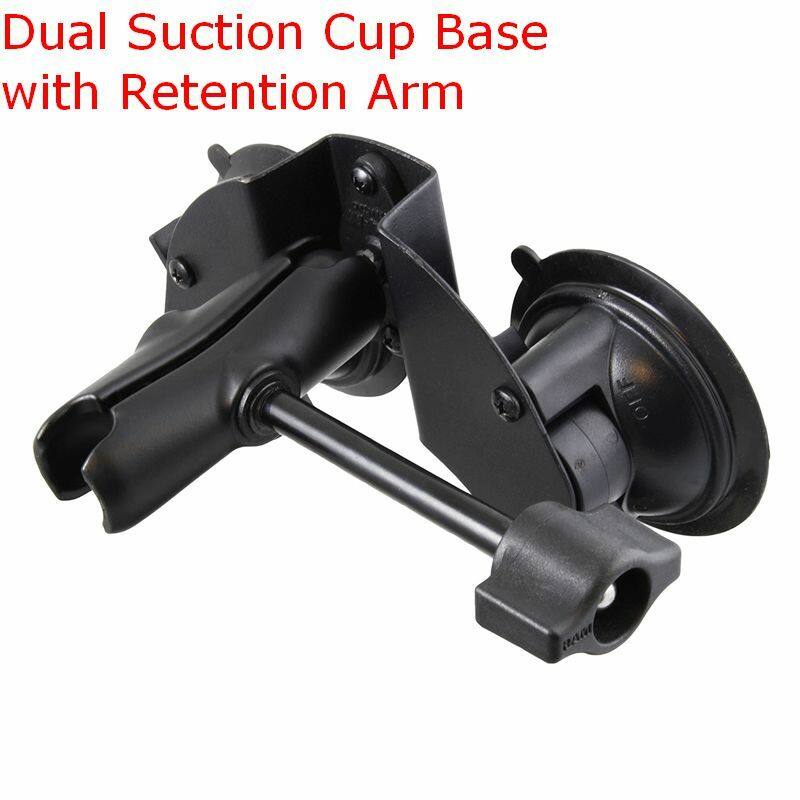

• Dual Twist-Lock™ suction cup base for an extra-strong hold on smooth, non-porous surfaces

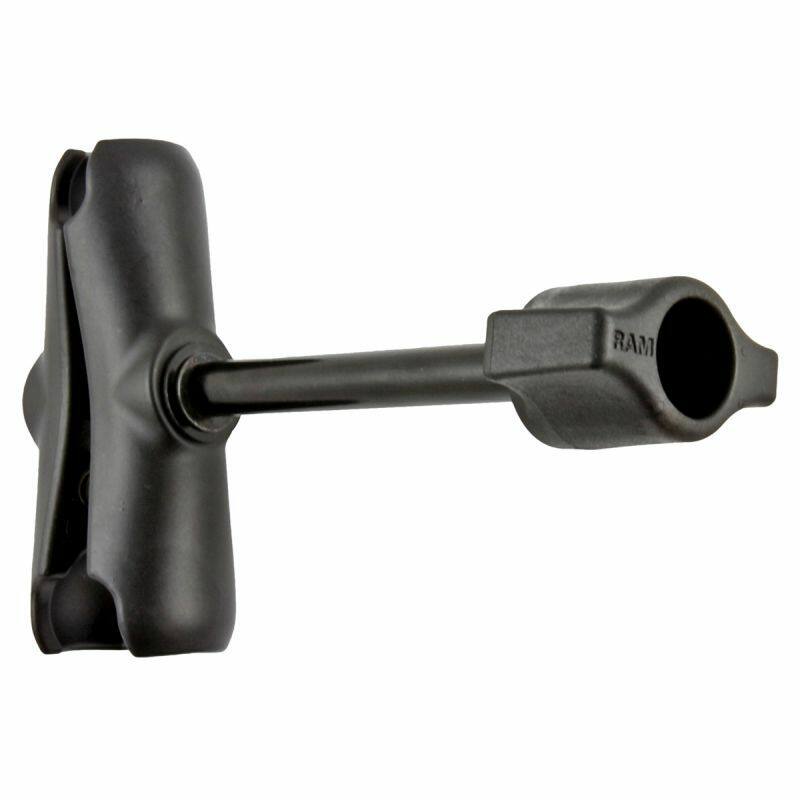

• 94mm double socket arm with extended retention knob for easy adjustment and to prevent over-loosening
• Powder-coated steel, marine-grade aluminium and high-strength composite construction
• Lifetime warranty on the mount hardware, with the suction cups excluded as a wear item

Works With

The dual suction cup base gives a stronger hold than a single cup — best mounted to glass or a non-porous plastic surface. The retention knob arm lets you dial in the perfect viewing angle without the connection working loose over time. The cradle is form-fit to a caseless iPad mini 1-3, so a case or sleeve will not fit.

Dimensions & Specifications

• Suction cup bases: 2x 83.8mm (3.3") diameter, total width 202mm (7.95")
• Arm overall length: 94mm (3.69")
• Arm socket-to-socket length: 76mm (3")
• Ball size: B Series 1"
• Load rating: 907g (2 lb) standard use, 454g (1 lb) heavy-duty use
• Weight: 798g (1.76 lbs)
• Material: powder-coated steel, marine-grade aluminium, high-strength composite

Compatible Devices

• Apple iPad mini (1st Gen)
• Apple iPad mini 2
• Apple iPad mini 3

Care & Warranty

• Smooth, non-porous surfaces only — anything rough or textured lets air past the seal and the cups will not hold.
• Clean the surface thoroughly before you apply the cups.
• If the aircraft or vehicle is left sitting in extreme heat or cold, release the cups and stow the mount rather than leaving it loaded.
• RAM® classes suction cups as a general wear item, so the cups are excluded from warranty cover. The base, arm and cradle hardware are covered as normal.

Videos

RAM Dual Suction Cup Mount overview · RAM EZ-Roll'r Cradle overview

FAQs

Why choose this over the single suction cup version (RAM-B-166-AP14U)? The dual suction base and retention knob give a stronger, more vibration-resistant hold — better suited to aircraft and other high-vibration mounting.

Will it fit my iPad mini in a case? No. The EZ-Roll'r cradle is form-fit to a caseless iPad mini 1-3. For a cased small tablet, the Tab-Tite RAM-B-189-TAB-SMU is the better choice.

Are the suction cups covered by the warranty? No. RAM® treat suction cups as a general wear item, so they sit outside the lifetime warranty. The rest of the mount hardware is covered as normal.

How soon will this ship? If this item shows as being in stock then it will usually ship from our Auckland warehouse in 1 business day. If it says to enquire then please get in touch as we may be able to get this back in for you.
