RAM-B-121-AP22U RAM® EZ-Roll'r™ Yoke Clamp Mount for Apple iPad Pro 10.5 / Air 3
Features
* Form-fit cradle for the iPad Pro 10.5 / Air 3 provides a perfect fit for your device without a case
* Yoke clamp base fits rails from 15.9 to 31.8mm in diameter
* Made of marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

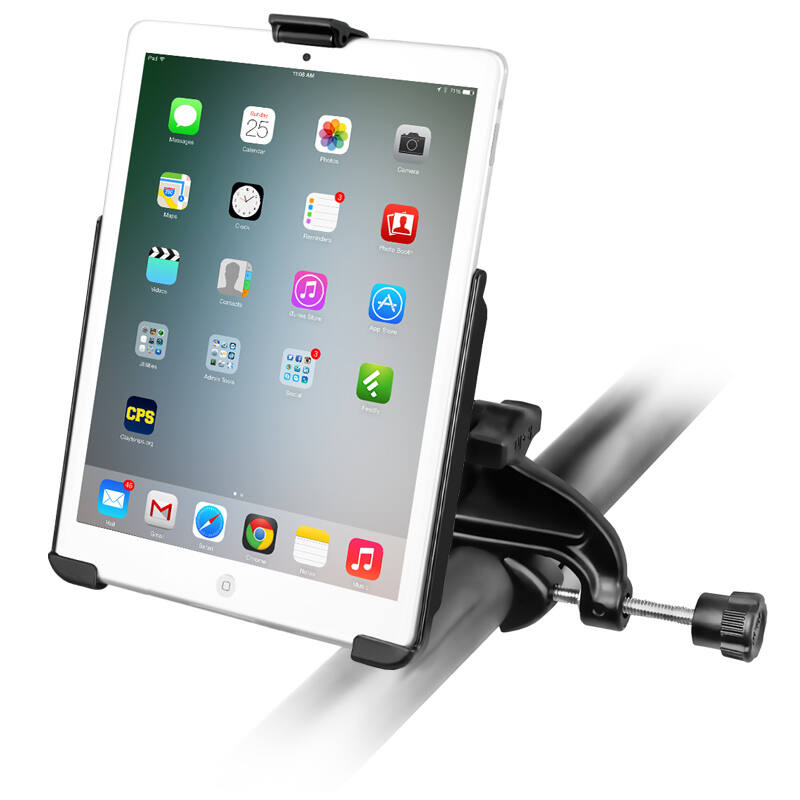

The RAM® EZ-Roll’r™ cradle secures your device in a form-fit holder while keeping the entire screen visible. Included is the yoke clamp base, standard length double socket arm and round base which backs onto the cradle. Simply slide your iPad into the cradle and roll the top clip over the device to secure into place.

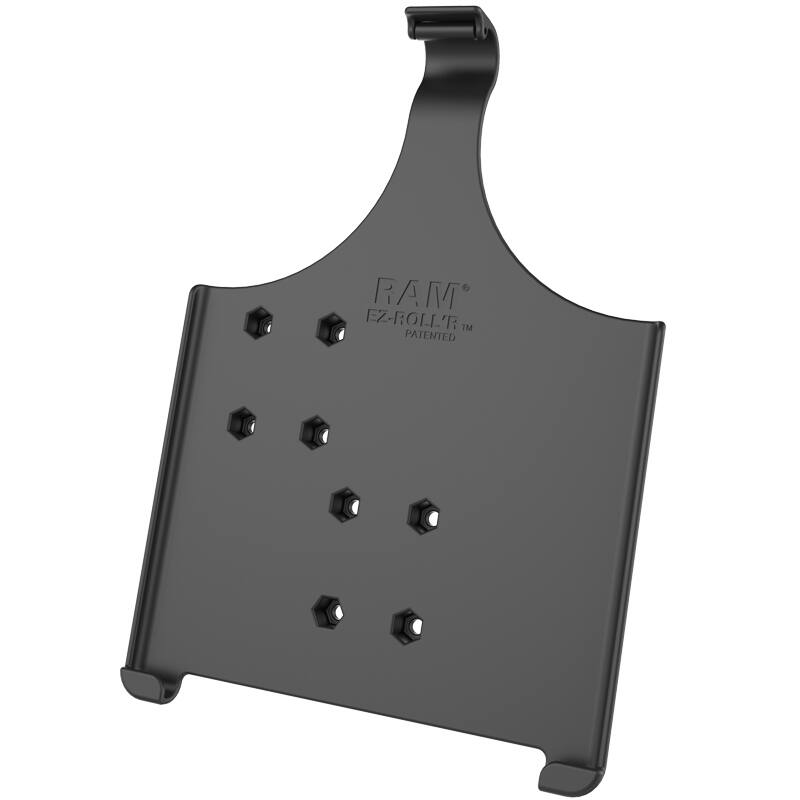

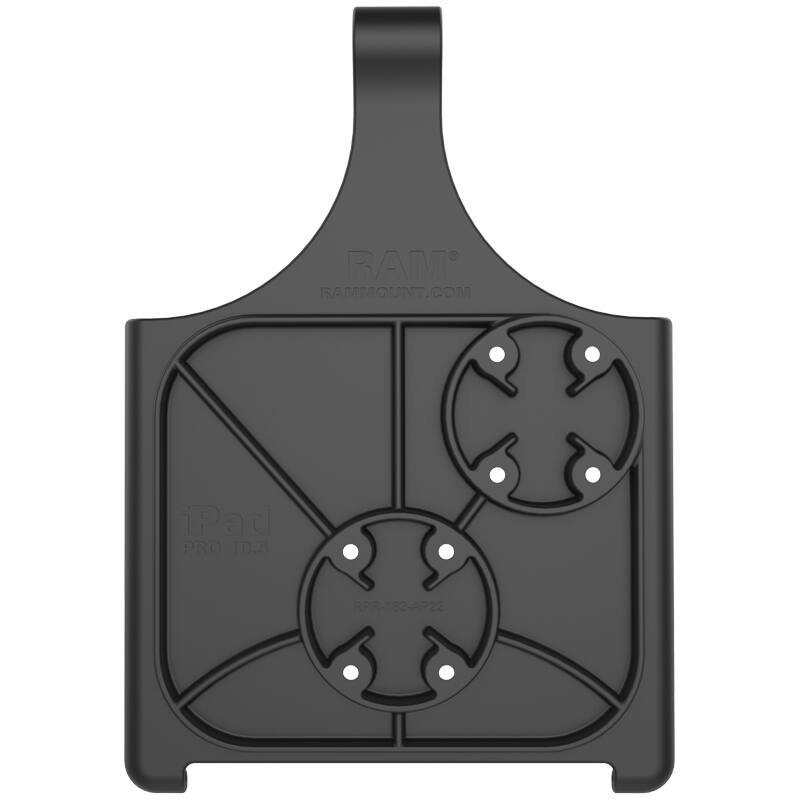

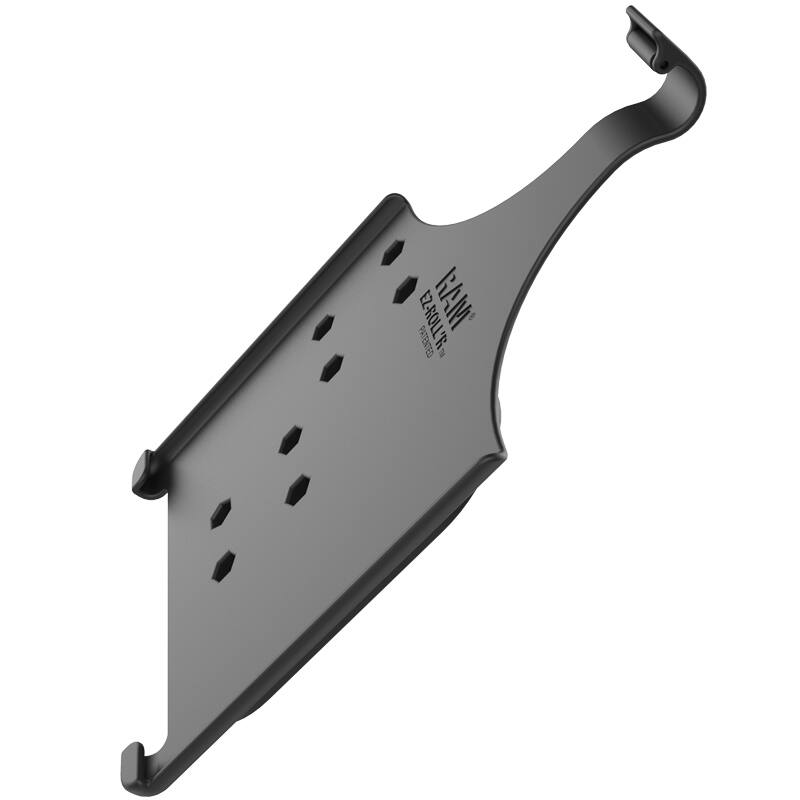

The side buttons, camera, and charging port are conveniently exposed and accessible. This RAM® EZ-Roll’r™ cradle also features three attachment points on the back to attach a RAM® round ball base. An attachment point on the side of the cradle allows for the placement and removal of the Apple Pencil.
The yoke clamp base will fit rails 15.875 - 31.75mm in diameter. The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm, allowing for almost infinite adjustment and perfect viewing angles.
Compatible Devices:
Apple iPad Pro 10.5
iPad Air 3
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")

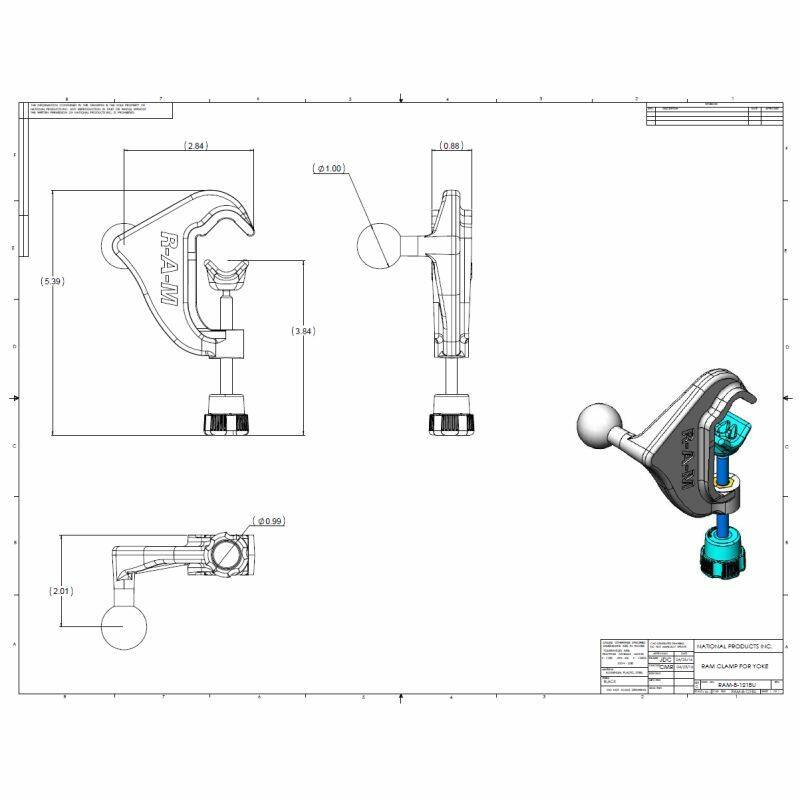

Yoke Clamp Dimensions
15.875 - 31.75mm (0.625 -1.25")
Components:

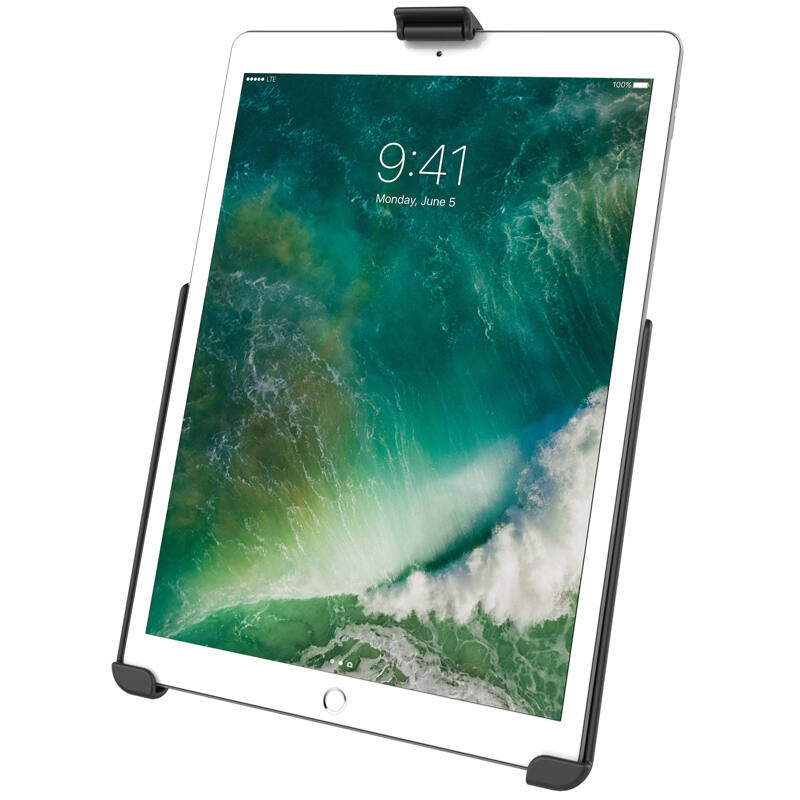

RAM-HOL-AP22U RAM EZ-Roll'r Cradle for Apple iPad
RAM-B-202U 62mm DIA.BASE WITH 1" BALL

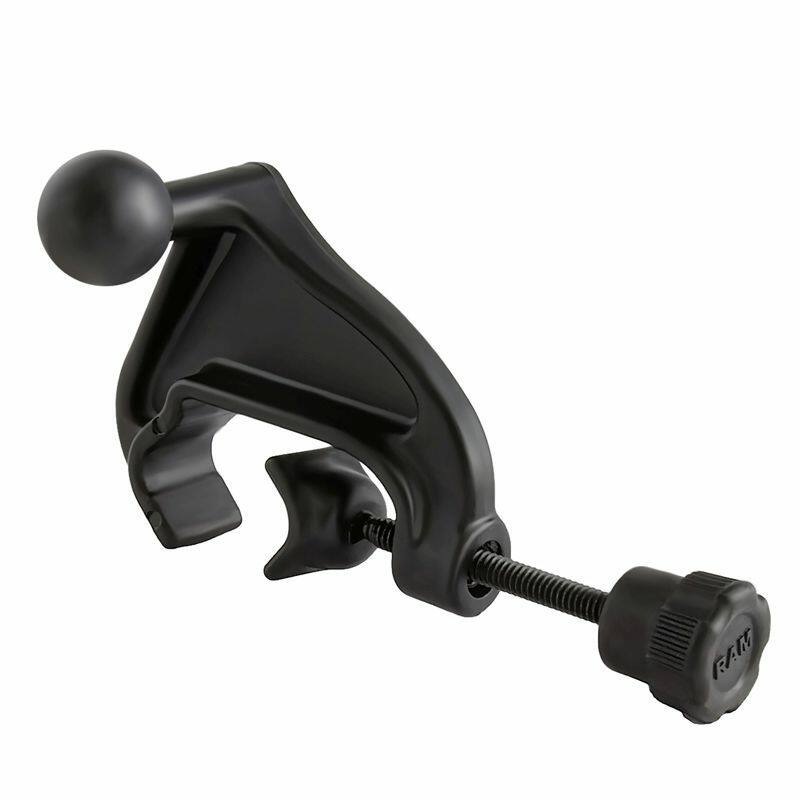

RAM-B-121BU CLAMP FOR YOKE MOUNTING
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL
YouTube:
https://www.youtube.com/watch?v=0t4uxdsRxAU
https://www.youtube.com/watch?v=0kDMJ3SozRE
https://www.youtube.com/watch?v=s0l6AQ5xprI
https://www.youtube.com/watch?v=7iZ4w7pV_Io
QUESTIONS & ANSWERS
Q: I have a new iPad 10.2. Will Part# RAM-HOL-AP22U fit?
A: The RAM-HOL-AP22U is for the iPad Air 3 or iPad Pro 10.5" tablets, the RAM-HOL-AP31U is the form fitting cradle we recommend for the 7th, 8th, and 9th Gen iPad 10.2" tablets. Please note, the form fitting cradles will only accommodate the devices they're intended for without a case or screen protector.
