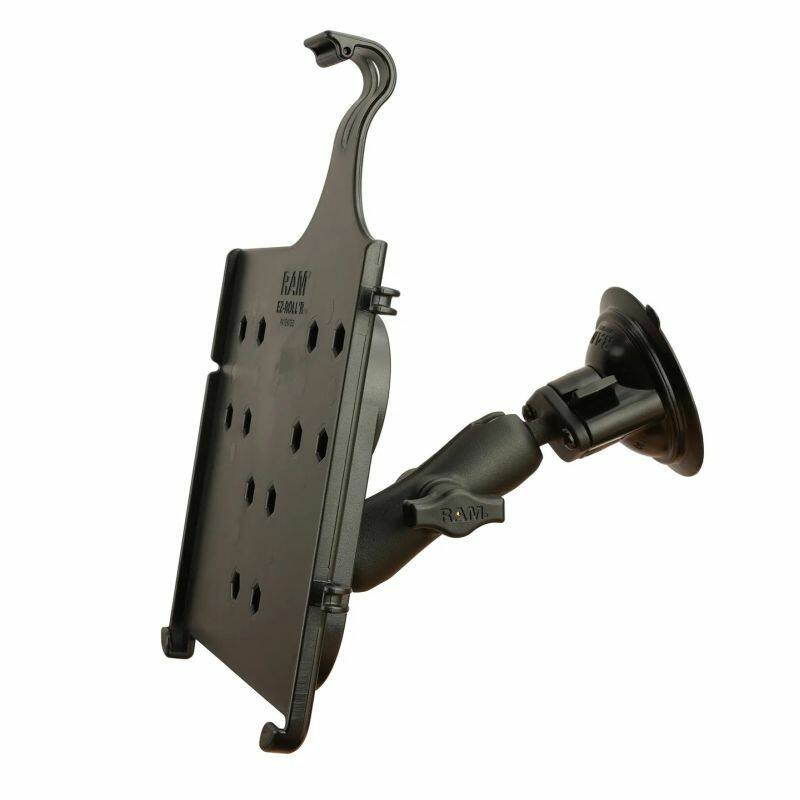

RAM-B-166-AP23U RAM® Twist-Lock™ Suction Cup Mount for iPad Pro 11", Air 4 & Air 5
Features
* Form-fit cradle for the iPad Pro 11" (1st - 3rd Gen) & iPad Air 4 & 5 provides a perfect fit for your device without a case

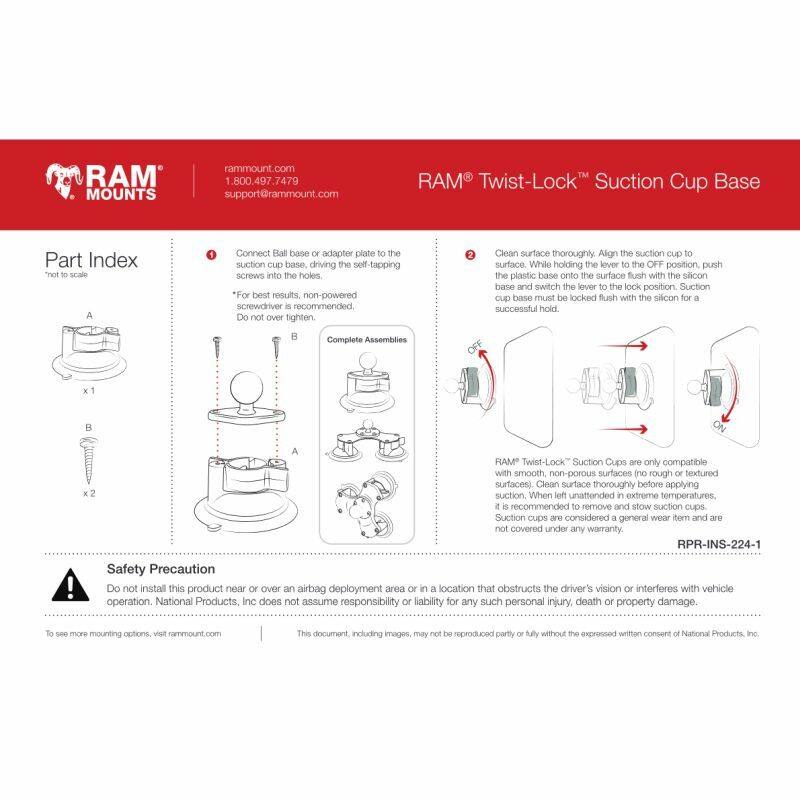

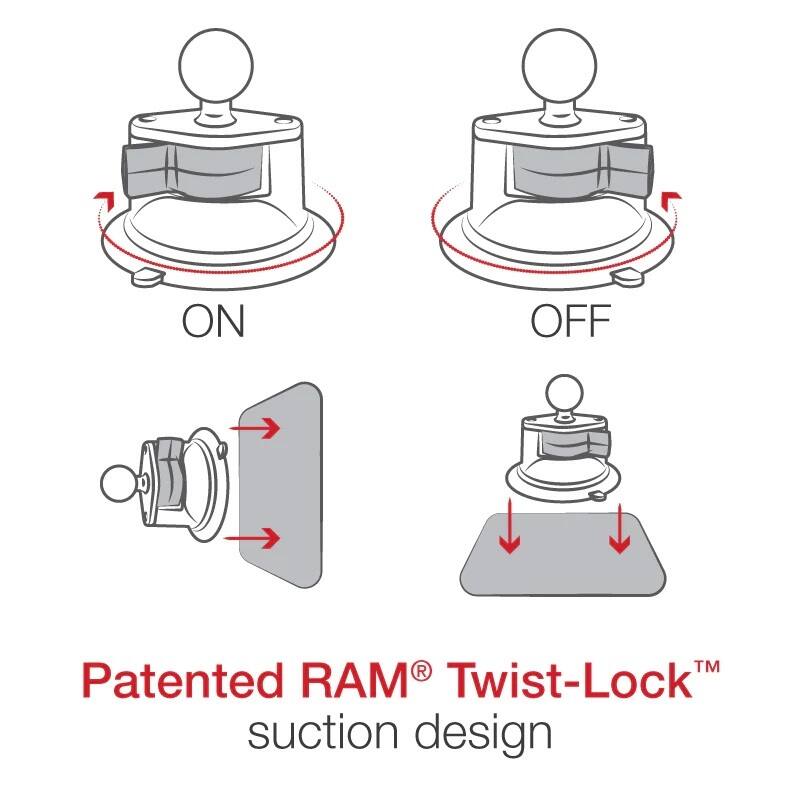

* RAM® Twist-Lock™ suction cup base is ideal for vehicle windshields and other non-porous surfaces
* Includes B size medium length RAM® double socket arm and 2.5" round base with B size 1" rubber ball; ball and socket technology allows for near-infinite adjustability
* Made of marine-grade aluminum and high-strength composites for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

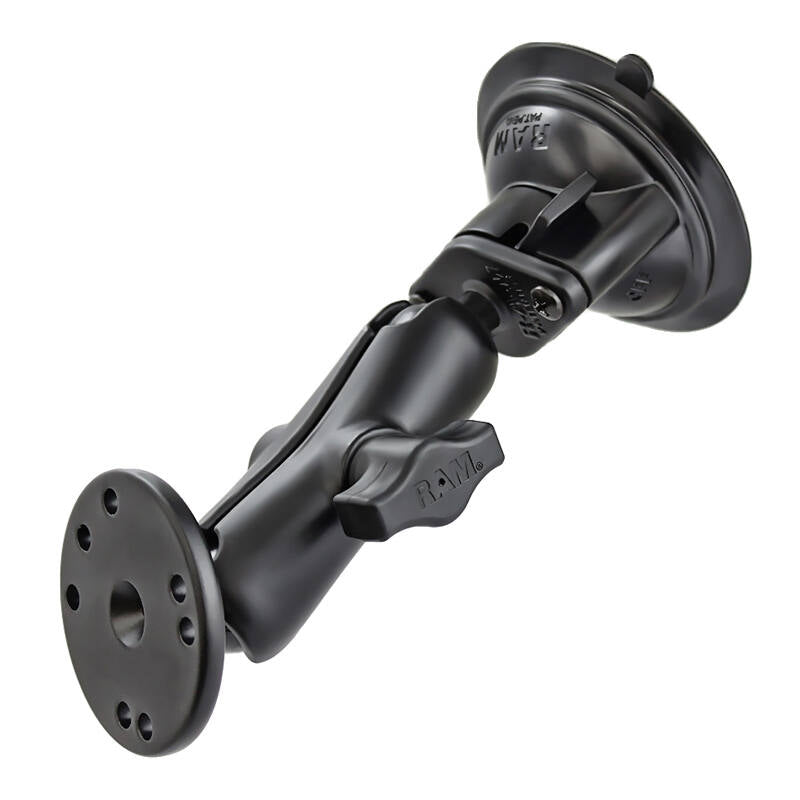

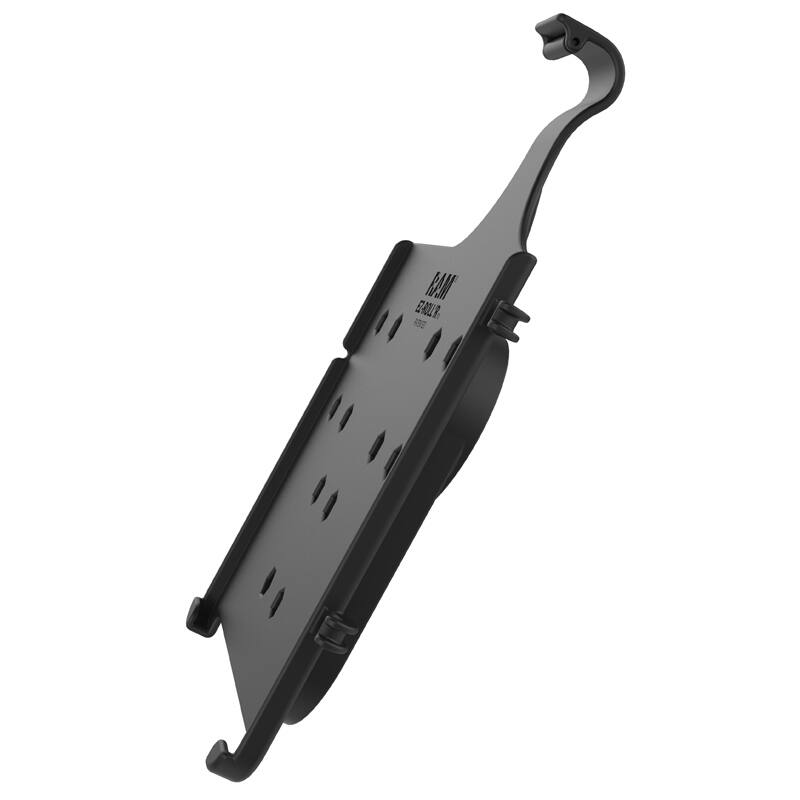

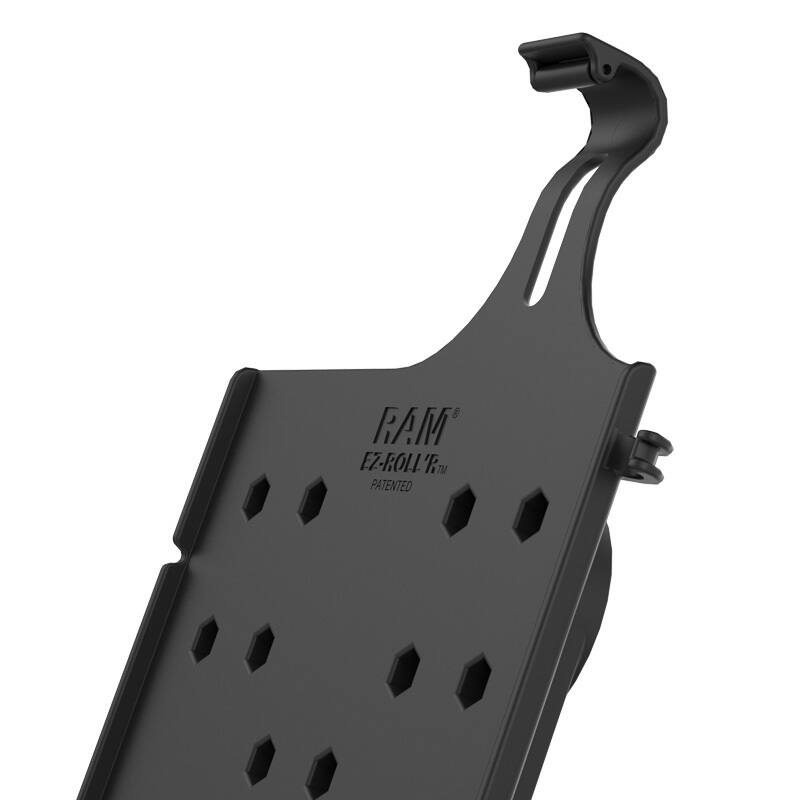

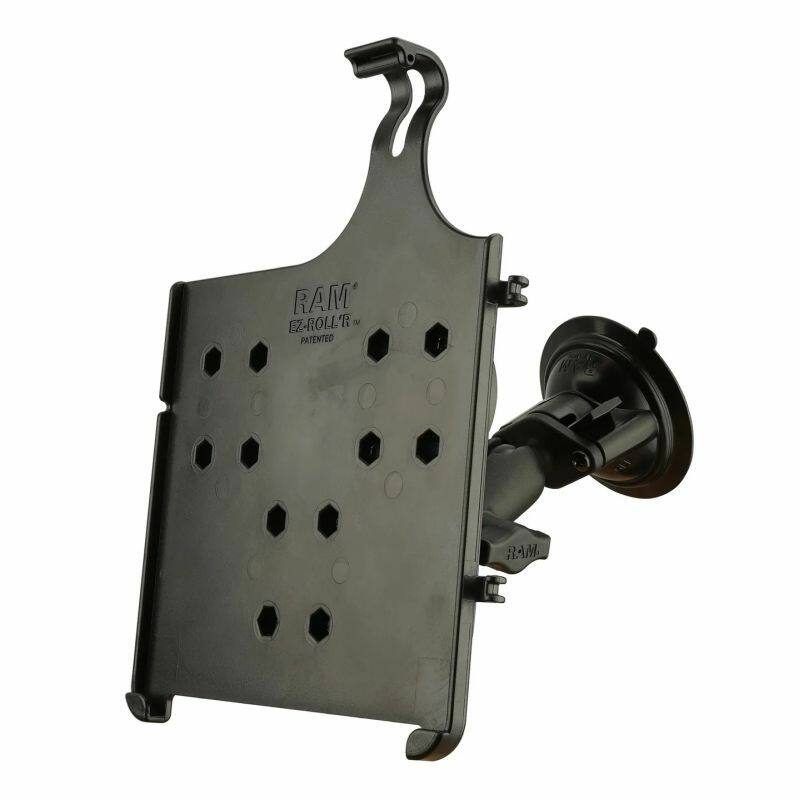

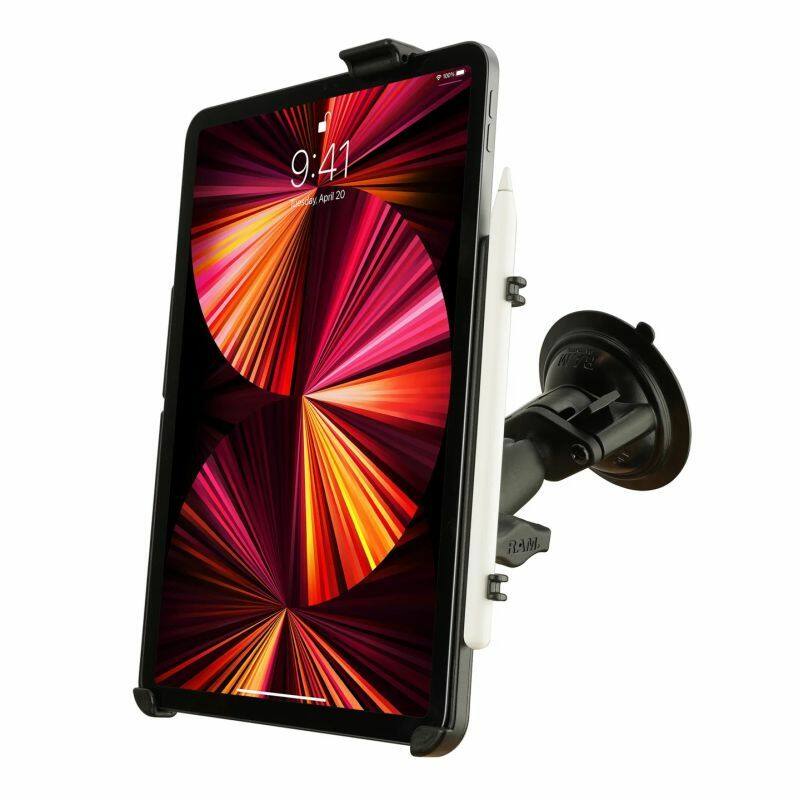

The RAM® EZ-Roll’r™ cradle for the iPad Pro 11”, iPad Air 4 & Air 5 secures your device in a form-fit holder while keeping the entire screen visible. Included is the RAM-B-166-202U which consists of a 3.3" suction cup twist lock base, double socket arm and round base adapter that contains the universal AMPS hole pattern.

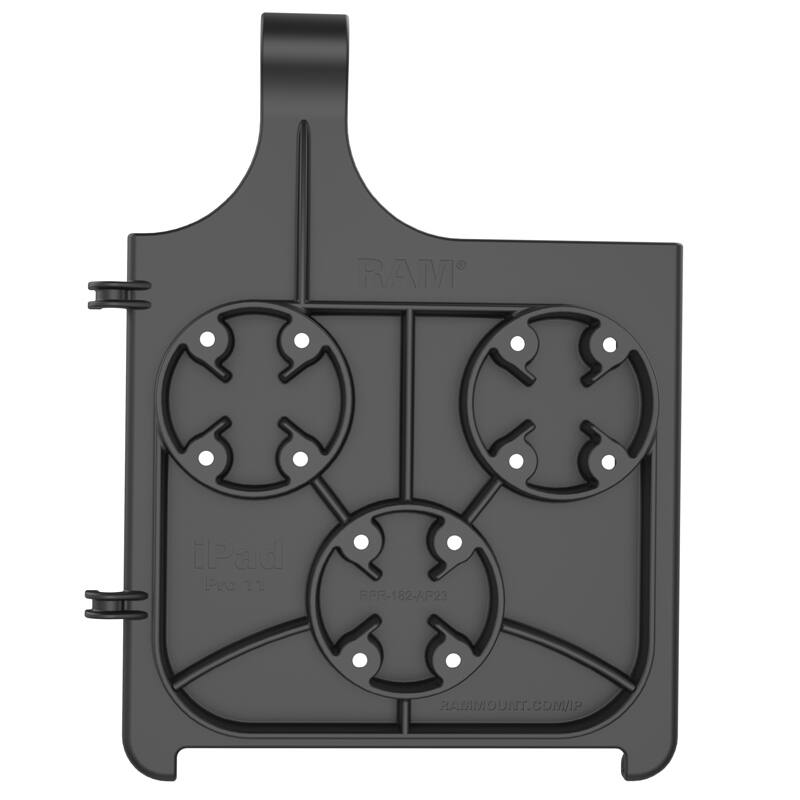

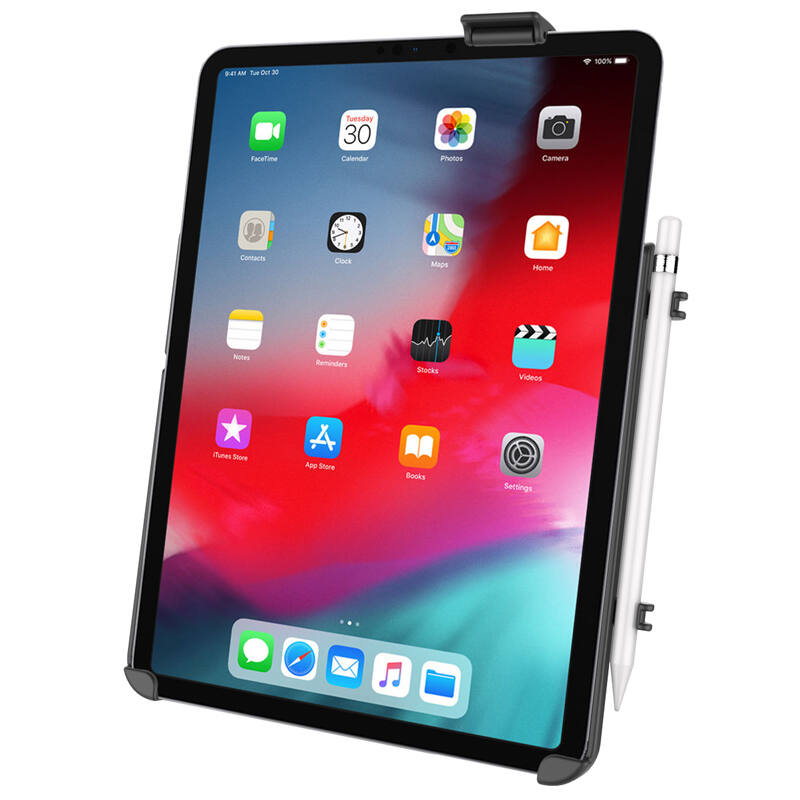

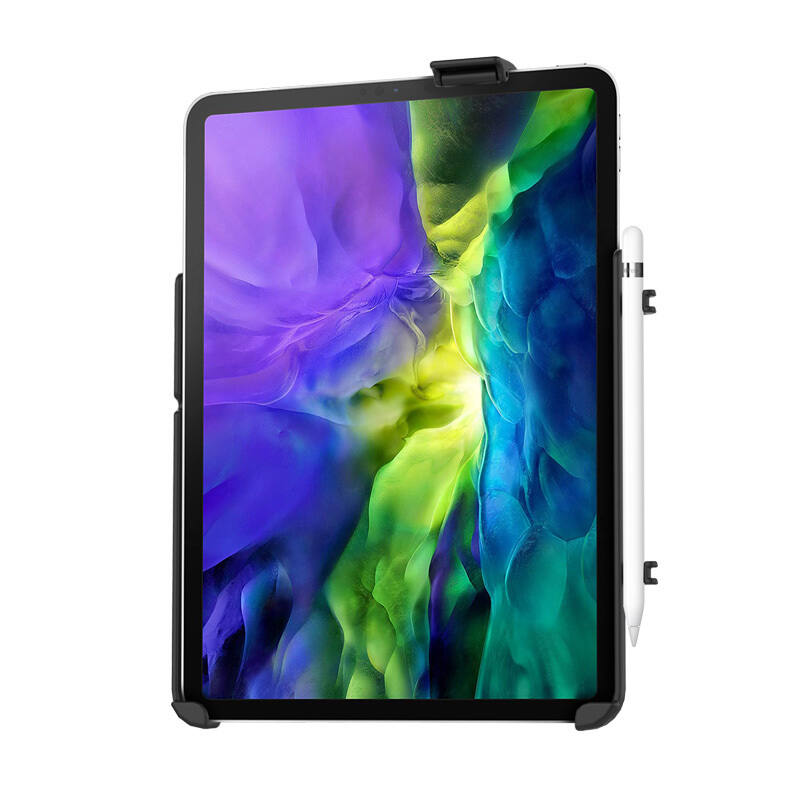

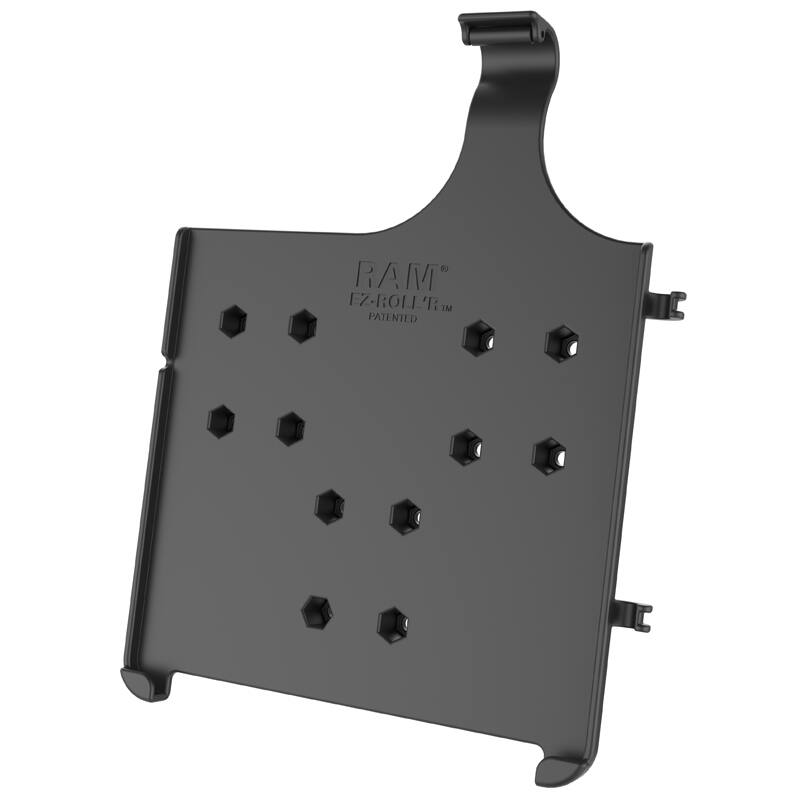

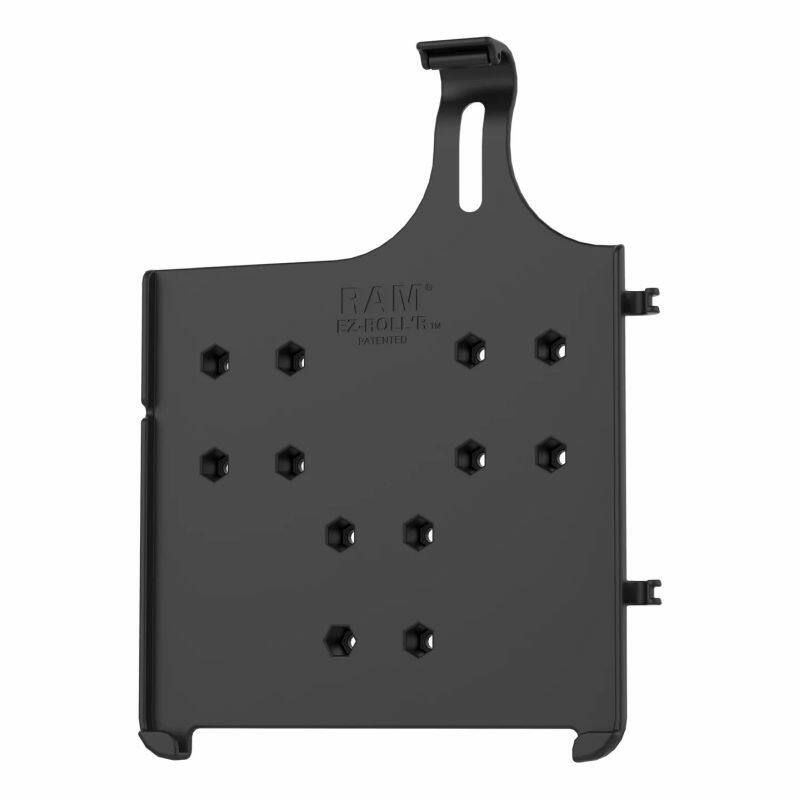

Simply slide your iPad into the cradle and roll the top clip over the device to secure into place. The side buttons, camera, and charging port are conveniently exposed and accessible. This RAM® EZ-Roll’r™ cradle also features three attachment points on the back to attach a RAM® round ball base. An attachment point on the side of the cradle allows for the placement and removal of the Apple Pencil.
The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles. The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM® adhesive disk.
Compatible Devices
Apple
iPad Air 4
iPad Air 5
iPad Pro 11"
iPad Pro 11" (2020)*
iPad Pro 11" (2021)*
iPad Pro 11" (2022)*
Additional Information: For iPad Pro 11" (2020), this holder will not allow charging of the 2nd Gen Apple Pencil. This holder may not support your iPad if it has a screen protector.

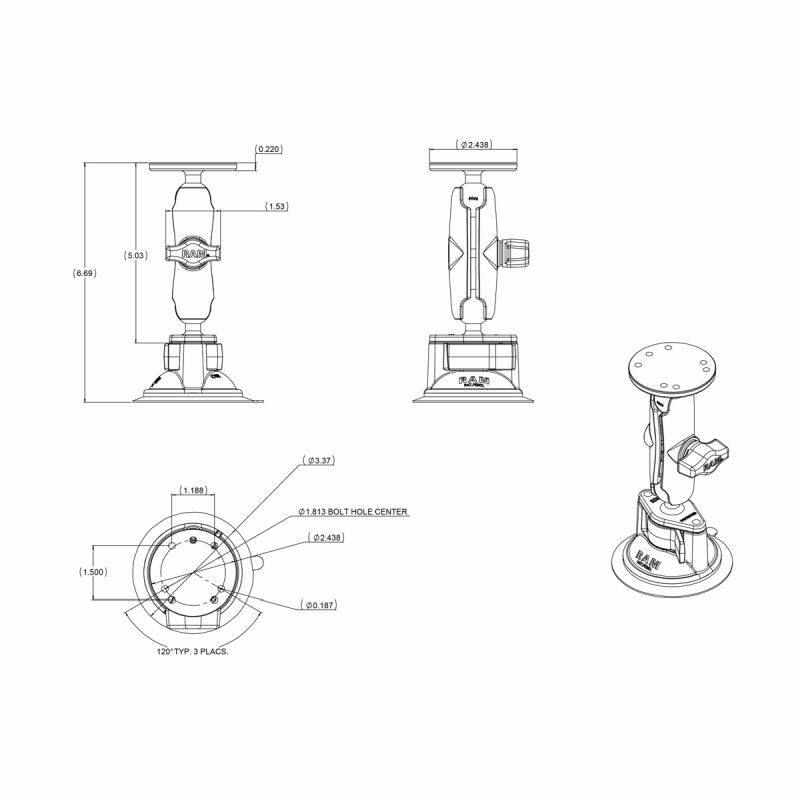

Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Material:
Powder Coated Marine Grade Aluminium
High Strength Composite
Weight
517 grams (1.14 lbs)
YouTube:
https://www.youtube.com/watch?v=0t4uxdsRxAU
https://www.youtube.com/watch?v=-f2bp2lNHvg
Components:
RAM-HOL-AP23U RAM EZ ROLL'R CRADLE FOR APPLE IPAD 11"
RAM-B-224-1U RAM 83mm DIA. SUCTION CUP BASE with 1" BALL
RAM-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-202U RAM 62mm DIA.BASE WITH 1" BALL
