RAM-HOL-SAM60PDU - RAM® EZ-Roll'r™ Power and Data Cradle for Samsung Galaxy Tab Active 3 and Active2
Features

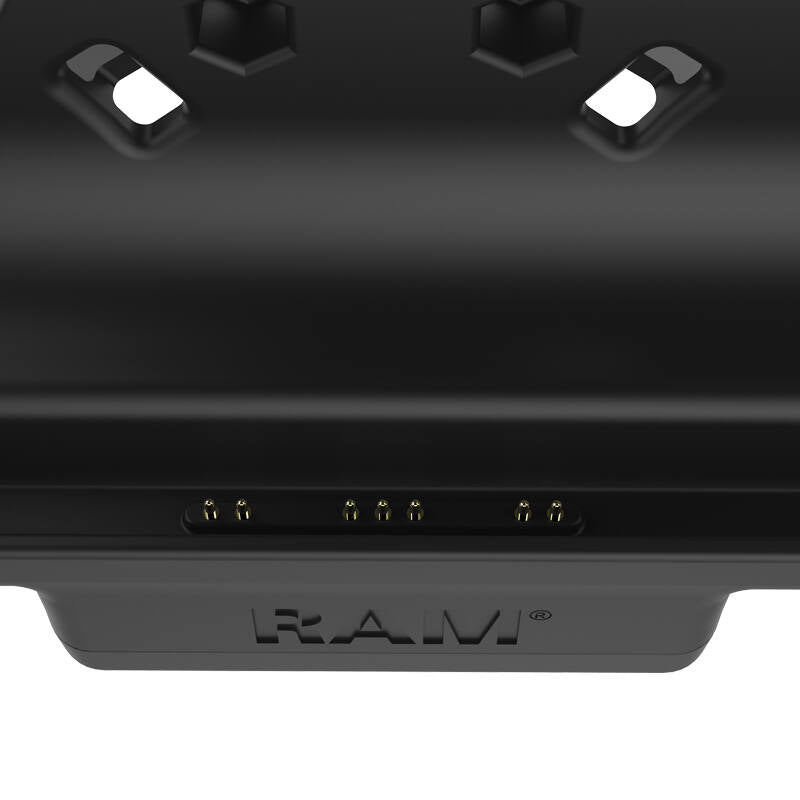

- RAM® EZ-Roll'r™ form-fit powered dock for the Samsung Galaxy Tab Active3 and Tab Active2 provides charging and connects one additional USB peripheral through an integrated pogo pin connector
- Compatible with the Samsung OEM skin as well as the RAM® Skin™; built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
- Access to speakers, mics, and headphone jack remain while device is docked; allows access to the GDS® shoulder strap loops on RAM® Skin™
- Backed by a 3-year warranty

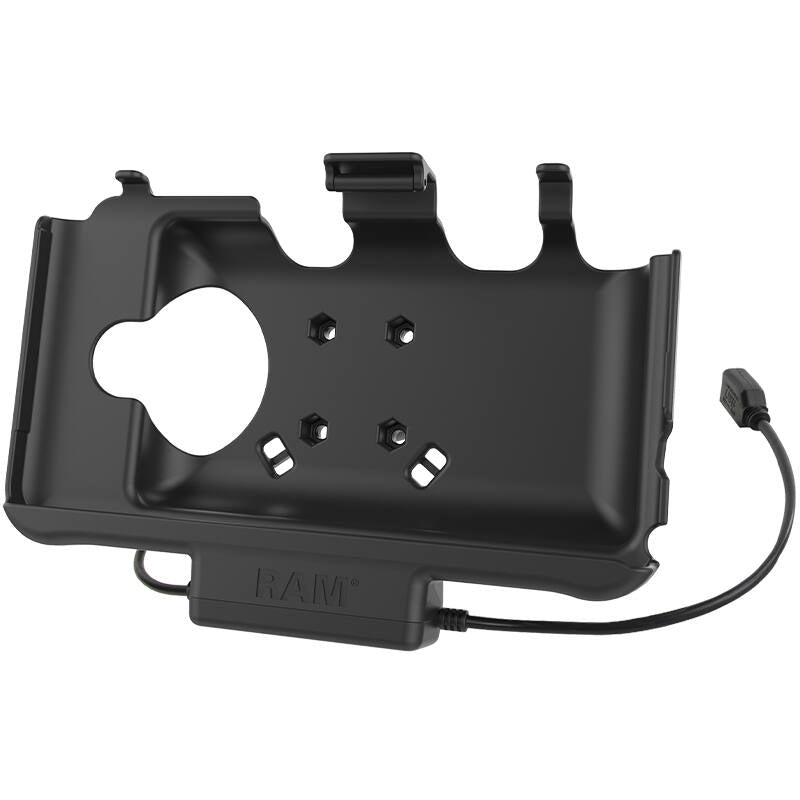

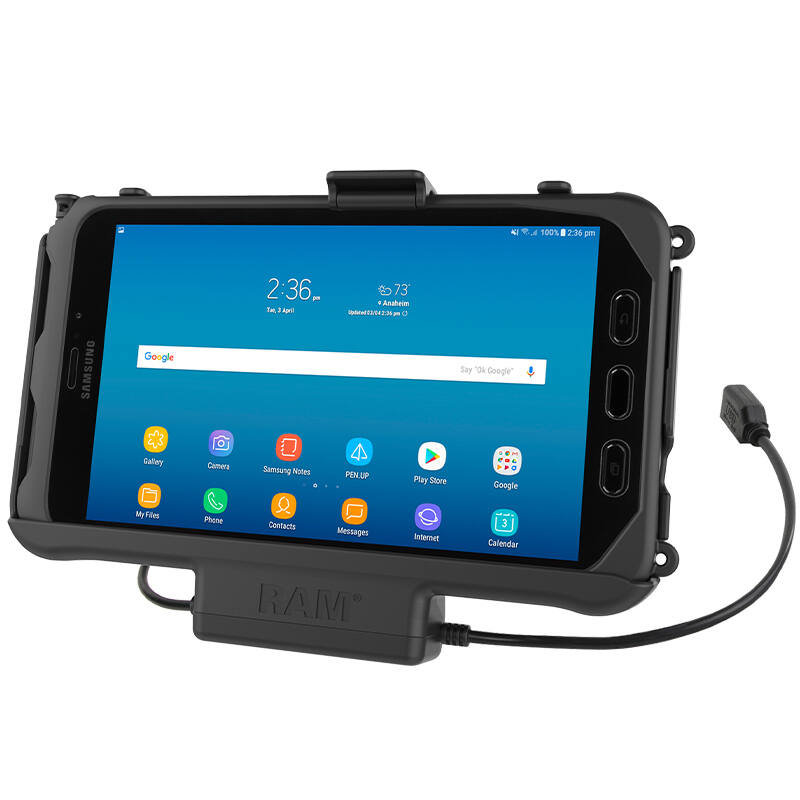

This RAM® EZ-Roll’r™ power cradle for the Samsung Tab Active3 and Tab Active2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB-A port to support an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Tab Active3 or Tab Active2 from your vehicle, to your person, to your desk with zero hassle.
Compatible Devices
Samsung
Tab Active3
Tab Active2

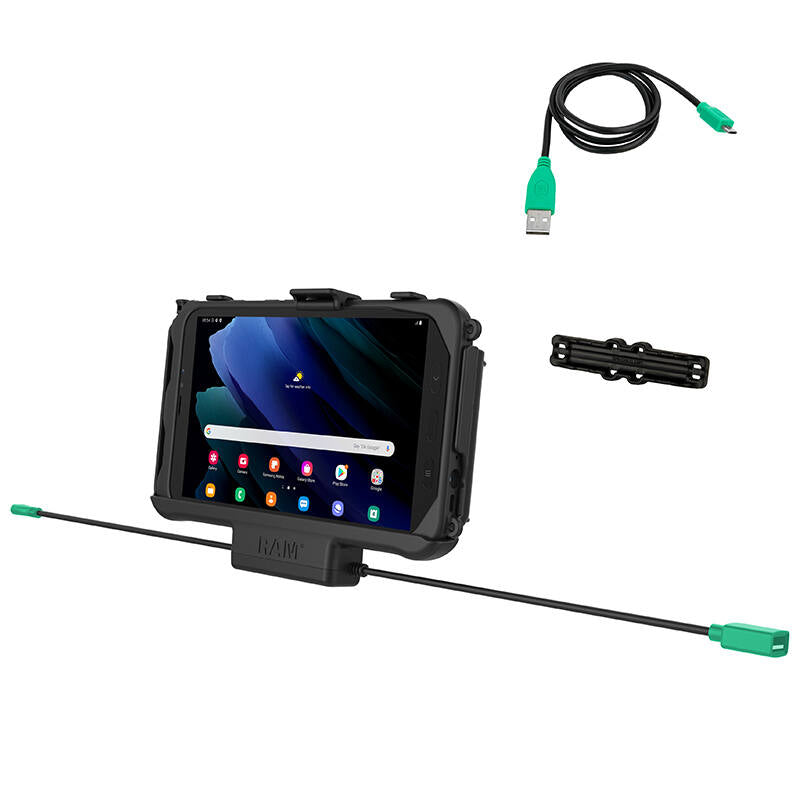

Hardware Included
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) GDS® Genuine USB 2.0 Straight Cable
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(5) Small Cable Ties
Product Dimensions
Width: 235mm (9.25")
Height: 162mm (6.375")
Depth: 51mm (2")
Hole Pattern
4-Hole AMPS:
1.181" x 1.496"
Materials
High strength composite
Weight
340 grams (0.75 lbs.)
Warranty Status
3 year warranty
Additional Information
This product will not support IntelliSkin®.
Mount using a round ball base (RAM-202U recommended)
Device speakers and mics exposed
Device headphone jack exposed
mUSB female pigtail for power
YouTube:
https://www.youtube.com/watch?v=M3o4wn_HcTc
https://www.youtube.com/watch?v=v0o2X0EaDrc
QUESTIONS & ANSWERS
Q: Can I use an USB-ethernet connected dongle (via the USB A interface), while I am charging my tab at the same time ?
A: Yes, you can use the USB-A interface from the RAM-HOL-SAM60PDU as a USB-ethernet connection assuming the dongle has that functionality.
