RAP-B-166-UN4 RAM® Finger-Grip™ Universal Mount with RAM® Twist-Lock™ Suction Cup Base - Composite
Features
* Universal holder with flexible rubber-coated fingers to provide a secure grip of your device; fingers open by squeezing the ends

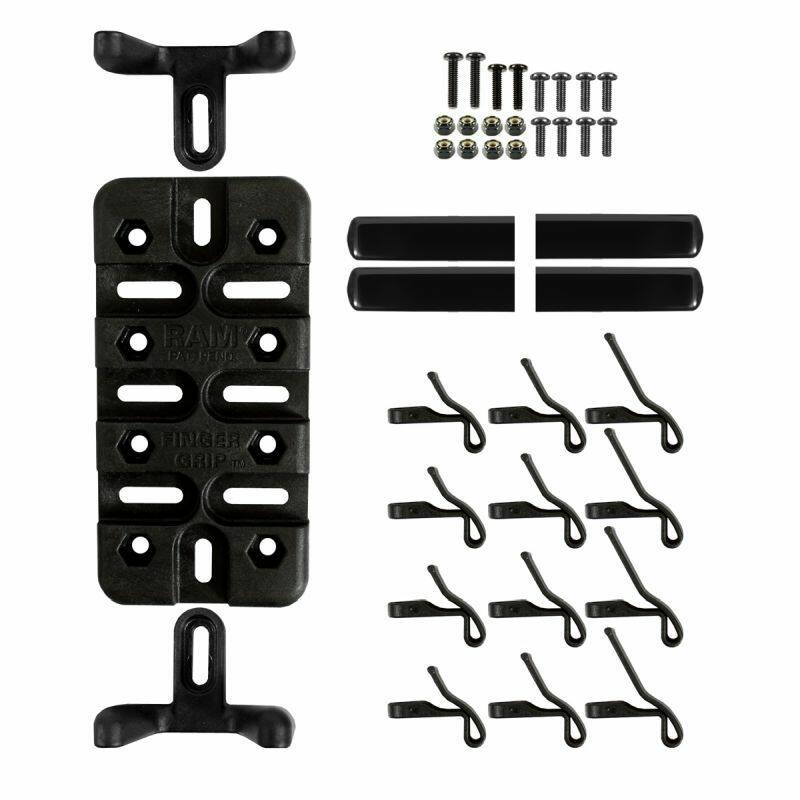

* Includes three sets of four rubber-coated fingers for different size devices as well as top and bottom optional device supports
* Suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces
* RAM patented rubber ball and socket system allows for almost infinite adjustment and perfect viewing angles
* High strength composite construction
* Backed by a lifetime warranty

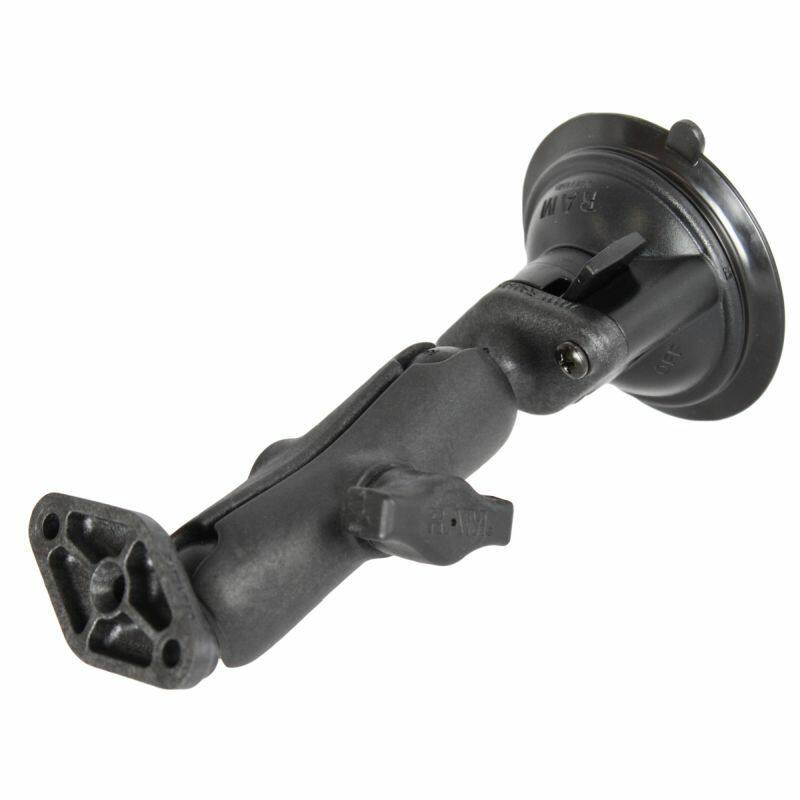

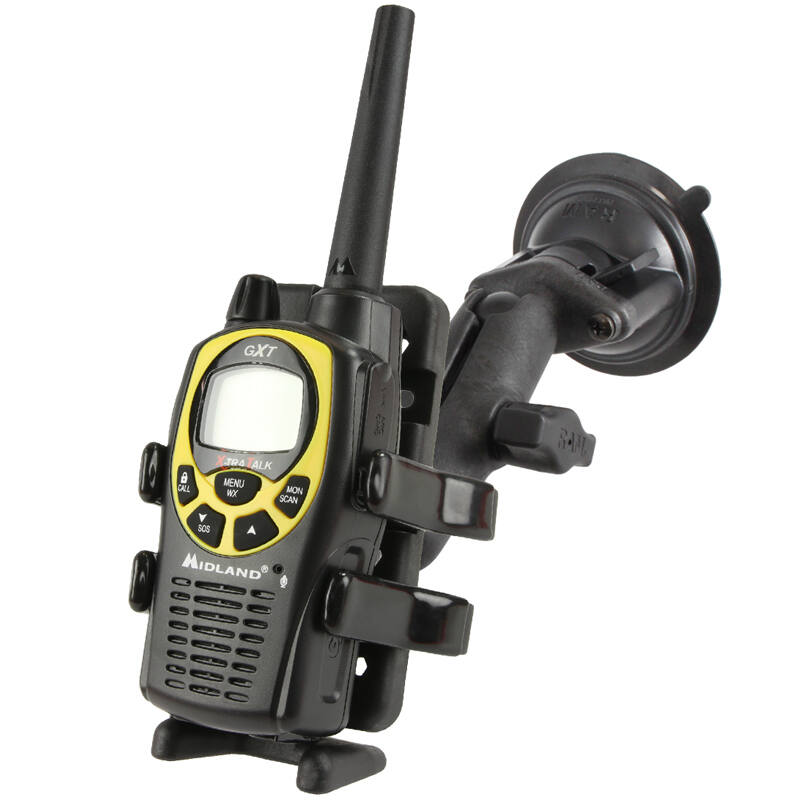

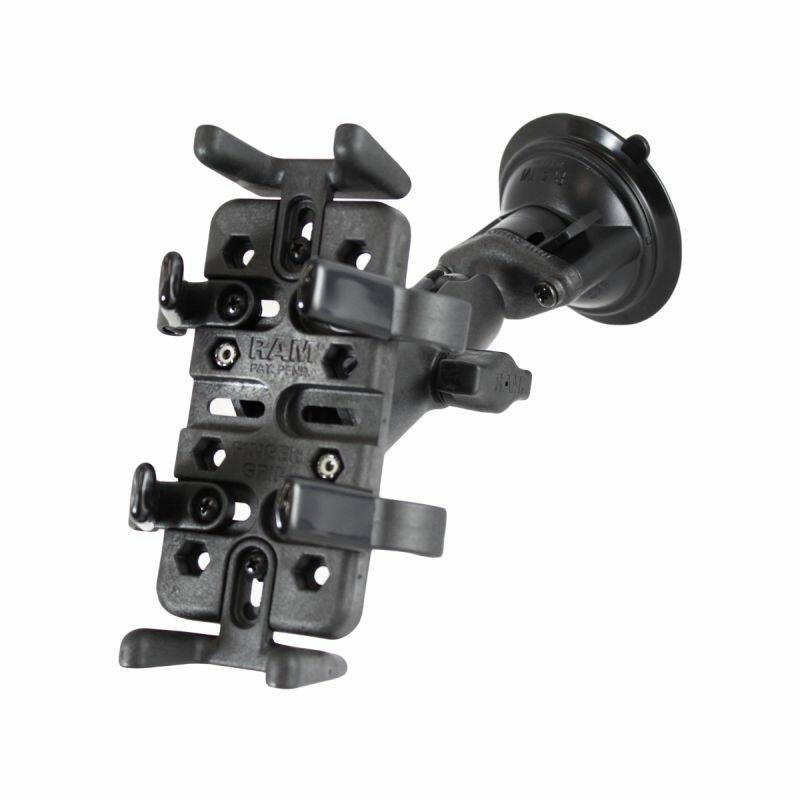

The RAP-B-166-UN4U consists of a 3.3" diameter suction cup twist lock base, composite double socket arm and universal Finger Grip™ cradle. It's the perfect solution for mounting hand held radios, phones or GPS units in your vehicle or aircraft. Perfect rugged solution for Blackberry, HTC, Droid X, iPhone, LG, Samsung and more

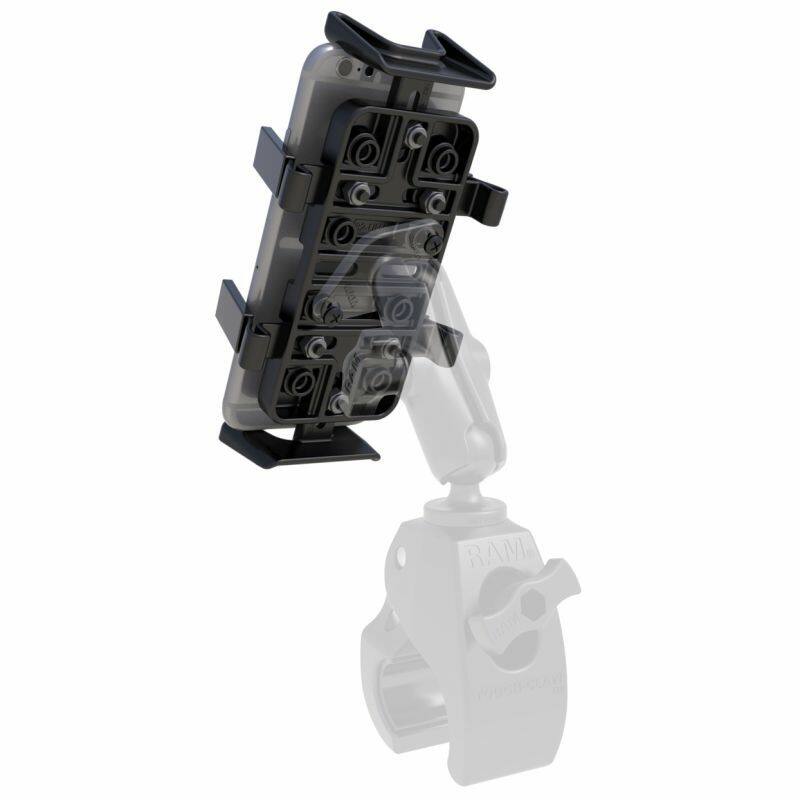

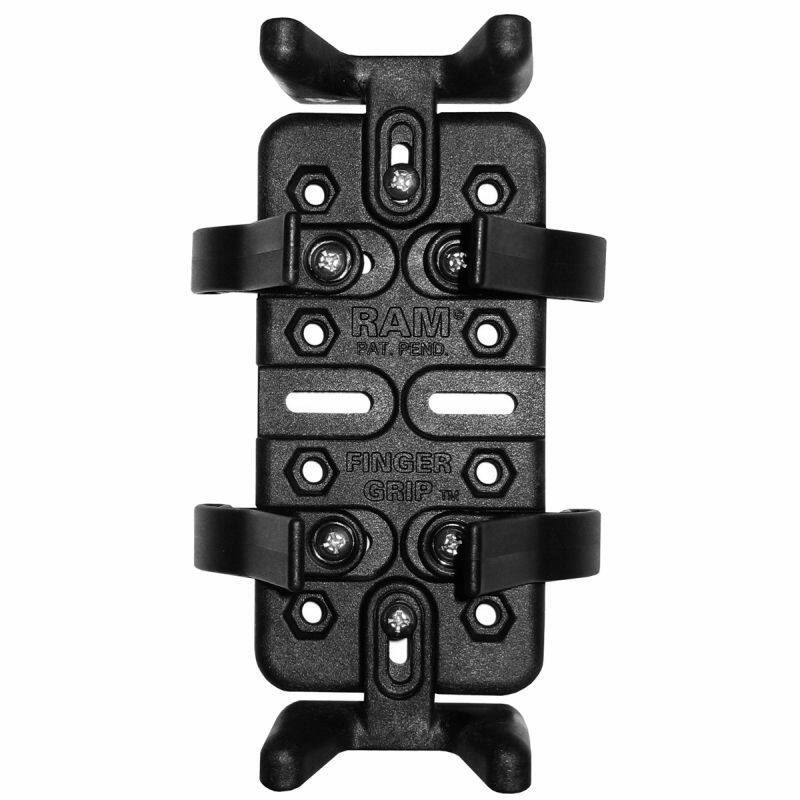

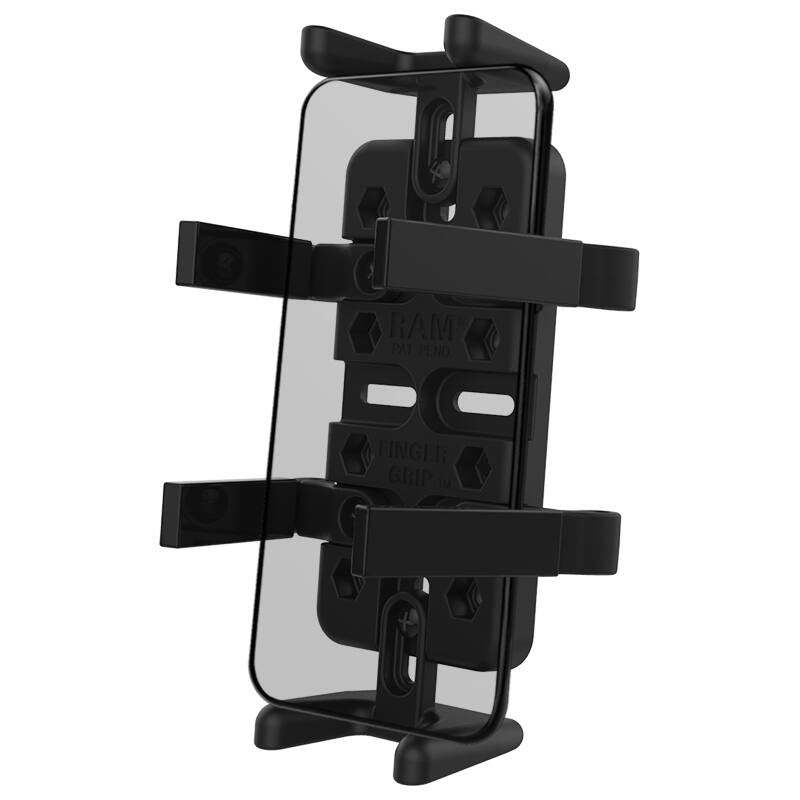

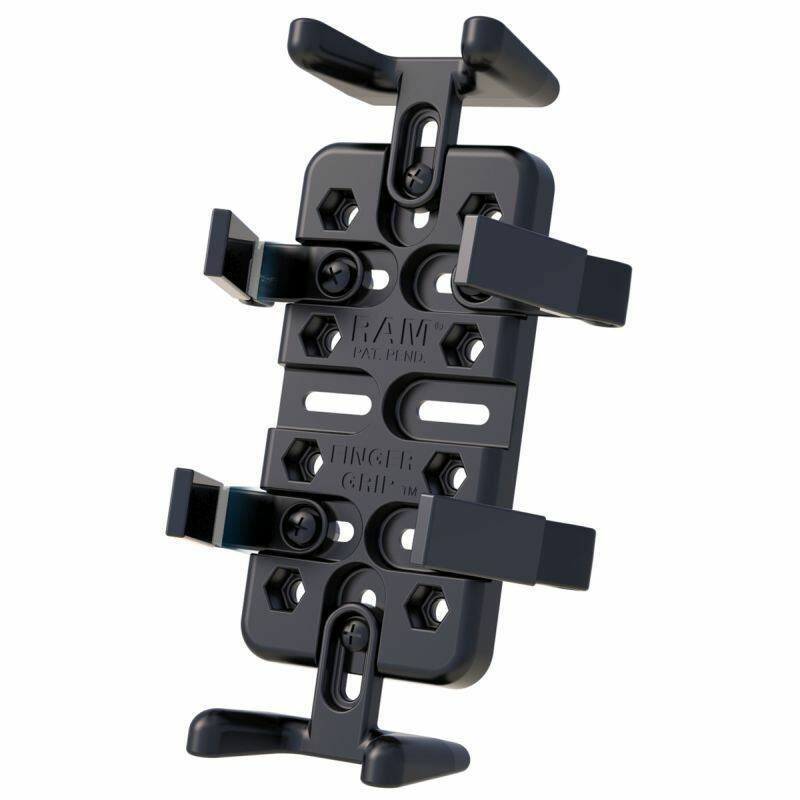

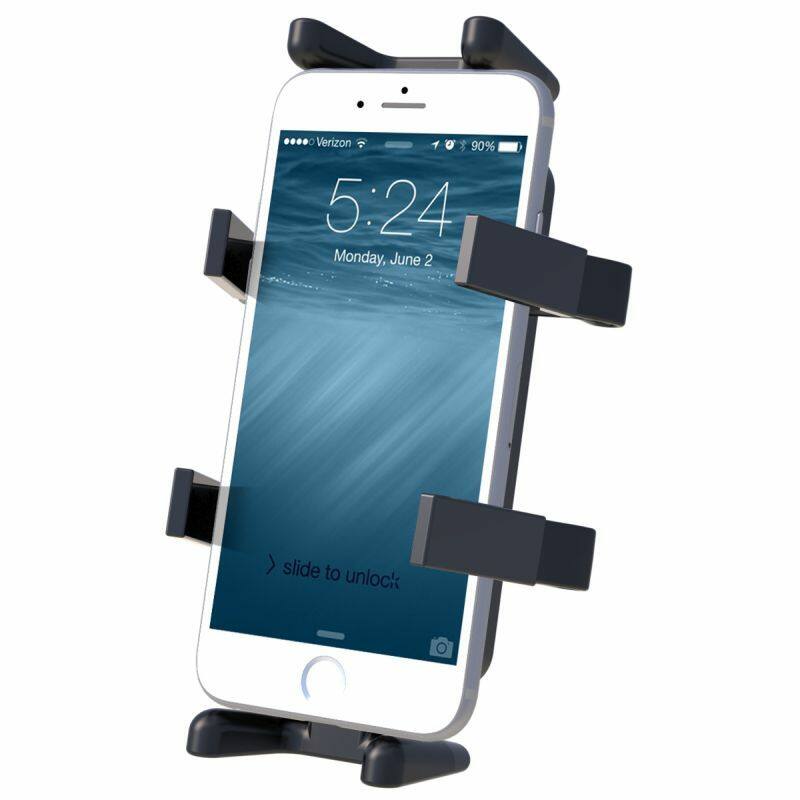

The Finger Grip Holder is designed to hold a wide range of cell phones and electronic devices and comes with (3 sets) of four flexible rubber coated fingers placed along sides to grip your device. The fingers open by squeezing the ends to open the small finger arms. The bottom of the cradle includes a back plate that adds support to the device being held by the mount.
The suction cup base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that allows for almost infinite adjustment and perfect viewing angles.
Compatible devices include:

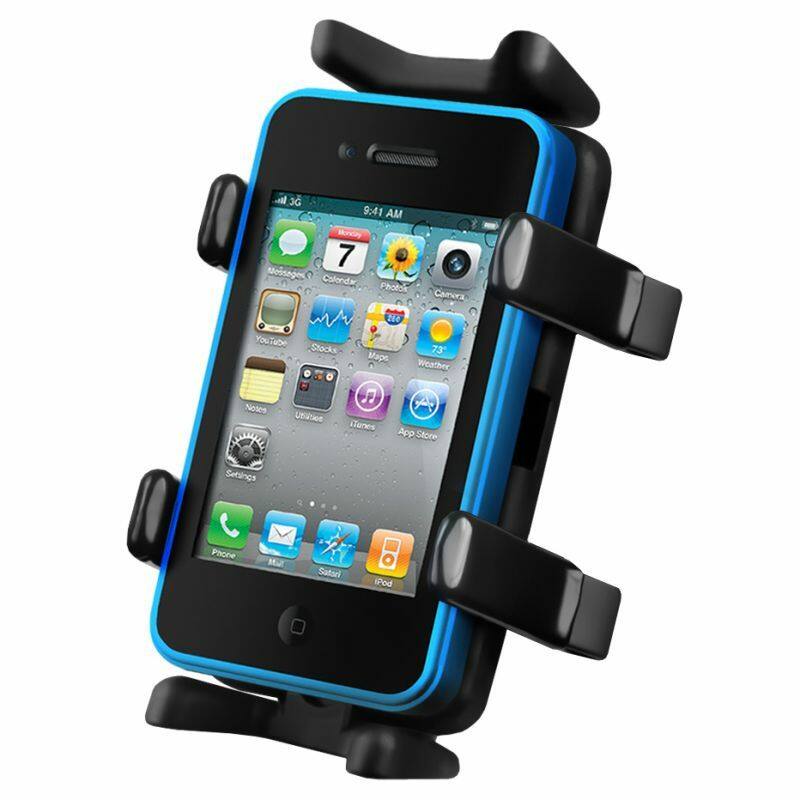

Cell Phones (check measurements below for dimensions)

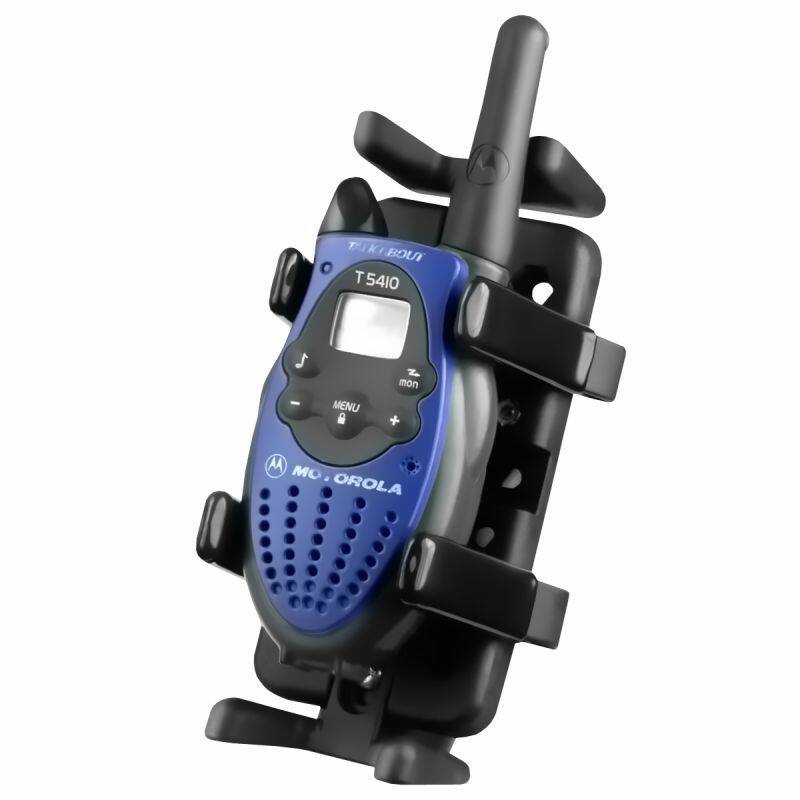

2-Way Radios
GPS Devices
Works with OtterBox (Defender, Commuter, Impact) Cases, Phones with Bumper, Twisted Metal Case and More
Height Dimensions: (The top and bottom plates can be removed for larger devices)
Min with Top and Bottom Plates: 133mm
Max with Top and Bottom Plates: 152mm
Spine Plate Dimensions:
76mm Width x 76mm Height

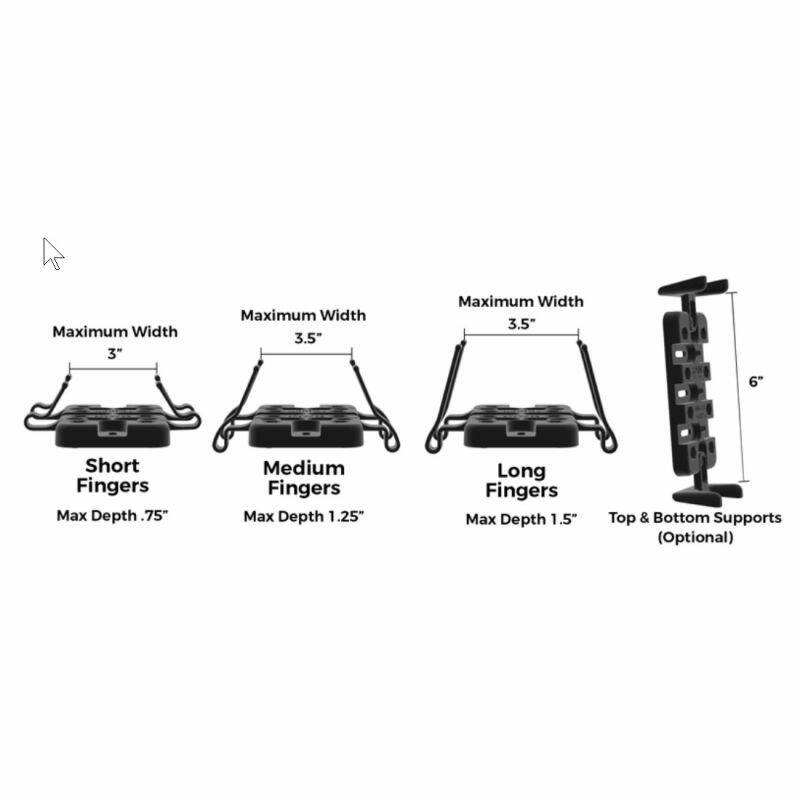

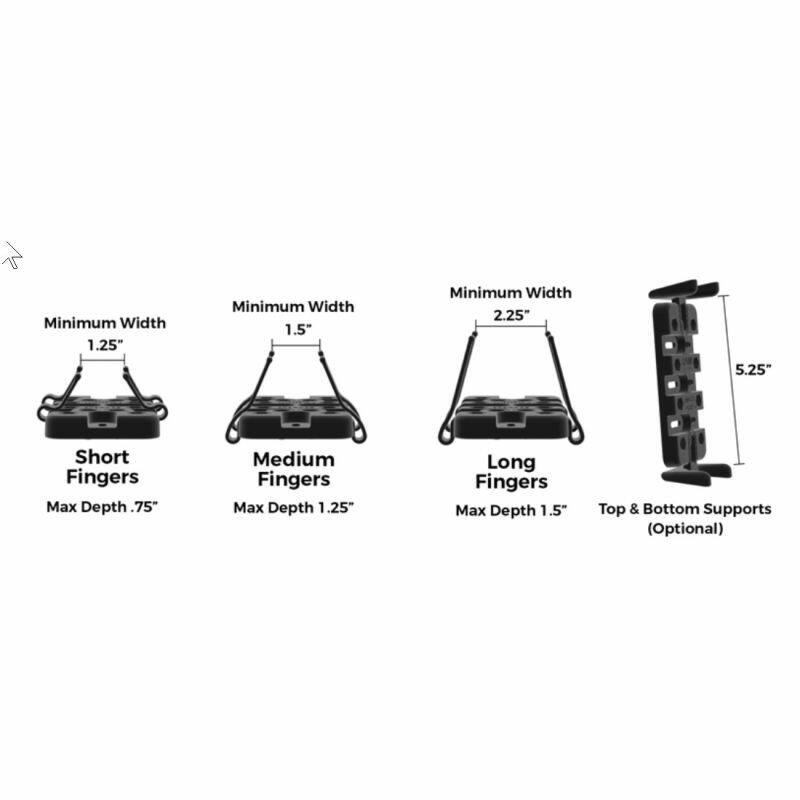

Using Short Arm Side Clamps:
Max Depth: 19mm
Min Width: 31mm
Max Width: 76mm
Using Medium Arm Side Clamps:
Max Depth: 31mm
Min Width: 38mm
Max Width: 88mm
Using Long Arm Side Clamps:
Max Depth: 40mm
Min Width: 57mm
Max Width: 88mm
Material:
High strength composite
Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)
Arm
Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
YouTube:
https://www.youtube.com/watch?v=4erFr6qwKEY&t=23s
https://www.youtube.com/watch?v=L8bbzMCMaUg
Components:

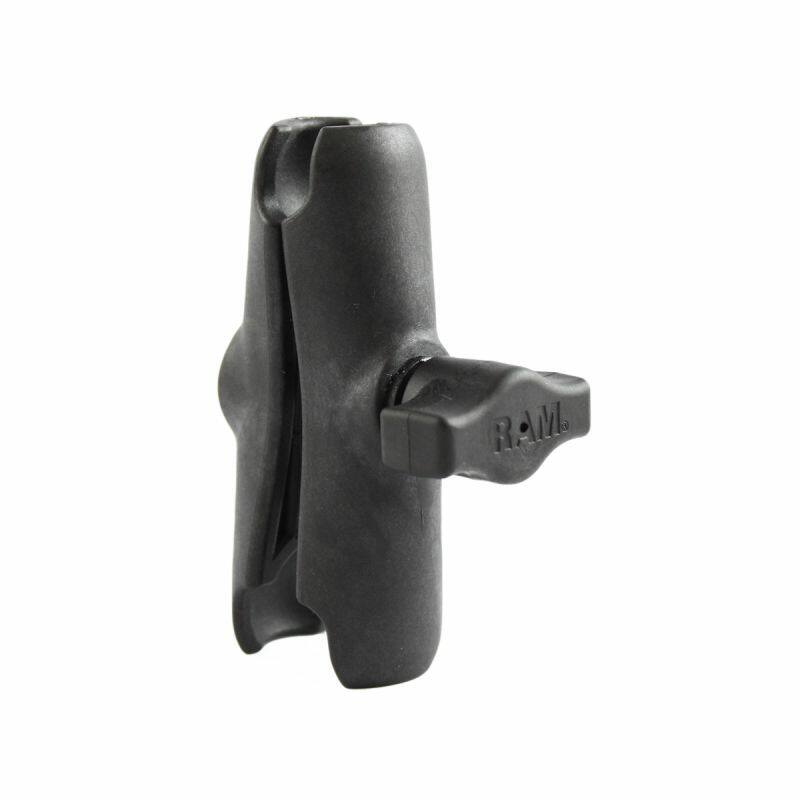

RAP-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL

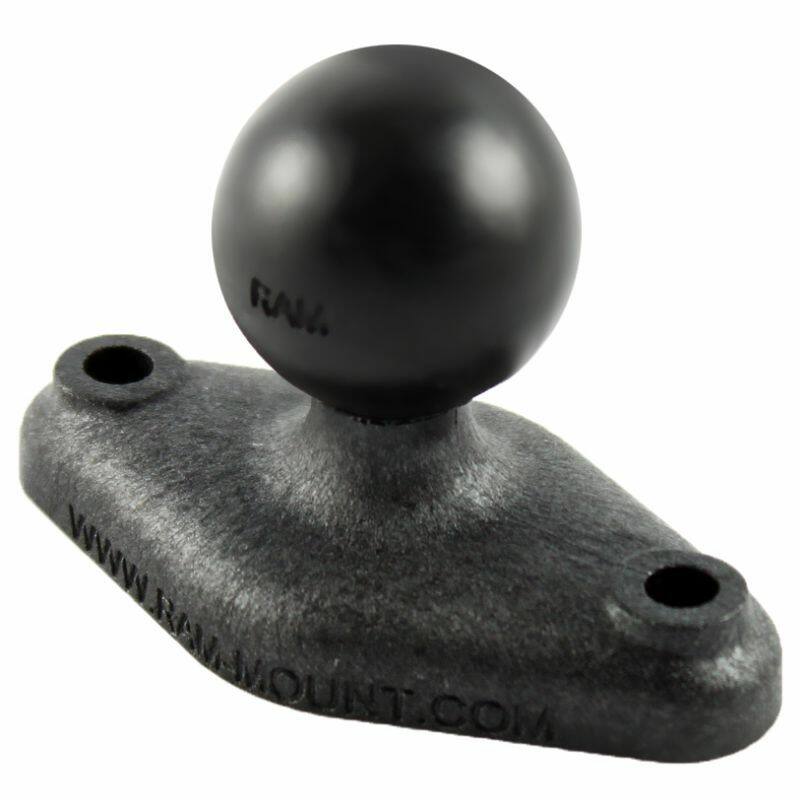

RAP-B-238U RAM 63 X 33mm BASE W/ BALL

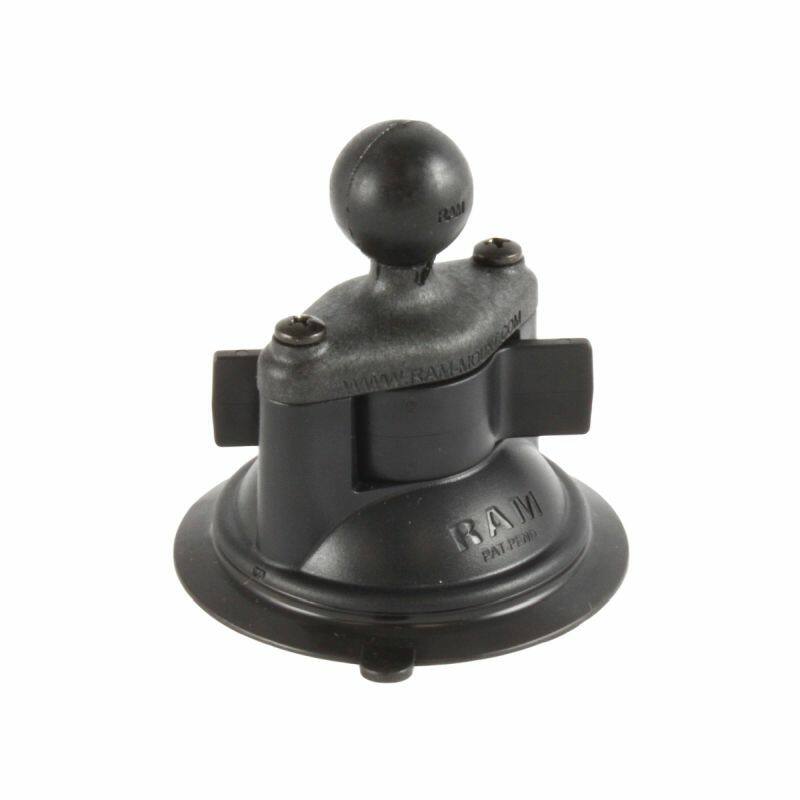

RAP-B-224-1U RAM 3.76mm DIA. SUCT CUP W 1" PLAS BALL
RAM-HOL-UN4U RAM UNIVERSAL PLASTIC ATV HOLDER
