RAM Mounts

RAM Finger Grip - Universal Phone / Radio Cradle with 76mm Square Post Clamp

RAM Finger Grip - Universal Phone / Radio Cradle with 76mm Square Post Clamp

SKU:RAM-B-247-3-UN4U-v

Regular price $226.86 NZD
Regular price Sale price $226.86 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-247-3-UN4U RAM® Finger-Grip™ Universal Holder with 76mm Square Post Clamp Mount


Features

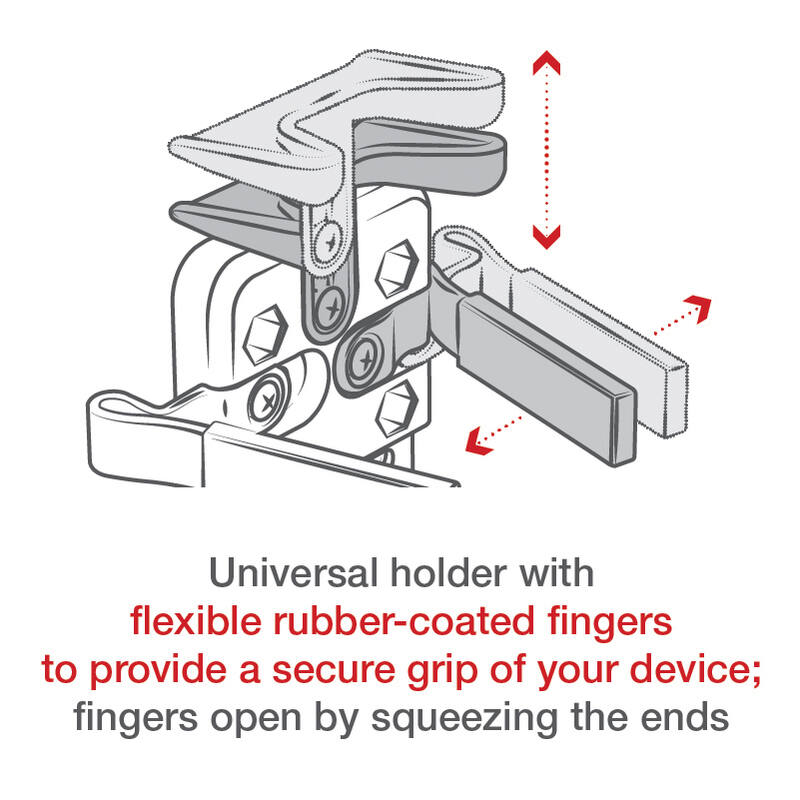

* Universal holder with flexible rubber-coated fingers to provide a secure grip of your device; fingers open by squeezing the ends

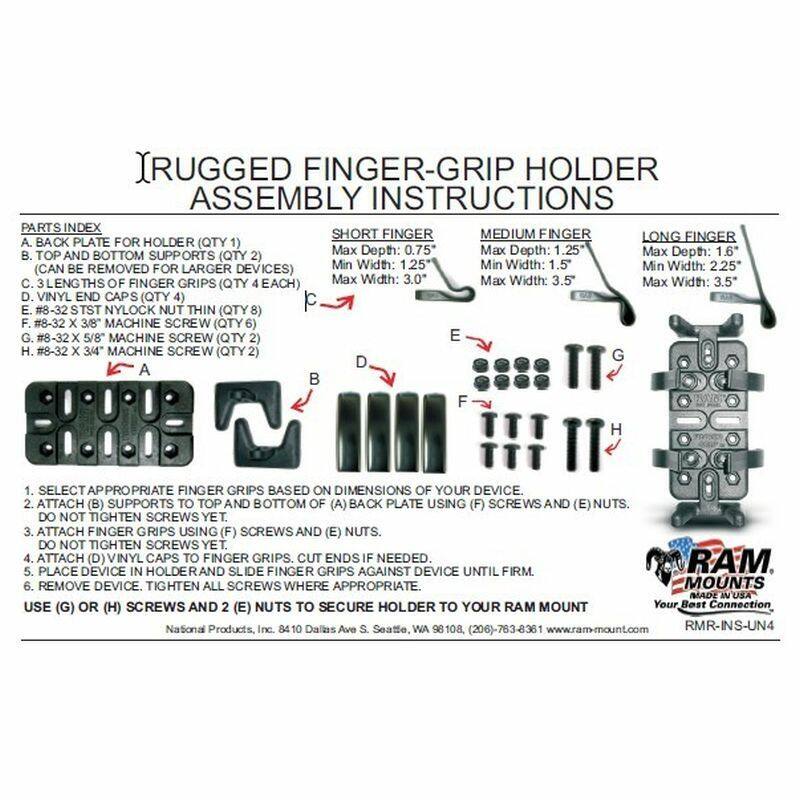

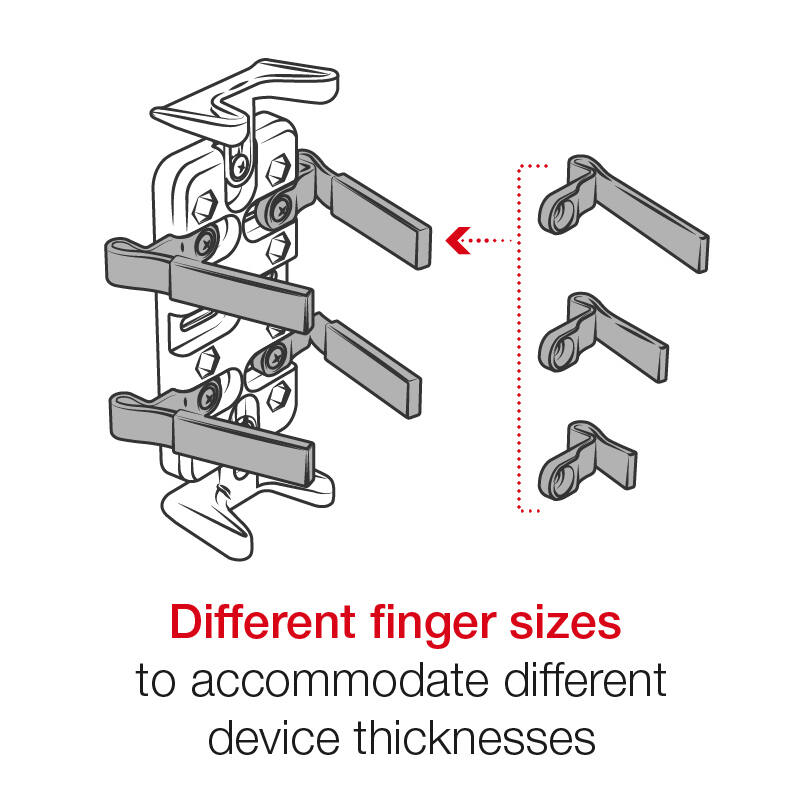

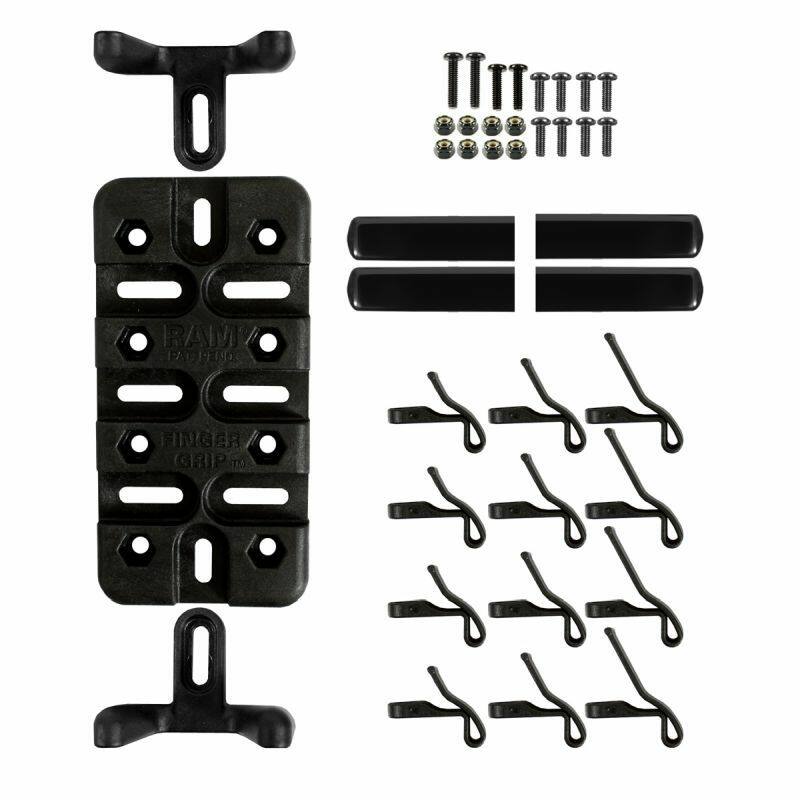

* Includes three sets of four rubber-coated fingers for different size devices as well as top and bottom optional device supports
* The 76mm Square Post Clamp base is ideal for square / rectangular posts
* RAM® B size double socket arms allows for almost infinite adjustment and perfect viewing angles.
* Backed by a lifetime warranty

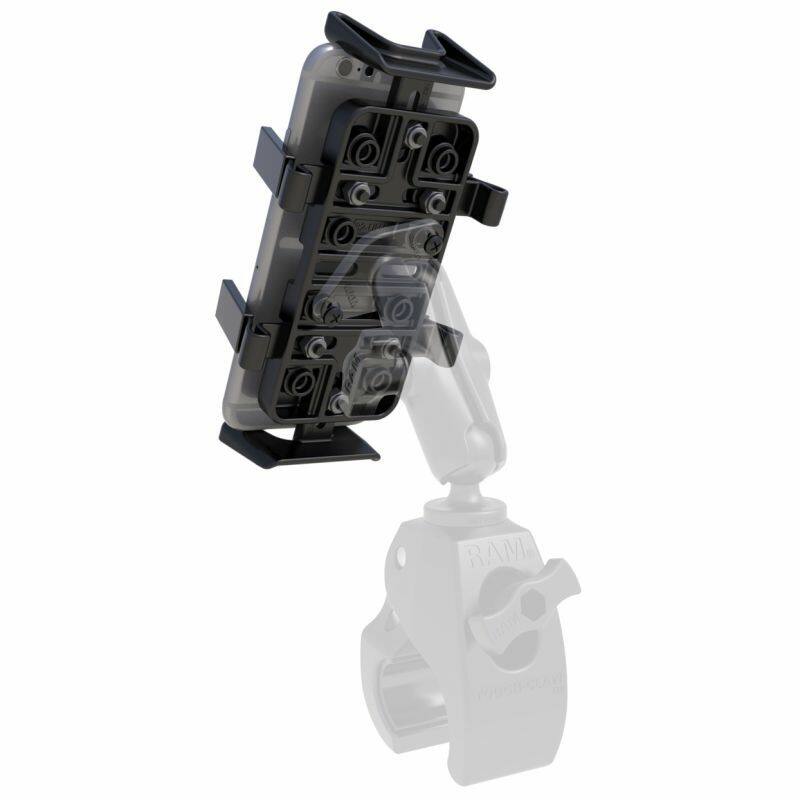

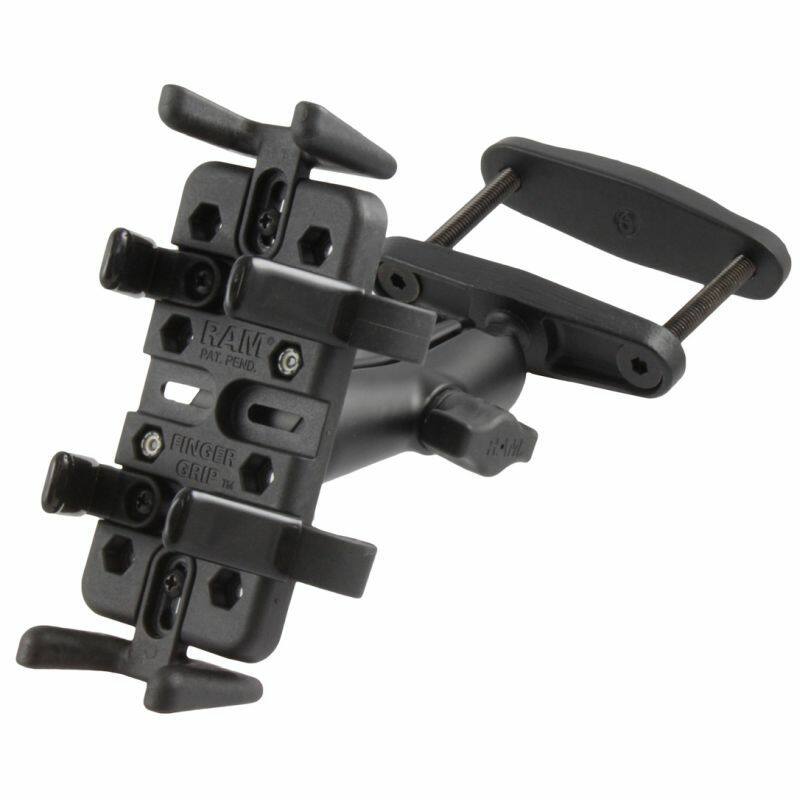

This mounting system consists of a 76mm (3") Square Post Clamp base, medium double socket arm and universal Finger Grip™ cradle. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

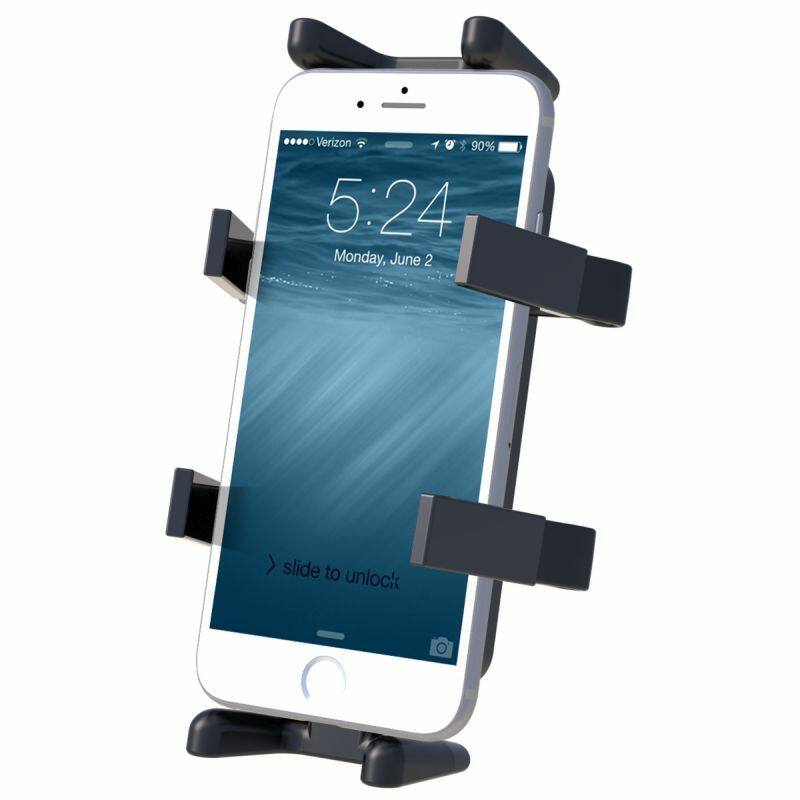

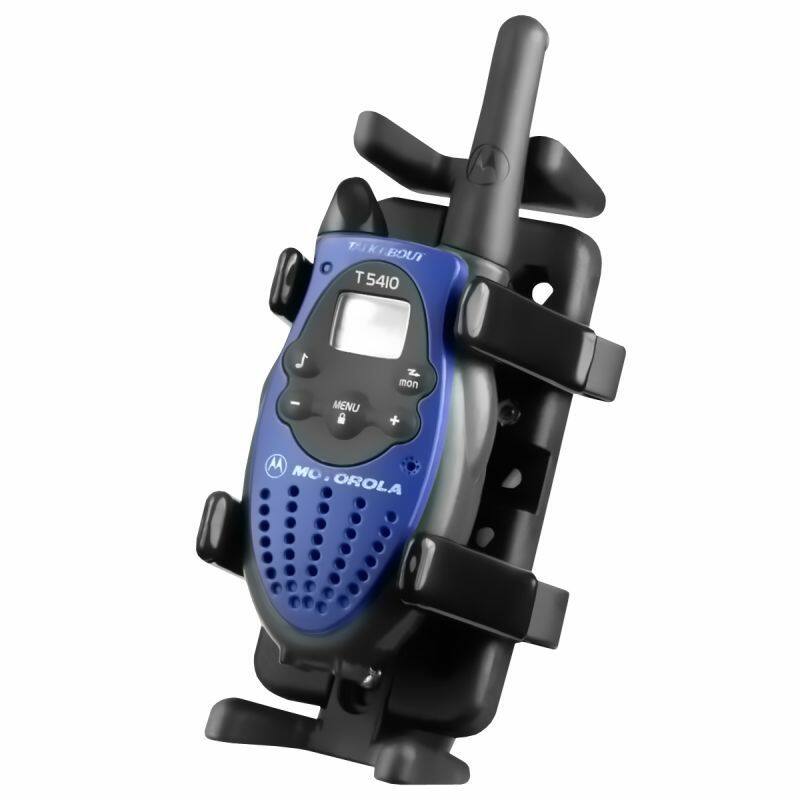

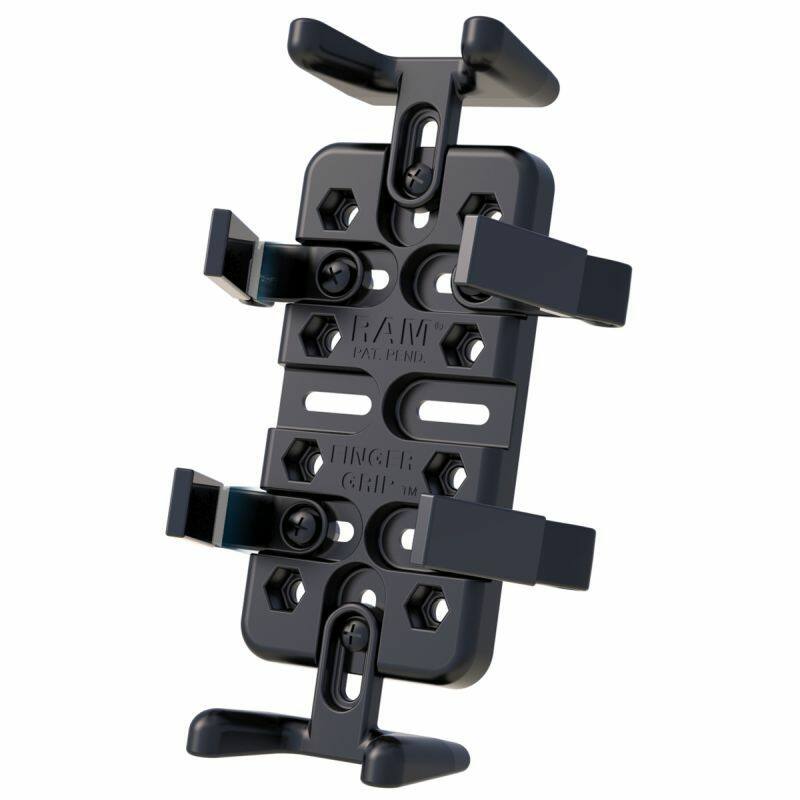

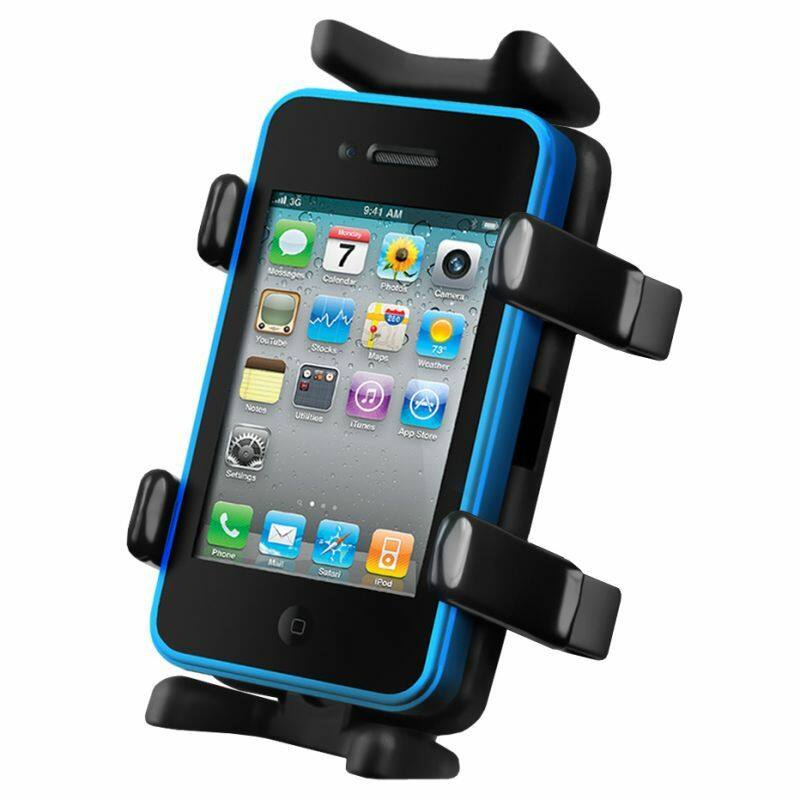

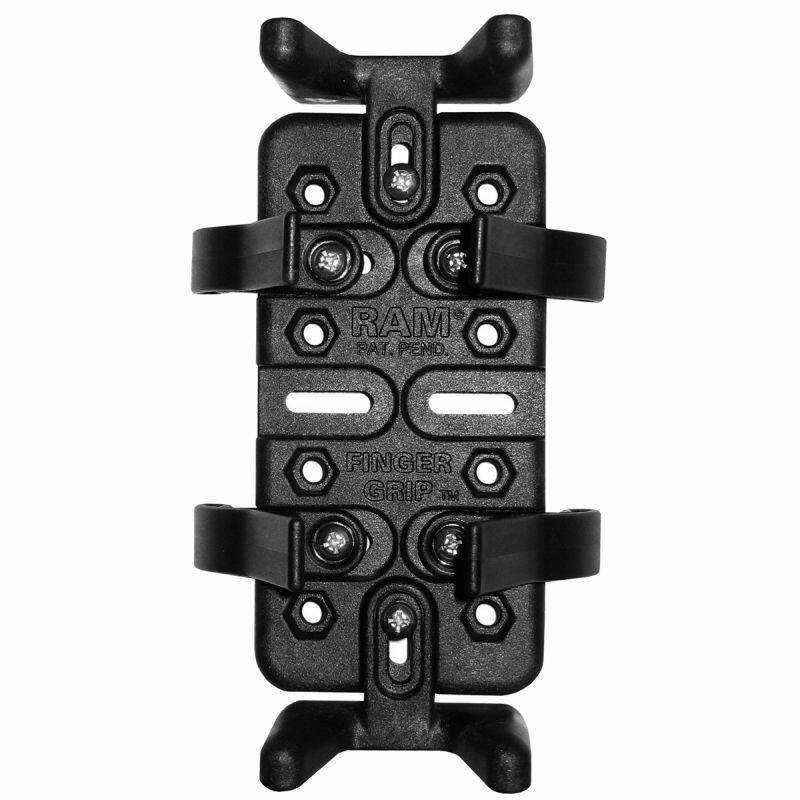

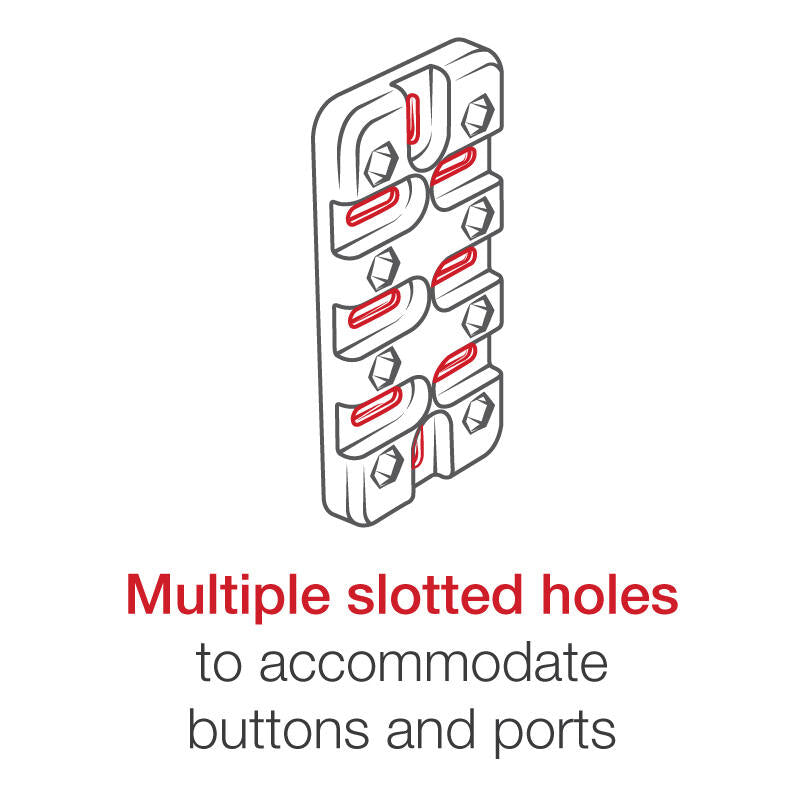

The Composite Universal Finger Grip Holder is designed to hold a wide range of cell phones and electronic devices and comes with 3 sets of flexible rubber coated fingers placed along sides to grip your device. The fingers open by squeezing the ends to open the small finger arms. The bottom of the cradle includes a back plate that adds support to the device being held by the mount. The perfect solution that can be used with several other phone accessories including Samsung accessories and LG accessories. The spine plate contains the universal AMPs and 38 x 50mm hole patterns.

For a list of compatible devices and complete dimensions see the listing for RAM-HOL-UN4U

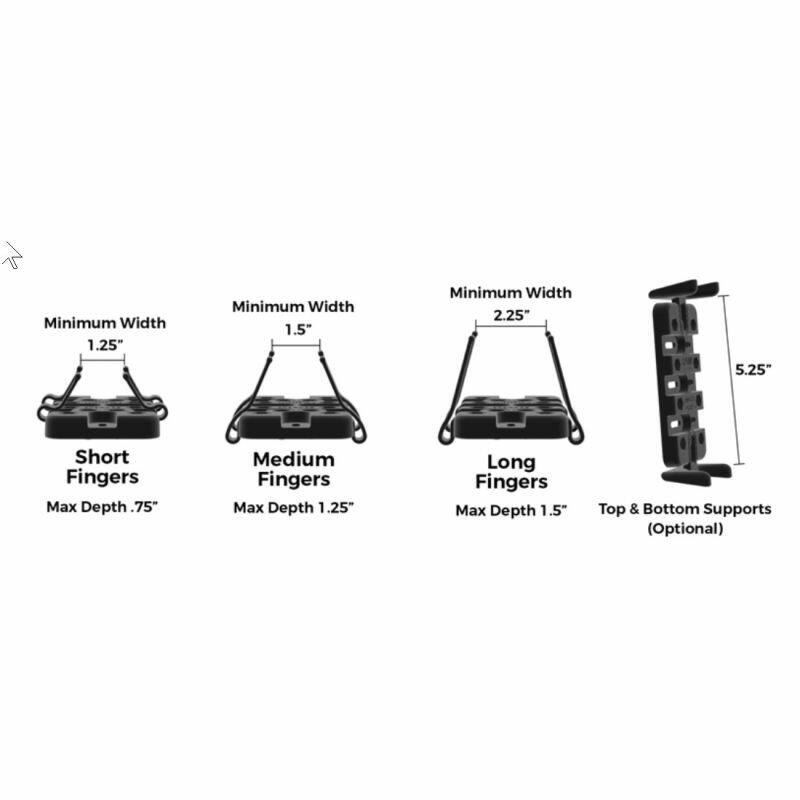

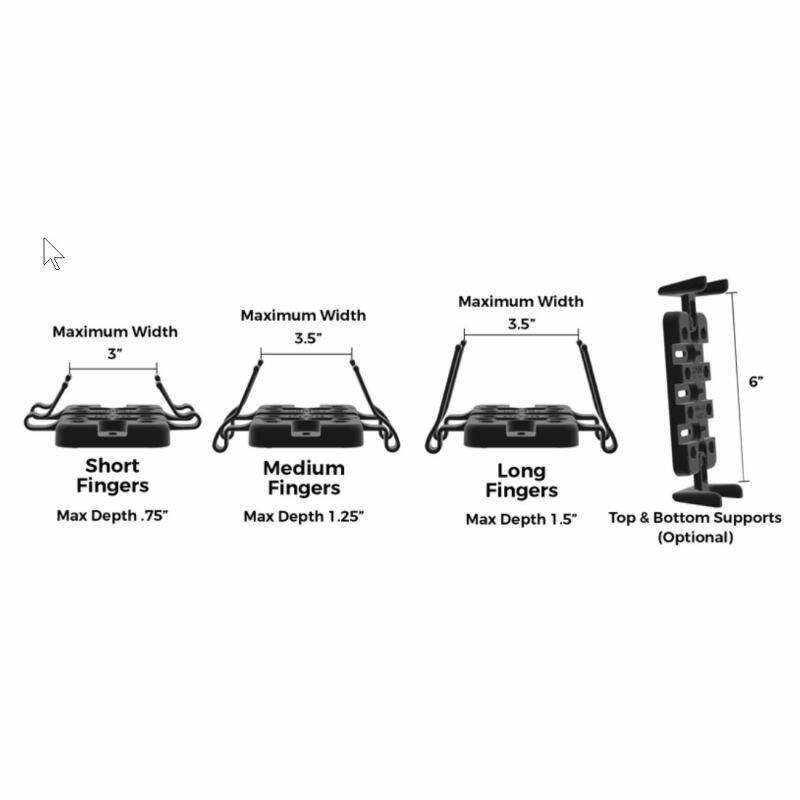

Height Dimensions: (The top and bottom plates can be removed for larger devices)

Minimum with Top and Bottom Plates: 133mm
Maximum with Top and Bottom Plates: 152mm

Maximum Depth: 19 – 40mm
Minimum Width: 31 – 57mm
Maximum Width: 76 – 88mm

Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")

Base Clamp Maximum Width
76.2mm (3')

Ball/Socket Size
B Size (1")

Weight Capacity
Standard Use:
907 grams (2 lbs)
Heavy-Duty Use:
454 grams (1 lb)


Materials
Marine-grade aluminium
High strength composite


Components:
RAM-HOL-UN4U UNIVERSAL PLASTIC ATV HOLDER
RAM-B-238U 62 X 33mm DIAMOND BASE W/ 1 BALL
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL

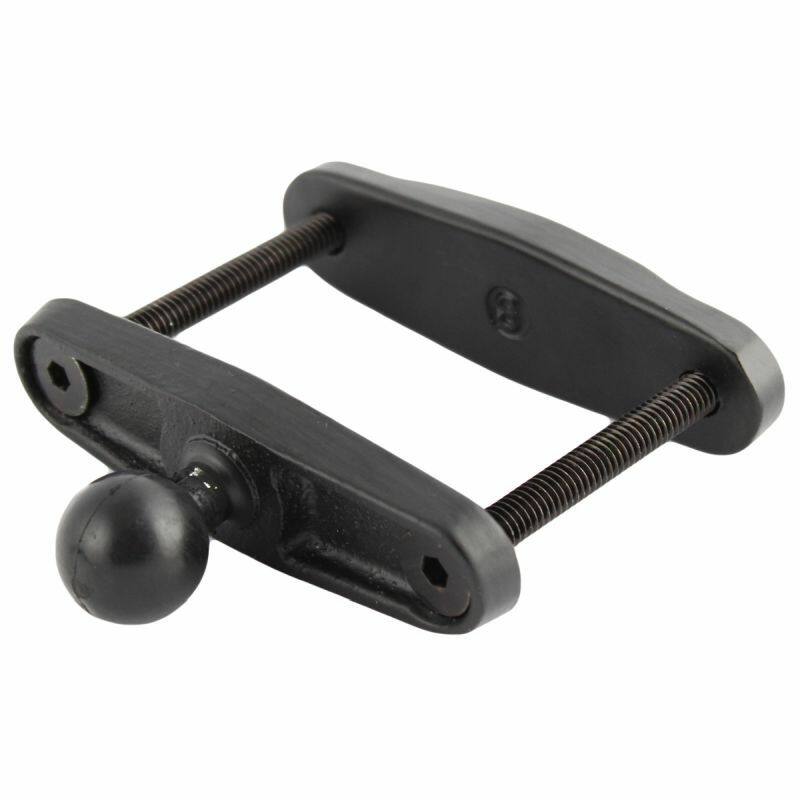

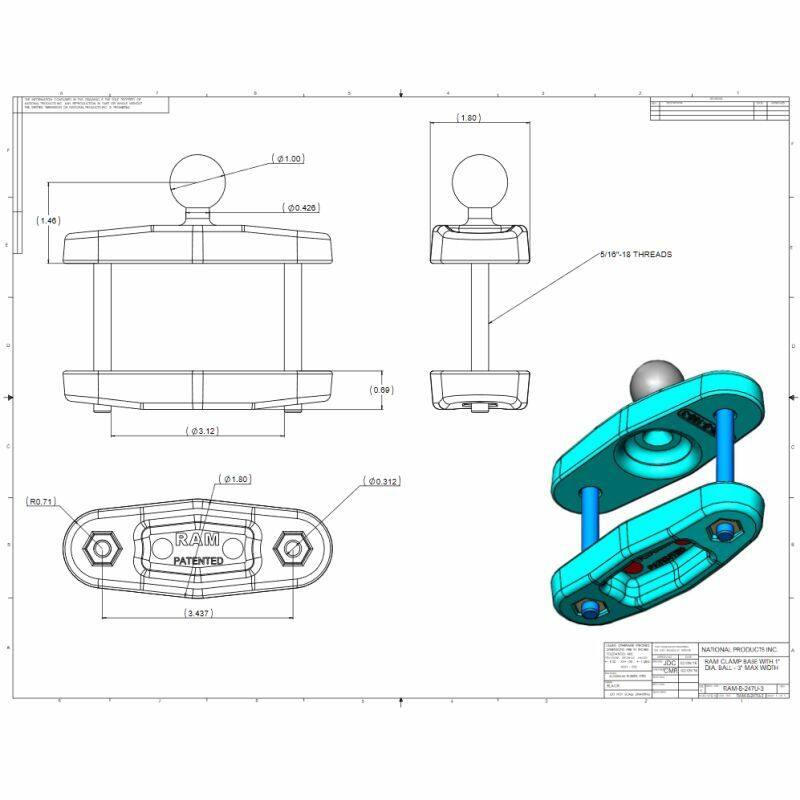

RAM-B-247U-3 Square Post Clamp 75mm with 1" Ball
