RAM-B-176-UN4U RAM® Fork Stem Mount with Universal RAM Finger-Grip™ Phone/Radio Cradle
Features
* Universal holder with flexible rubber-coated fingers to provide a secure grip of your device; fingers open by squeezing the ends

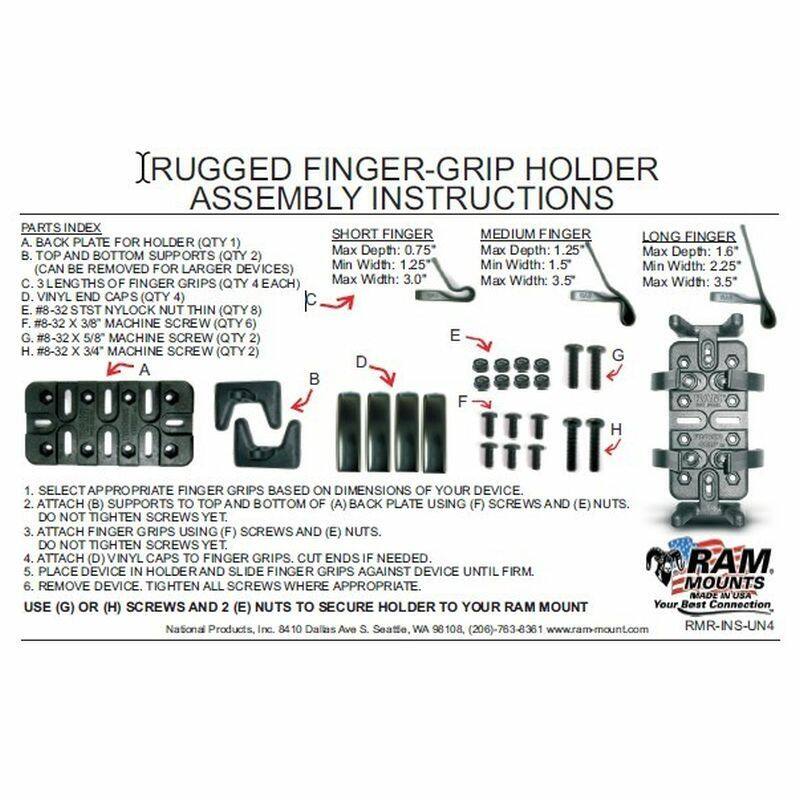

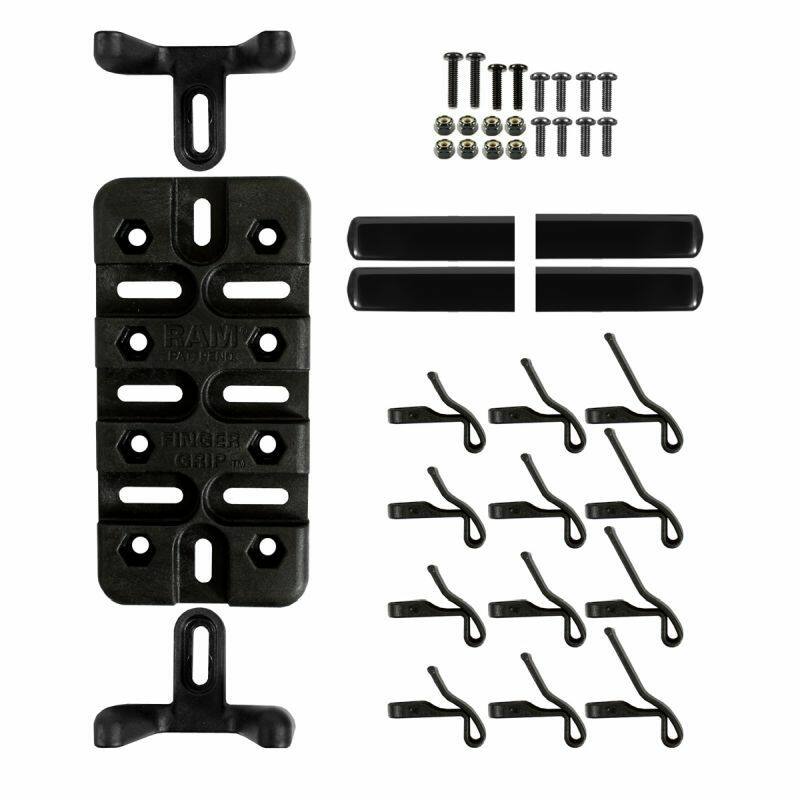

* Includes three sets of four rubber-coated fingers for different size devices as well as top and bottom optional device supports
* Base is designed to fit into the cylindrical bore wall of fork stems
* Included B size 1" RAM® double socket arm with ball and socket technology allows for near-infinite adjustability
* Made of high strength composites and powder-coated, marine-grade aluminum for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

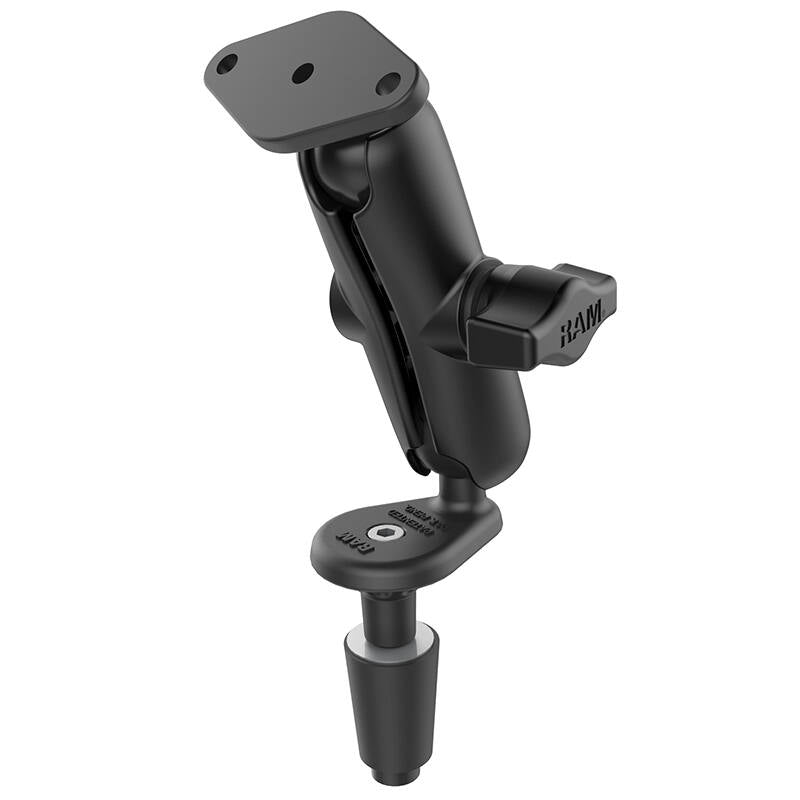

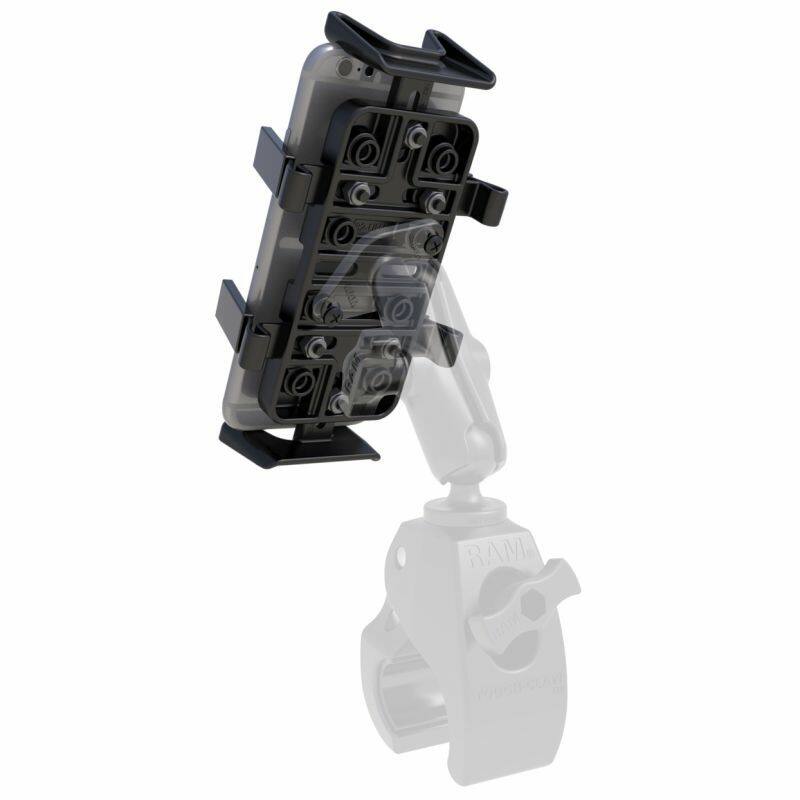

This complete mount consists of a fork stem motorcycle base, double socket arm, diamond base adapter and the Finger Grip Phone / Radio cradle.

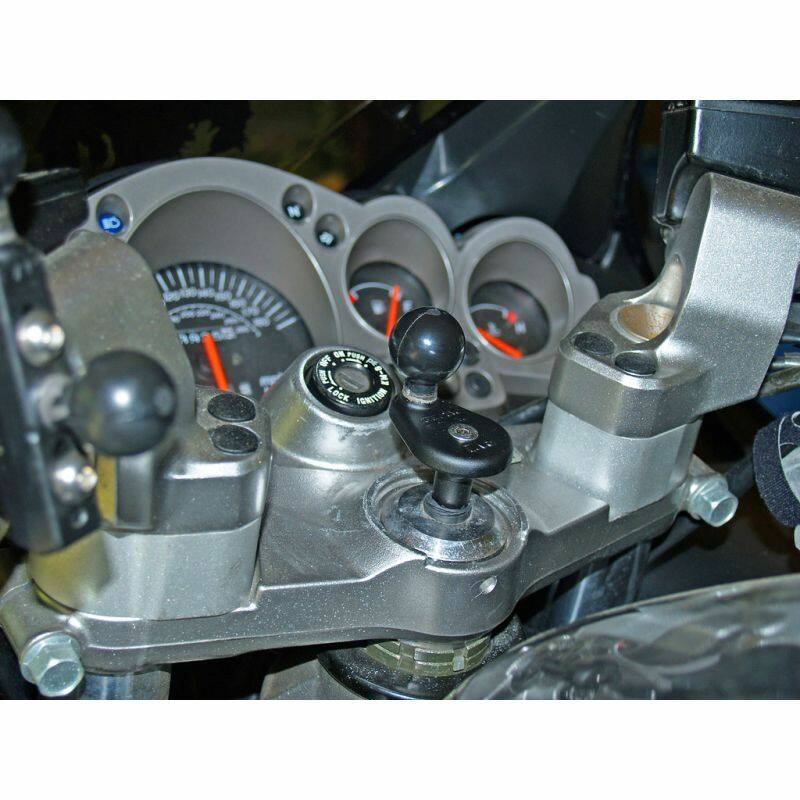

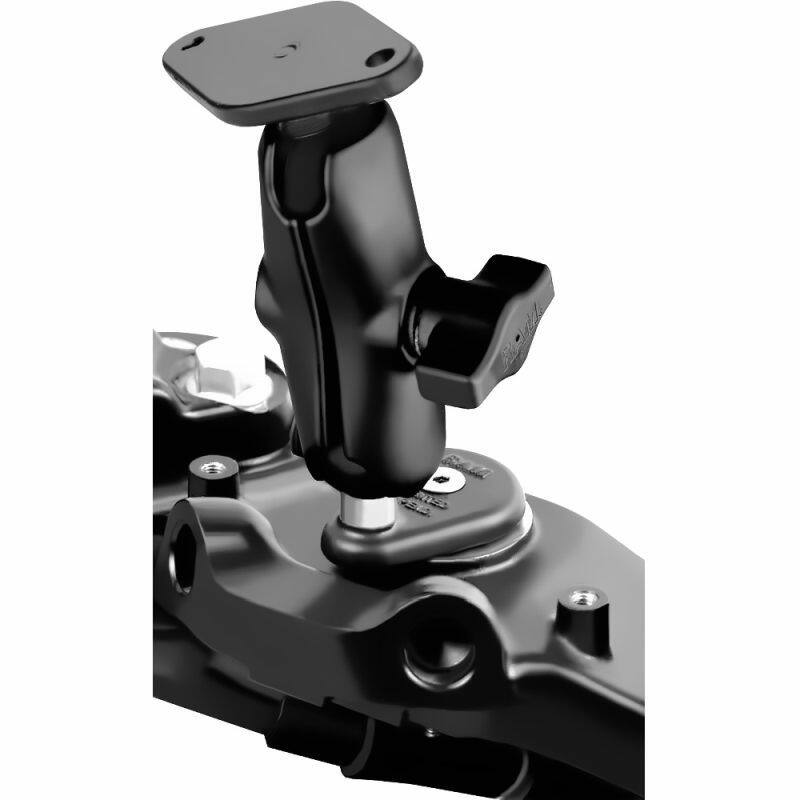

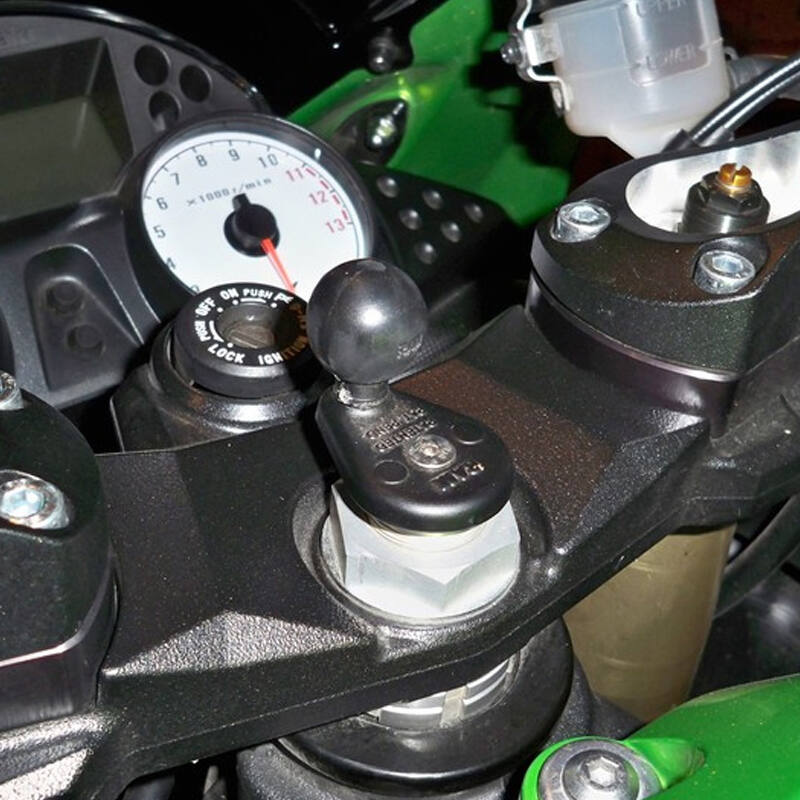

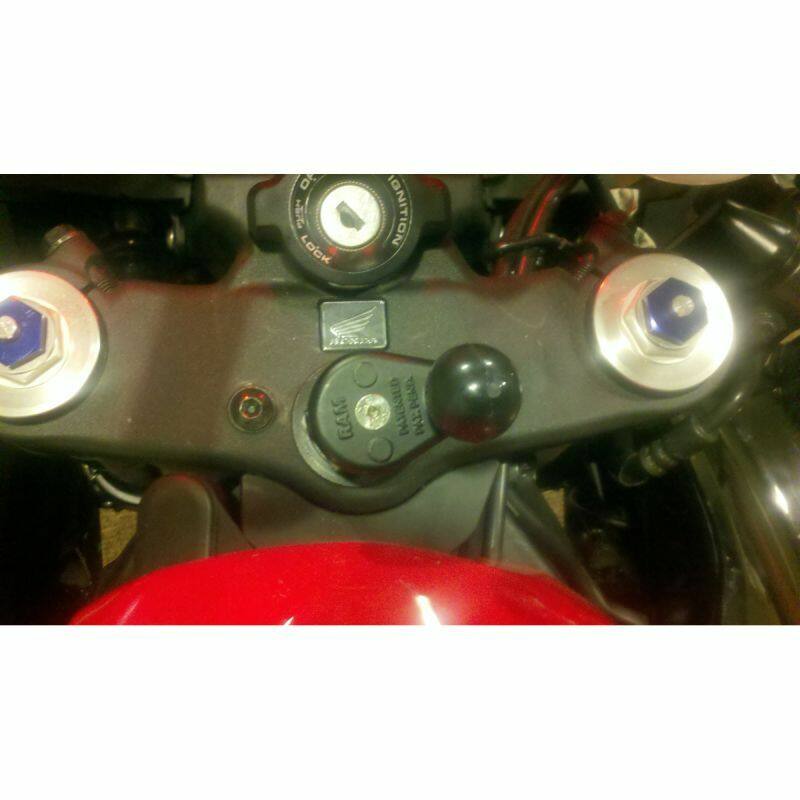

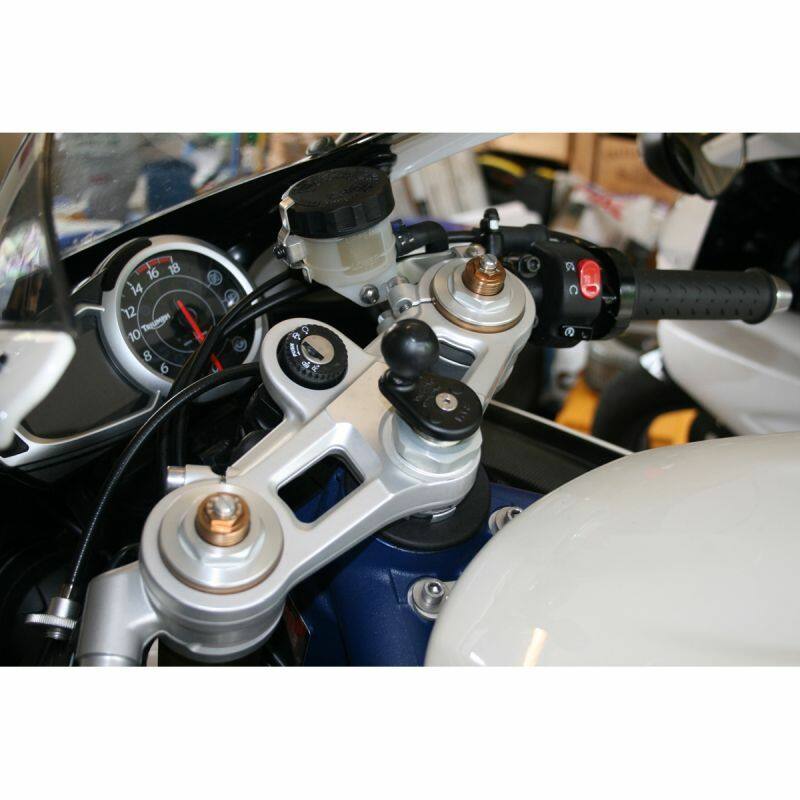

The fork stem base is designed to fit into the cylindrical bore wall of fork stems and will work with stems that measure from 12mm to 38mm (.5” to 1.49").

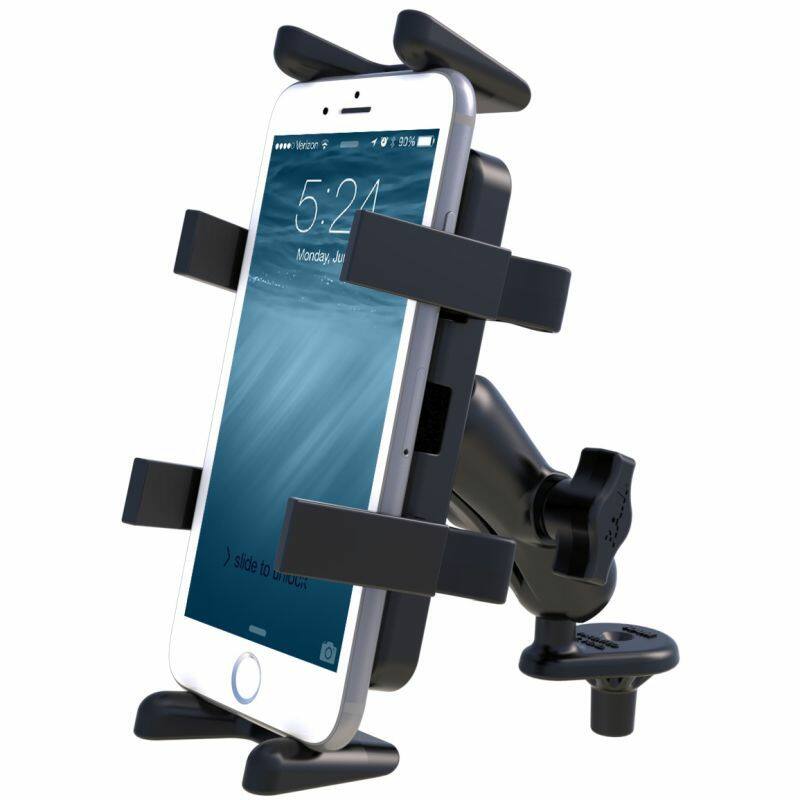

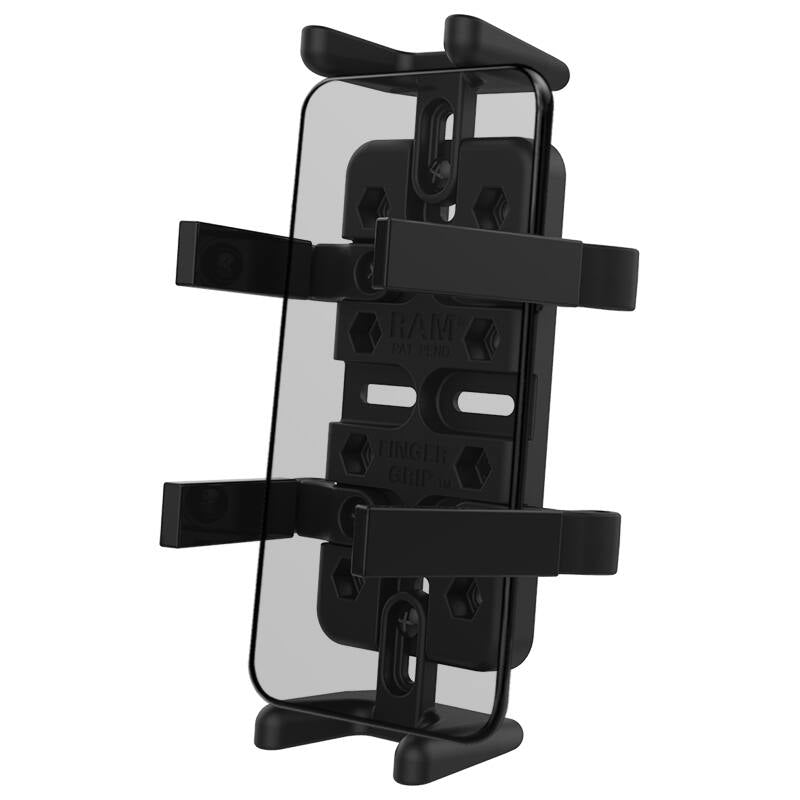

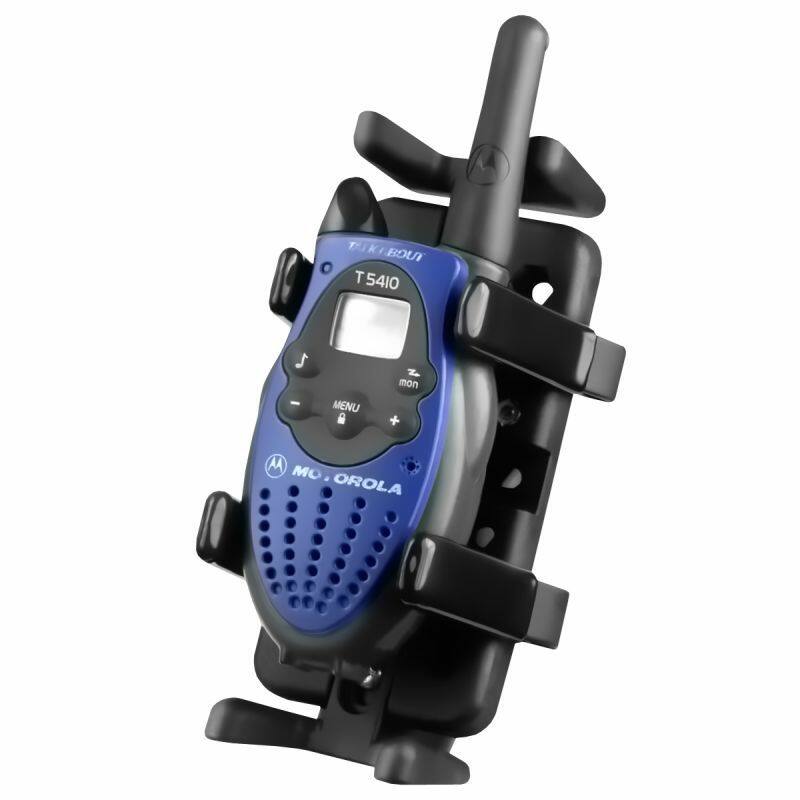

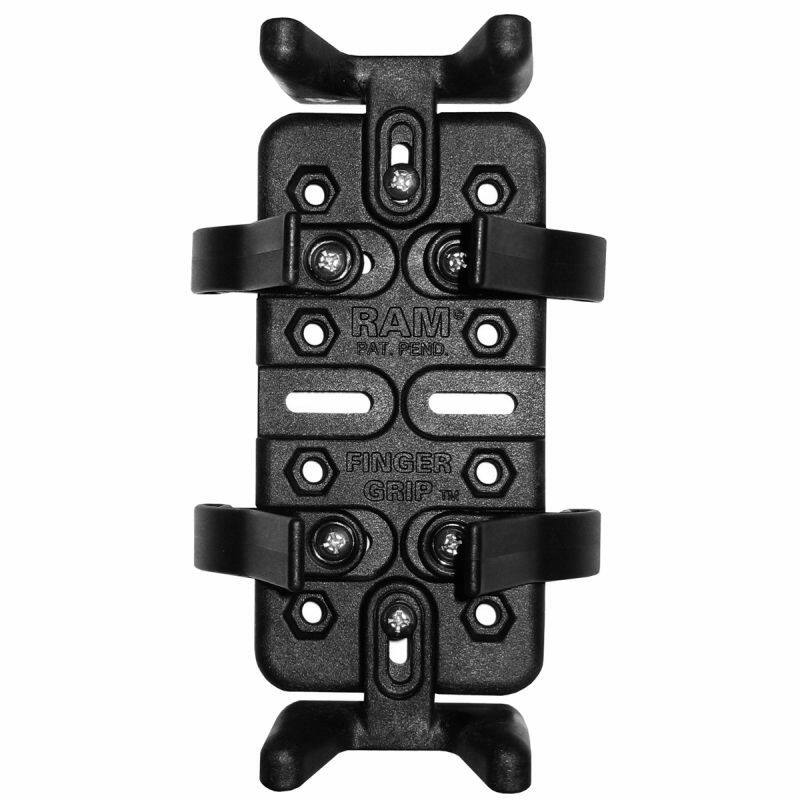

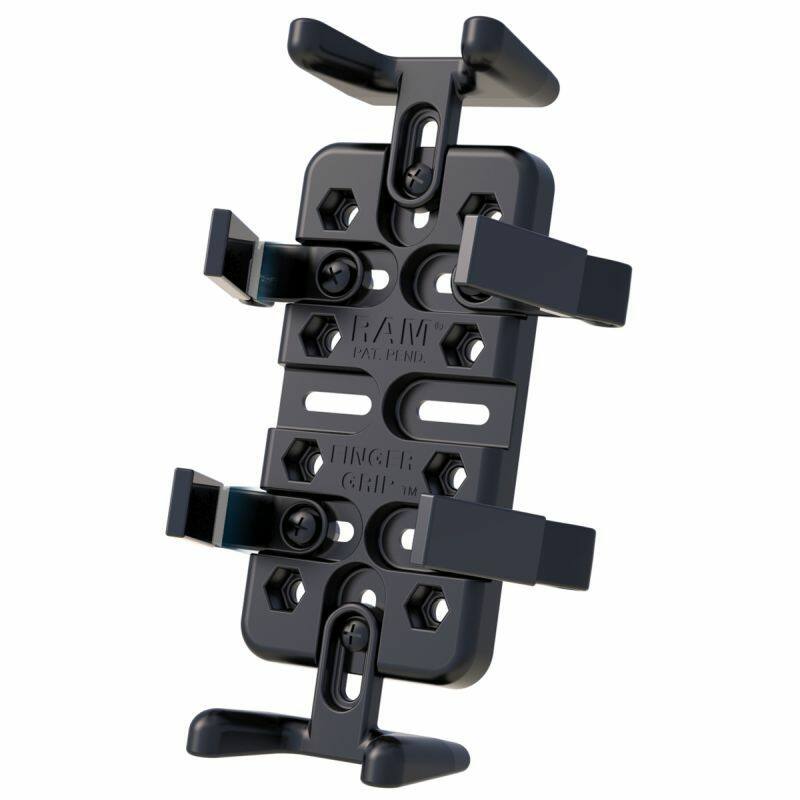

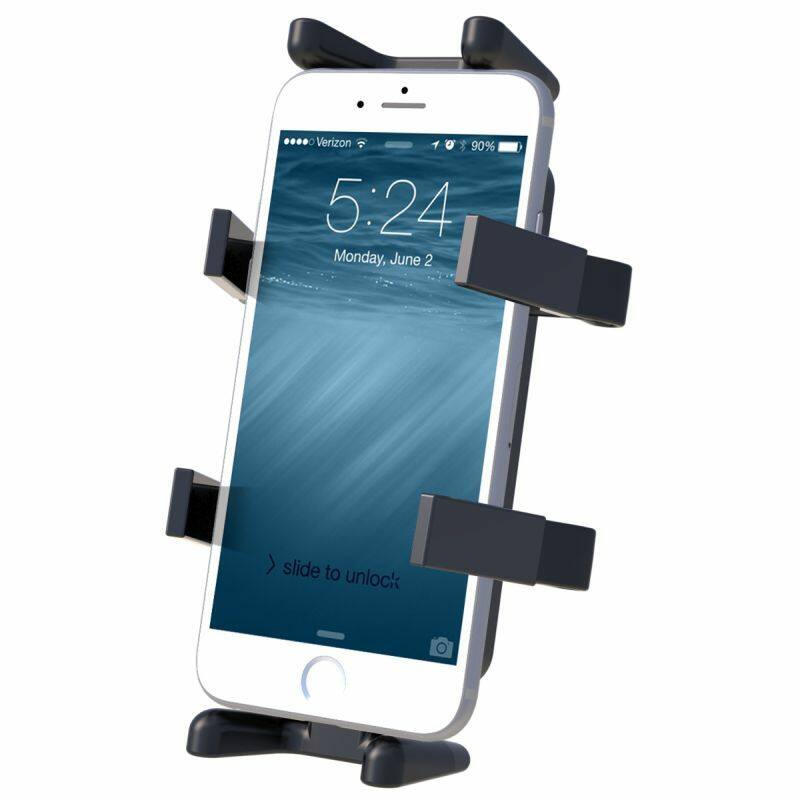

The Universal Finger Grip Holder is designed to hold a wide range of cell phones and electronic devices and comes with 3 sets of flexible rubber coated fingers placed along sides to grip your device. The fingers open by squeezing the ends to open the small finger arms. The bottom of the cradle includes a back plate that adds support to the device being held by the mount. The perfect solution that is the best phone mount, car mount, motorcycle mount and can be used with several other phone accessories including Samsung accessories and LG accessories.
For a list of compatible devices and complete dimensions see the listing for RAM-HOL-UN4U

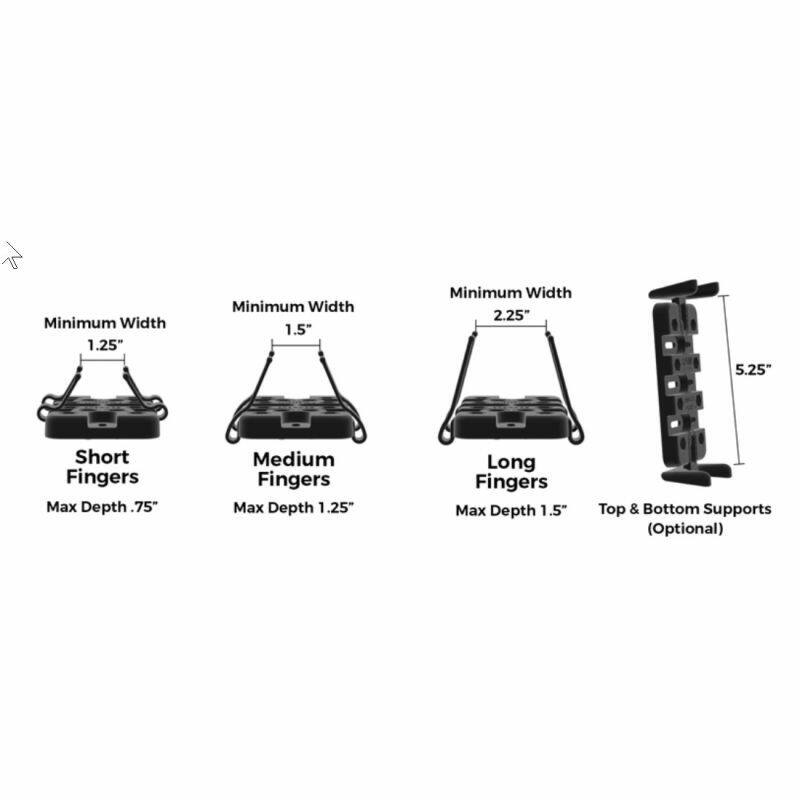

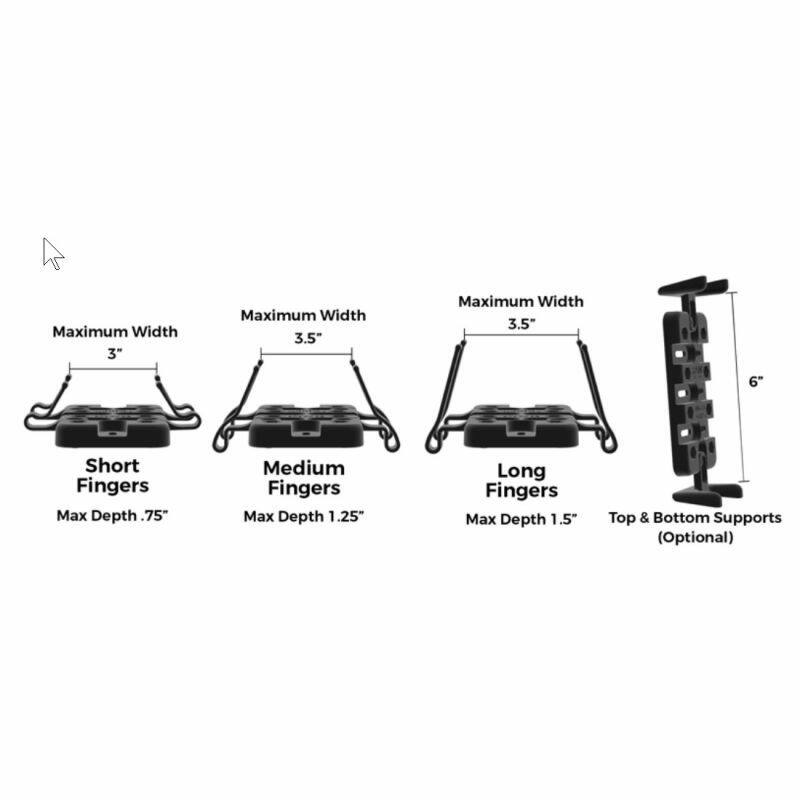

Height Dimensions: (The top and bottom plates can be removed for larger devices)
Min with Top and Bottom Plates: 133mm
Max with Top and Bottom Plates: 152mm
Max Depth: 19mm – 40mm
Min Width: 31mm – 57mm
Max Width: 76mm – 88mm
Arm dimensions
Overall: 94mm (3.69")
Socket-To-Socket: 76mm (3")
BALL/SOCKET SIZE
B Size (1")
WEIGHT CAPACITY
907 grams (2 lbs)
MATERIALS
Marine-grade aluminium
High strength composite
WEIGHT
476 grams (1.05 lbs.)

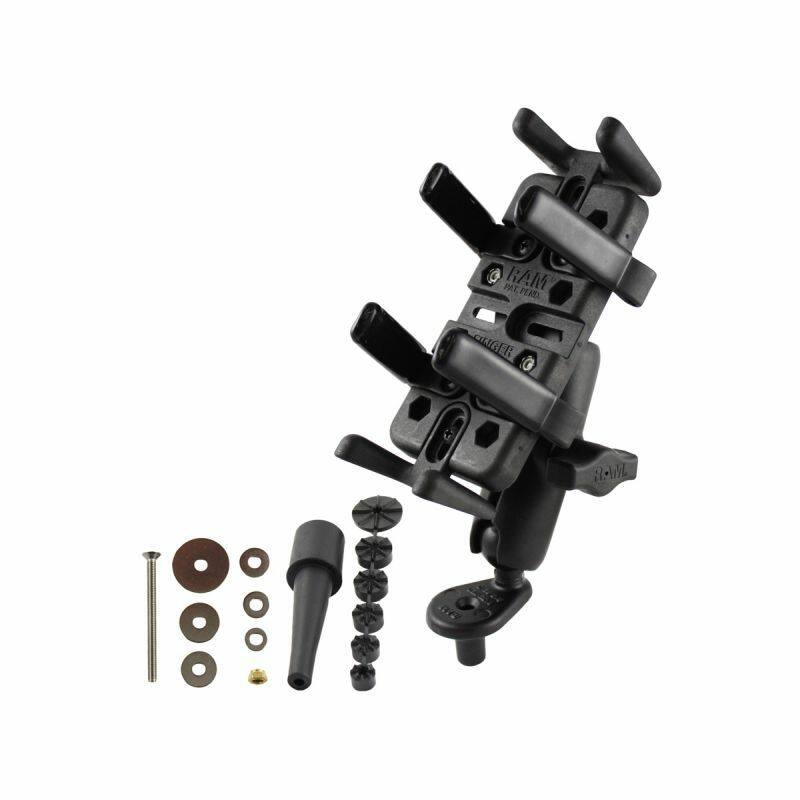

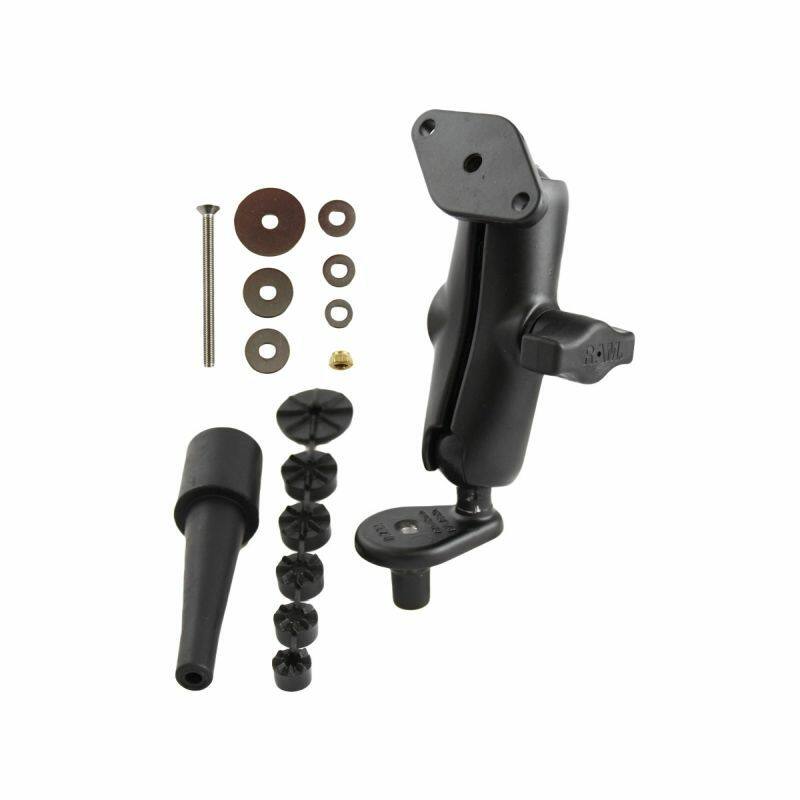

Assembly Hardware
(1) Expansion Plug for 12mm - 38mm (.5" - 1.49") Fork Stem Holes
(1) M5 x 60mm Machine Screw
(1) Steel Washer Set
(1) Nut Pocket Washer Set
(1) Brass Nylock Nut
YopuTube:
https://www.youtube.com/watch?v=iL6UI4EXzBw&t=306s
https://www.youtube.com/watch?v=NoHTwEC_87Y
https://www.youtube.com/watch?v=4erFr6qwKEY&t=23s
Components:
RAM-B-342U CYCLE STEM BASE W/ 1" DIA BALL
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-238U 62 X 33mm DIAMOND BASE W/ 1 BALL
RAM-HOL-UN4U UNIVERSAL PLASTIC ATV HOLDER
