RAM-B-177-UN4 Universal Glare Shield Clamp Mount with Universal Finger-Grip™ Phone/Radio Cradle
Features
* Universal holder with flexible rubber-coated fingers to provide a secure grip of your device; fingers open by squeezing the ends

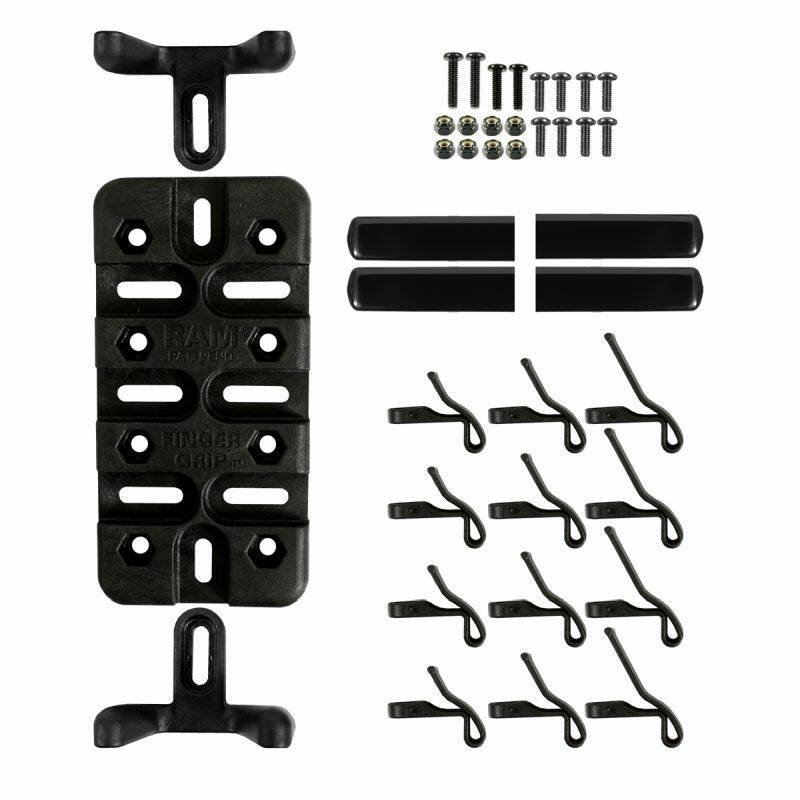

* Includes three sets of four rubber-coated fingers for different size devices as well as top and bottom optional device supports
* Glareshield clamp will attach to flat surfaces from 4-28mm thick
* RAM® B size double socket arms and ball system allows for easily adjustable viewing angles
* Backed by a lifetime warranty

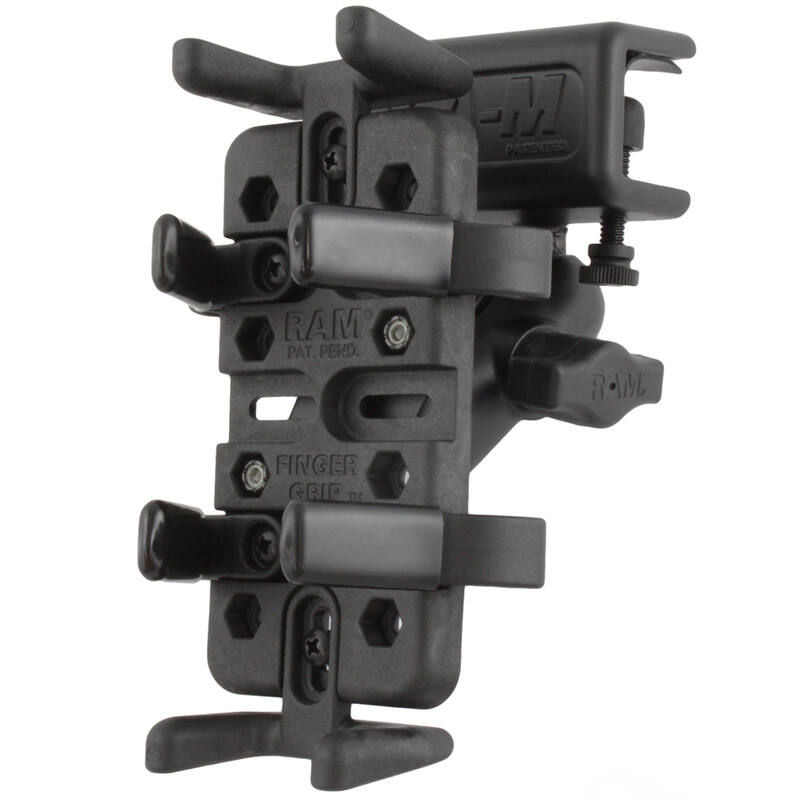

This mount consists of a glare shield clamp base, double socket arm and universal Finger Grip™ cradle

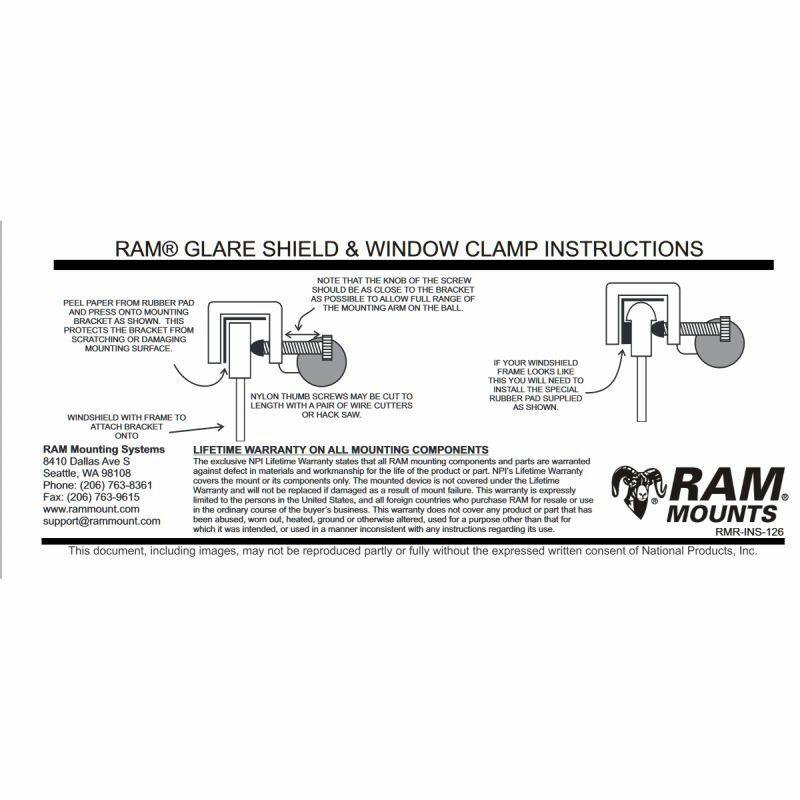

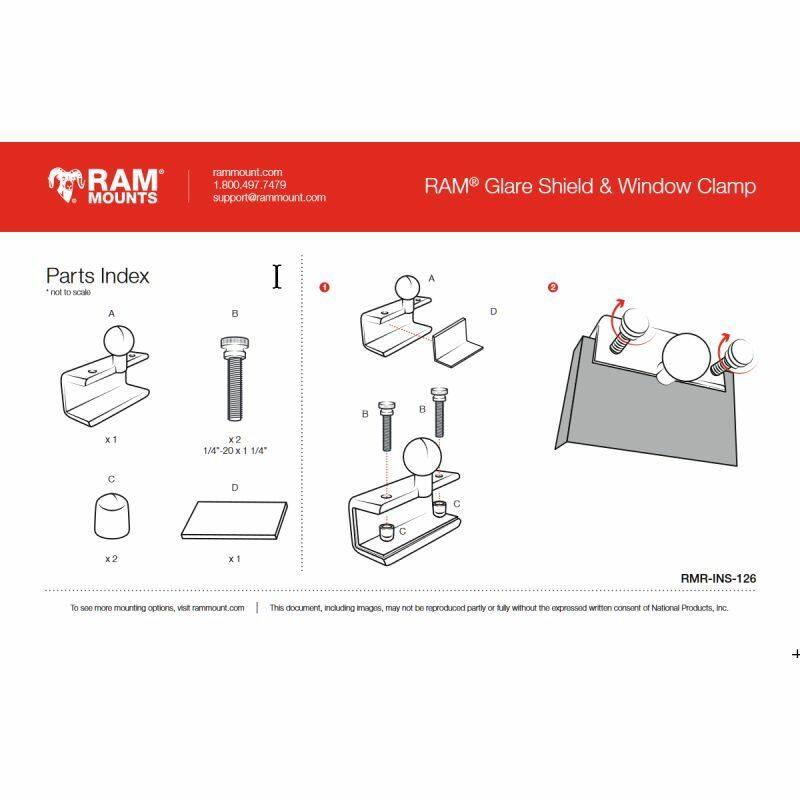

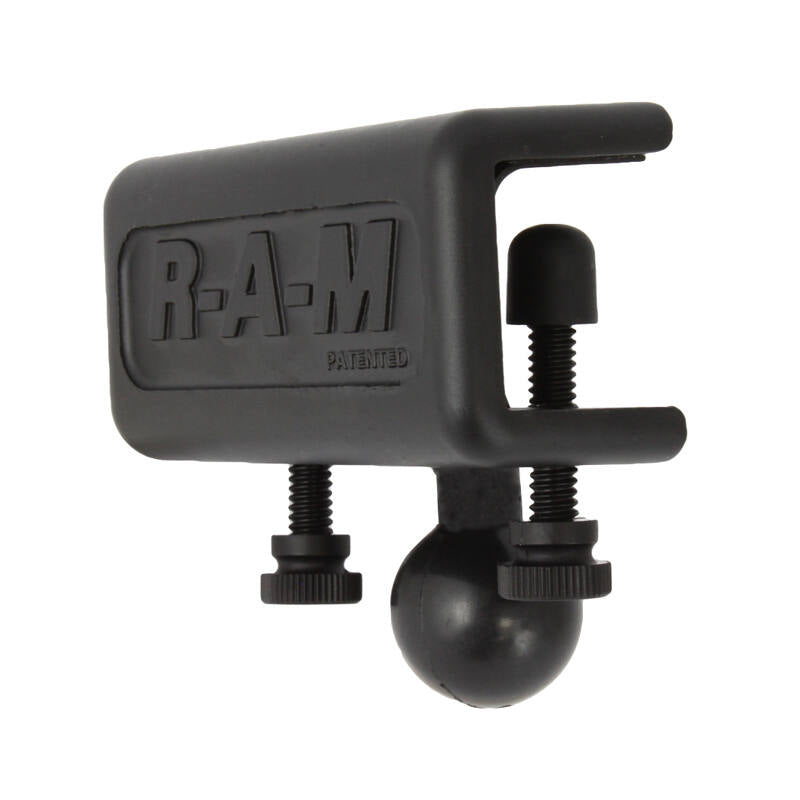

The 25 x 25mm Mirror Clamp / Glare-Shield Base with 1" Ball is designed to mount to the lip edge of a flat surface from 4.4mm to 28mm thick. Popular mounting edges include a car side window edge lip or glare shield on an aeroplane. The base has two composite bolts that, when tightened, clamp the base to the lip surface.

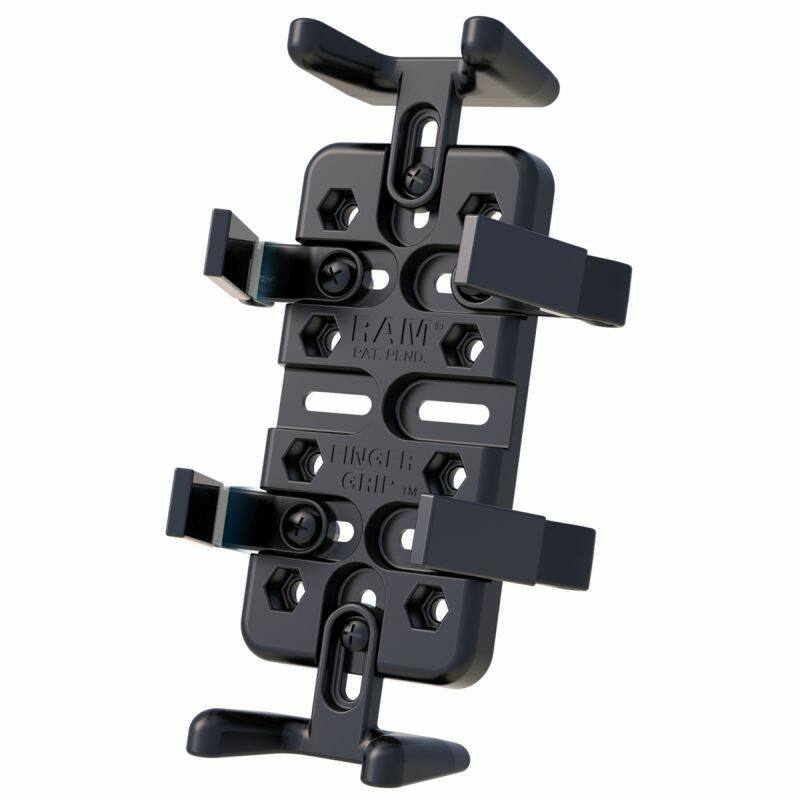

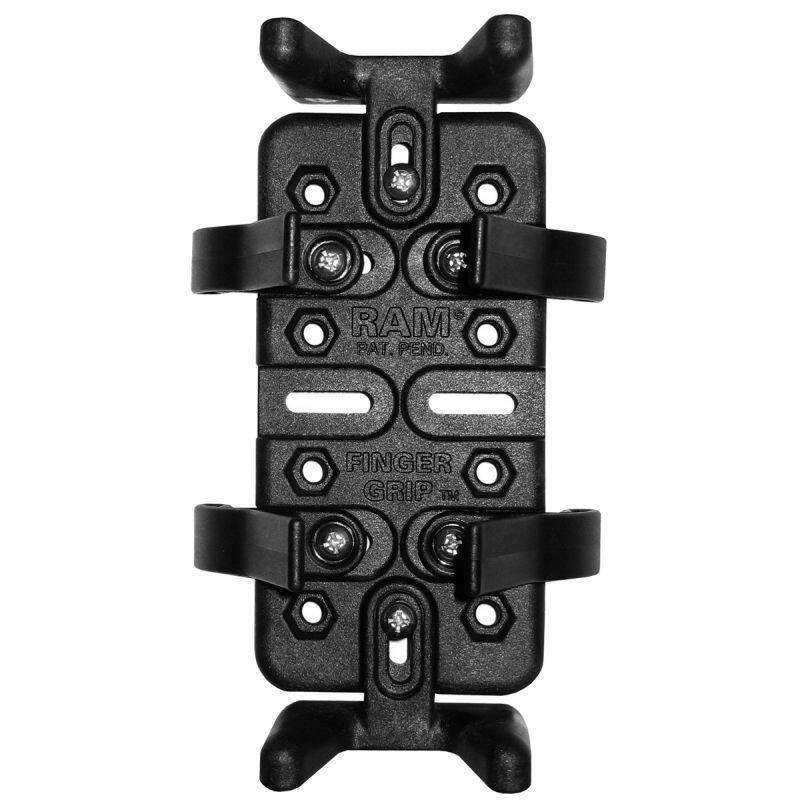

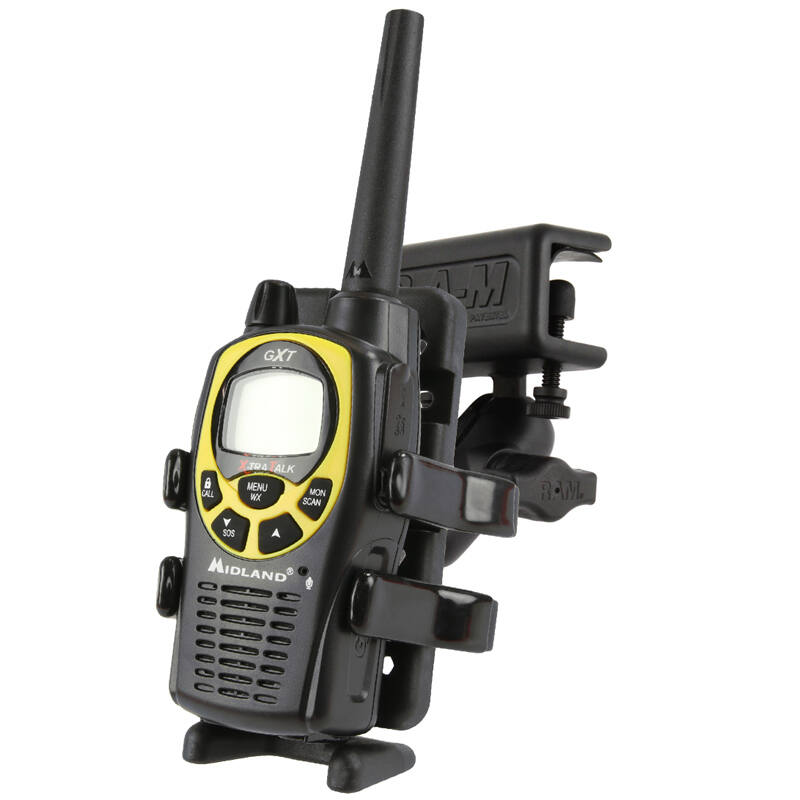

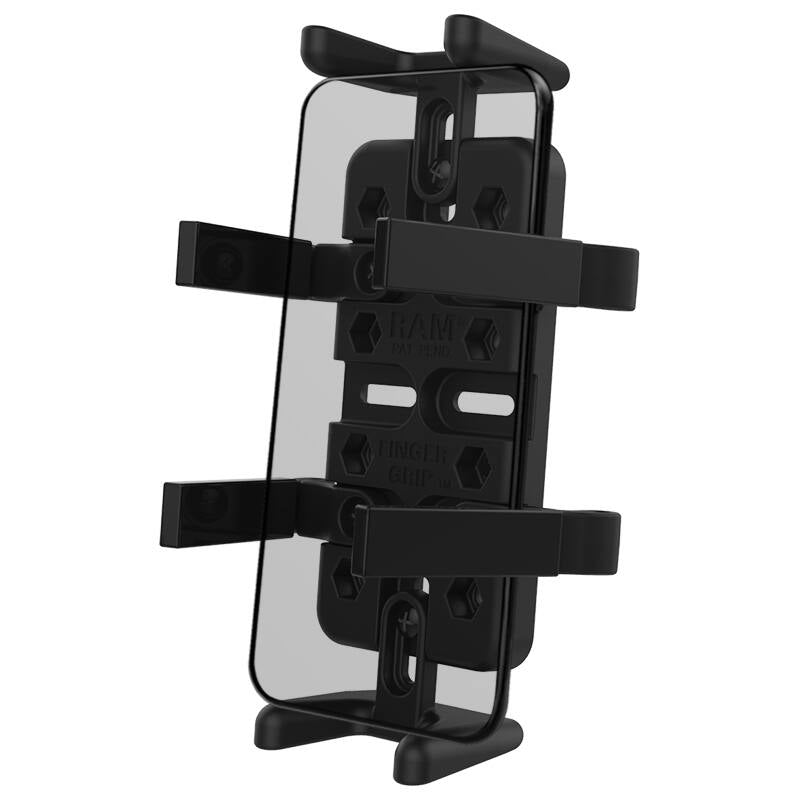

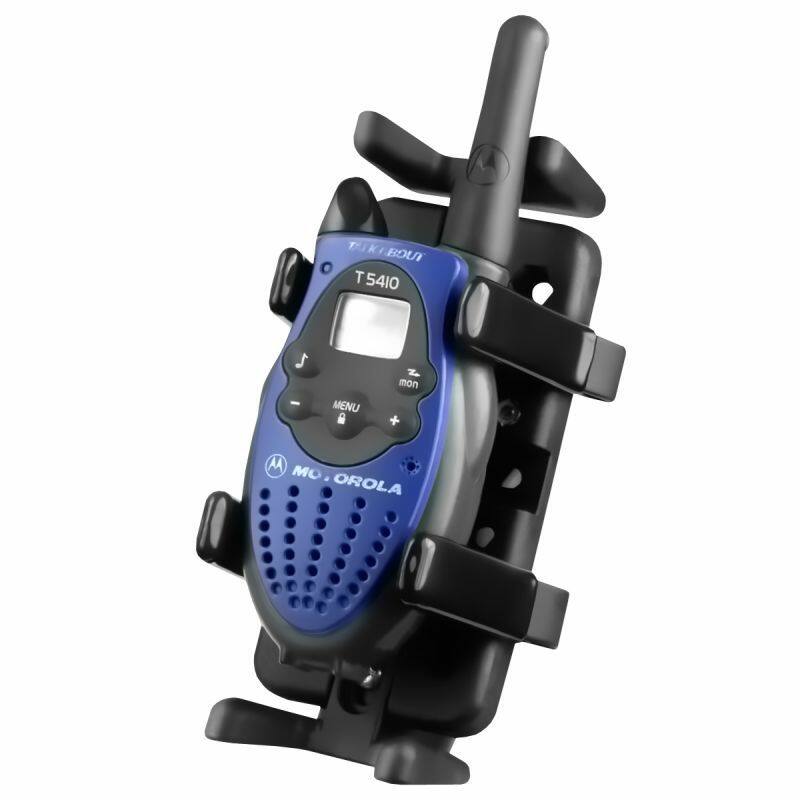

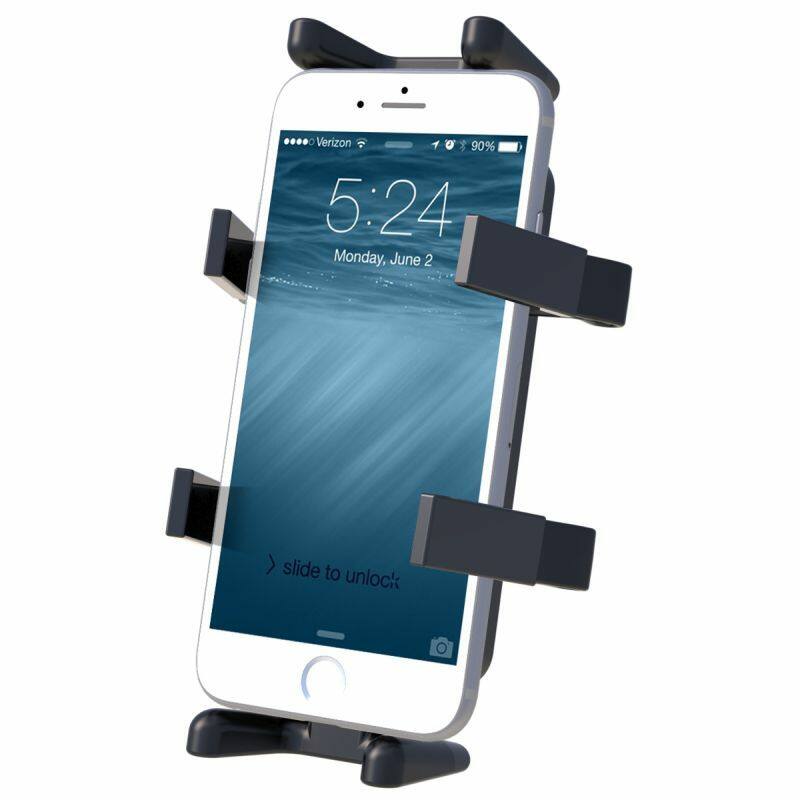

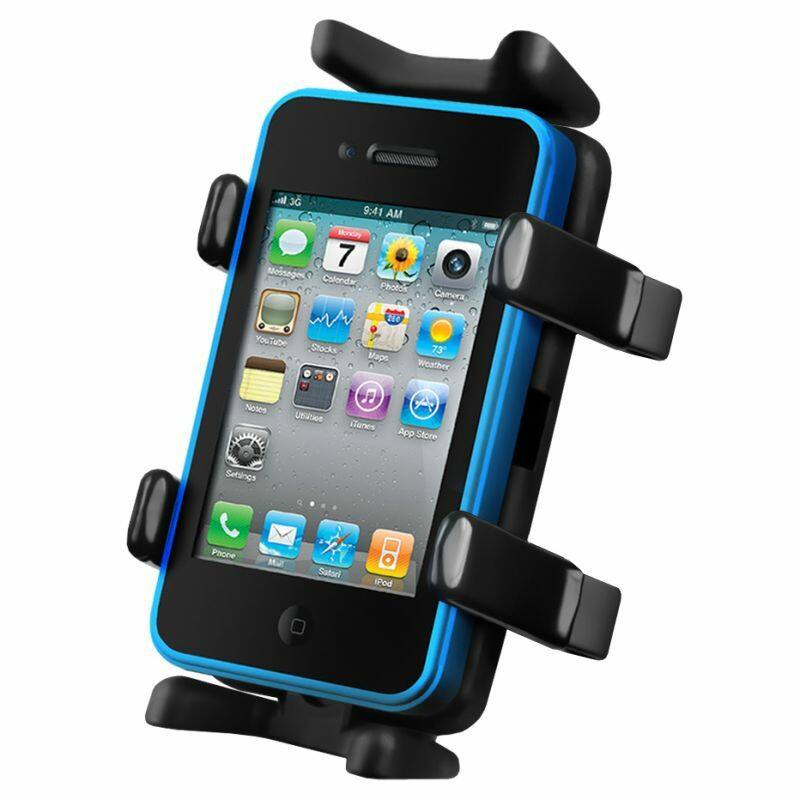

The Finger Grip is ideal for GPS, smaller cellphones and UHF Radios and works with OtterBox (Defender, Commuter, Impact) Cases, Phones with Bumper, Twisted Metal Case and More. It's the perfect rugged solution for Blackberry, HTC, Droid X, iPhone, LG, Samsung and more
Height Dimensions: (The top and bottom plates can be removed for larger devices)
Minimum with Top and Bottom Plates: 133mm
Maximum with Top and Bottom Plates: 152mm

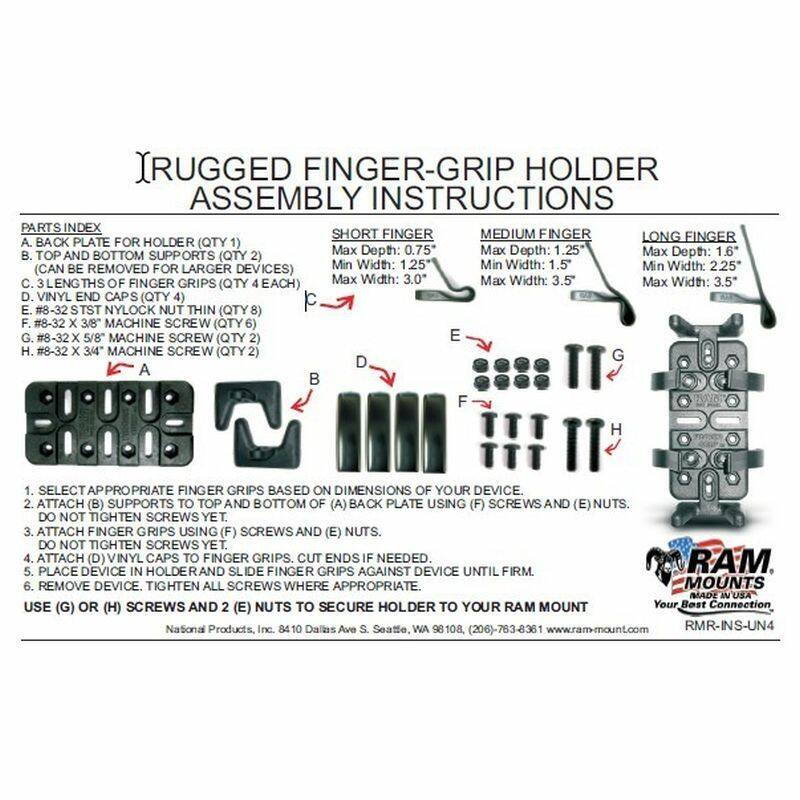

Spine Plate Dimensions:
76mm Width x 76mm Height

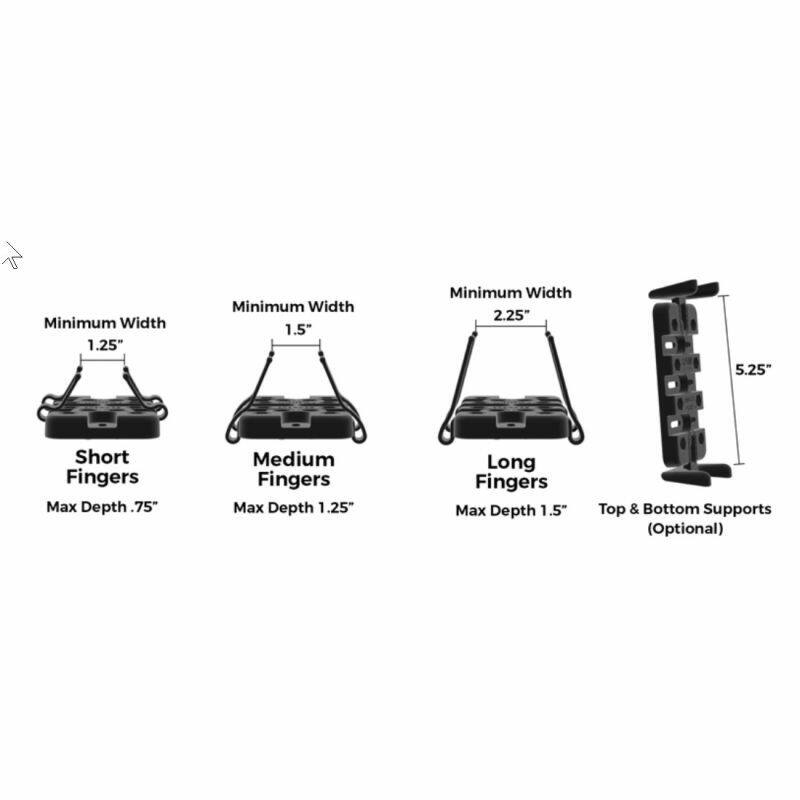

Using Short Arm Side Clamps:
Maximum Depth: 19mm
Minimum Width: 31mm

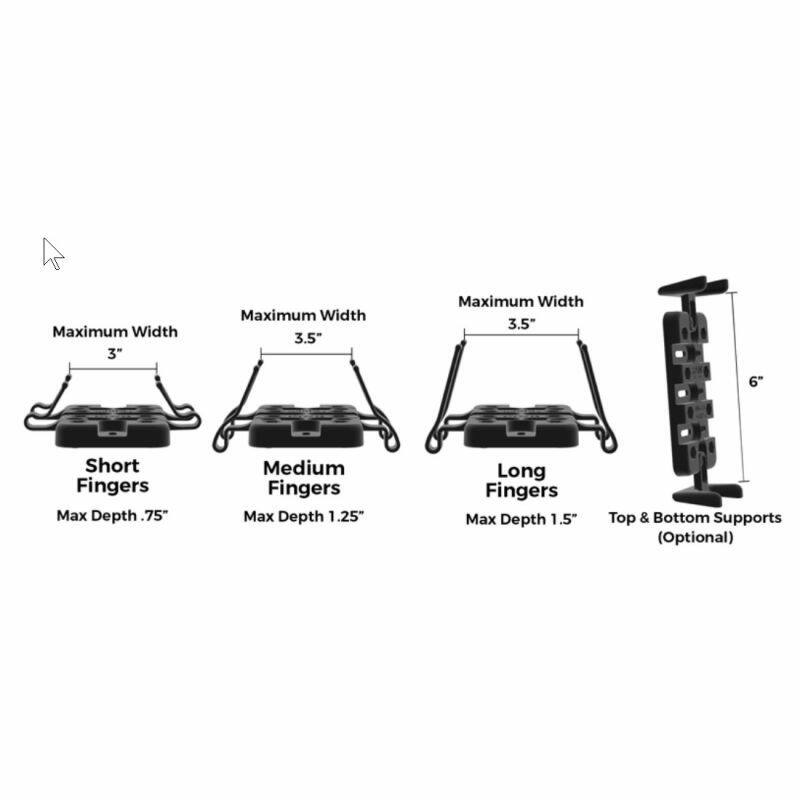

Maximum Width: 76mm
Using Medium Arm Side Clamps:
Maximum Depth: 31mm
Minimum Width: 38mm
Maximum Width: 88mm
Using Long Arm Side Clamps:
Maximum Depth: 40mm
Minimum Width: 57mm
Maximum Width: 88mm
Glare-shield clamp dimensions:
Min: 4.4mm / 0.17"
Max: 15.9mm / 0.625" (5/8")
Arm Dimensions:
Overall Length: 60.5mm (2.38")
Socket-To-Socket Length: 51mm (2")
Components:
RAM-HOL-UN4U RAM UNIVERSAL PLASTIC ATV HOLDER
RAM-B-201U-A RAM SHORT DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-238U RAM 62 X 33mm DIAMOND BASE W/ 1 BALL
RAM-B-259U RAM windshield mounting base
