RAM Mounts

RAM Finger Grip - Universal Phone / Radio Cradle with Handlebar Base Short Arm

RAM Finger Grip - Universal Phone / Radio Cradle with Handlebar Base Short Arm

SKU:RAM-B-149Z-A-UN4U-v

Regular price $160.55 NZD
Regular price Sale price $160.55 NZD
Sale Sold out
Tax included. Shipping calculated at checkout.
View full details

RAM-B-149Z-A-UN4U RAM® Finger-Grip™ Universal Mount with Handlebar U-Bolt Base - short arm

Features

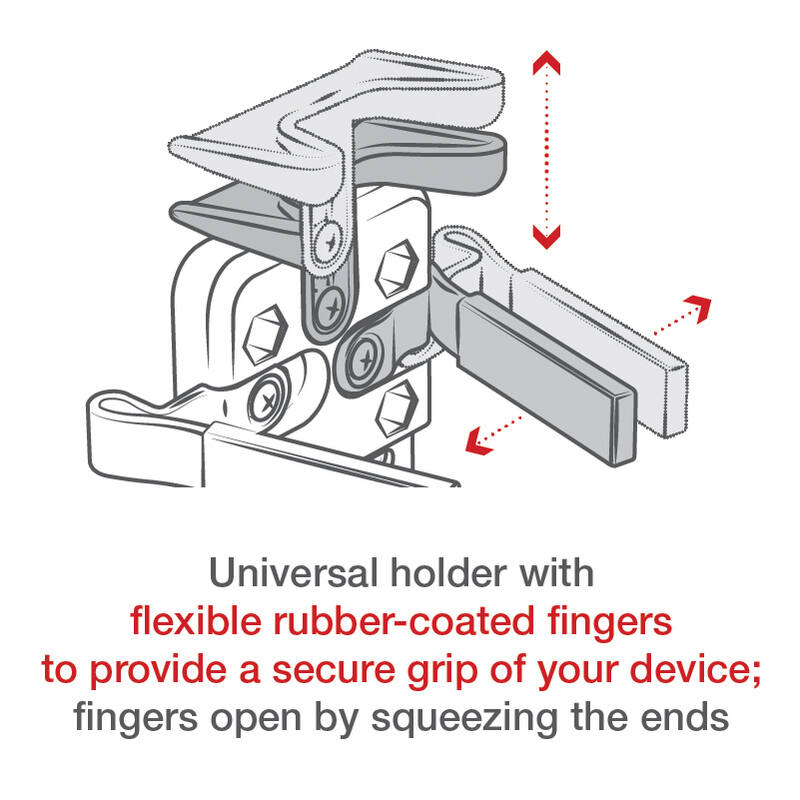

* Universal holder with flexible rubber-coated fingers to provide a secure grip of your device; fingers open by squeezing the ends

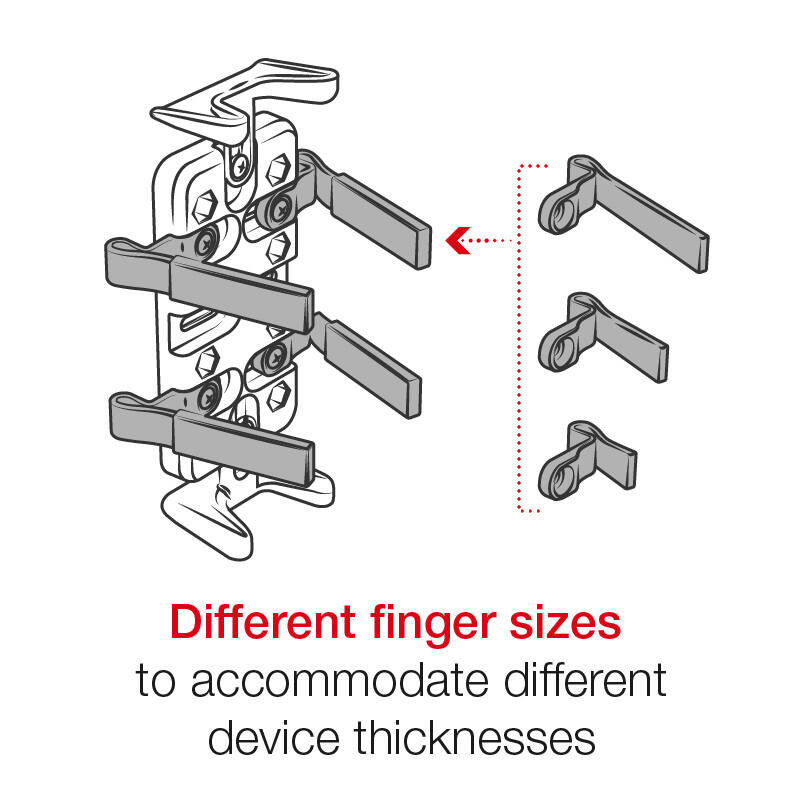

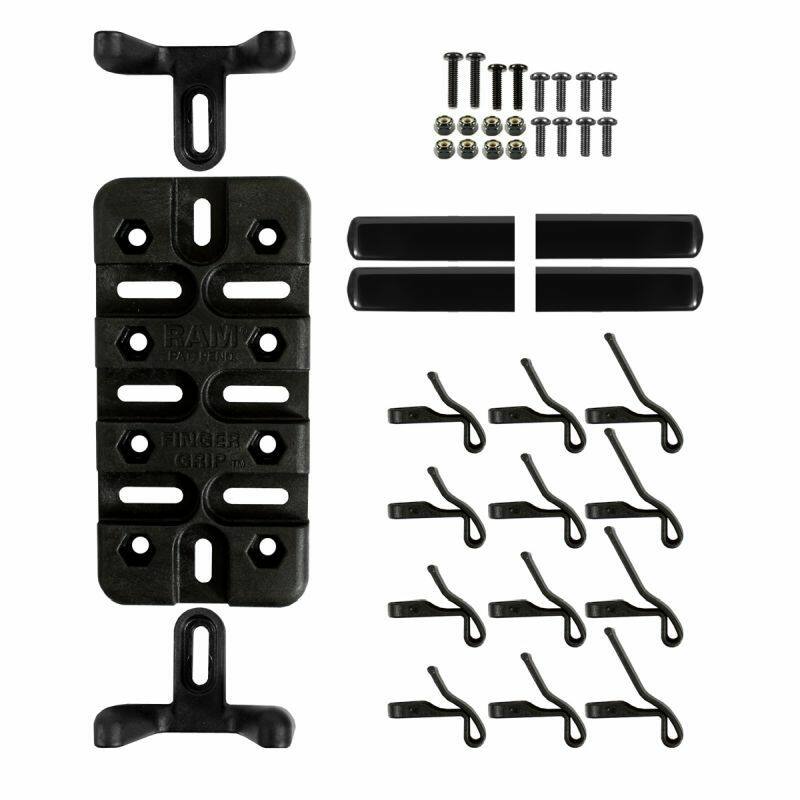

* Includes three sets of four rubber-coated fingers for different size devices as well as top and bottom optional device supports
* U-Bolt base will accommodate rails or bars 12.7mm to 31.8mm in diameter
* RAM® B series short double socket arm allows for almost infinite adjustability
* Backed by a lifetime warranty

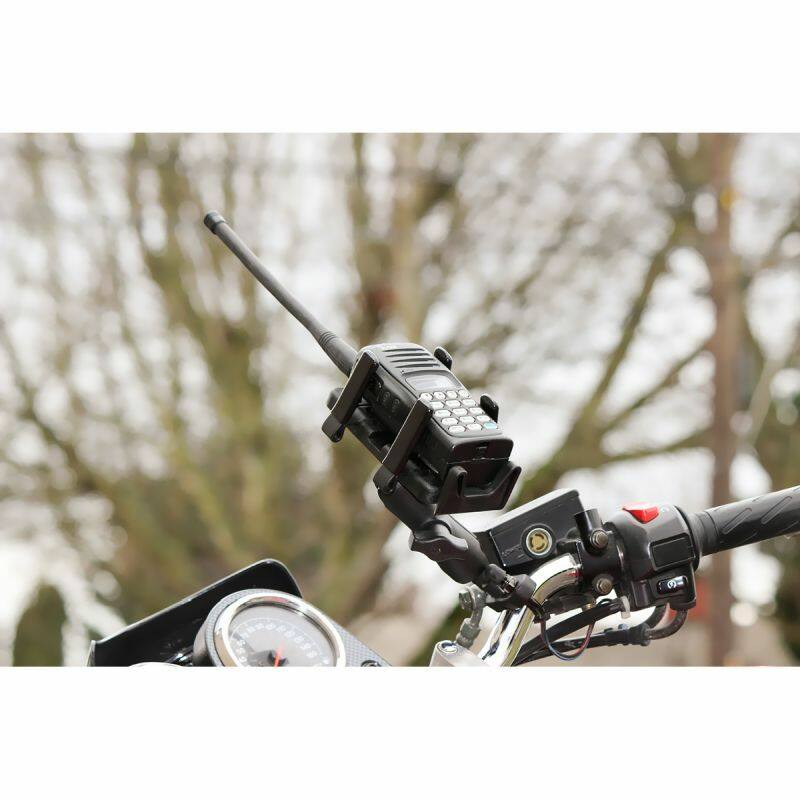

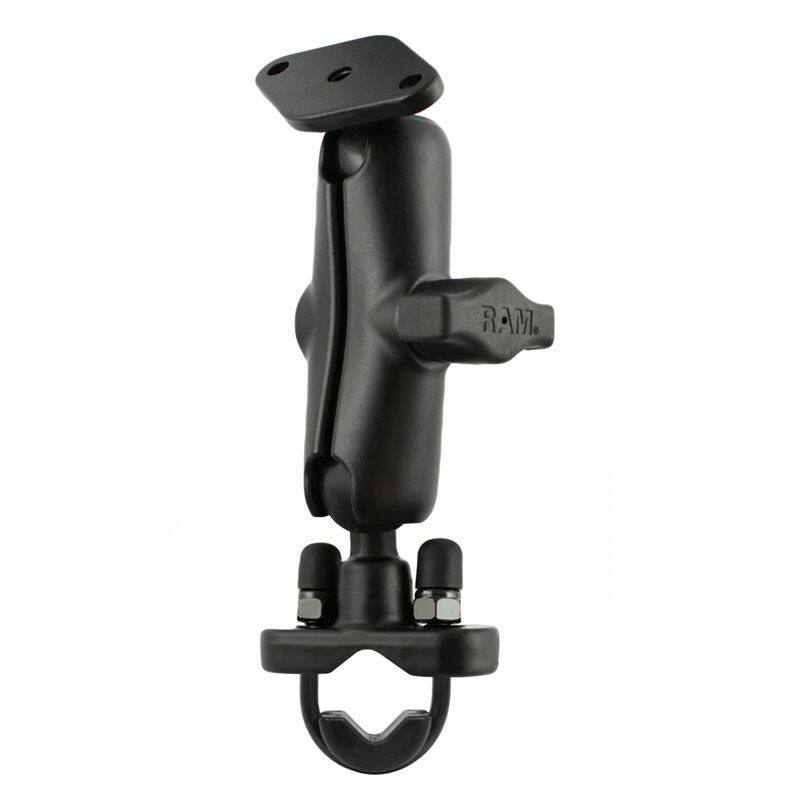

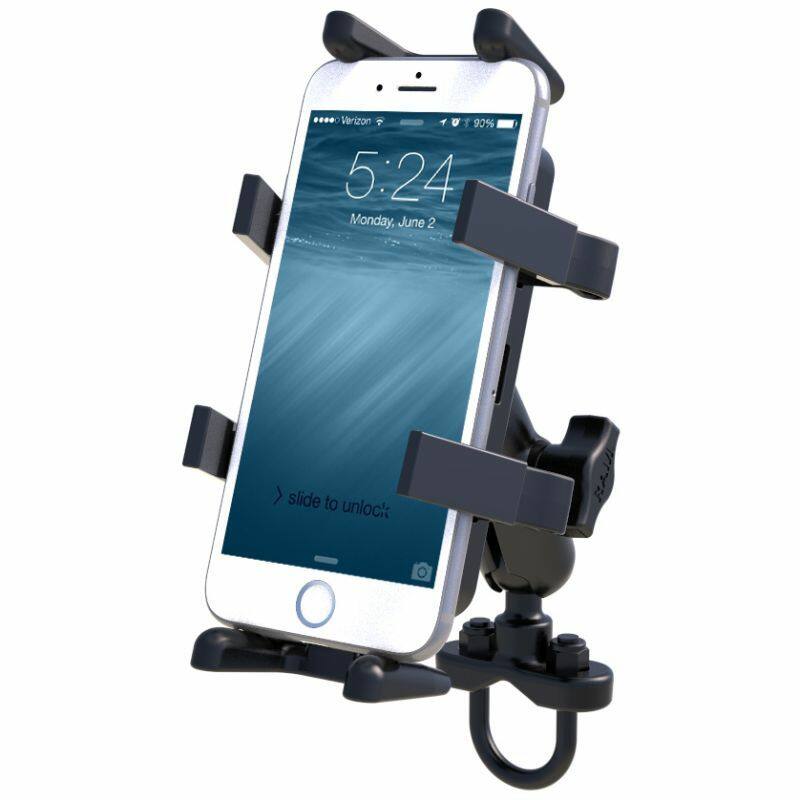

The RAM-B-149Z-A-UN4U consists of a zinc coated u-bolt base, SHORT (60mm) double socket arm and universal Finger Grip™ cradle. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

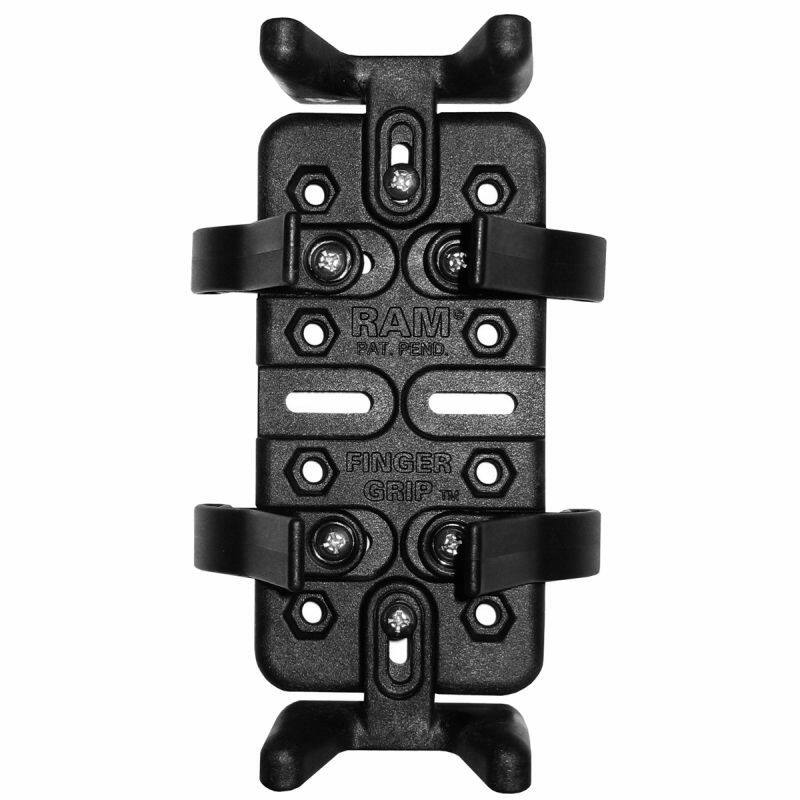

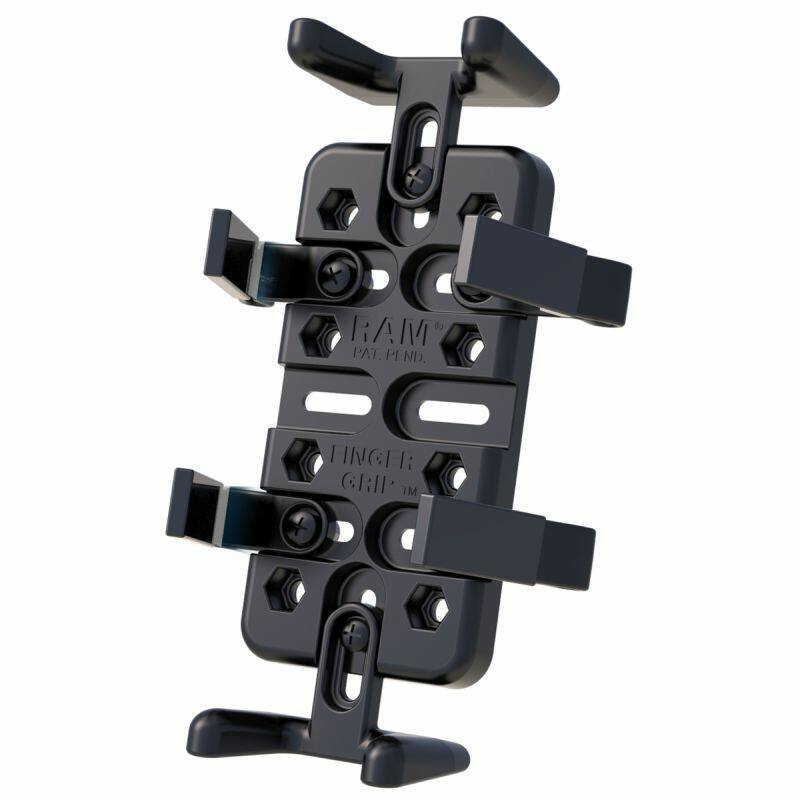

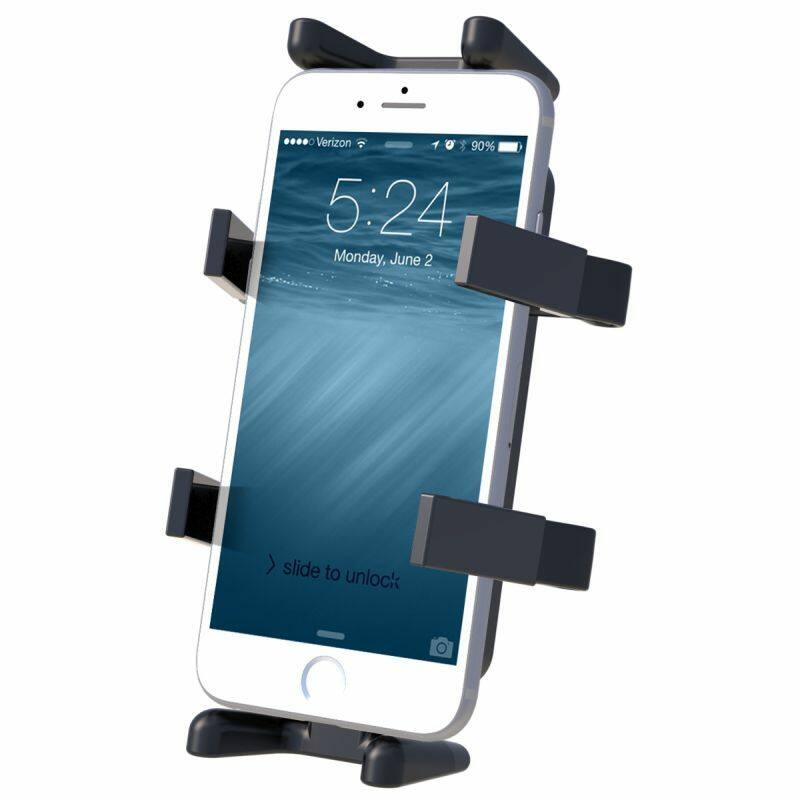

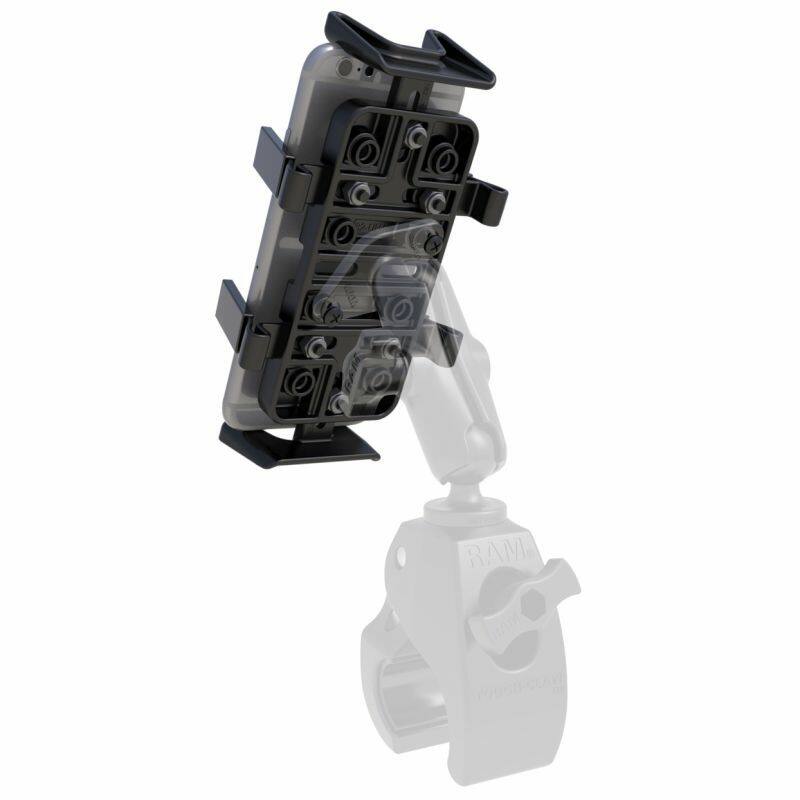

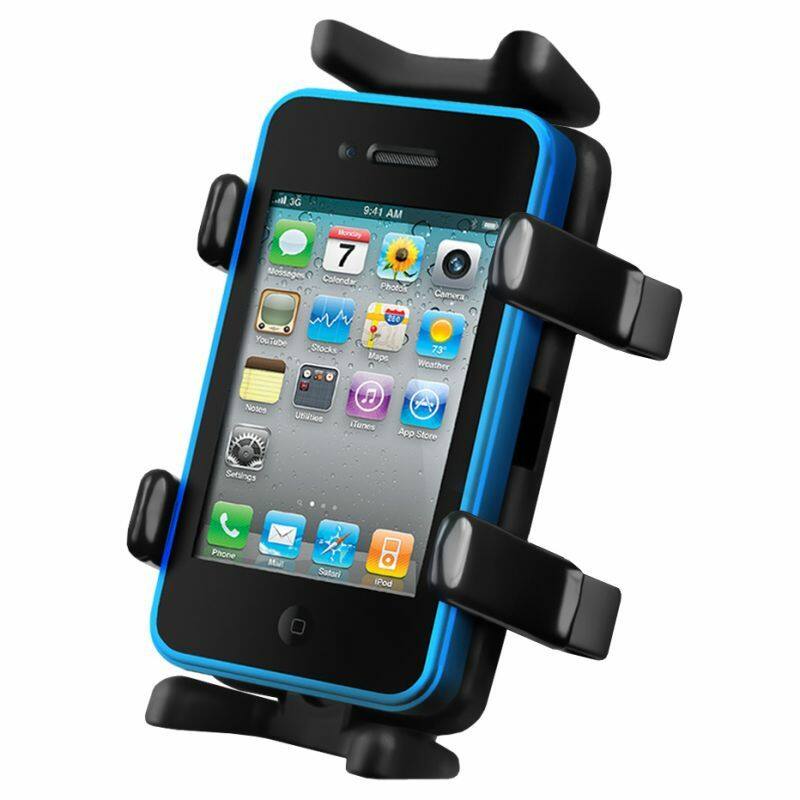

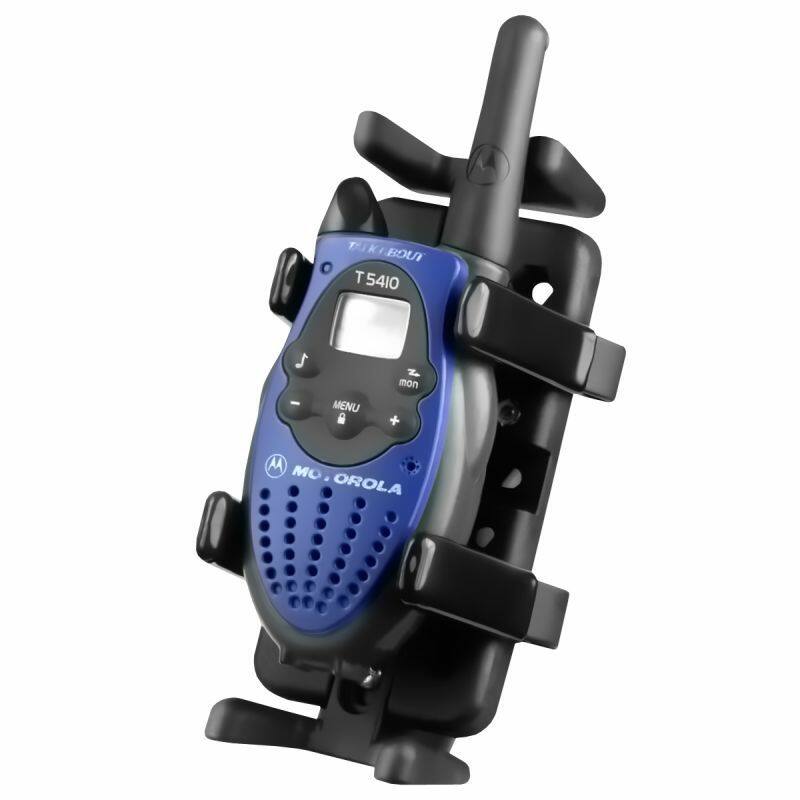

The -UN4U Composite Universal Finger Grip Holder is designed to hold a wide range of cell phones and electronic devices.

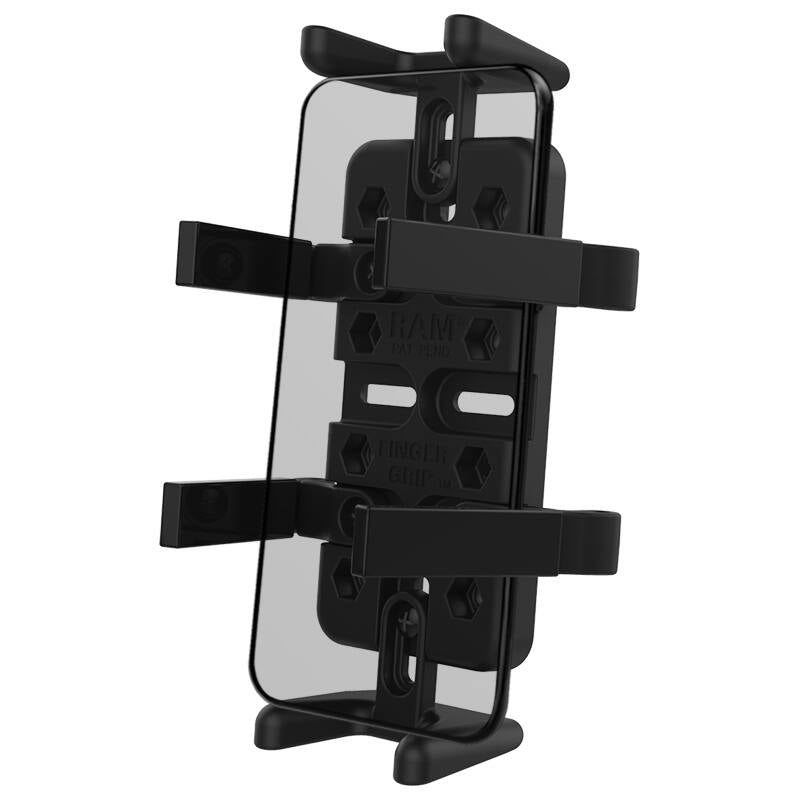

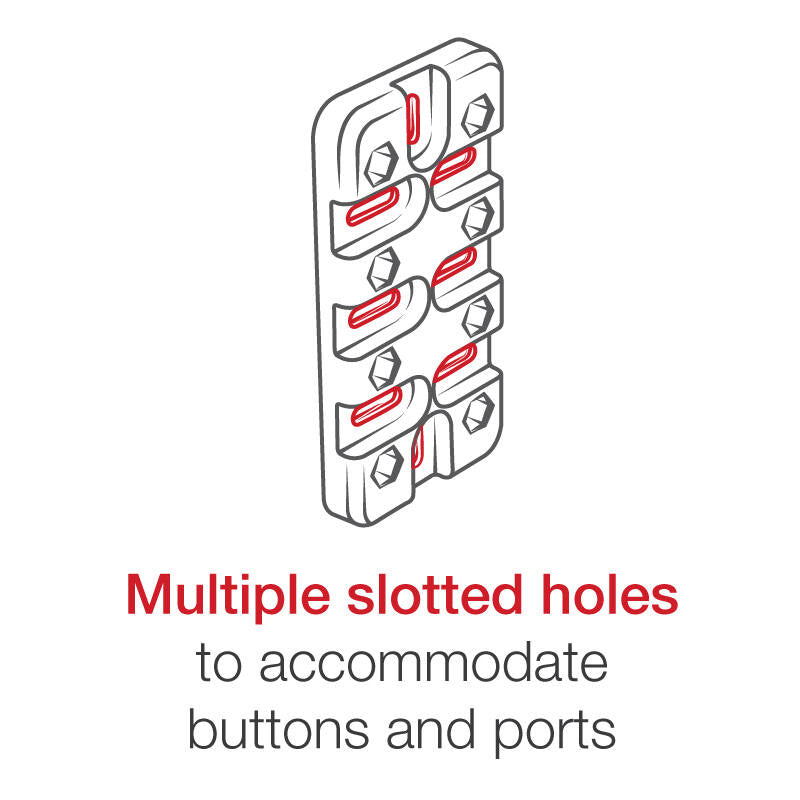

The cradle comes with 3 sets of flexible rubber coated fingers placed along sides to grip your device. The fingers open by squeezing the ends to open the small finger arms. The bottom of the cradle includes a back plate that adds support to the device being held by the mount. The perfect solution that is the best phone mount, car mount, motorcycle mount and can be used with several other phone accessories including Samsung accessories and LG accessories. The spine plate contains the universal AMPs and 38 x 50mm hole patterns.

For a list of compatible devices and complete dimensions see the listing for RAM-HOL-UN4U

Height Dimensions: (The top and bottom plates can be removed for larger devices)

Minimum with Top and Bottom Plates: 133mm
Maximum with Top and Bottom Plates: 152mm

Maximum Depth: 19mm – 40mm

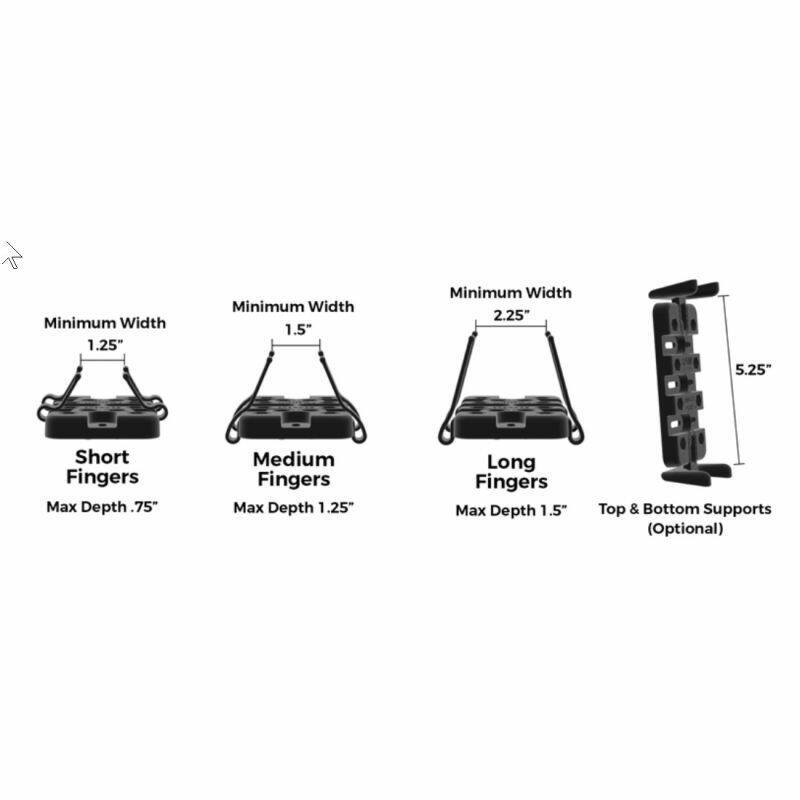

Minimum Width: 31mm – 57mm

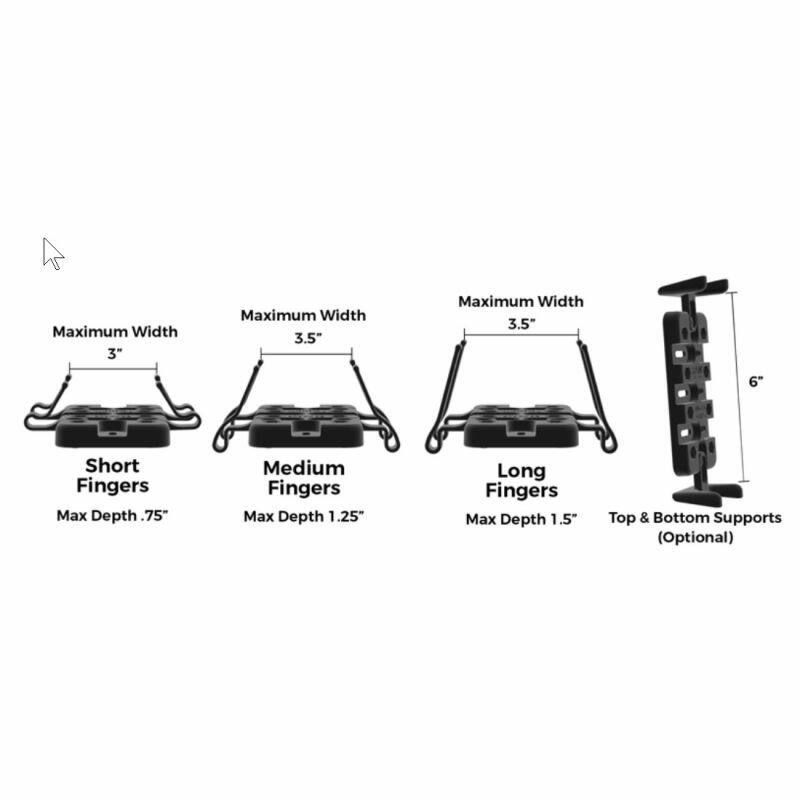

Maximum Width: 76mm – 88mm


Arm Dimensions
Overall Length:
60.5mm (2.38")
Socket-To-Socket Length:
51mm (2")

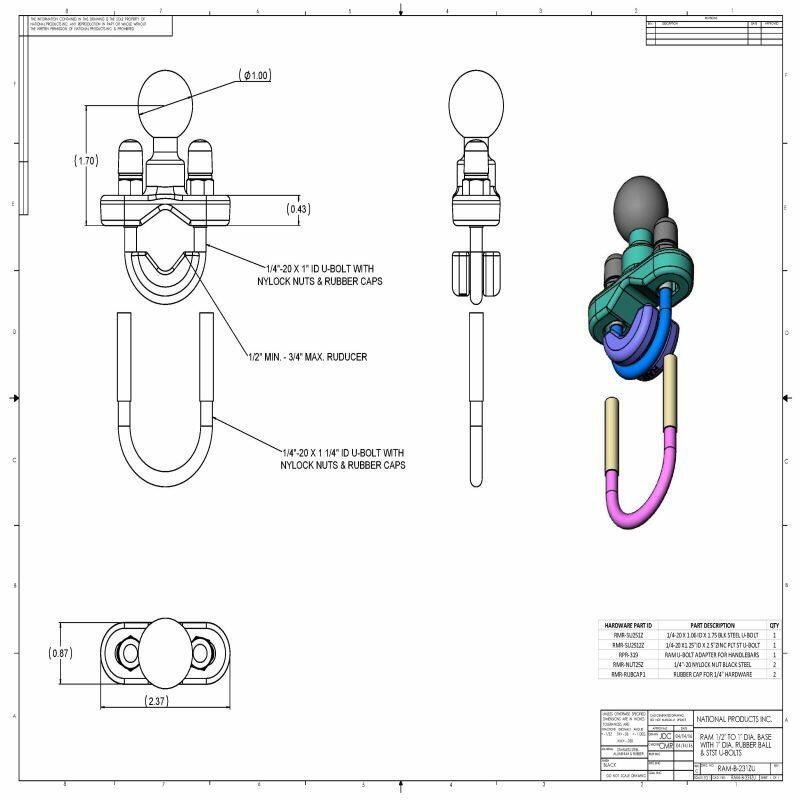

U-Bolt Dimensions:
12.7mm to 31.8mm (.50" - 1.25")

Ball/Socket Size
B Size (1")

Weight Capacity
907 grams (2 lbs)

Materials
Marine-grade aluminium
High strength composite


Components:
RAM-HOL-UN4U UNIVERSAL PLASTIC ATV HOLDER
RAM-B-238U 62 X 33mm DIAMOND BASE W/ 1 BALL

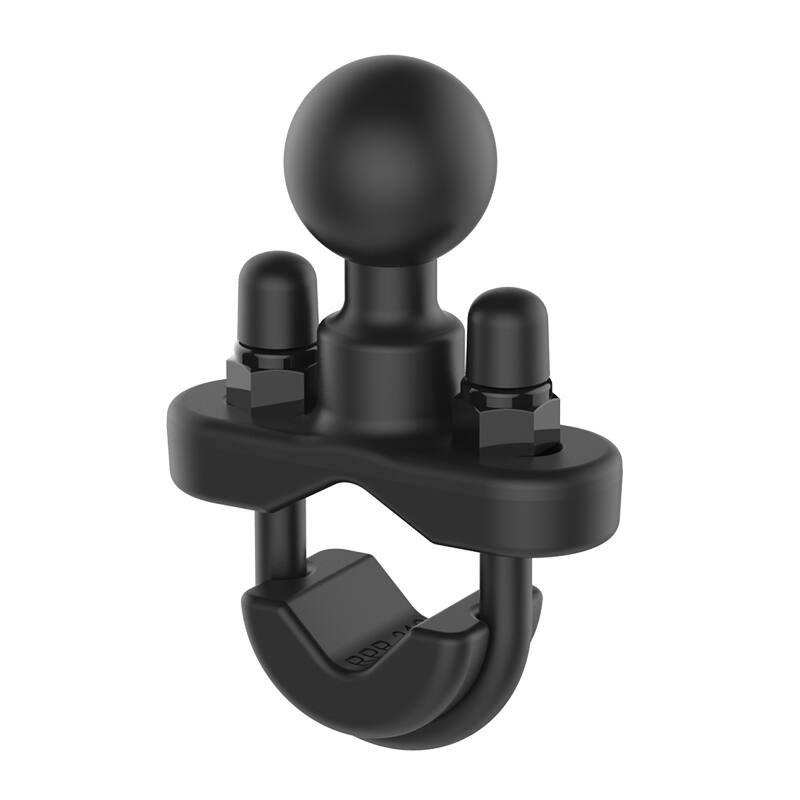

RAM-B-231ZU RAIL BASE W/ U-BOLT FOR 13 - 32MM BARS
RAM-B-201U-A SHORT DOUBLE SOCKET ARM FOR 1" BALL
