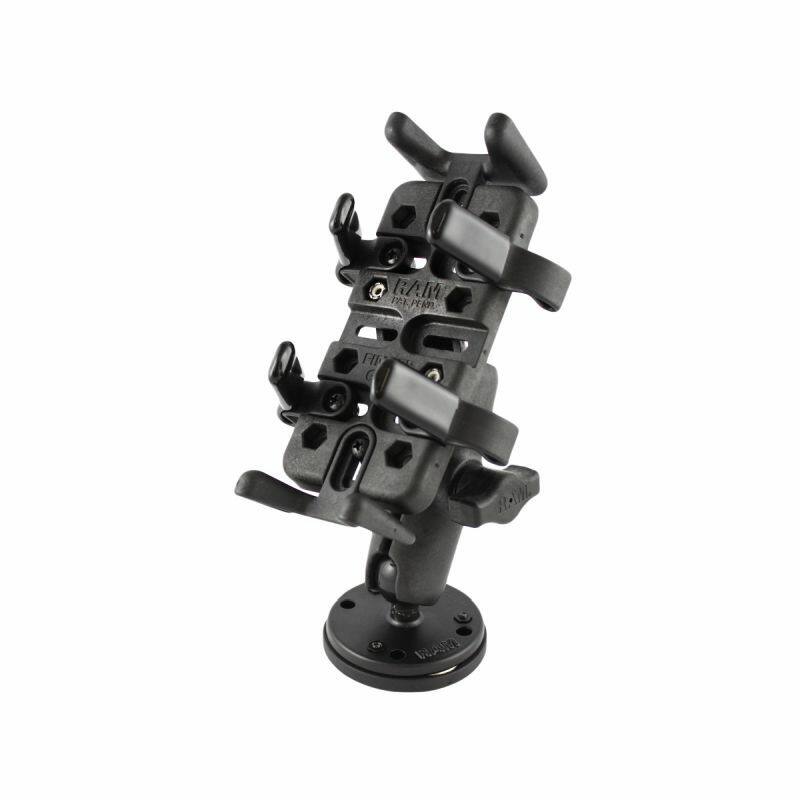

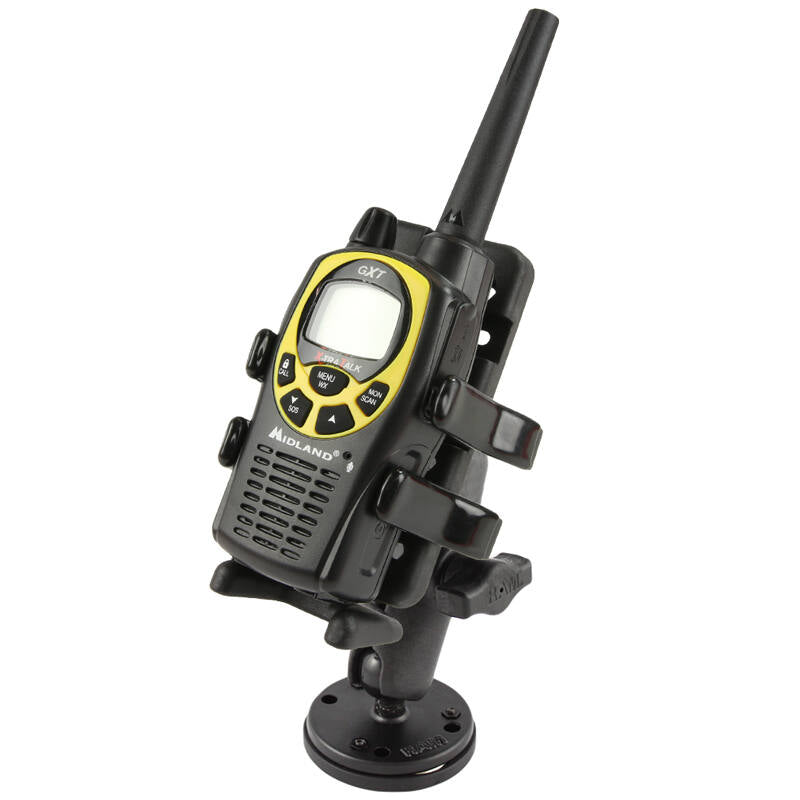

RAP-B-139-UN4MU RAM® Finger-Grip™ Universal Holder with with Triple Magnetic Base
Features
* Universal holder with flexible rubber-coated fingers to provide a secure grip of your device; fingers open by squeezing the ends

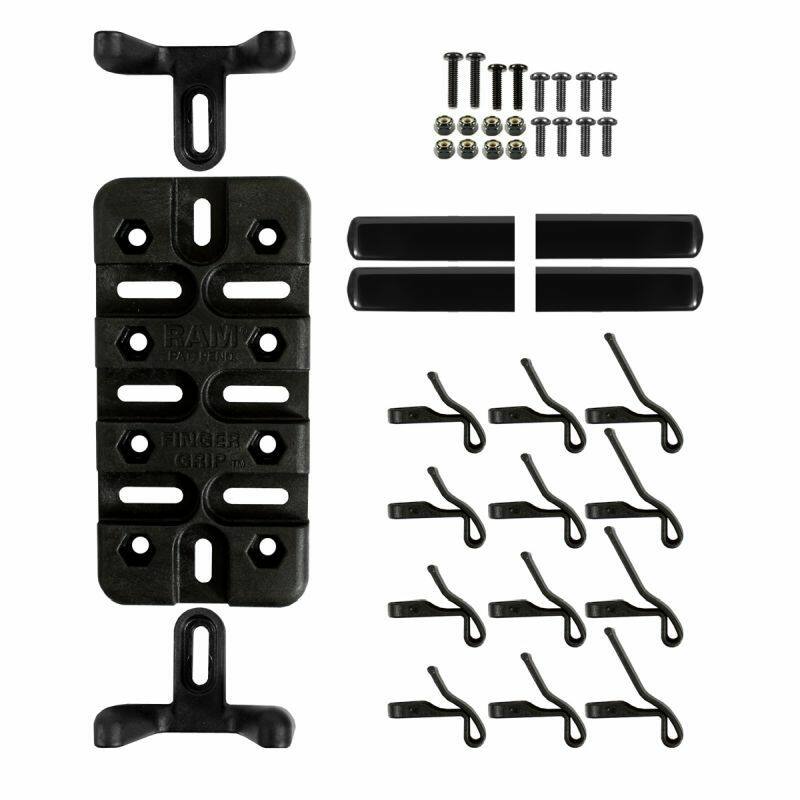

* Includes three sets of four rubber-coated fingers for different size devices as well as top and bottom optional device supports
* The magnetic base adaptor holds firmly to ferrous metal surfaces
* RAM patented rubber ball and socket system allows for almost infinite adjustment and perfect viewing angles
* Marine Grade alloy and high strength composite construction
* Backed by a lifetime warranty

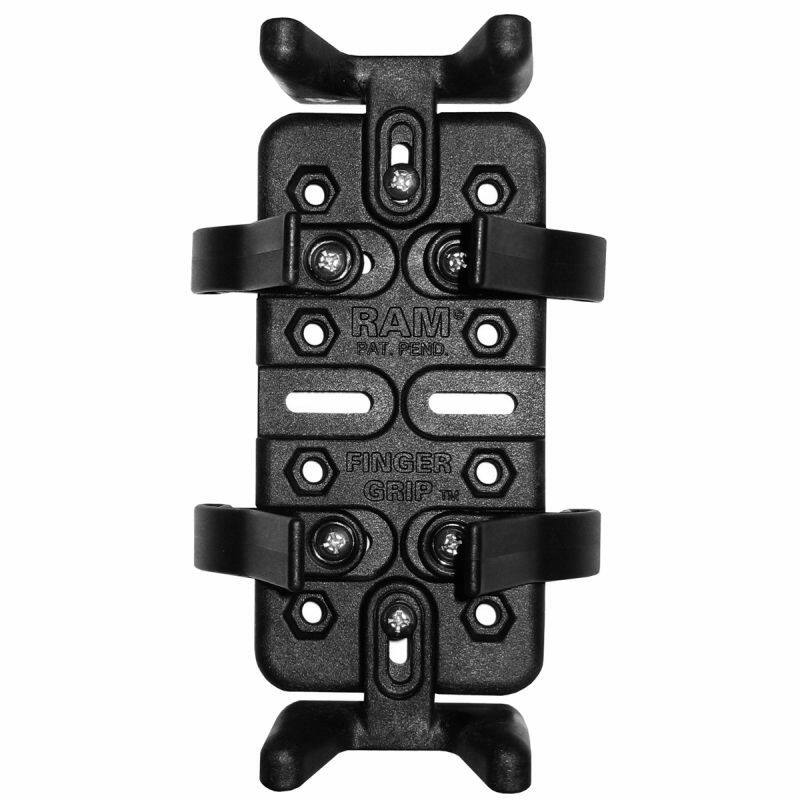

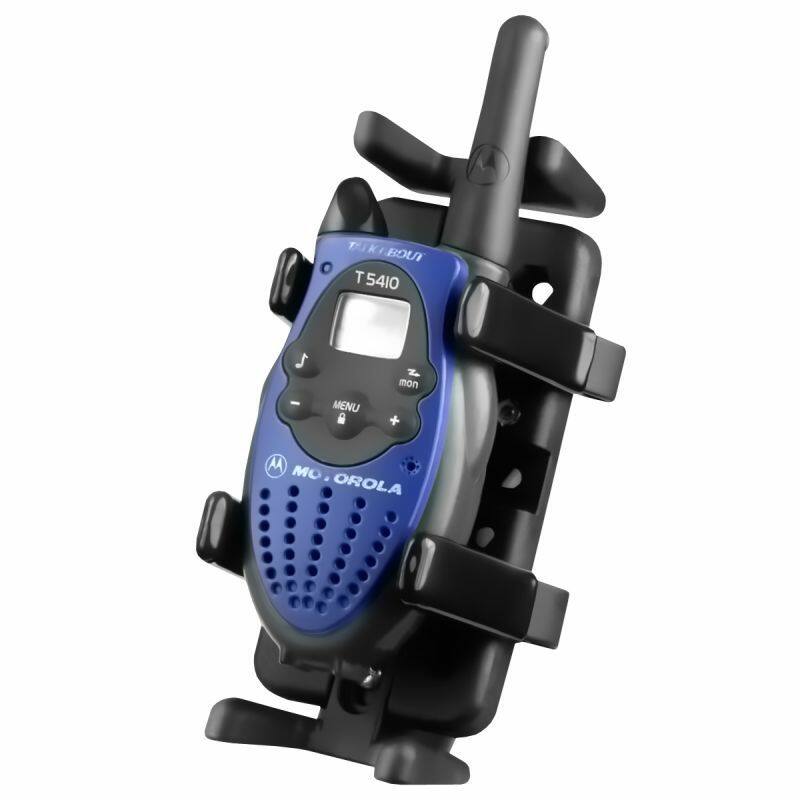

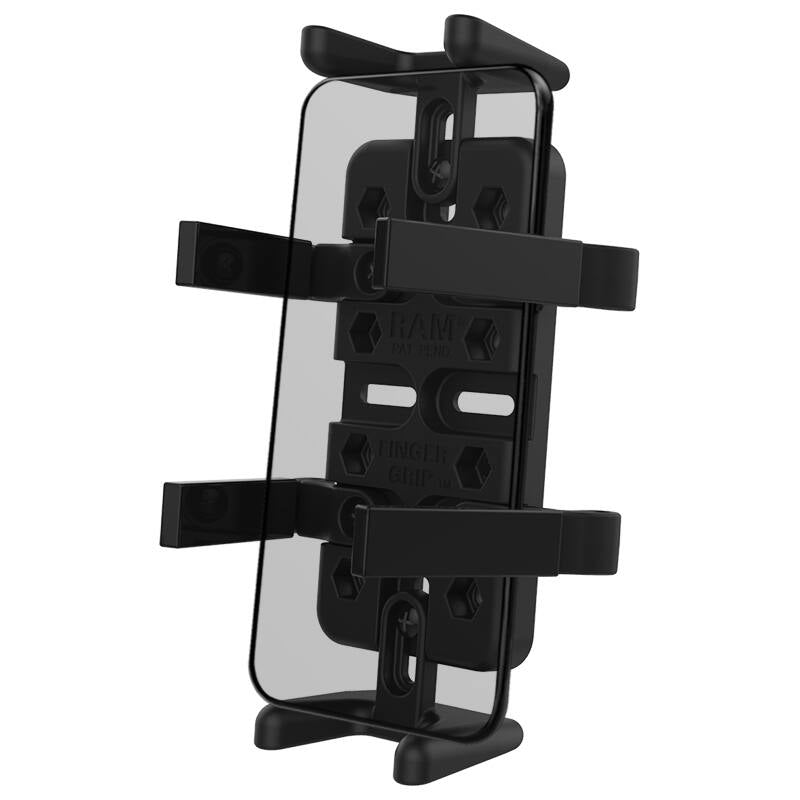

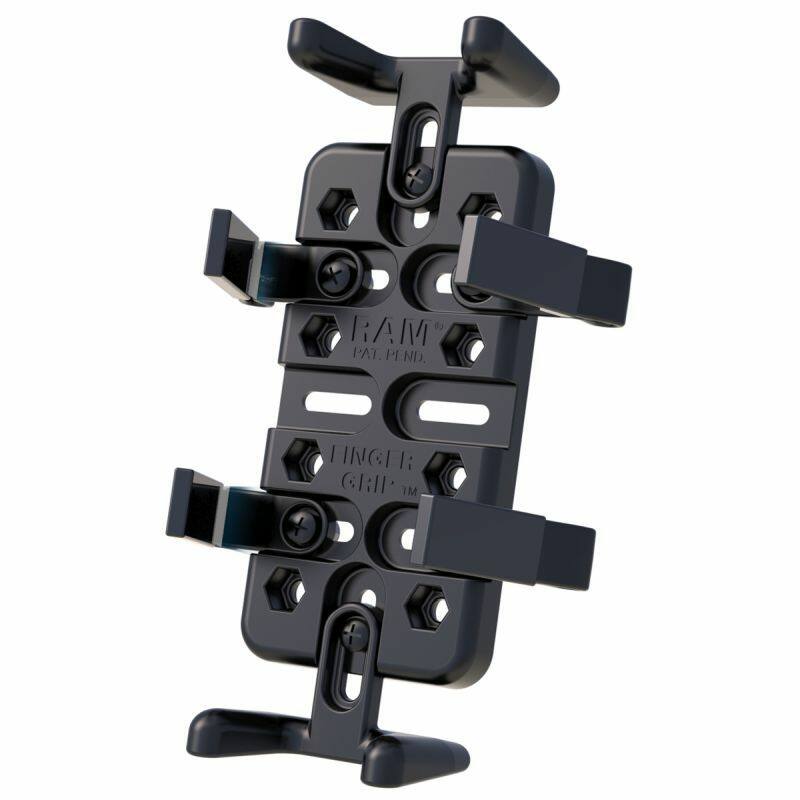

The Finger Grip Holder is designed to hold a wide range of cell phones and electronic devices and comes with (3 sets) of four flexible rubber coated fingers placed along sides to grip your device. The fingers open by squeezing the ends to open the small finger arms. The bottom of the cradle includes a back plate that adds support to the device being held by the mount.

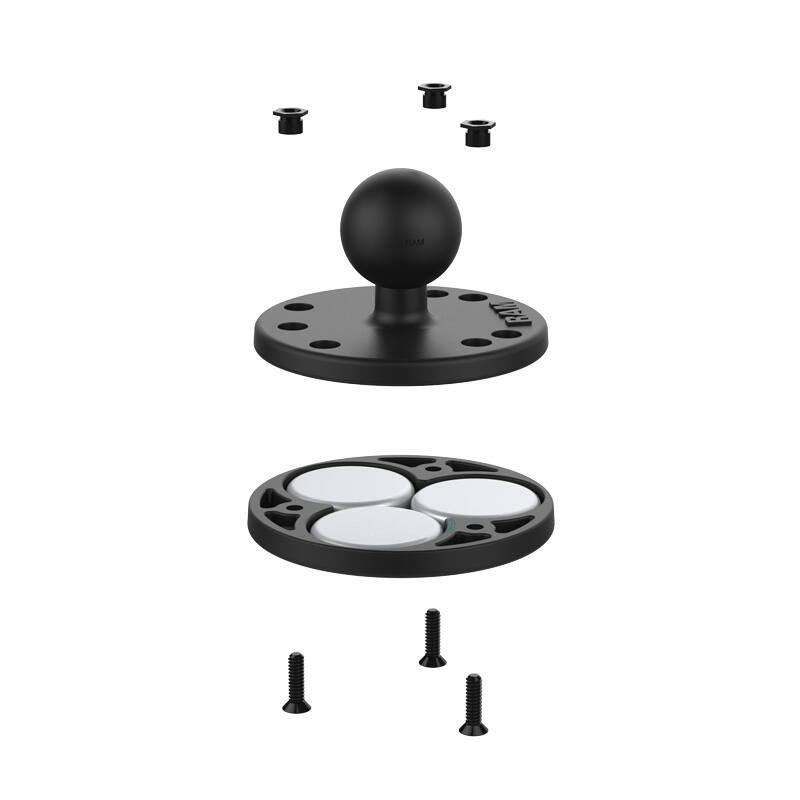

The base is a 1" diameter rubber ball connected to a flat 63mm diameter base and triple magnetic base adapter. The magnetic base adapter contains 3 rare earth magnets that hold firm to ferrous metals. Simply put this product near the mounting surface and feel it almost jump out of your hand. The composite adaptor designed to conceal the magnets is made of durable composite to prevent scratching the mounting surface.
Ideally suited for many applications, you’re sure to find many ways to use your new magnetic mount at work, home, on the go, or at play.

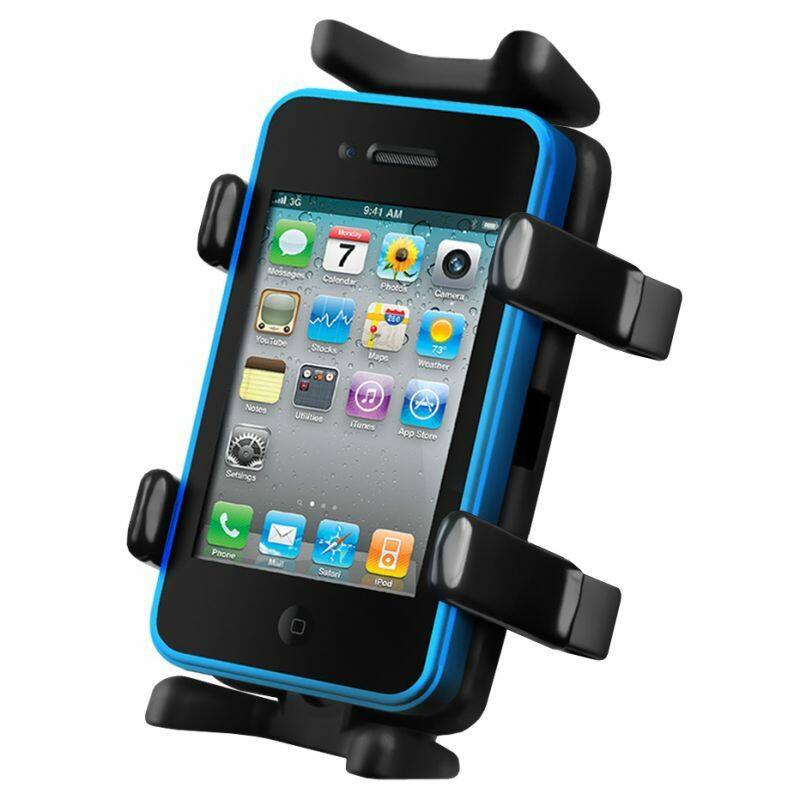

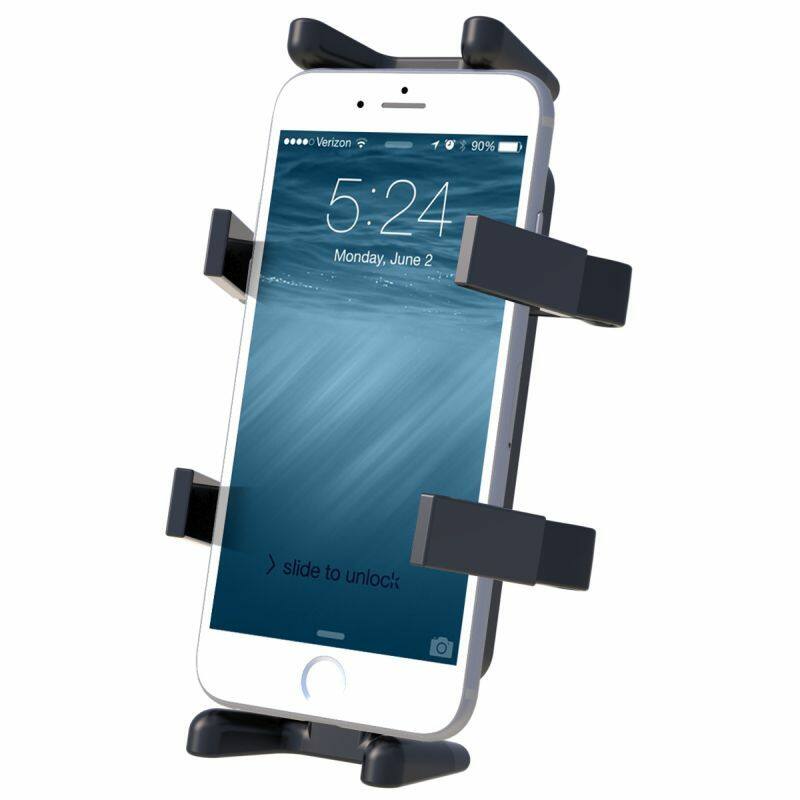

Because of space restrictions we can't list all compatible devices - for a list of some compatible devices see the listing for part RAM-HOL-UN4U but they include many hand held radios, smaller phones, GPS and any other devices that fit within the following dimensions:
Height Dimensions: (The top and bottom plates can be removed for larger devices)
Minimum with Top and Bottom Plates: 133mm
Maximum with Top and Bottom Plates: 152mm
Spine Plate Dimensions:
76mm Width x 76mm Height

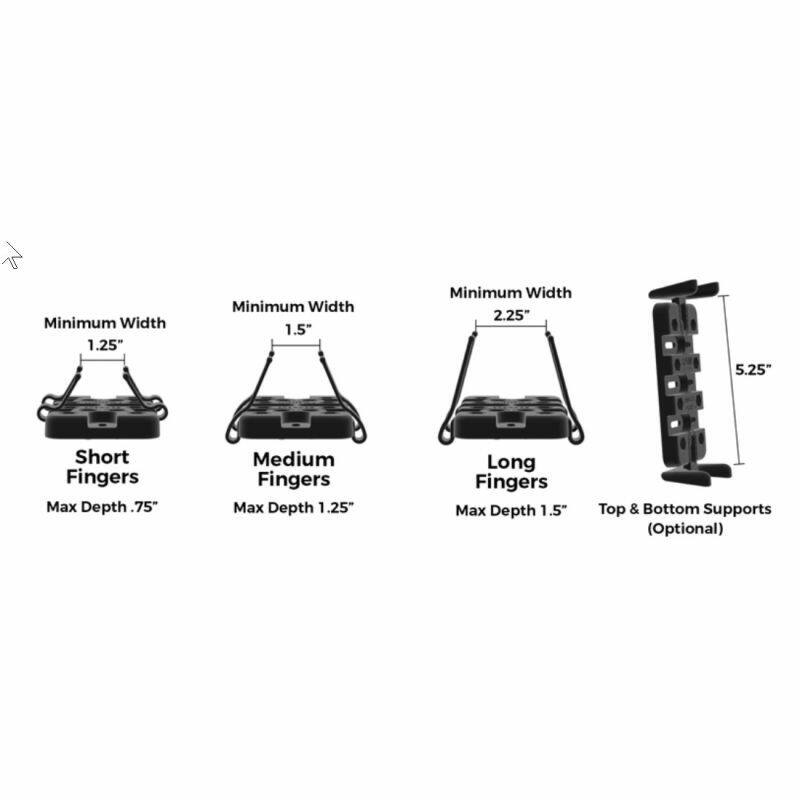

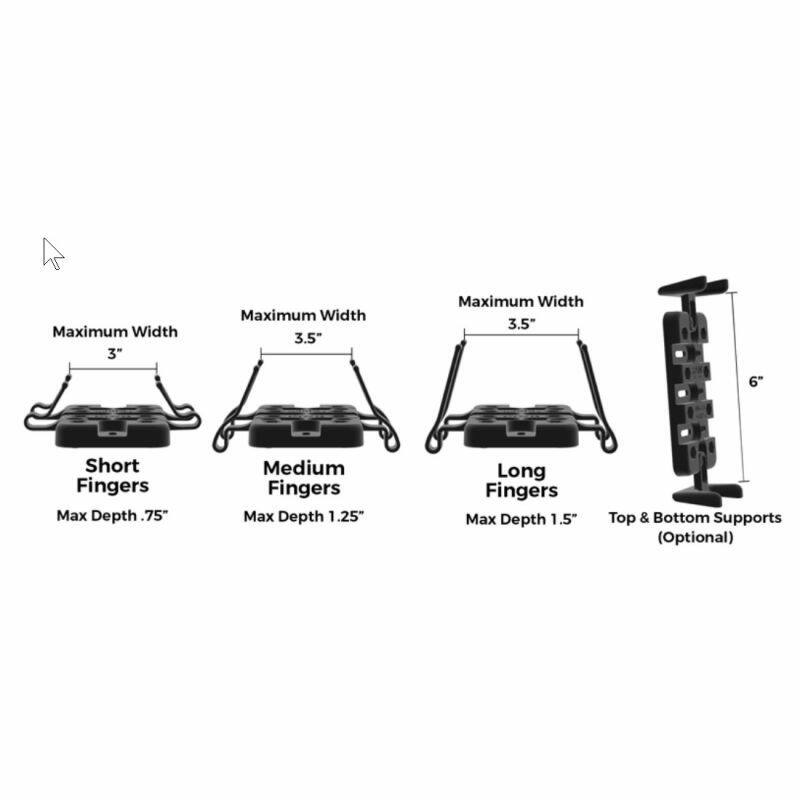

Using Short Arm Side Clamps:
Maximum Depth: 19mm
Minimum Width: 31mm
Maximum Width: 76mm
Using Medium Arm Side Clamps:
Maximum Depth: 31mm
Minimum Width: 38mm
Maximum Width: 88mm
Using Long Arm Side Clamps:
Maximum Depth: 40mm
Minimum Width: 57mm
Maximum Width: 88mm
Arm Dimensions:
Overall Length: 94mm (3.69")
Socket-To-Socket Length: 76mm (3")
Materials
Marine-grade aluminium
High strength composite
YouTube:
https://www.youtube.com/watch?v=4erFr6qwKEY&t=23s
https://www.youtube.com/watch?v=EC-bdR3KAww
https://youtu.be/NoHTwEC_87Y
Components
RAM-HOL-UN4U UNIVERSAL PLASTIC ATV HOLDER

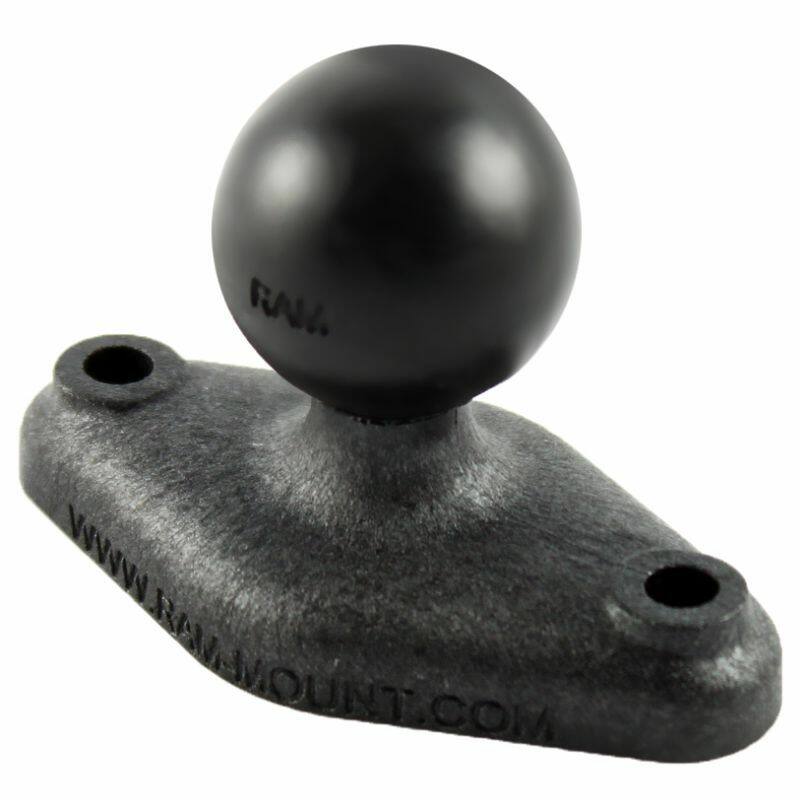

RAP-B-238U 63 X 33mm BASE W/ BALL

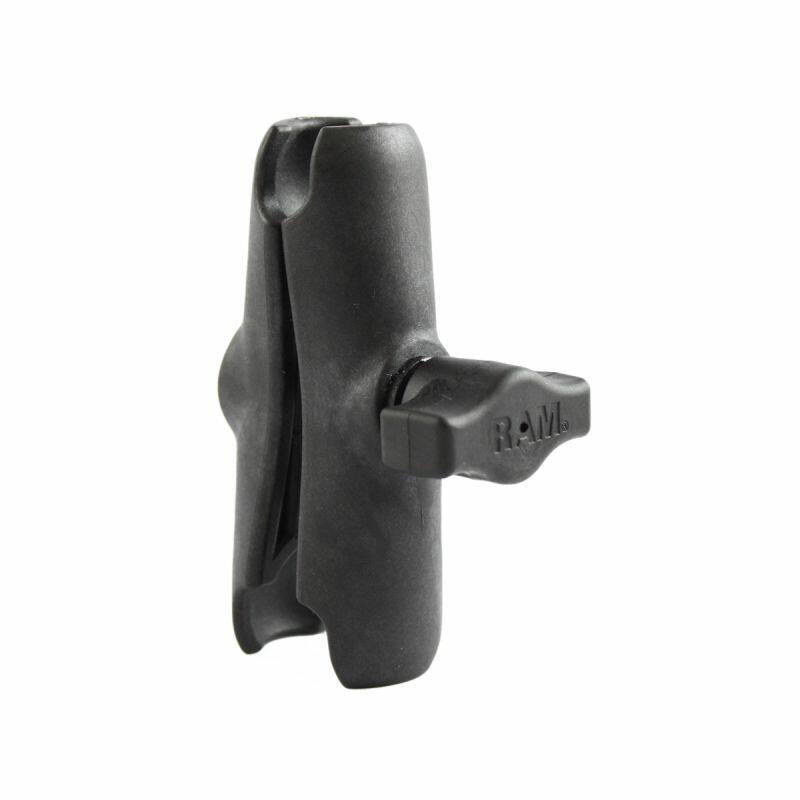

RAP-B-201U DOUBLE SOCKET ARM FOR 1" BALL
RAM-B-202U 63mm DIA.BASE WITH 1" BALL
RAP-339U 63mm DIA TRIPLE MAGNETIC BASE
