RAM-B-174-UN4U RAM® Finger-Grip™ Universal Mount with Brake/Clutch Reservoir / U Bolt Base
Features
* Composite Universal Finger Grip Holder is designed to hold a wide range of cell phones and electronic devices
* Combination handlebar and brake/clutch reservoir base for motorcycles; includes U-bolt hardware
* Included B size 1" RAM® double socket arm with ball and socket technology which allows for near-infinite adjustability
* Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

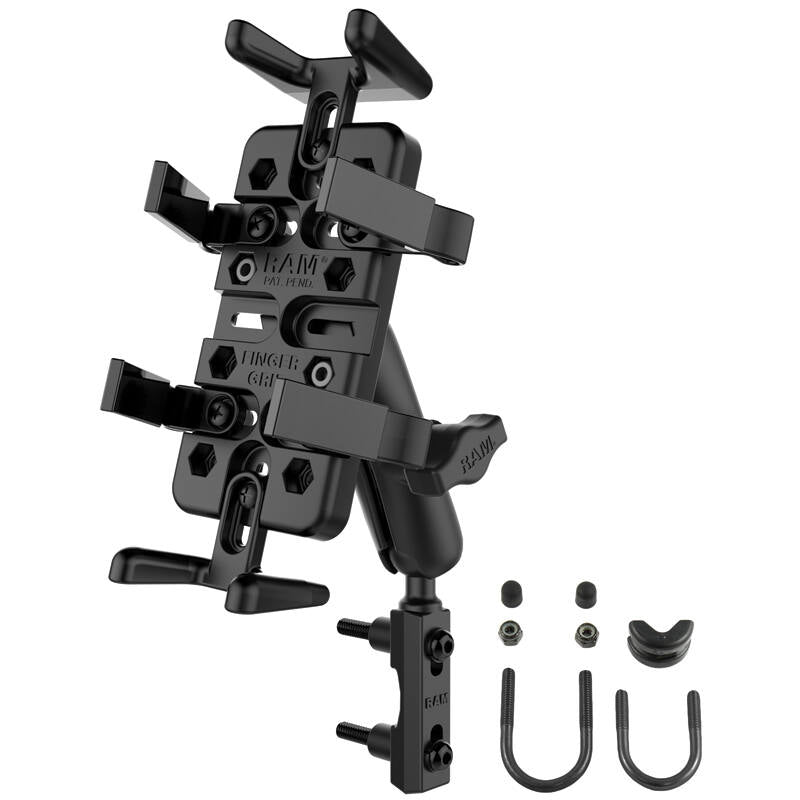

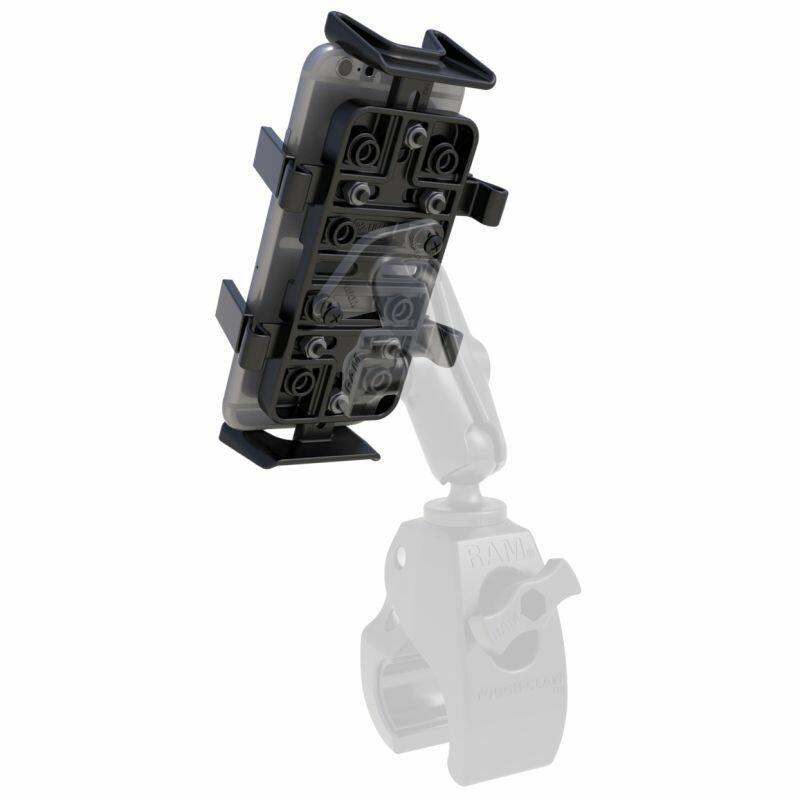

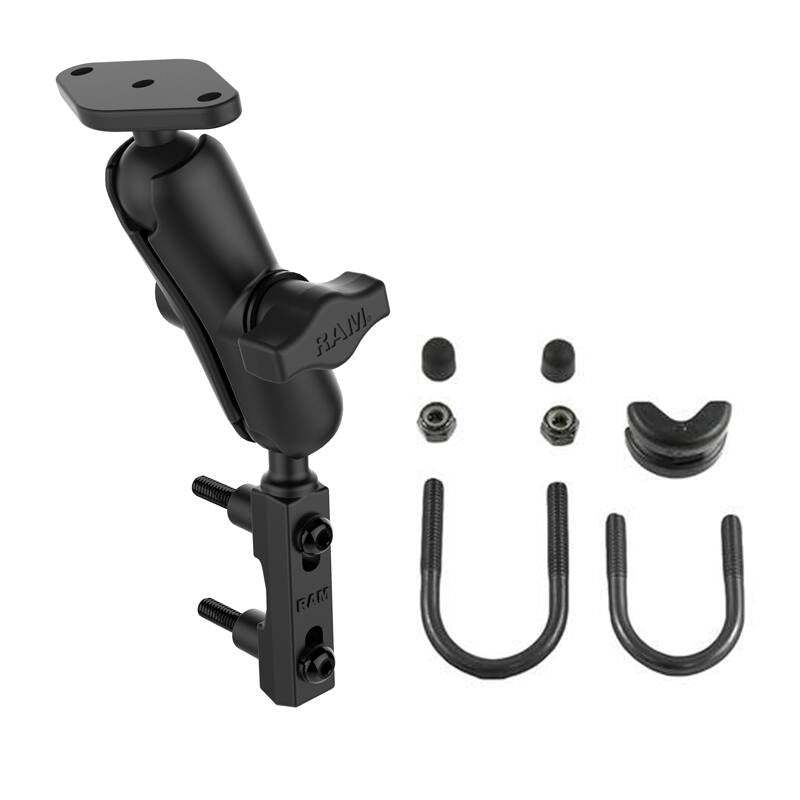

This consists of hardware for mounting to both brake/clutch reservoirs and rails that are 12.7 to 31.75mm in diameter, double socket arm, diamond adapter base and high strength universal Finger Grip™ cradle.

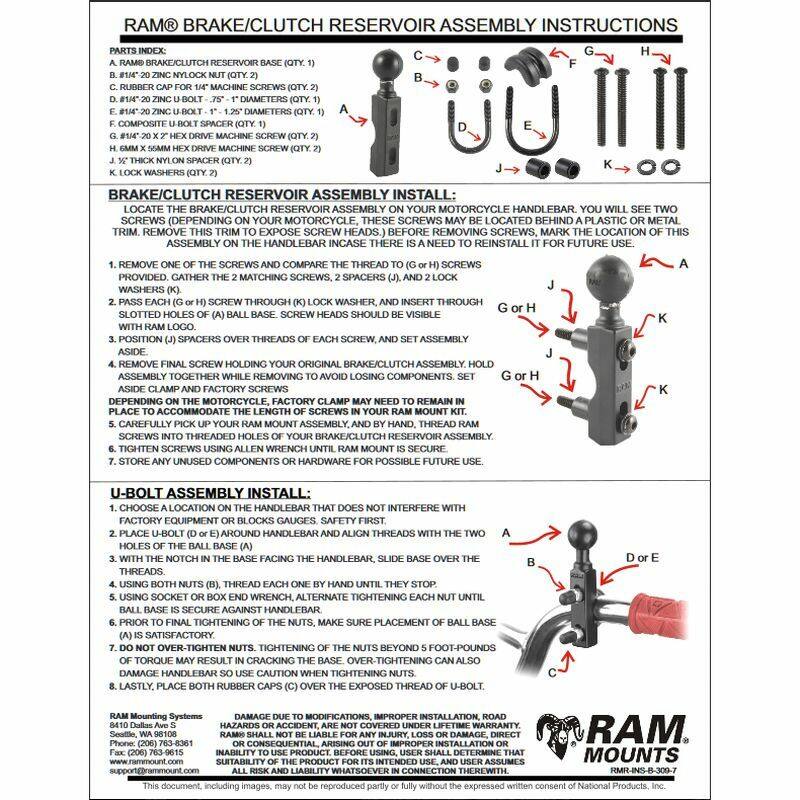

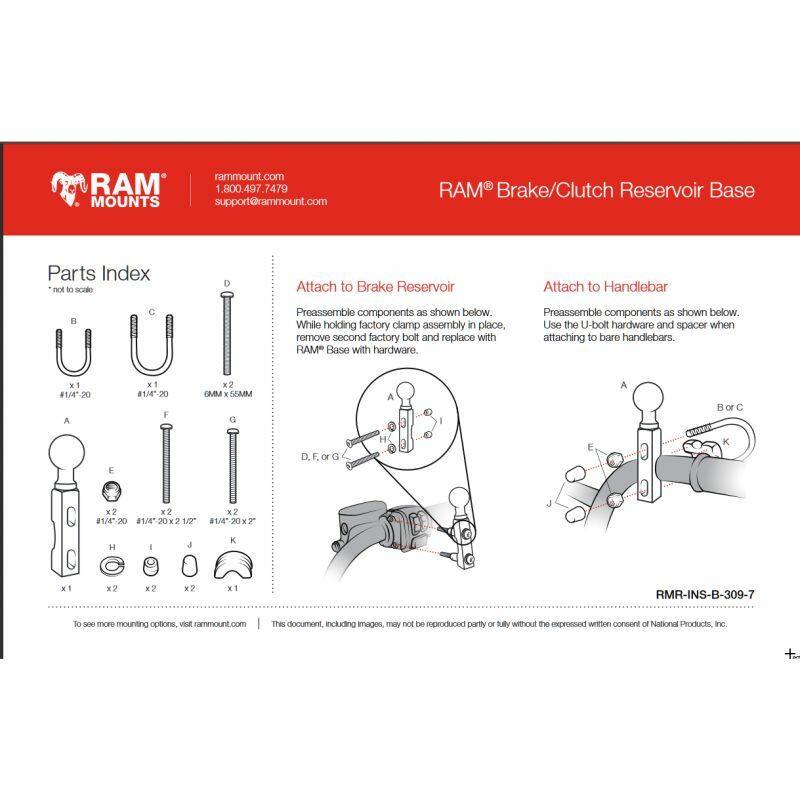

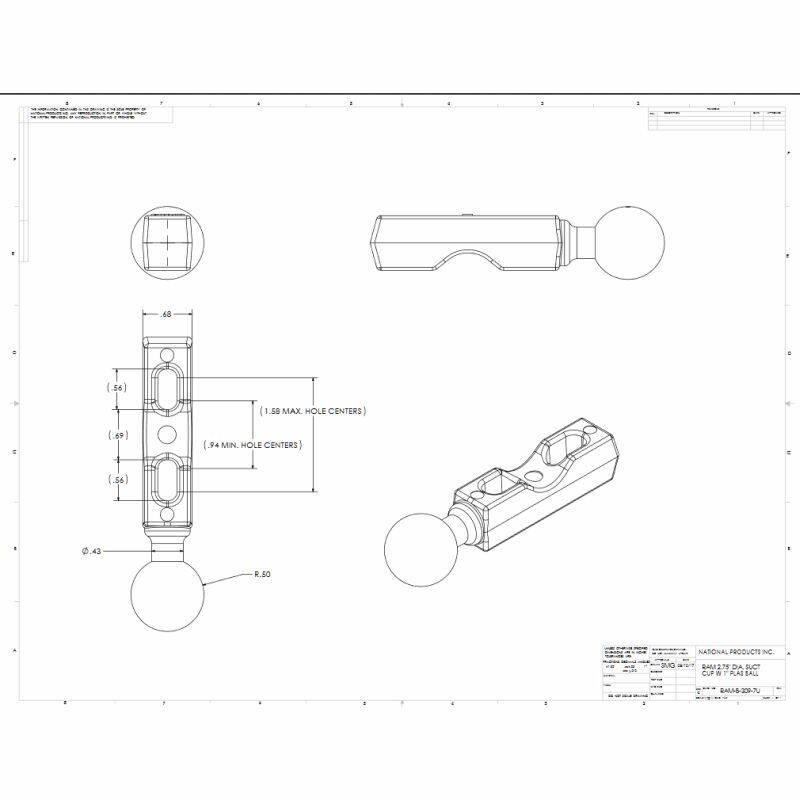

The mounting hardware for brake/clutch reservoirs includes both standard and metric mounting bolts. The base fits the control clamps on your motorcycle with 40mm x 6mm stainless steel hardware, provided in the kit. To see if the base will mount to your motorcycle, check the hole spacing of the base against your clutch/brake reservoir. The holes centres have a minimum width of 23.9mm / 0.94" and a maximum of 40.1mm / 1.58".

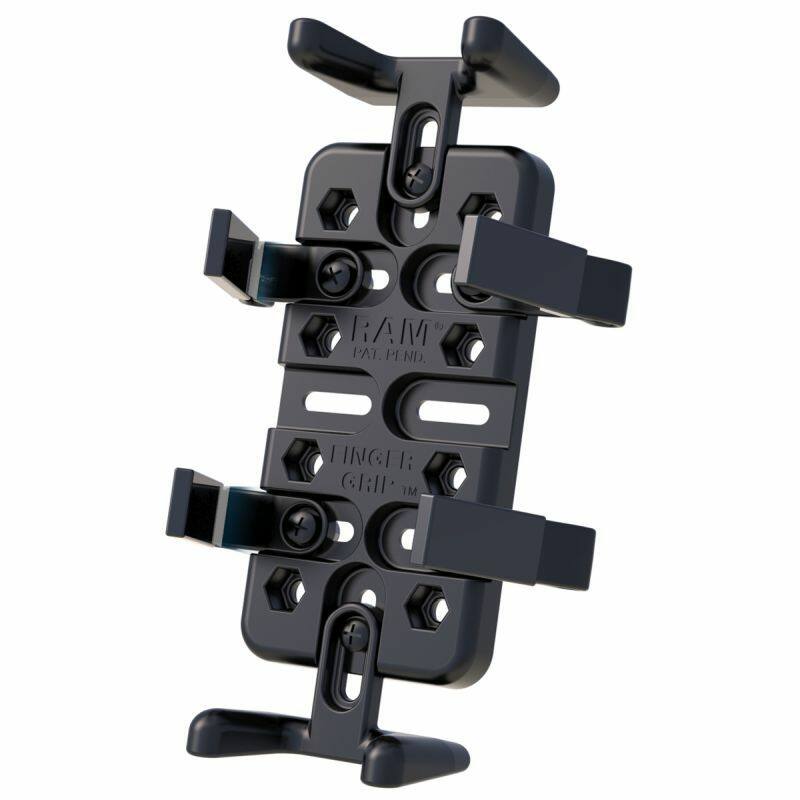

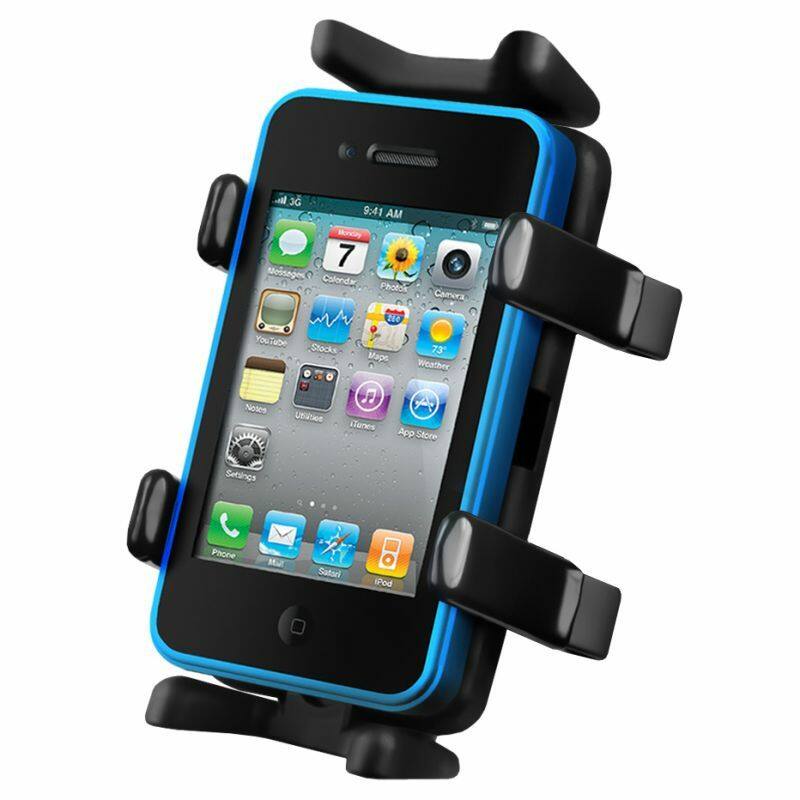

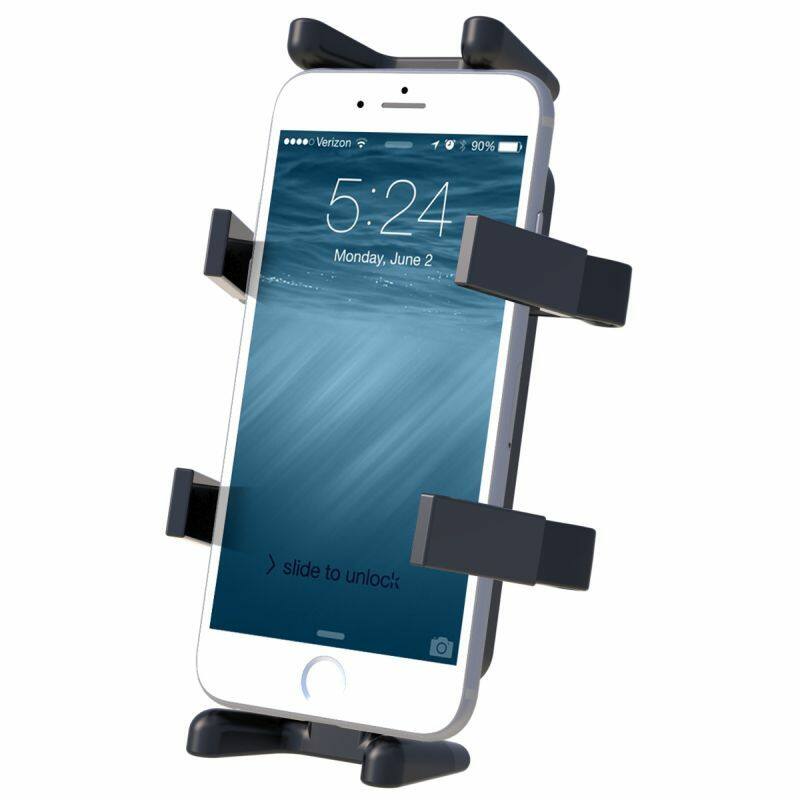

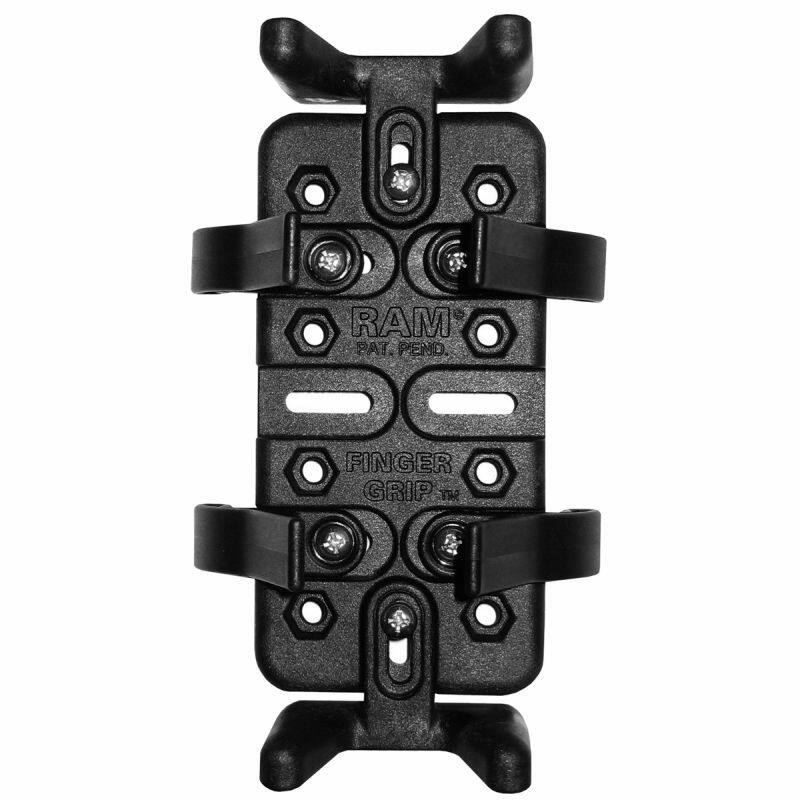

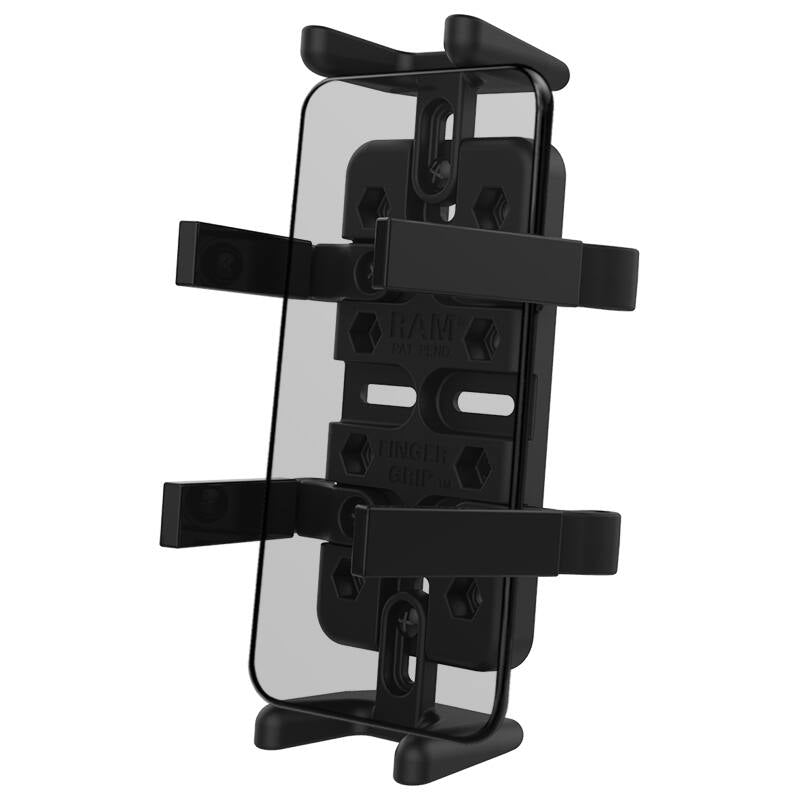

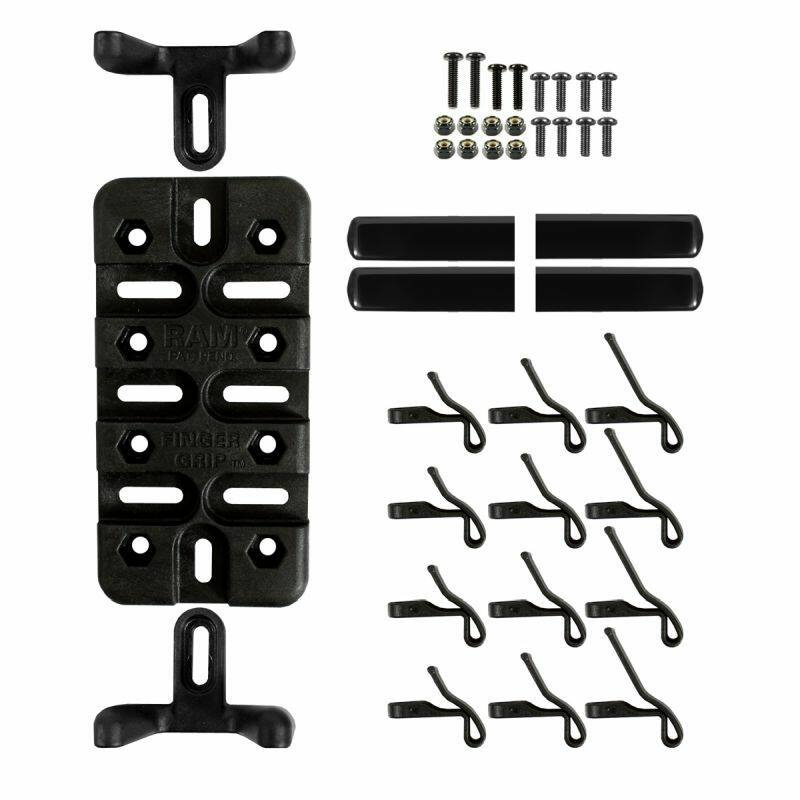

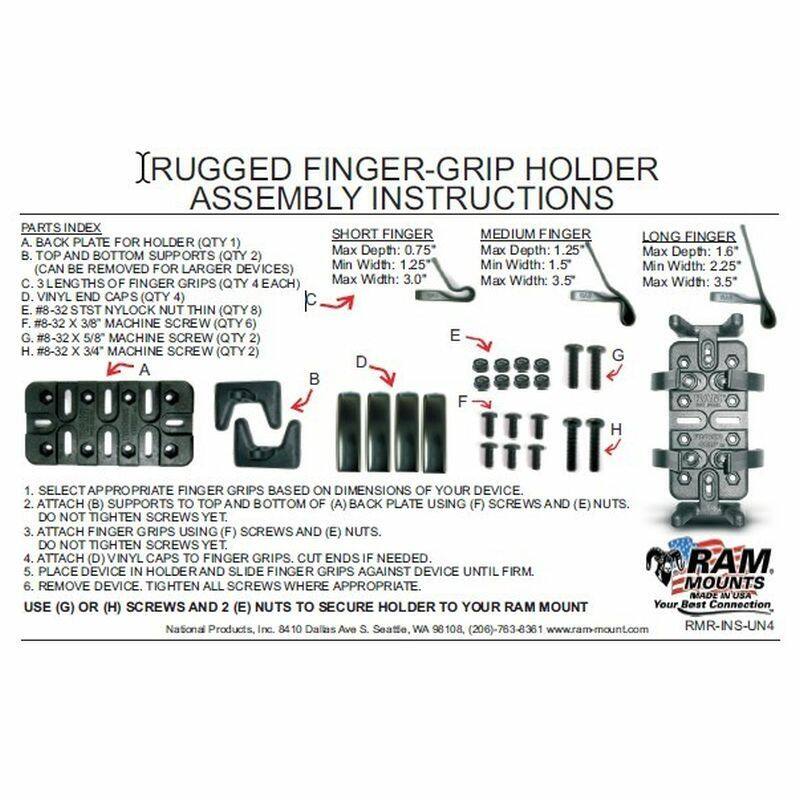

The cradle comes with 3 sets of flexible rubber coated fingers placed along sides to grip your device. The fingers open by squeezing the ends to open the small finger arms. The bottom of the cradle includes a back plate that adds support to the device being held by the mount. The perfect solution that is the best phone mount, car mount, motorcycle mount and can be used with several other phone accessories including Samsung accessories and LG accessories.
For a list of compatible devices and complete dimensions see the listing for RAM-HOL-UN4U

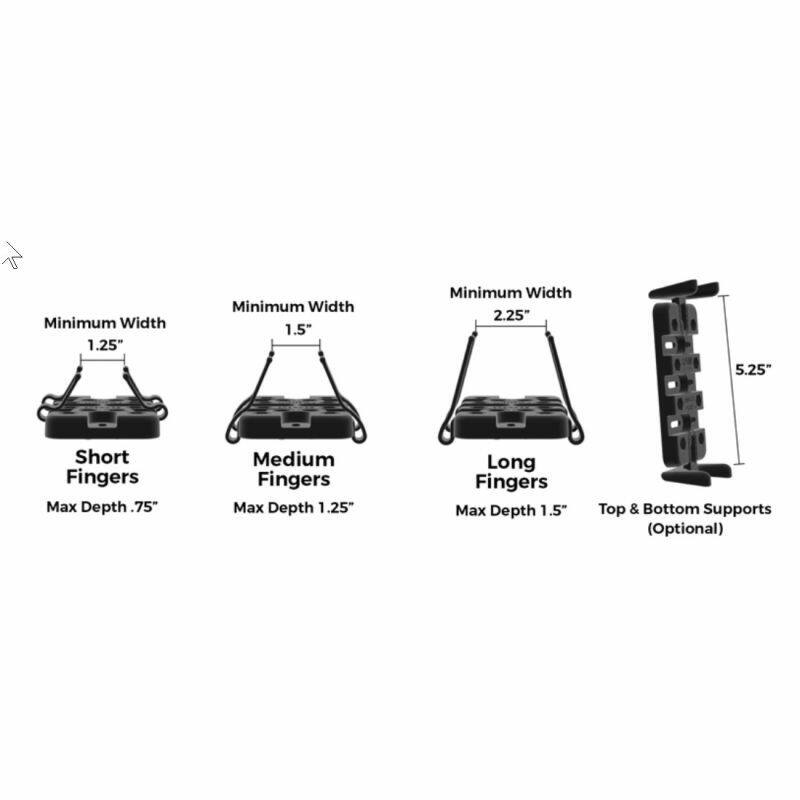

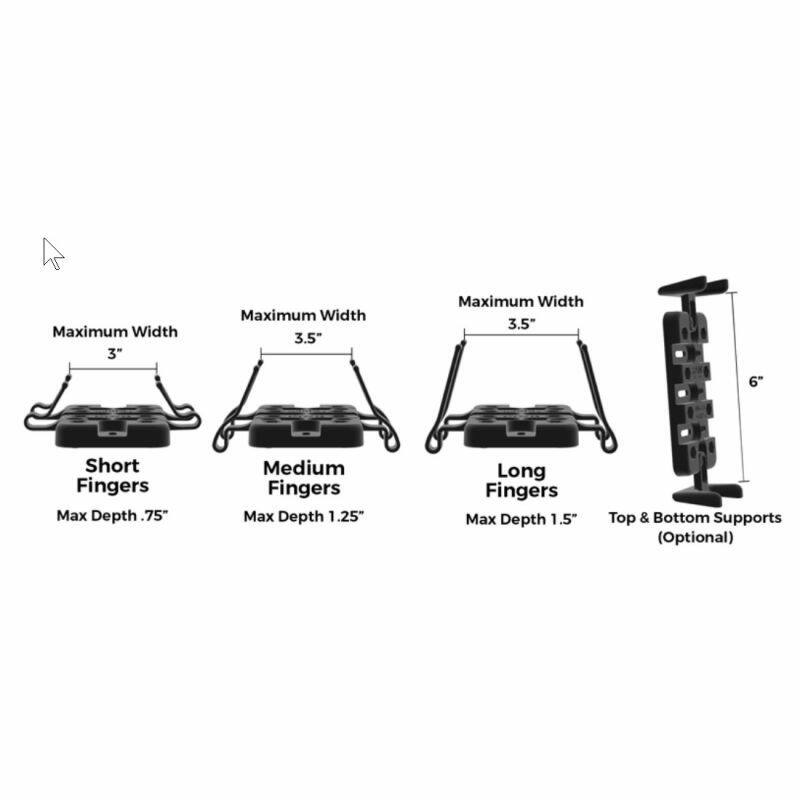

Height Dimensions: (The top and bottom plates can be removed for larger devices)
Min with Top and Bottom Plates: 133mm
Max with Top and Bottom Plates: 152mm
Max Depth: 19mm – 40mm
Min Width: 31mm – 57mm
Max Width: 76mm – 88mm
U-Bolt Dimensions
12.7 to 31.75mm (0.5" to 1.25")
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Components
RAM-B-309-7U Combination reservoir / U-Bolt mount
RAM-HOL-UN4U Finger Grip Cradle
RAM-B-201U Standard double socket arm
RAM-B-238U Diamond base with 1" ball
