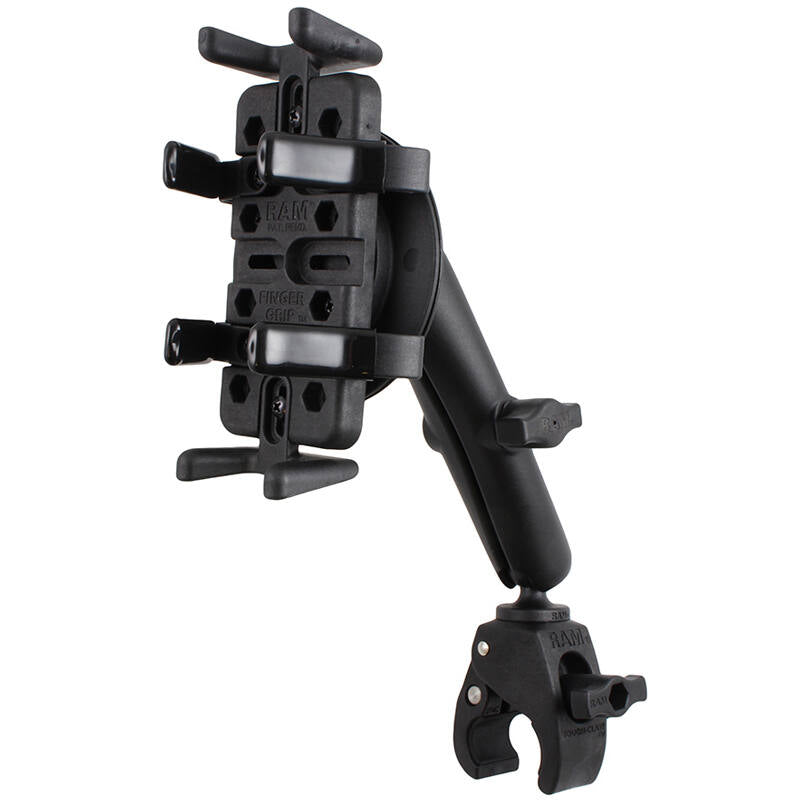

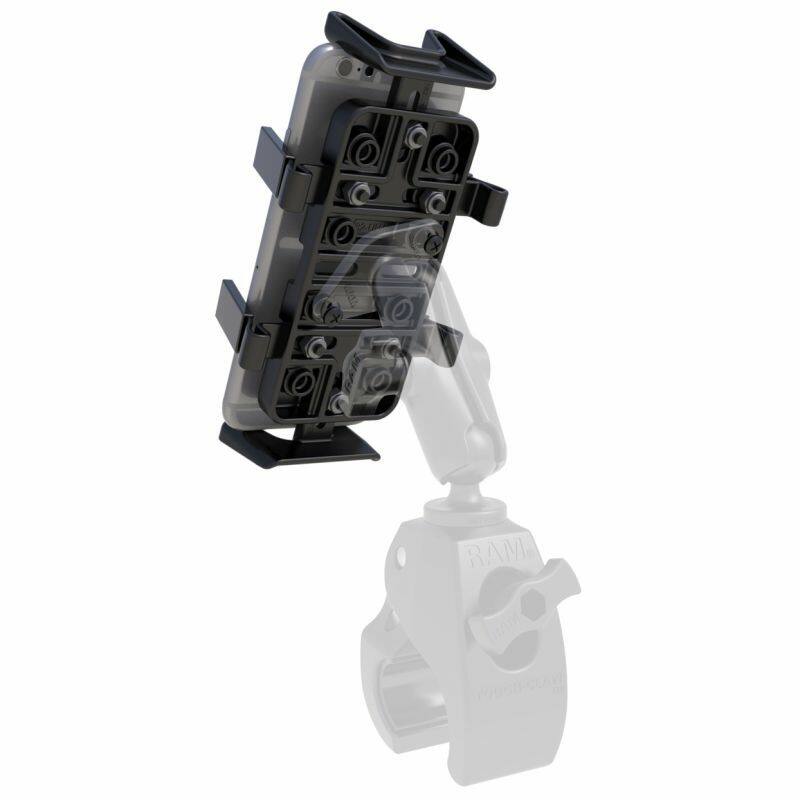

RAM-B-400-C-UN4-ROTO1U RAM® Finger-Grip™ with Tough-Claw™ Small Clamp Mount & RAM® Roto-View™
Features
* Universal holder with flexible rubber-coated fingers to provide a secure grip of your device; fingers open by squeezing the ends

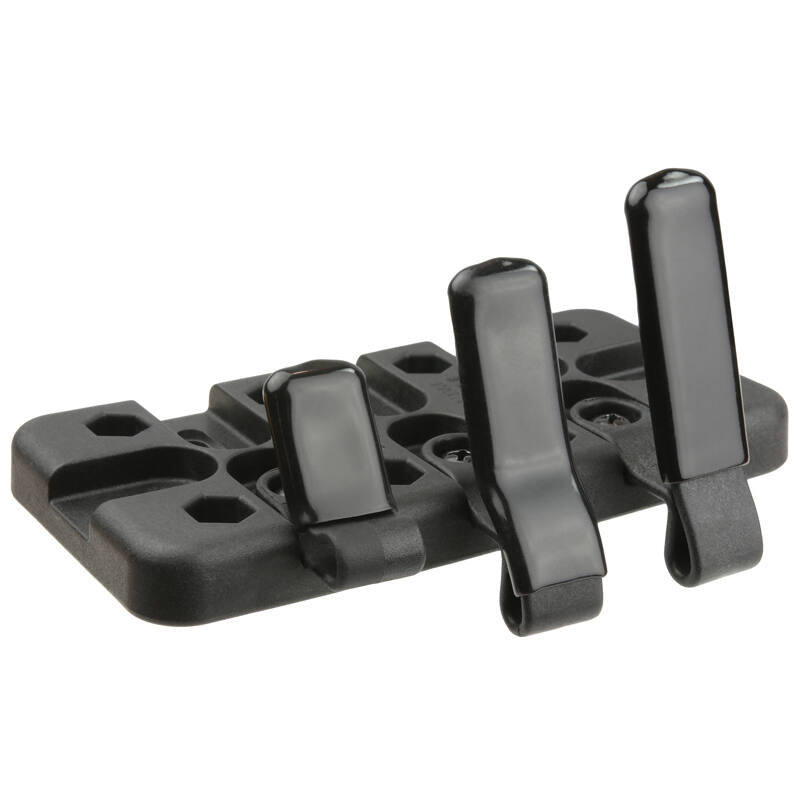

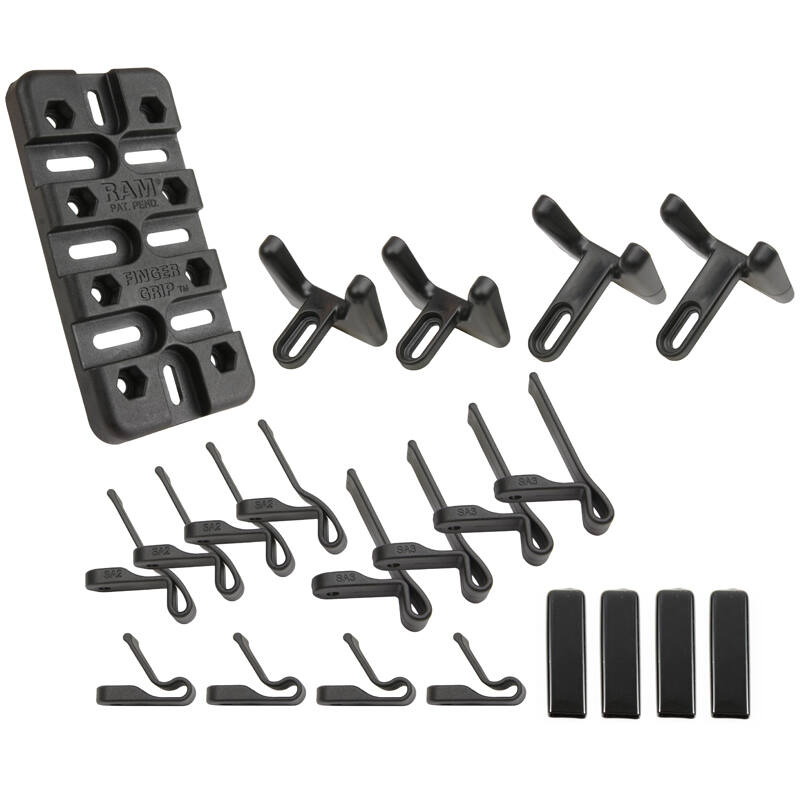

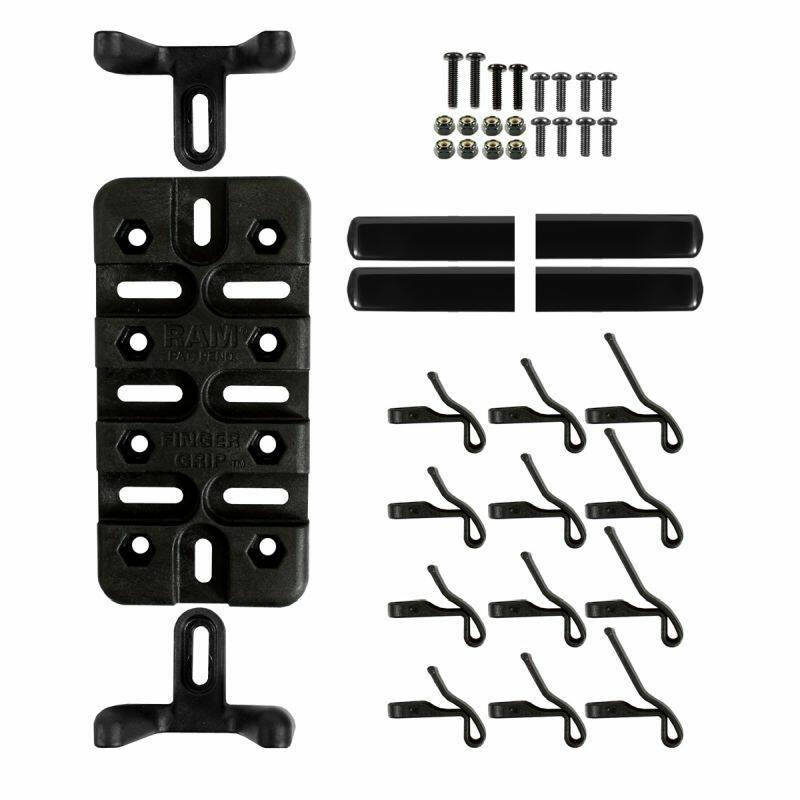

* Includes three sets of four rubber-coated fingers for different size devices as well as top and bottom optional device supports
* Roto-View allows you to rotate your device without moving your mount’s viewing angle
* Small version designed to quickly clamp to round, square, and odd-shaped rails and bars ranging from 16-28mm in outer diameter; rubber pads provide stable gripping and protection of mounting surface
* Backed by a lifetime warranty

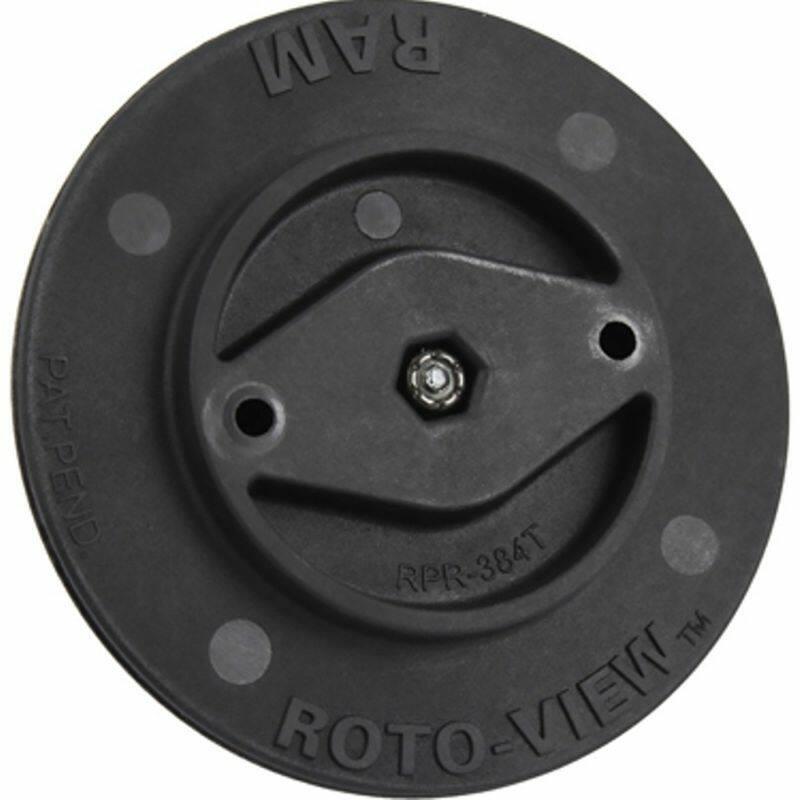

The Roto-View Adapter Plate allows the easy-to-use interface of your tablet makes for a user friendly experience, while on the go. Now you can optimize this mobile experience with the Roto-View; an adapter plate that allows for adjustment to accommodate many tablet viewing configurations. The Roto-View utilizes multiple detents to adjust the tablet to the most popular viewing angles, including landscape and portrait mode. No need to loosen the knob of your double socket arm to reposition your tablet. Instead, simply rotate the cradle to achieve the same result.

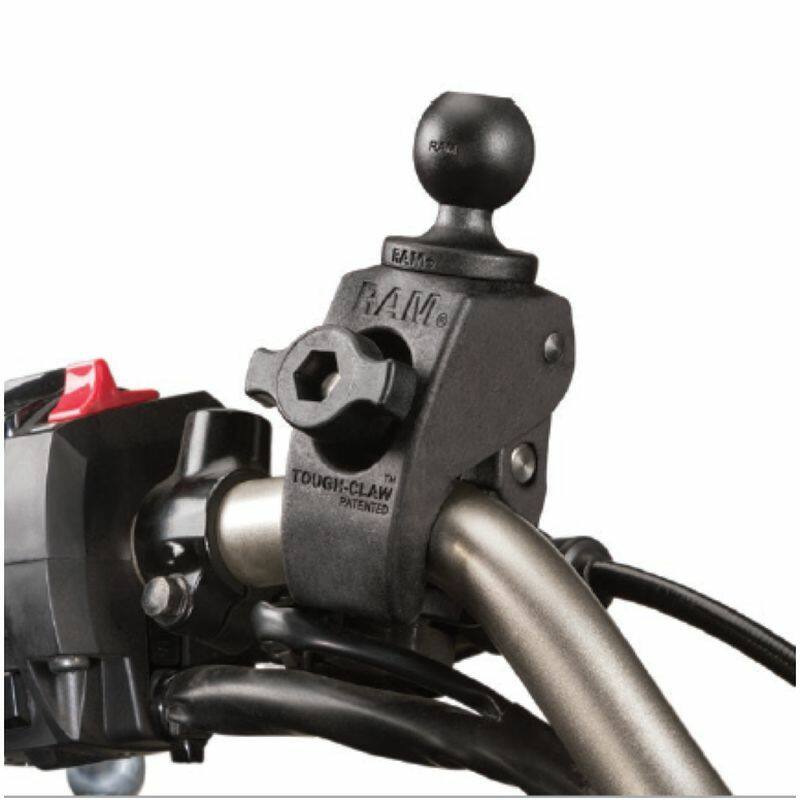

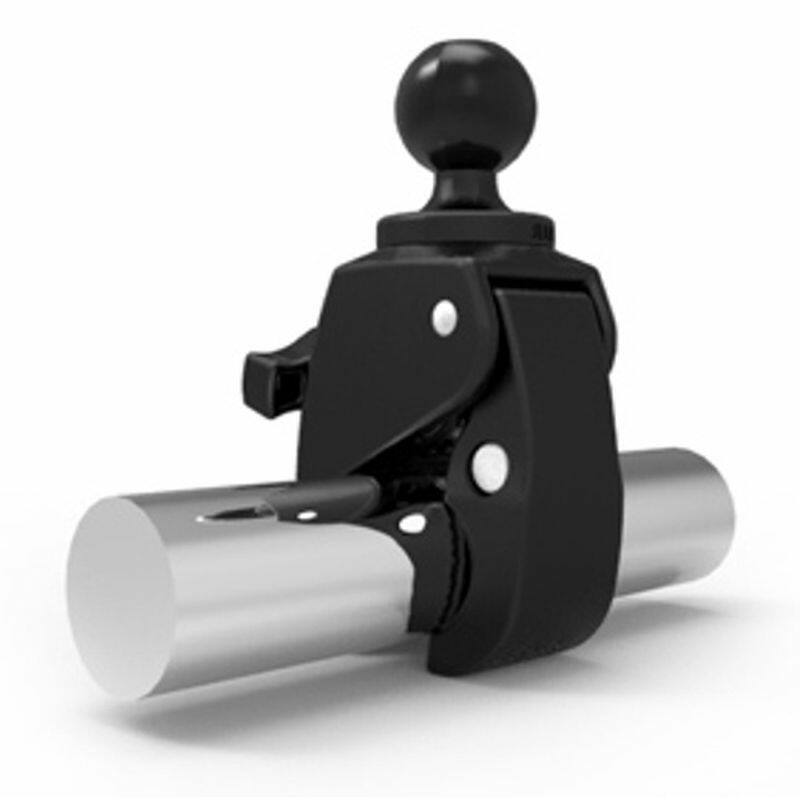

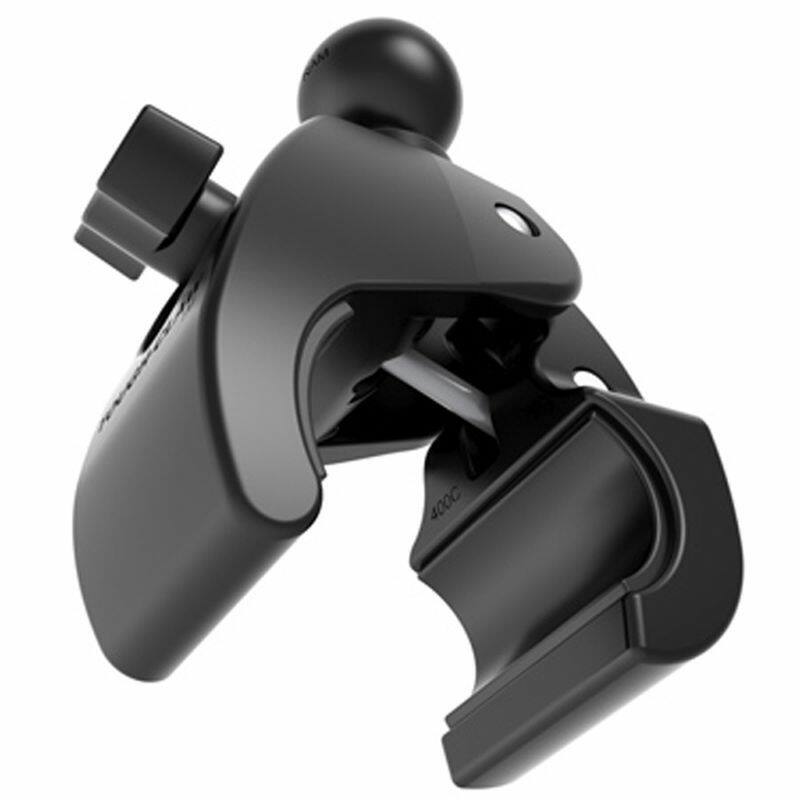

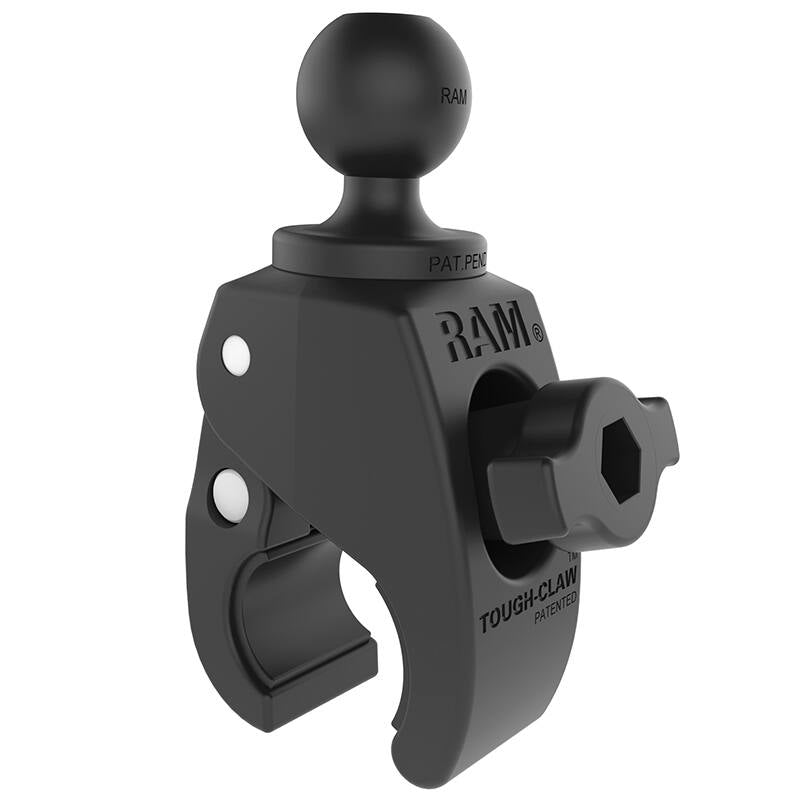

The RAM Tough-Claw is the perfect mounting base for quick and easy tool-less installation and removal on round, square, odd shaped rails and bars. The Tough-Claw can be clamped on rails from 16mm to 28mm (0.625" to 1.14") outer diameter. Perfectly suited for mounting on the yoke of an aircraft, handlebars and seat posts of bicycles, kayak rails, roll bars etc, the RAM Tough-Claw will soon become another essential RAM component in your collection of mounting options.

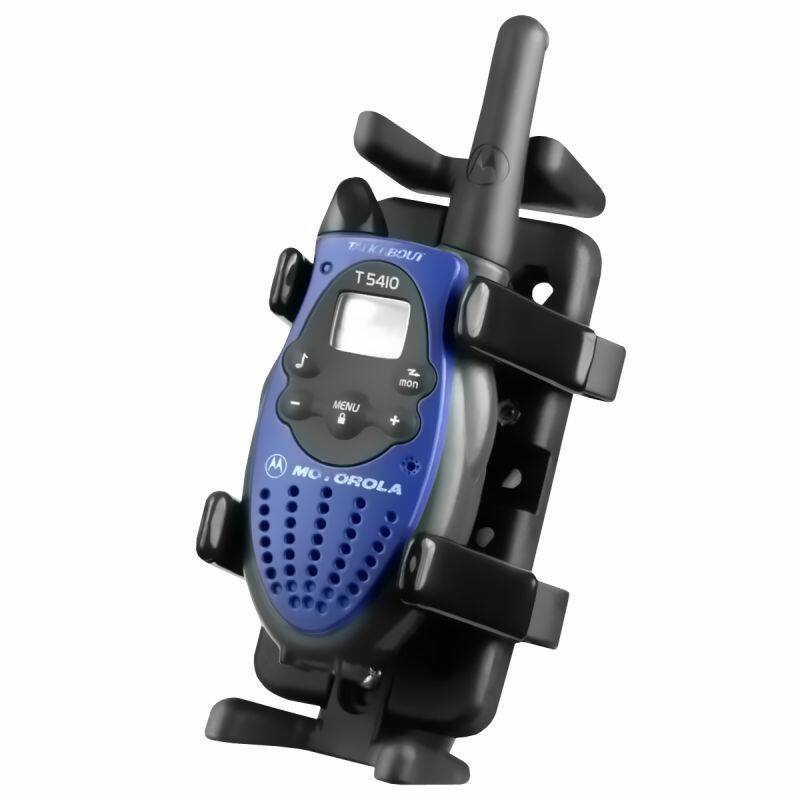

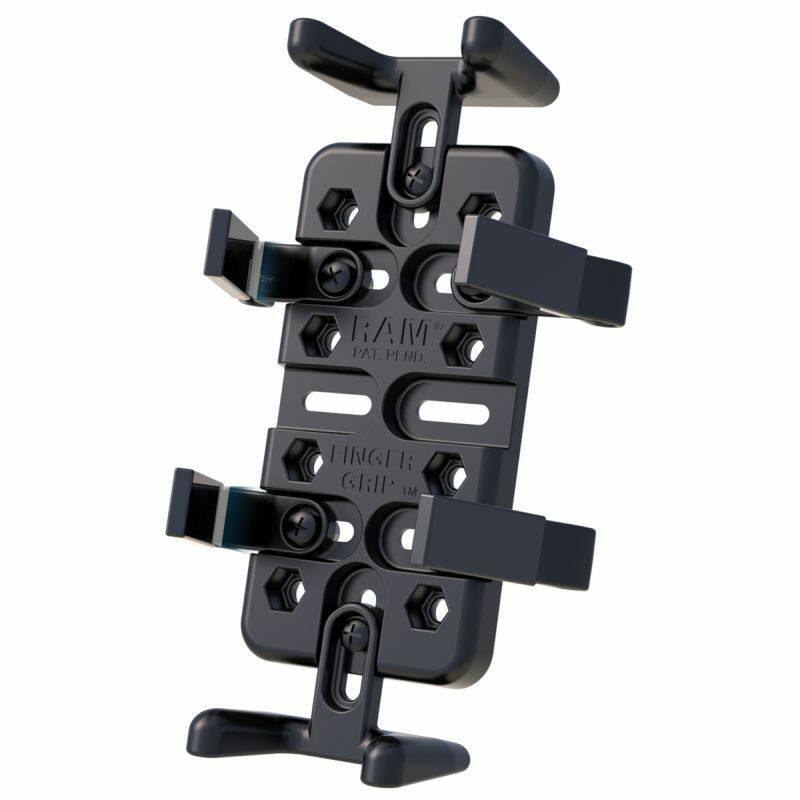

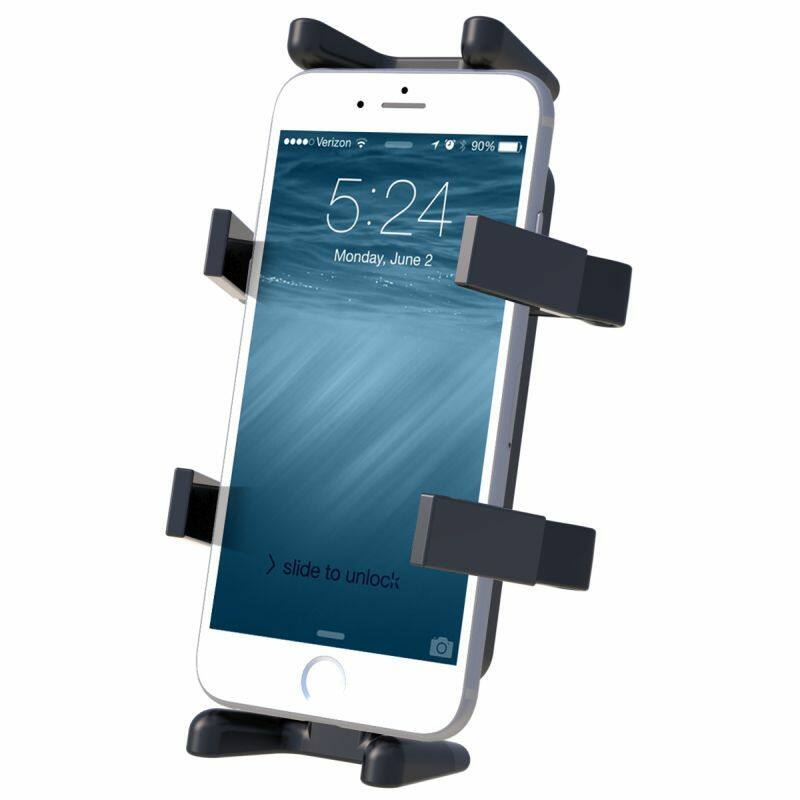

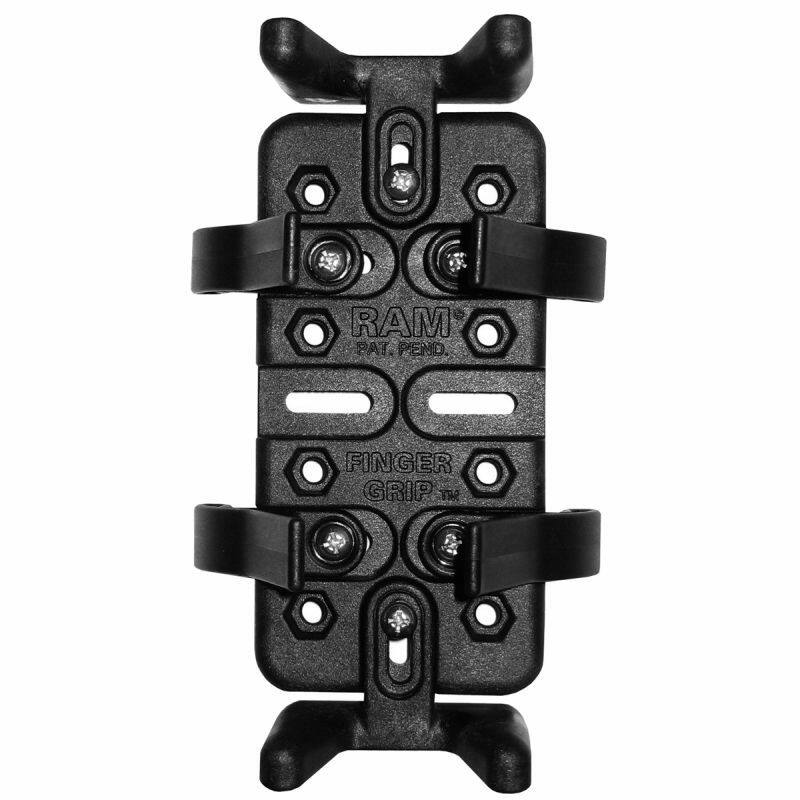

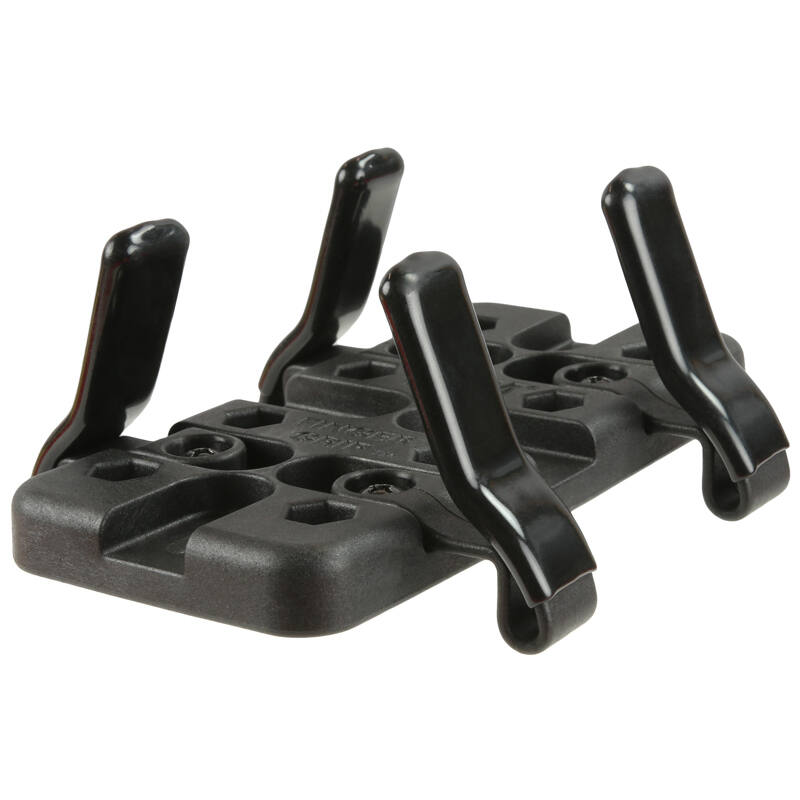

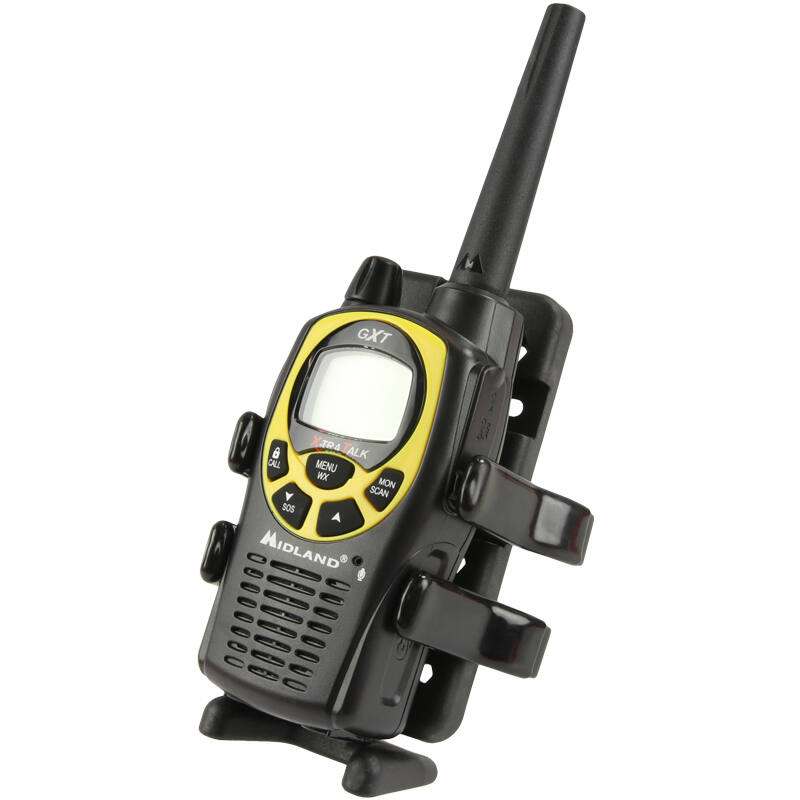

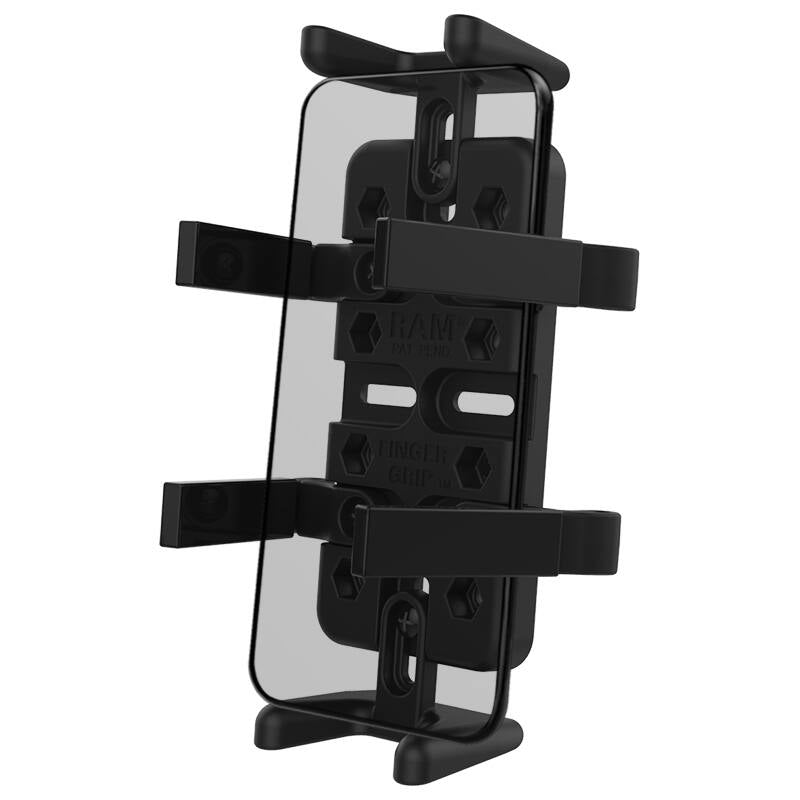

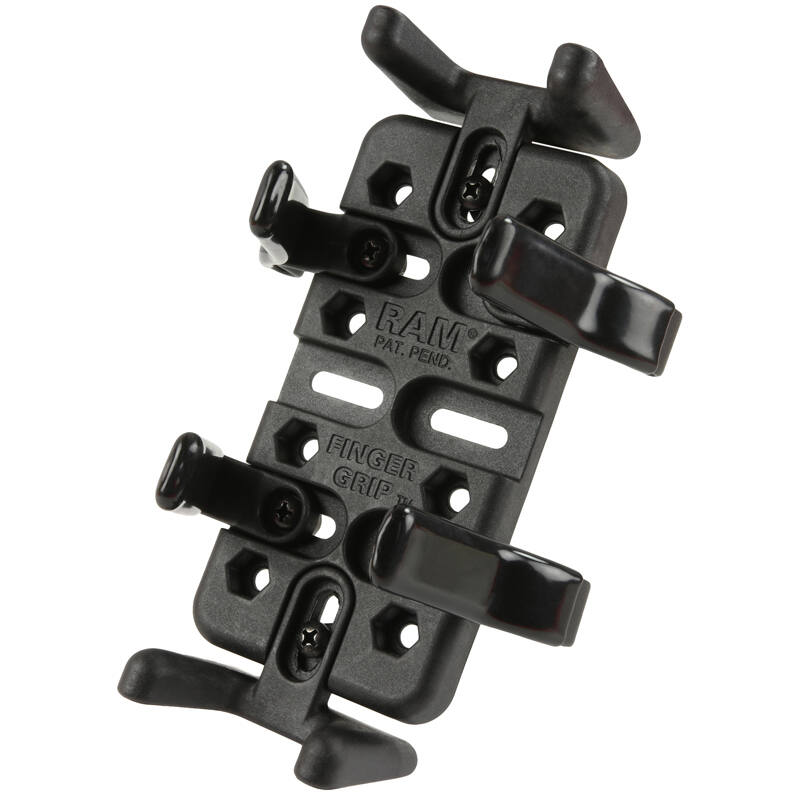

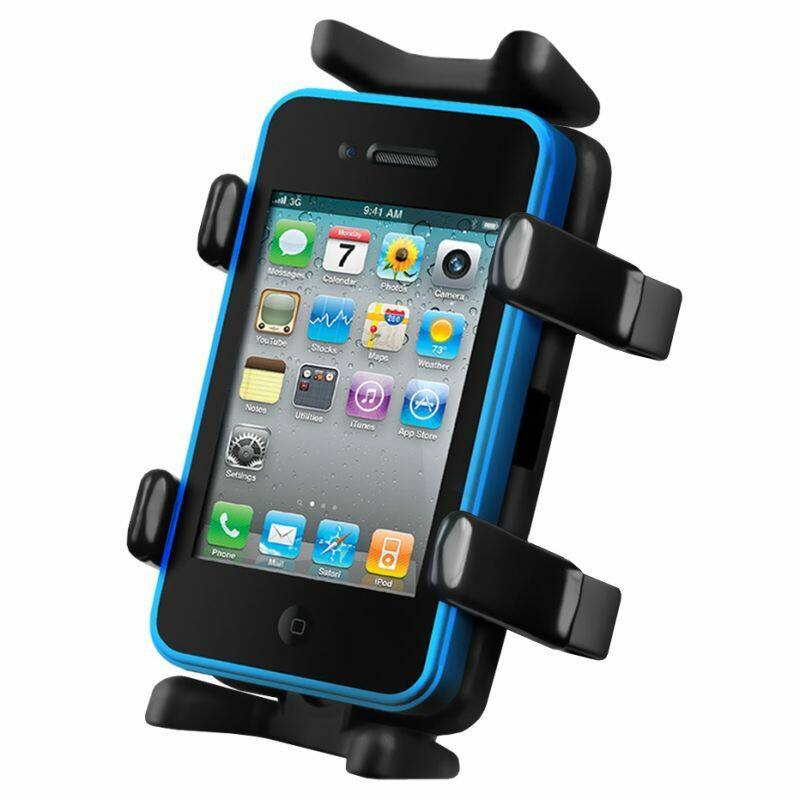

The Composite Universal Finger Grip Holder is designed to hold a wide range of cell phones and electronic devices. The cradle comes with (3 sets) of four flexible rubber coated fingers placed along sides to grip your device. The fingers open by squeezing the ends to open the small finger arms. The bottom of the cradle includes a back plate that adds support to the device being held by the mount.
For a list of compatible devices and complete dimensions see the listing for RAM-HOL-UN4U

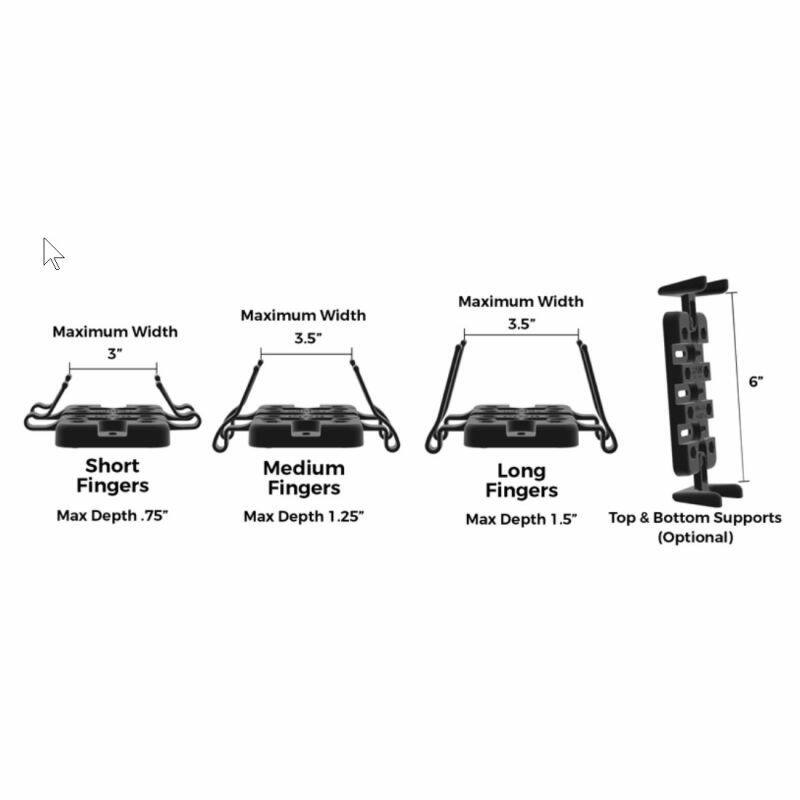

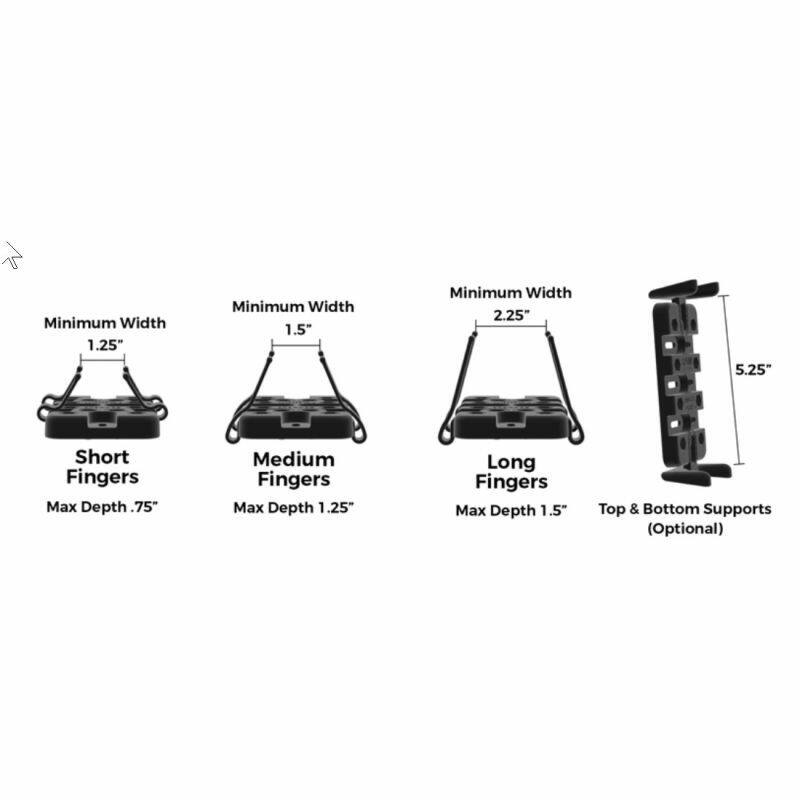

Height Dimensions: (The top and bottom plates can be removed for larger devices)
Minimum with Top and Bottom Plates: 133mm
Maximum with Top and Bottom Plates: 152mm
Maximum Depth: 19mm – 40mm
Minimum Width: 31mm – 57mm
Maximum Width: 76mm – 88mm

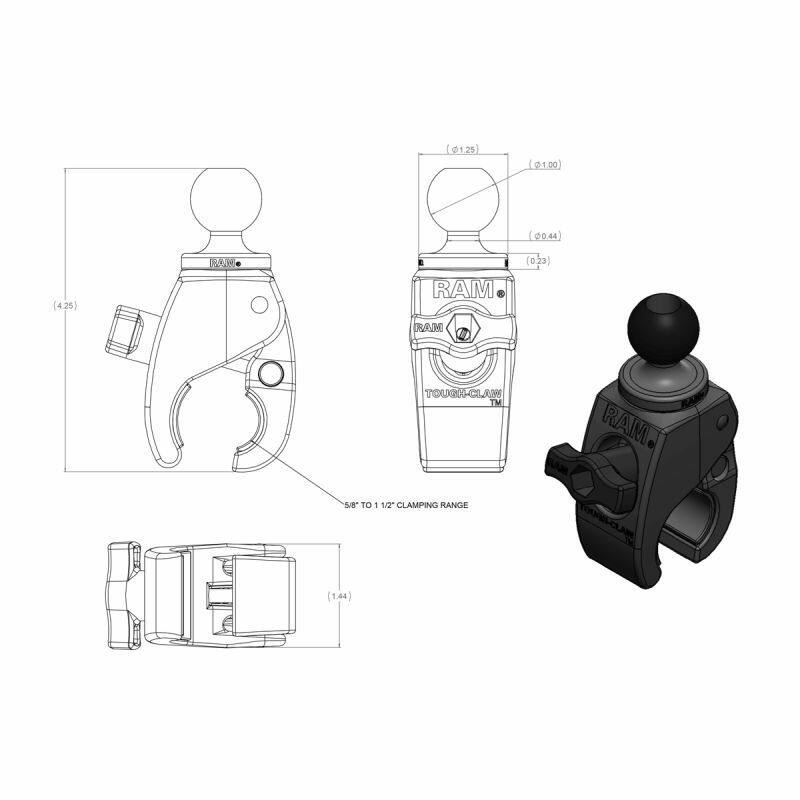

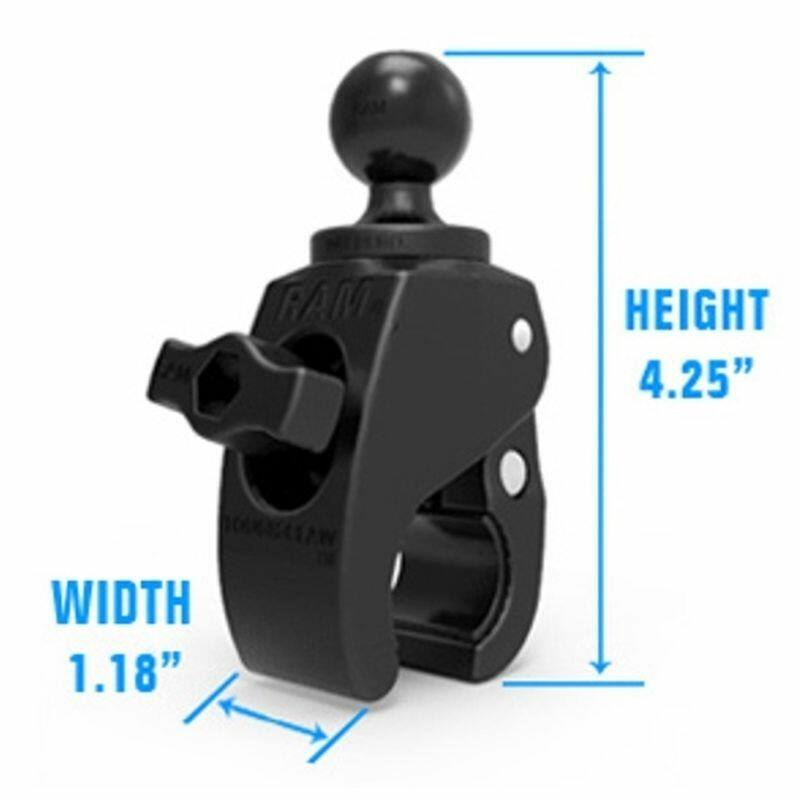

Tough-Claw Clamping Range
Rail/Tube Surfaces:
16mm to 28mm (0.625" to 1.14")
Flat Surfaces:
0 to 29mm (1.14")

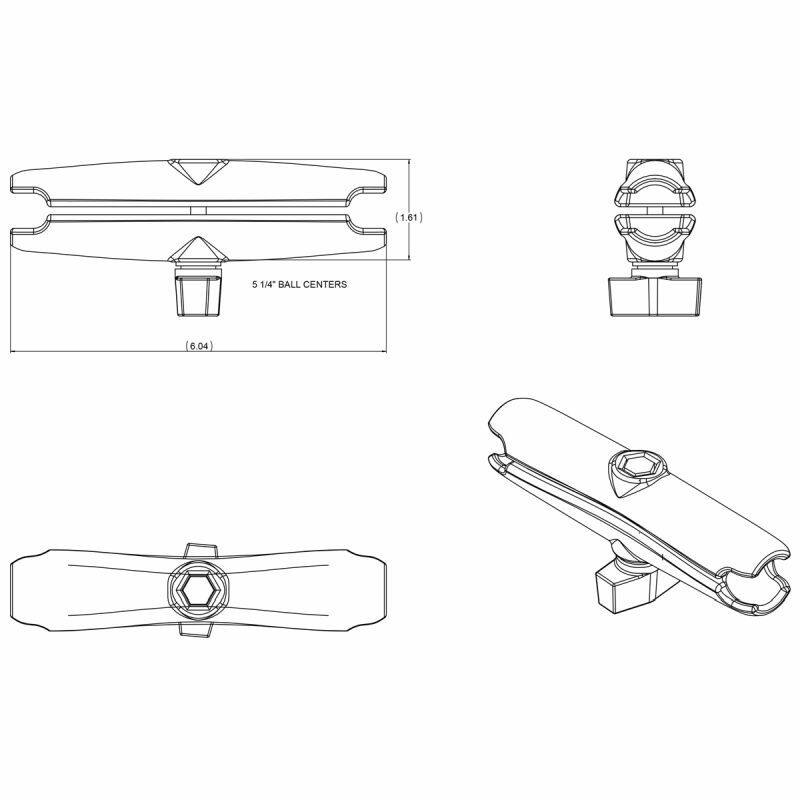

Arm Dimensions:
Overall Length: 152 mm (6 inches)
Socket-To-Socket Length: 134 mm (5.25 inches)
Components
RAM-HOL-UN4U UNIVERSAL PLASTIC ATV HOLDER

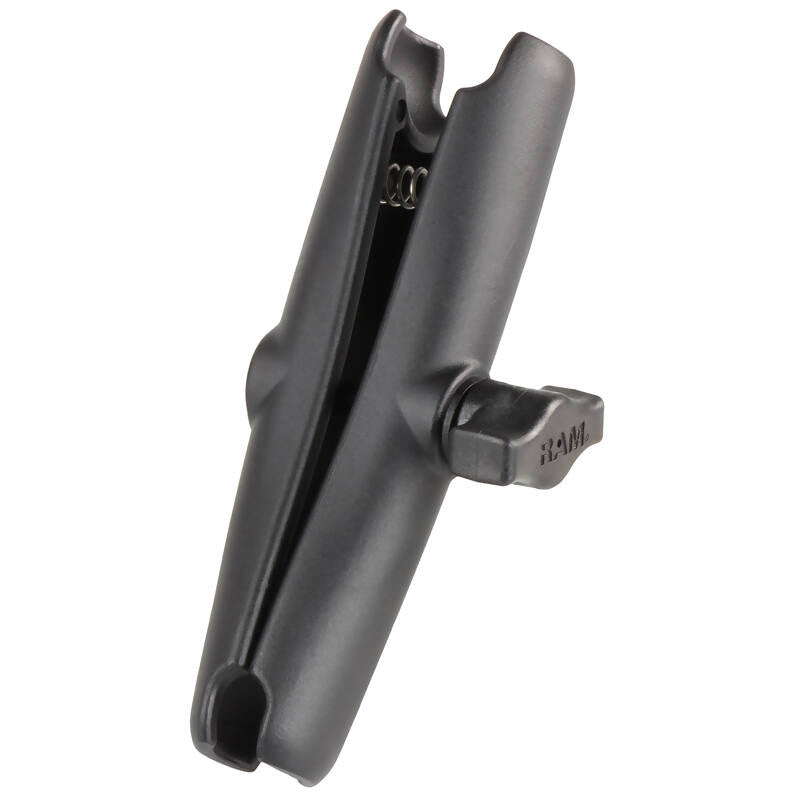

RAM-B-201U-C DBL SOCKET ARM B BALL C LENGTH
RAP-B-400U SMALL TOUGH CLAW WITH 1" BALL
RAM-HOL-ROTO1U ROTO-VIEW ADAPTER PLATE
RAM-B-202U - round plate
