RAM-B-121-UN4U RAM® Finger-Grip™ Universal Holder with Yoke Clamp Base
Features
* Universal holder with flexible rubber-coated fingers to provide a secure grip of your device; fingers open by squeezing the ends
* Includes three sets of four rubber-coated fingers for different size devices as well as top and bottom optional device supports
* The RAM Yoke Clamp will hold firm to most glare shields, yokes, or tubing, or even exercise equipment 16-32mm in diameter
* RAM® B size double socket arm provides for almost infinite adjustment and perfect viewing angles
* Backed by a lifetime warranty
This is perfect for mounting GPS, 2-way Radio or Phones to aircraft control yokes, glare shields, cars, bikes, boats, lighting stands etc.
Yoke Clamp with rubber ball and socket technology provides for almost infinite adjustment and perfect viewing angles. High quality materials ensure that your device is safe, secure, and within easy reach. The mounting base can also accept a second ball giving you the ultimate double ball base. The 1" rubber ball is at a right angle to the plane of the mount; when connected to a rail, the ball sits parallel to the rail.
Universal Finger Grip Holder is designed to hold a large amount of cell phones and electronic devices. The holder comes with (3 sets) of four flexible rubber coated fingers placed along sides to grip your device. The fingers open by squeezing the ends to open the small finger arms. The bottom of the holder includes a back plate that adds support to the device being held by the mount.
This cradle is designed to hold the following devices:
Cell Phones/Smart-phones
2-Way Radios
GPS Devices
Height Dimensions:
Min with Top and Bottom Plates: 133mm/5.25"
Max with Top and Bottom Plates: 152mm/6.0"
The top and bottom plates can be removed for larger devices.
Spine Plate Dimensions:
50mm W x 127mm H
Using Short Arm Side Clamps:
Max Depth: 19mm
Min Width: 32mm
Max Width: 76mm
Using Medium Arm Side Clamps:
Max Depth: 32mm
Min Width: 38mm
Max Width: 89mm
Using Long Arm Side Clamps:
Max Depth: 40mm
Min Width: 57mm
Max Width: 89mm
Material:
High Strength Composite
Powder Coated Marine Grade Aluminium

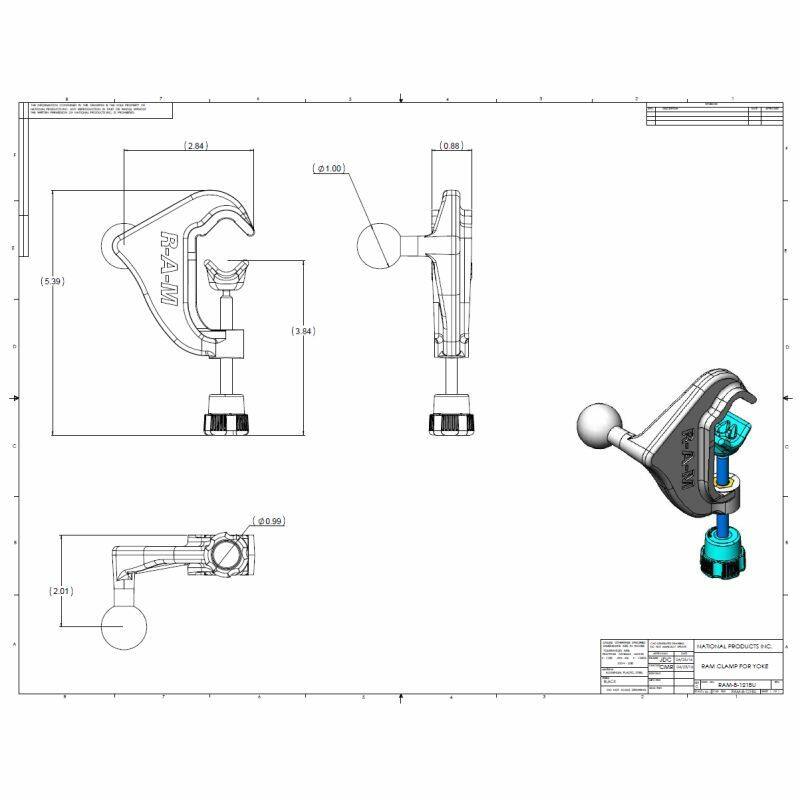

Clamp Dimensions
15.9 to 32mm (0.625" to 1.25")
Arm Dimensions:
94mm overall
Ball Size:
1" rubber ball (B series)
