RAM-335 RAM® Forklift / Lift Truck Overhead Guard Plate
Features

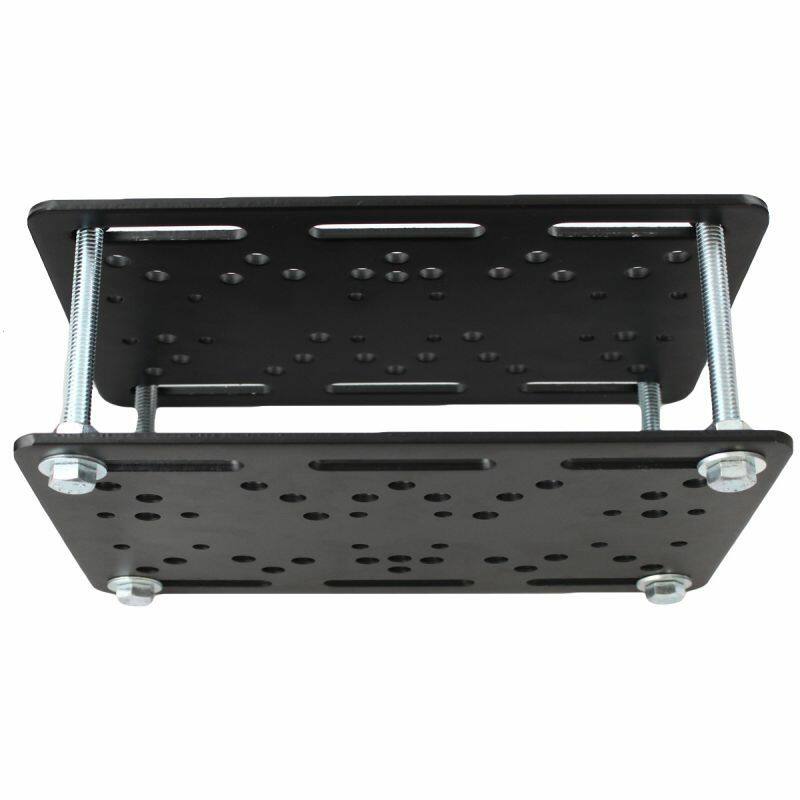

* Two steel plates with hex bolts included to connect to the overhead guards of many fork lifts
* Includes 100 x 100 and 75 x 75 VESA hole Patterns to connect to many RAM bases
* Two RAM® ball bases can be connected to this base if required
* Popular RAM® ball sizes for commercial use are C, D or E
* Made of Powder coated steel for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
Sometimes the simplest solution makes the most sense. The new RAM Lift Truck Back-Up Mounting Plate is the ideal way to get a RAM ball attached to most any lift cage or overhead guard. Utilizing two identical plates of stamped steel with numerous common hole patterns and slots makes attachment a breeze.
Three popular ball sizes: "C" series - 1.5", "D" series - 2.25 & "E" series - 3.68" diameter may be attached to this plate system. Up to 2 balls may be attached to the same plate for multiple applications.
Specs & Features
Hardware Included
(4) 3/8"-16 x 4" Zinc Hex Bolts
(4) 3/8"-16 Zinc Hex Nuts
(4) 3/8" Zinc Lock Washers
(8) 3/8" Zinc Flat Washers
(4) 5/16"-18 x 1" Hex Bolts
(4) 5/16"-18 Zinc Hex Nuts
(4) 5/16" Zinc Lock Washers
(4) 5/16" Zinc Flat Washers
(4) #10-24 Machine Screws
(4) #10-24 Nylock Nuts

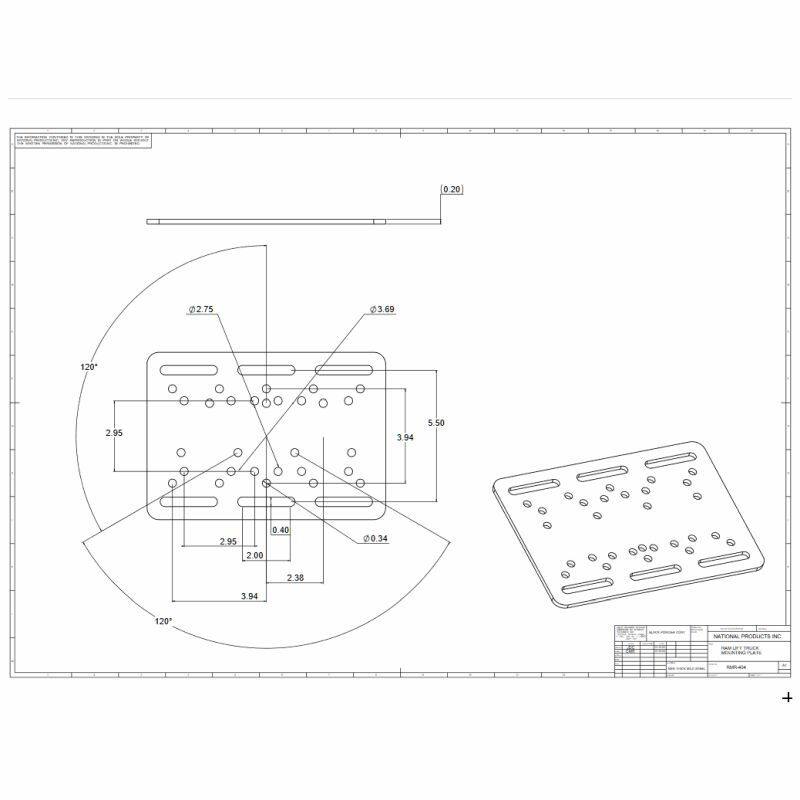

Hole Patterns:
AMPS 4-Hole Pattern
100 x 100 VESA Pattern
75 x 75 VESA Pattern

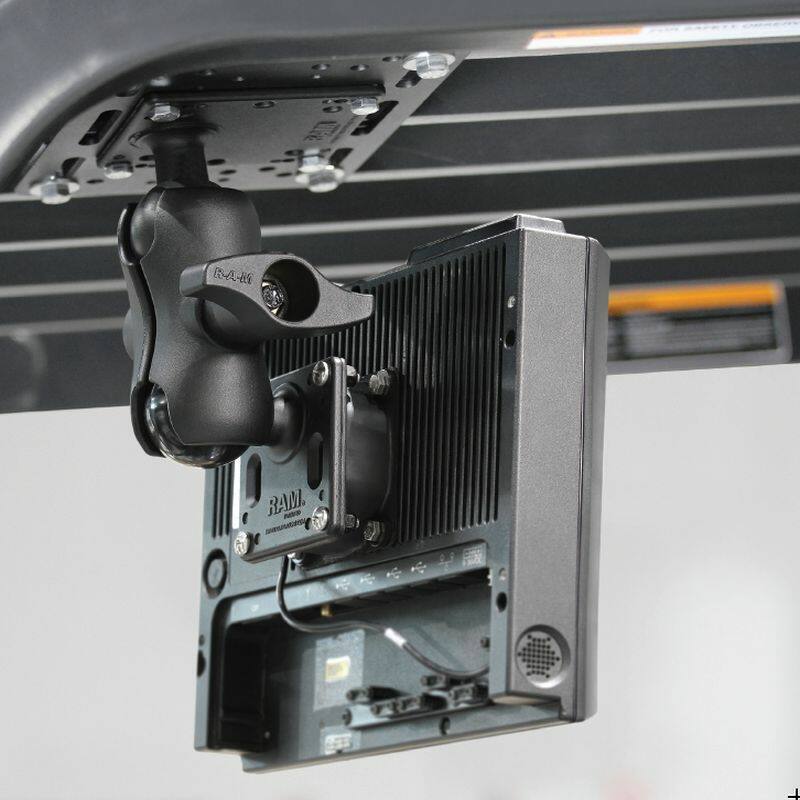

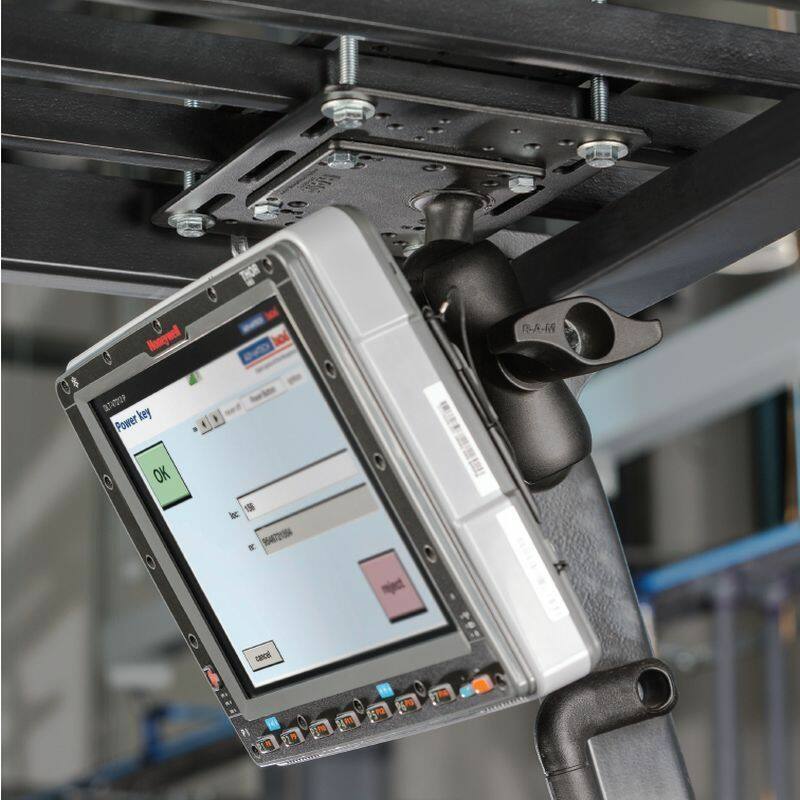

Installation is as easy as attaching the base with ball to one of the plates and then sandwiching the guard or cage between the two mounting plates using the hardware provided.
Materials
Powder coated steel
Weight:
3.61kg (7.95 lbs)
Popular Mounting Plates:
RAM-D-2461U - D Series square mounting plate with 2.25" ball
RAM-2461U - C Series square mounting plate with 1.5" ball
