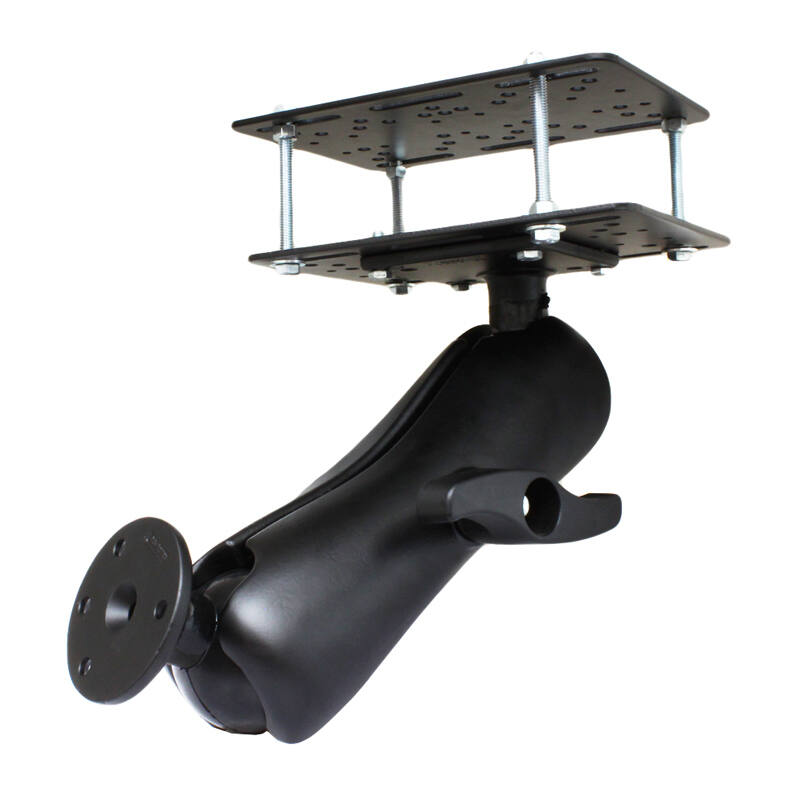

RAM-E-101-335 RAM® Forklift Overhead Guard Double Ball Mount with Large Round Plate - E Series
Features

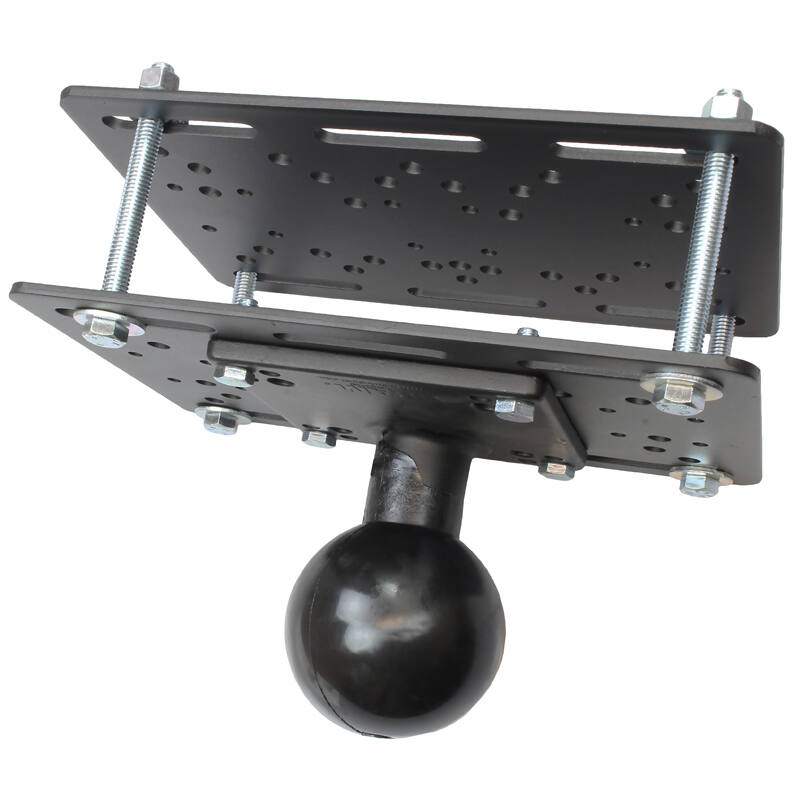

* Two steel plates with hex bolts included to connect to the overhead guards of many fork lifts
* Includes E Series RAM base and 320mm E Series Arm
* Round plate has pre-drilled holes in the base plate, including two holes at 180 degrees and three holes at 120 degrees
* Made of Powder coated steel and Marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

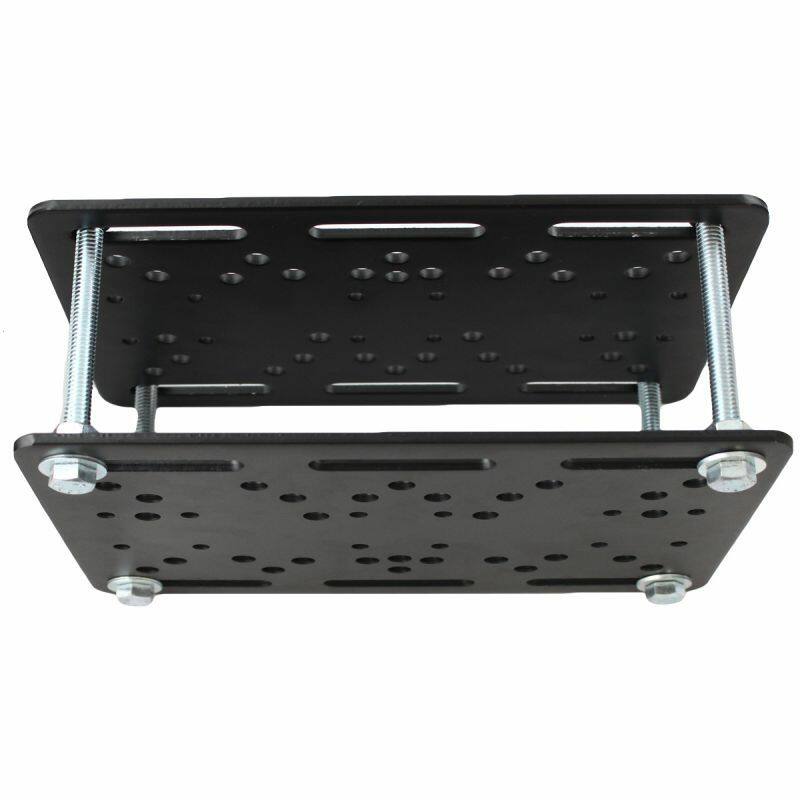

Sometimes the simplest solution makes the most sense. The new RAM Lift Truck Back-Up Mounting Plate is the ideal way to get a RAM ball attached to most any lift cage or overhead guard. Utilizing two identical plates of stamped steel with numerous common hole patterns and slots makes attachment a breeze. Up to 2 balls may be attached to the same plate for multiple applications.

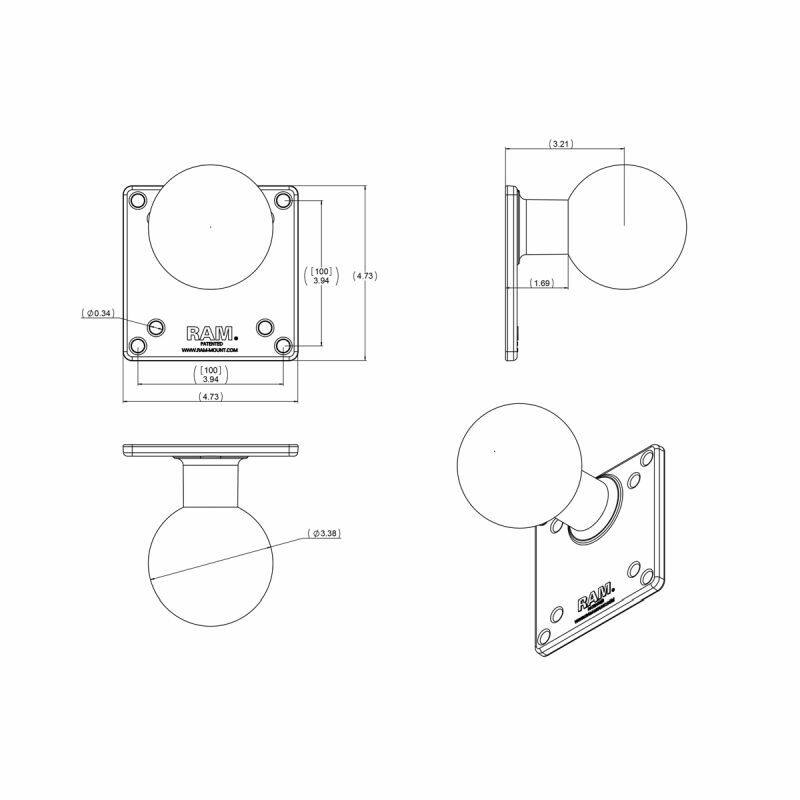

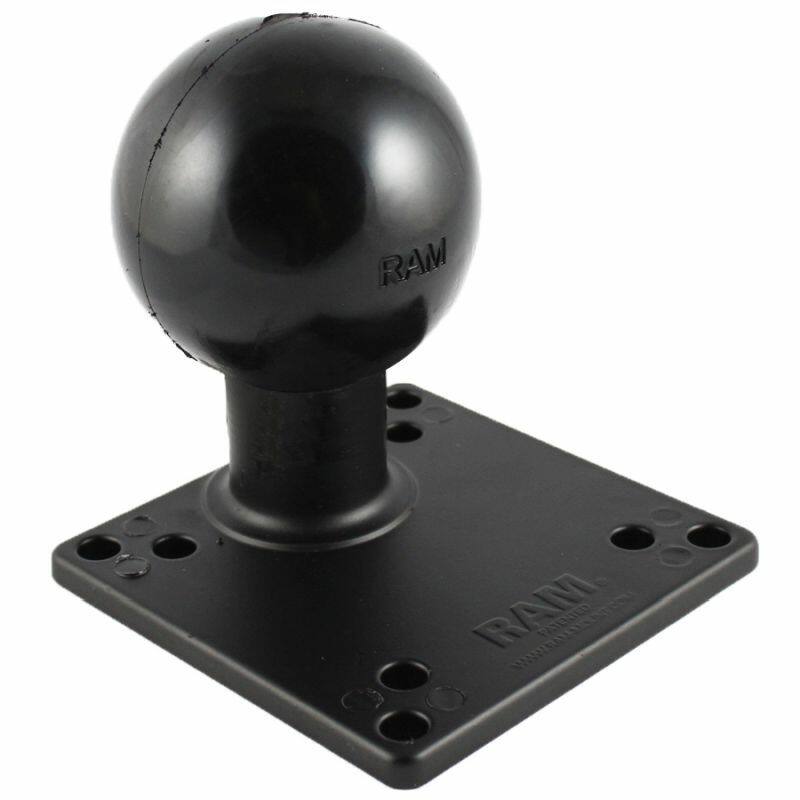

The Square plate measures 120.6 x 120.6mm and has an E series (3.38") Diameter Ball. The plate has VESA pattern 100 x 100mm and 75 x 75mm holes in each corner.

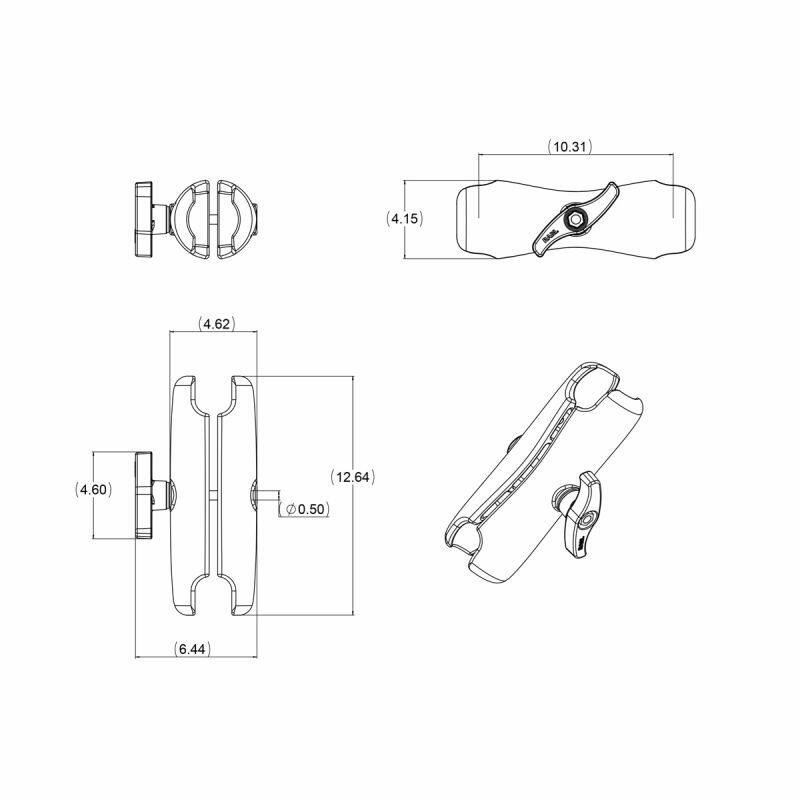

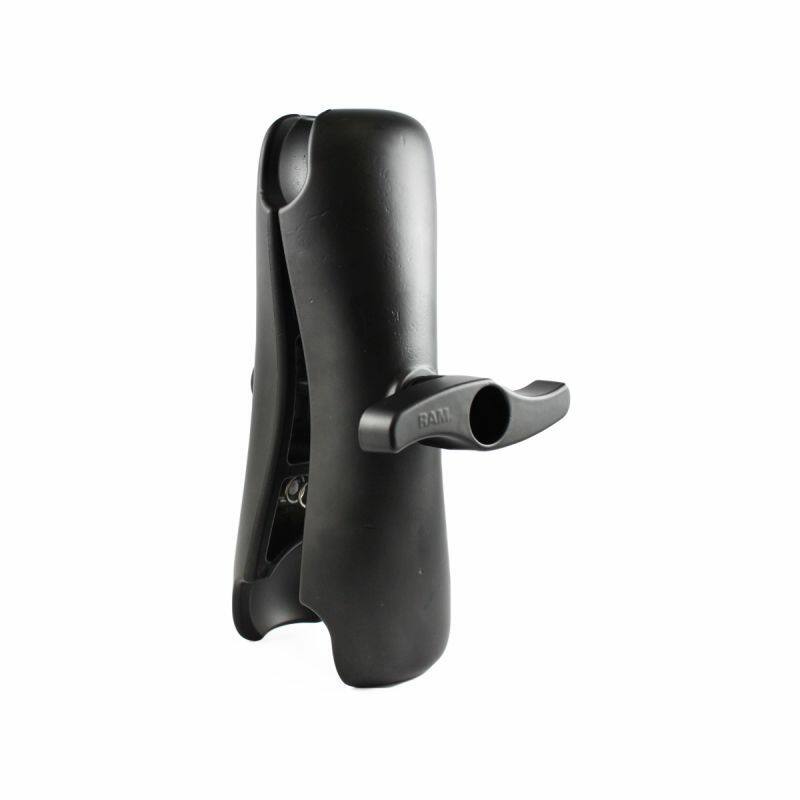

The double socket arm, has a socket at both ends that accommodates E Series ball bases. A single spring inside the arm opens the end sockets, allowing you to pivot the ball and socket connection. This socket technology allows for almost infinite adjustment and perfect viewing angles.

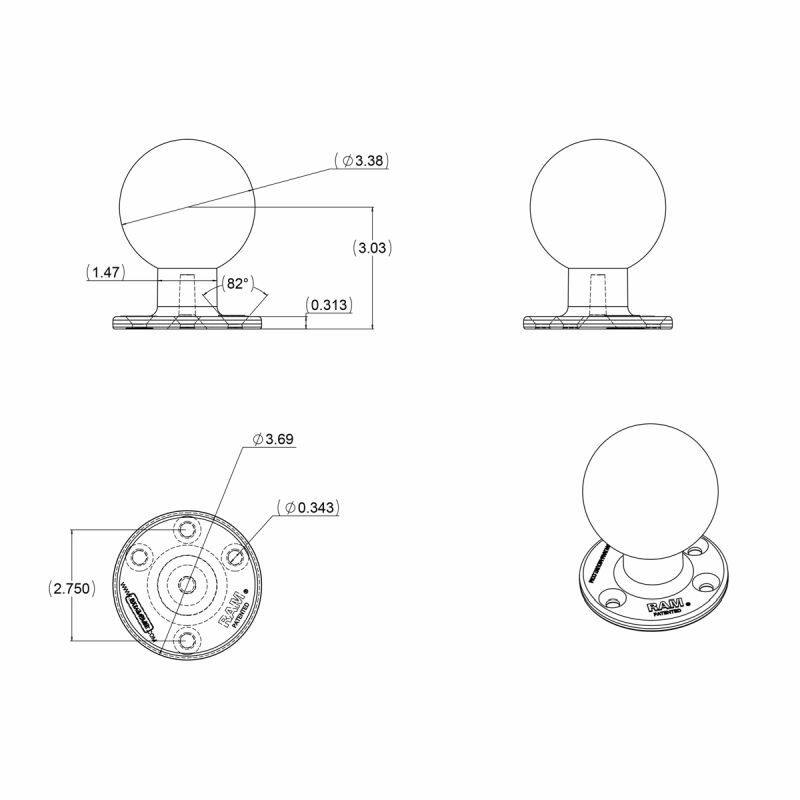

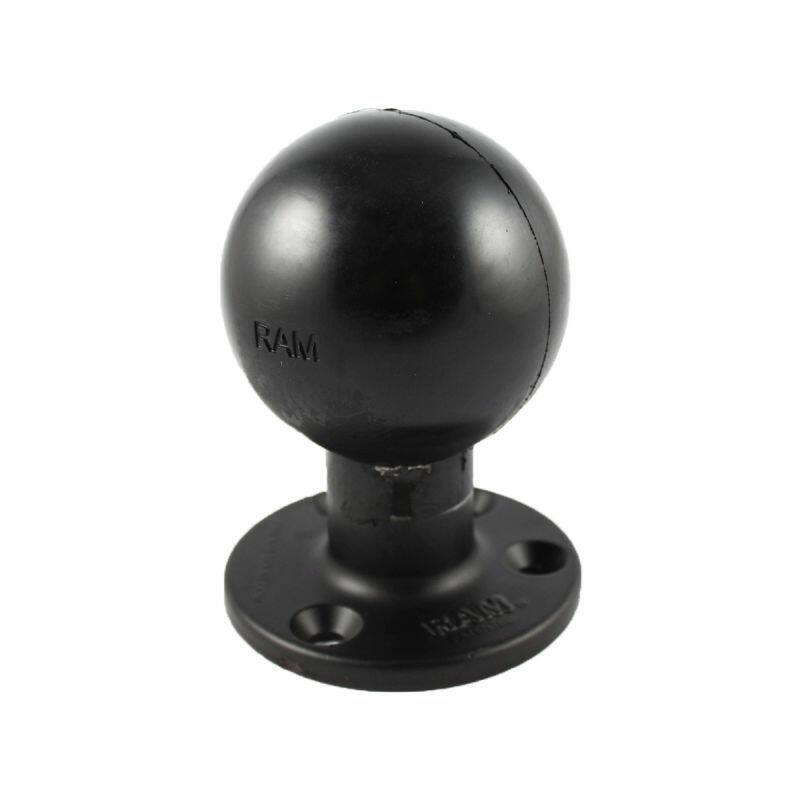

The 93.5mm Diameter Round Base with Ball consists of an E series rubber ball, connected at right angles to the round plate. The plate has pre-drilled holes in the base plate, including two holes at 180 degrees and three holes at 120 degrees.
Arm Dimensions:
Overall Length:
320.7mm (12.625")
Socket-To-Socket Length:
250.8mm (9.875")
Hardware Included
Assembly Hardware
(4) 3/8"-16 x 4" Zinc Hex Bolts
(4) 3/8"-16 Zinc Hex Nuts
(4) 3/8" Zinc Lock Washers
(8) 3/8" Zinc Flat Washers
(4) #10-24 Machine Screws
(4) #10-24 Nylock Nuts
Hole Pattern

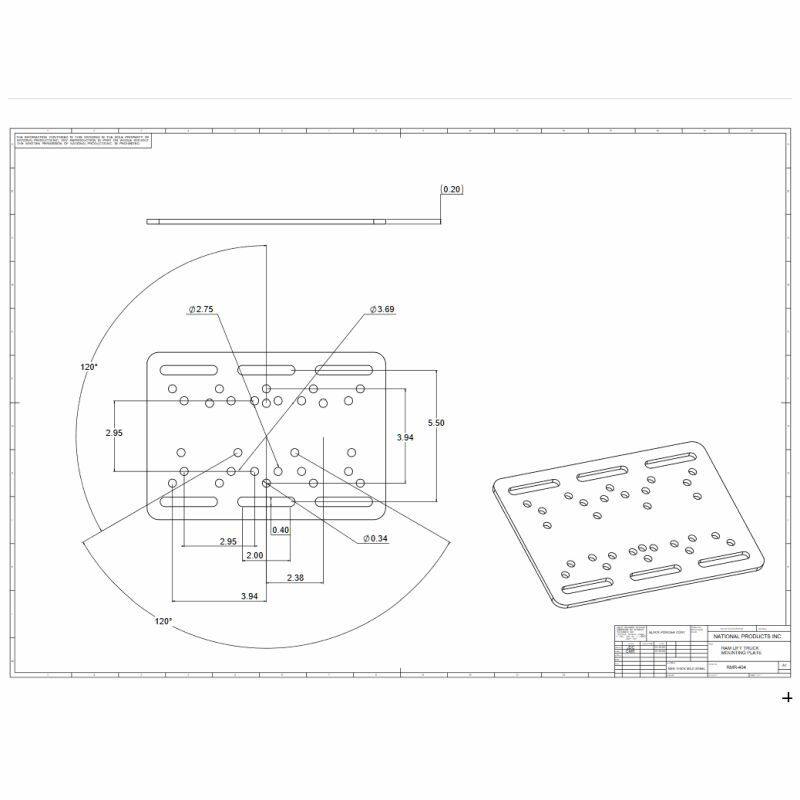

See Drawings
Square Plate Dimensions:
120.6 x 120.6mm (4.75" x 4.75")
Round Plate Diameter
93.5mm (3.68")
Ball/Socket Size
E Size (3.38")
Weight Capacity
Standard Use:
6.8 kg (15 lbs)
Heavy-Duty Use:
4.53 kg (10 lbs )
Materials
Powder coated steel
Marine-grade aluminium
Weight
9.5kg (20.95 lbs.)
Components:
RAM-335 LIFT TRUCK BACK-UP MOUNTING PLATE
RAM-E-246U 100mm X 100mm/75mm X 75mm VESA 120mm Plate with 85.5mm Diameter Ball
RAM-E-201U Double Socket Arm for 85.5mm Balls
RAM-E-202U 93.5mm Diameter Round Base with 85.5mm Ball
