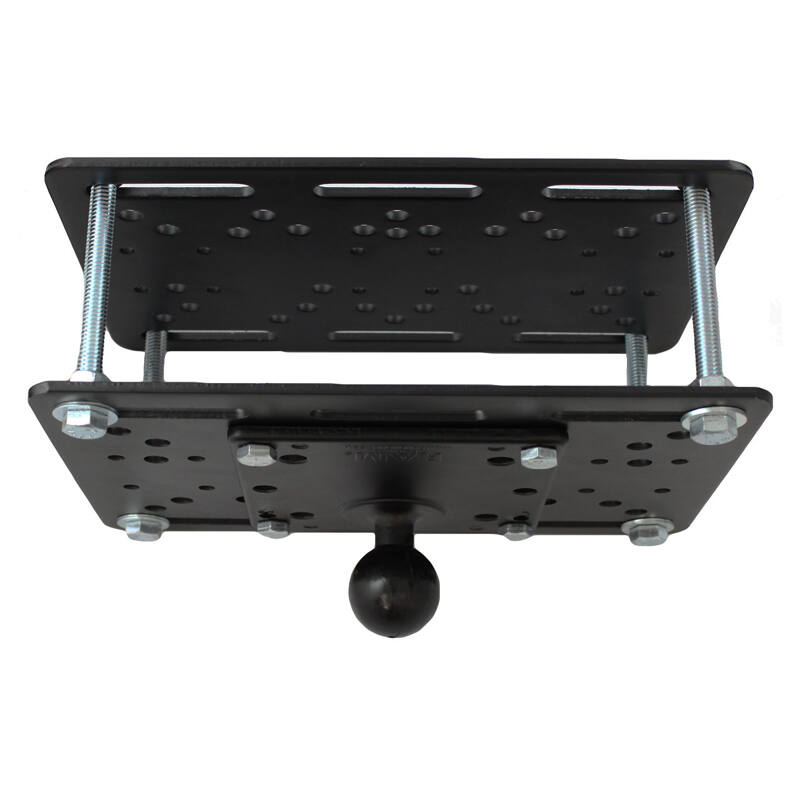

RAM-335-246 RAM® Lift Truck Overhead Guard Base with Ball - C Series
Features
* Two steel plates with hex bolts included to connect to the overhead guards of many fork lifts
* Includes square plate with C series ball to connect to any C series Arm
* Made of Powder coated steel and Marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

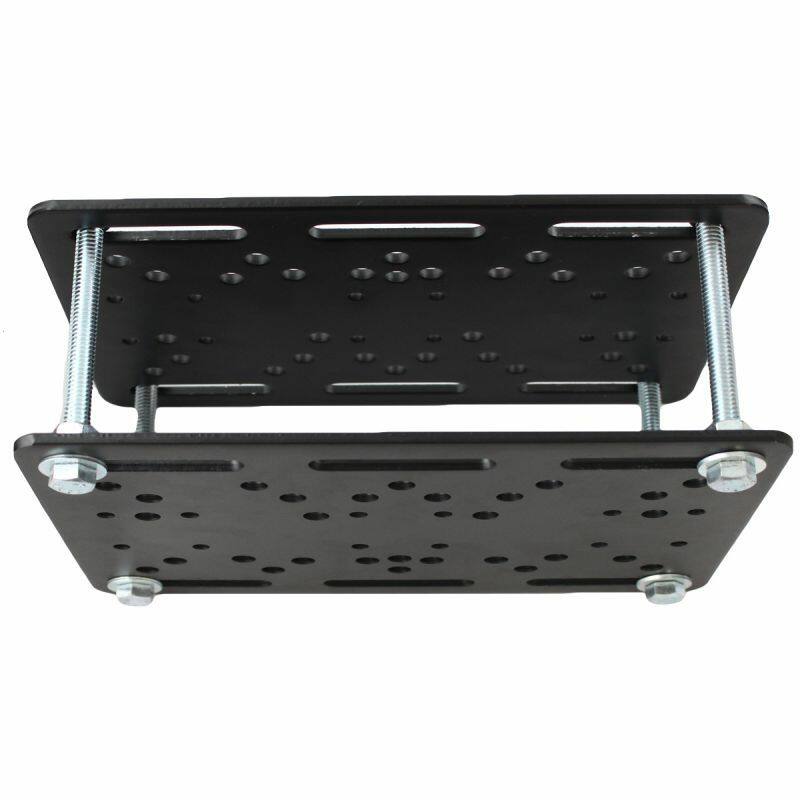

Sometimes the simplest solution makes the most sense. The new RAM Lift Truck Back-Up Mounting Plate is the ideal way to get a RAM ball attached to most any lift cage or overhead guard. Utilizing two identical plates of stamped steel with numerous common hole patterns and slots makes attachment a breeze.

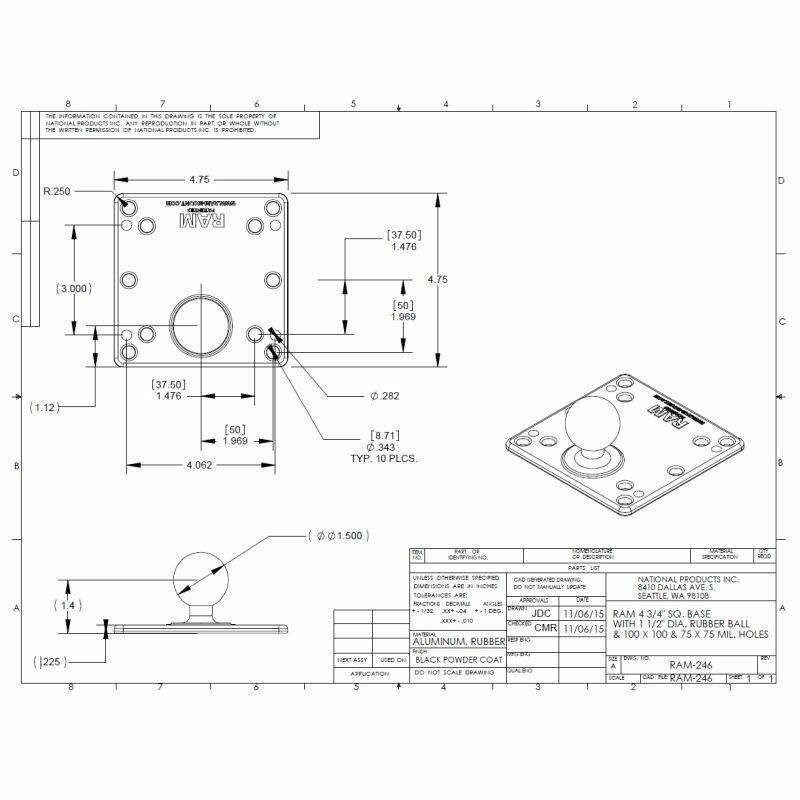

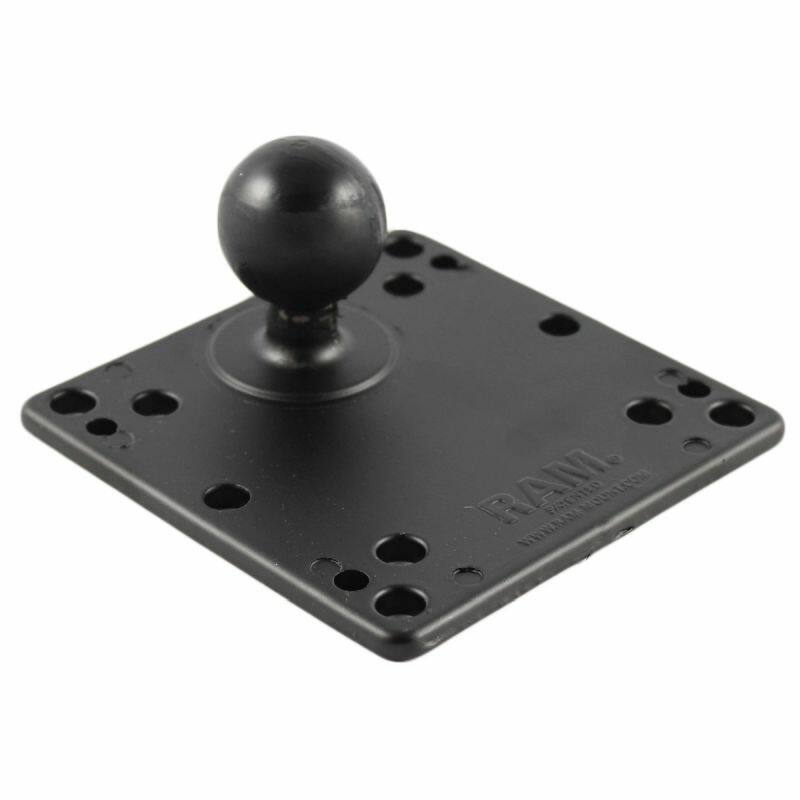

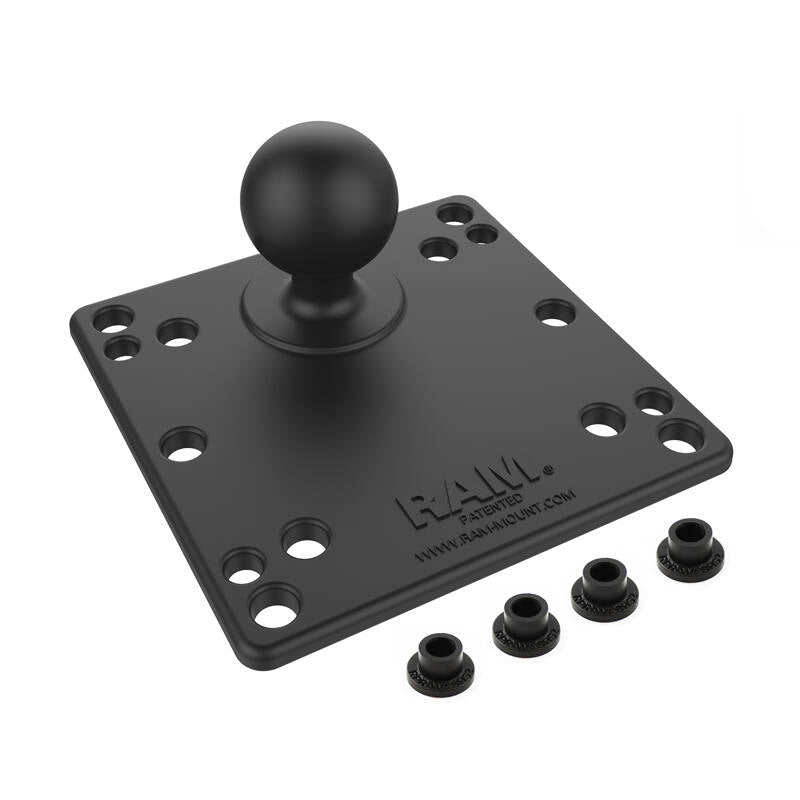

The attached ball base is a RAM-246U RAM® 100x100mm VESA Plate with Ball. This is a 120mm Square Base with VESA 4 x 100mm holes and 4 x 75mm holes in each corner.
Specs & Features
Ball size:
"C" series - 1.5"
Hardware included
Assembly Hardware
(4) 3/8"-16 x 4" Zinc Hex Bolts
(4) 3/8"-16 Zinc Hex Nuts
(4) 3/8" Zinc Lock Washers
(8) 3/8" Zinc Flat Washers
(4) #10-24 Machine Screws
(4) #10-24 Nylock Nuts

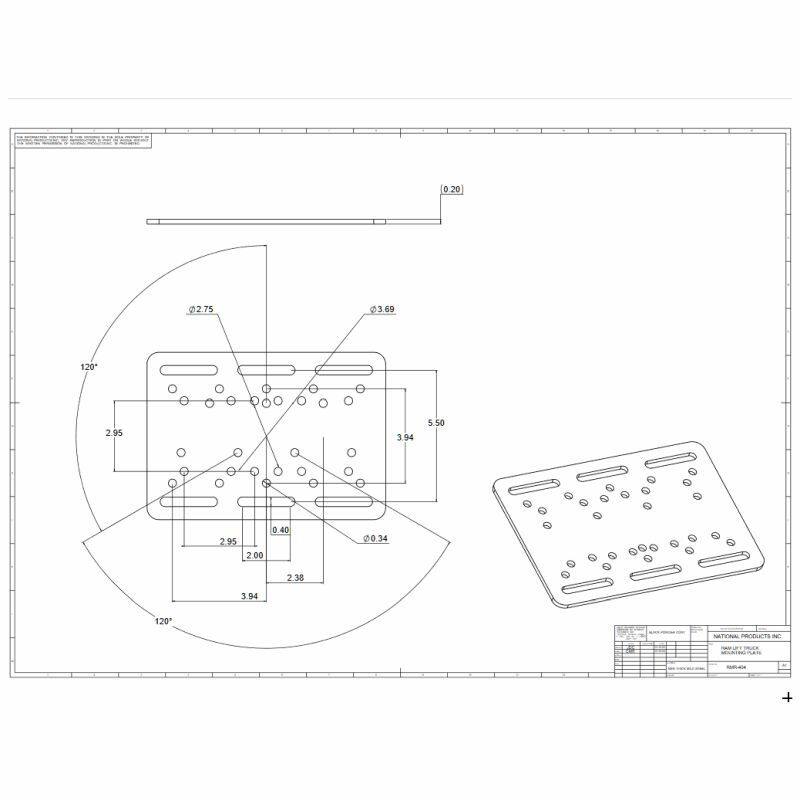

Overhead Guard Hole Patterns:
AMPS 4-Hole Pattern
100 x 100 VESA Pattern
75 x 75 VESA Pattern

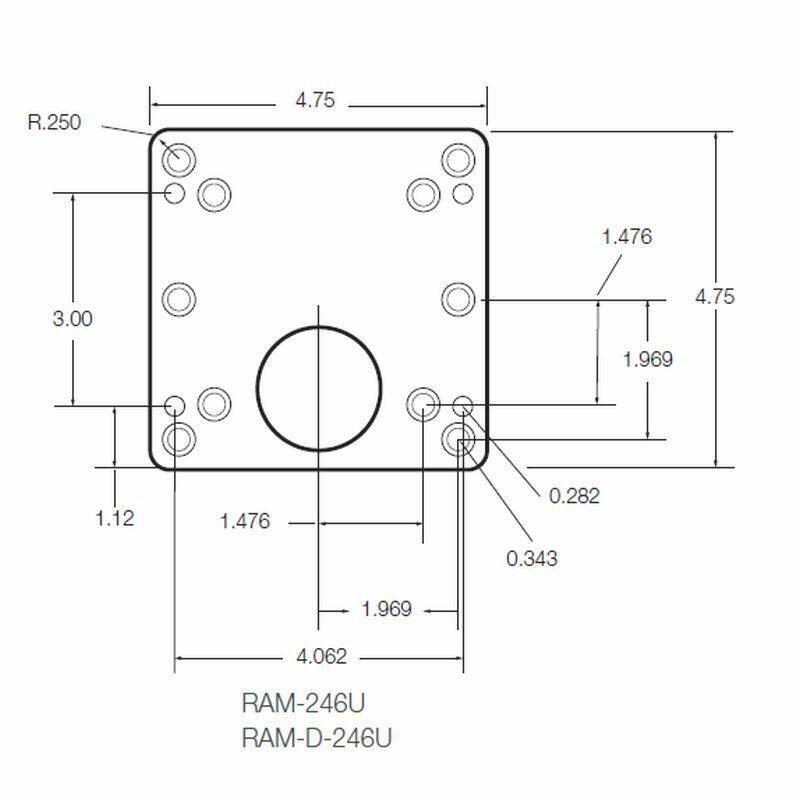

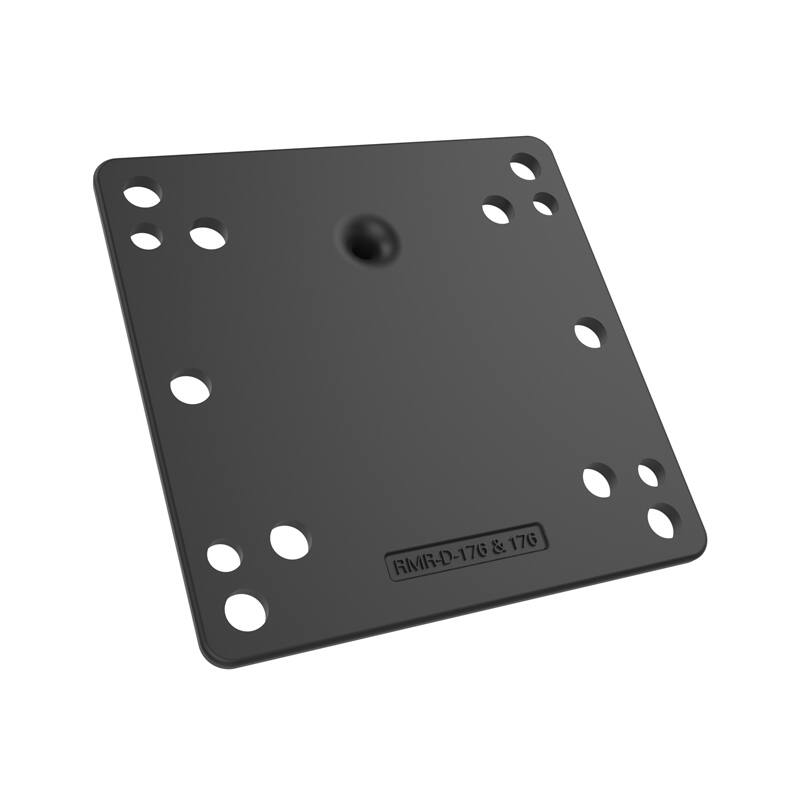

RAM 246U Base plate hole patterns:
100 x 100 VESA Pattern
75 x 75 VESA Pattern
100 x 50 Half VESA Pattern

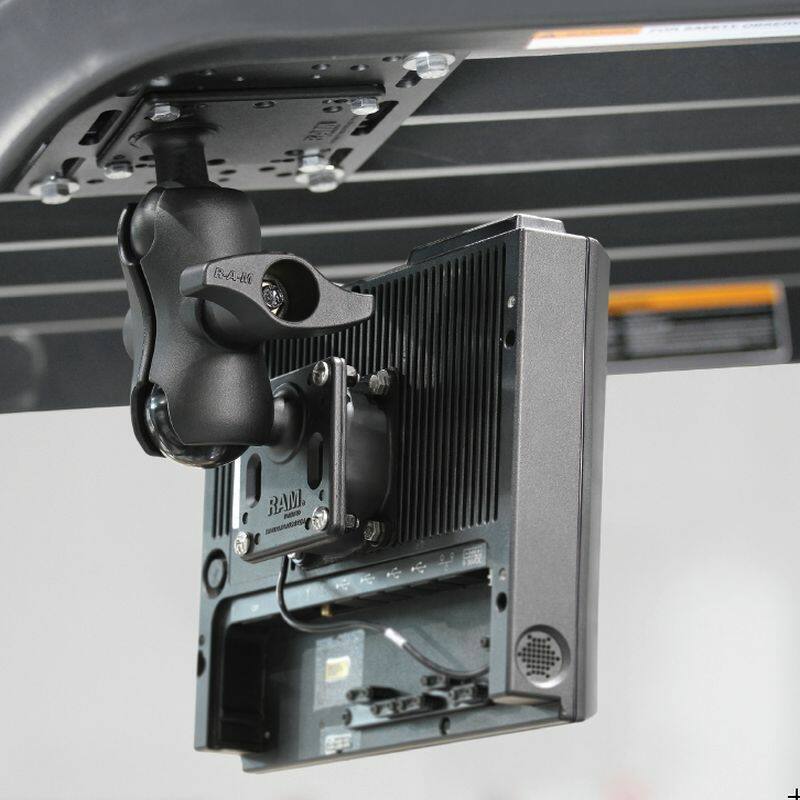

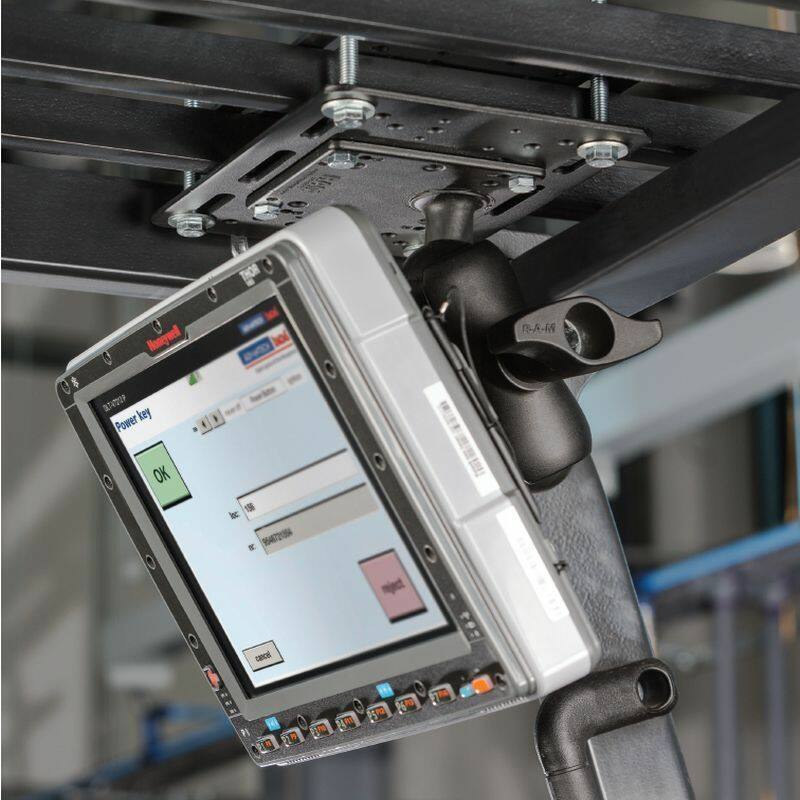

Installation is as easy as attaching the base with ball to one of the plates and then sandwiching the guard or cage between the two mounting plates using the hardware provided.
Material:
Powder Coated Marine Grade Aluminium
Powder coated steel
Weight
3.56kg (7.85 lbs.)
Weight Capacity
Standard Use:
1.814kg (4 lbs)
Heavy-Duty Use:
1.36kg (3 lbs)
Components:
RAM-335 RAM LIFT TRUCK BACK-UP MOUNTING PLATE
RAM-246U VESA base 100mm & 75mm holes for 1.5"/C size balls
