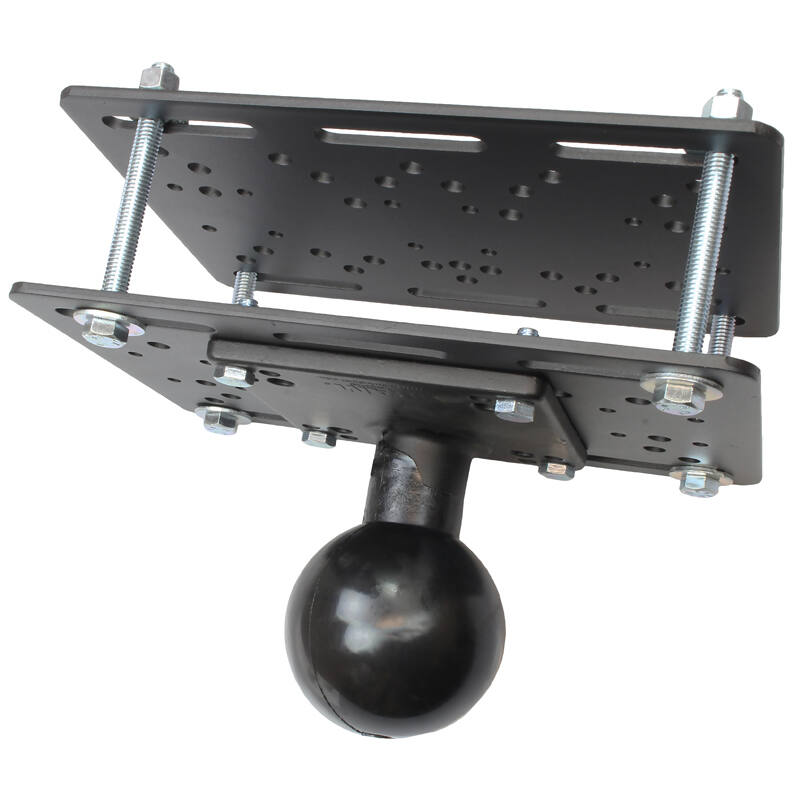

RAM-335-E-246 RAM® Lift Truck Overhead Guard Base with Ball - E Size
Features

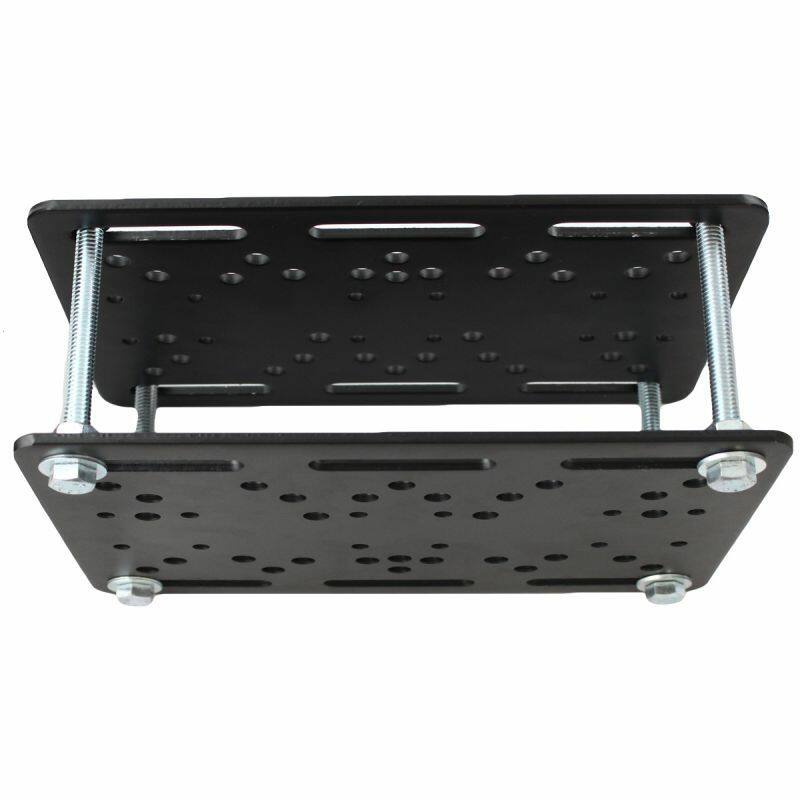

* Two steel plates with hex bolts included to connect to the overhead guards of many fork lifts

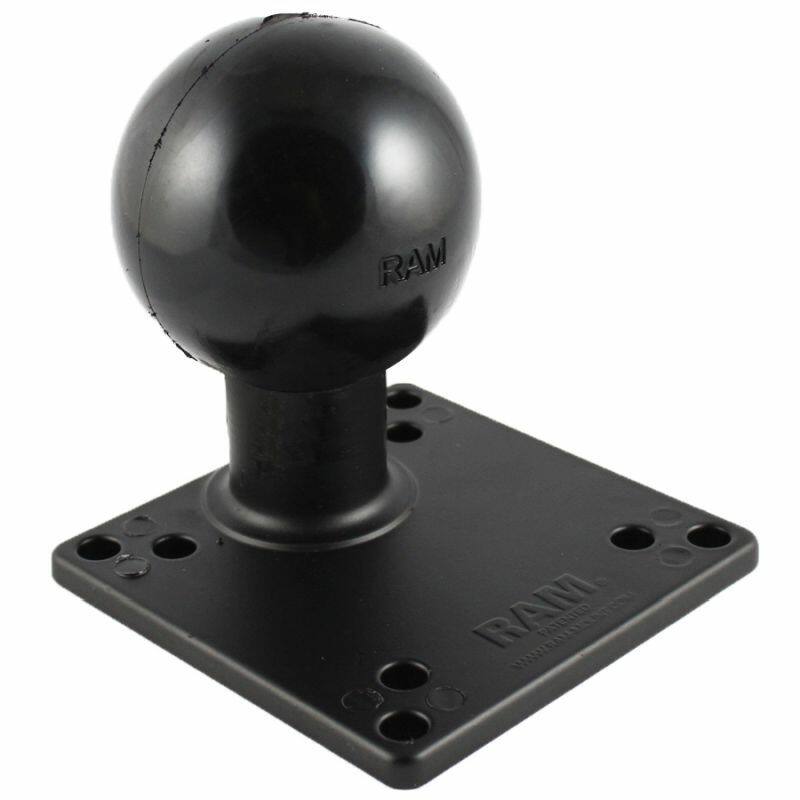

* Includes square plate with E series ball to connect to any E series Arm
* Made of Powder coated steel and Marine-grade aluminium for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
Sometimes the simplest solution makes the most sense. The new RAM Lift Truck Back-Up Mounting Plate is the ideal way to get a RAM ball attached to most any lift cage or overhead guard. Utilizing two identical plates of stamped steel with numerous common hole patterns and slots makes attachment a breeze. Up to 2 balls may be attached to the same plate for multiple applications.
Hardware Included
Assembly Hardware
(4) 3/8"-16 x 4" Zinc Hex Bolts
(4) 3/8"-16 Zinc Hex Nuts
(4) 3/8" Zinc Lock Washers
(8) 3/8" Zinc Flat Washers
(4) #10-24 Machine Screws
(4) #10-24 Nylock Nuts

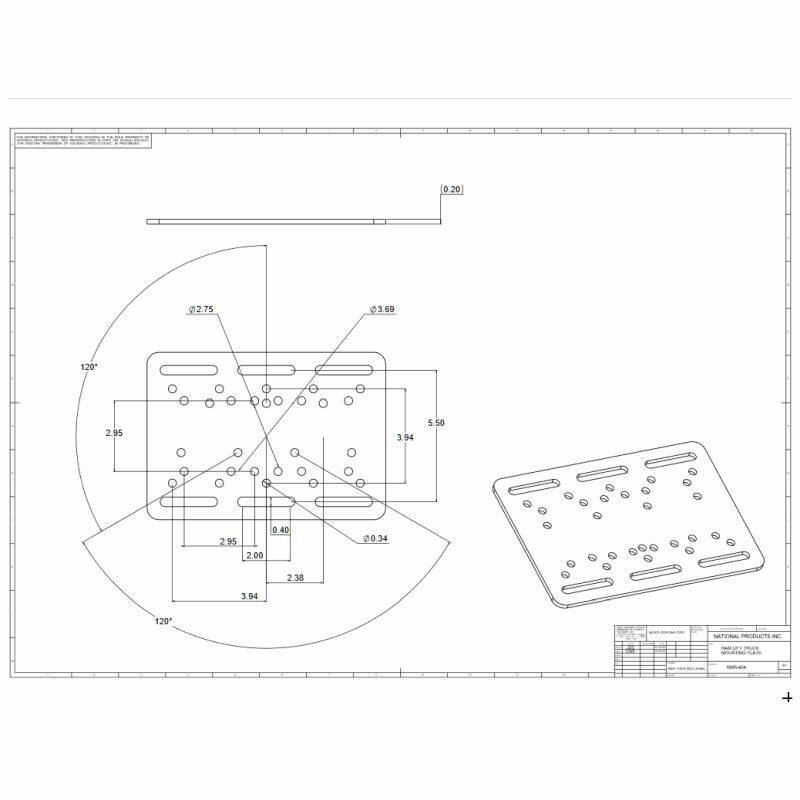

Hole Pattern
See Drawing
Ball/Socket Size

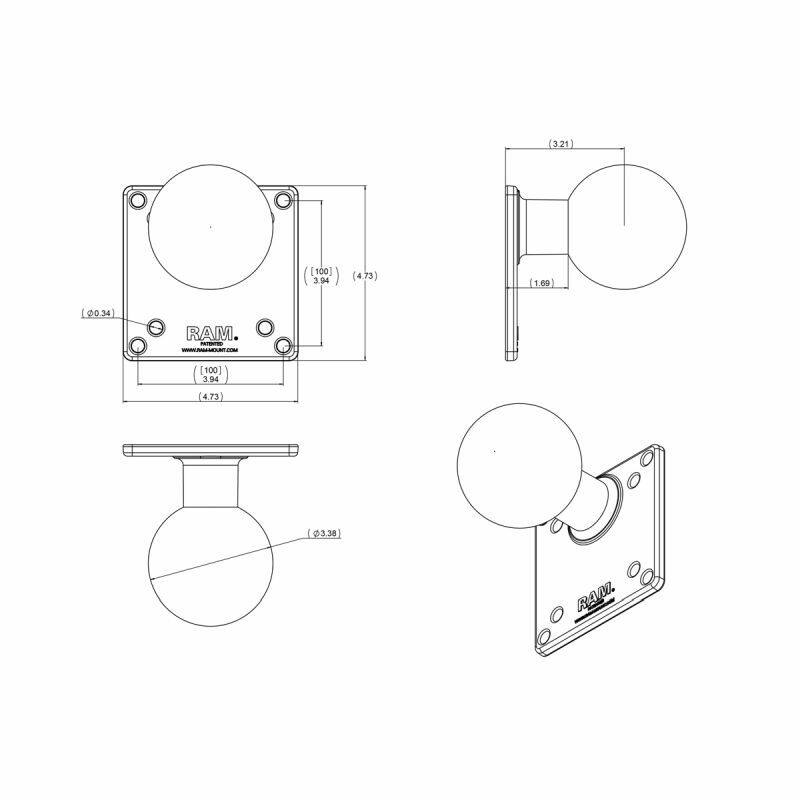

E Size (3.38")
Weight Capacity
Standard Use:
6.8 kg (15 lbs)
Heavy-Duty Use:
4.53 kg (10 lbs)
Materials
Powder coated steel
Marine-grade aluminium
