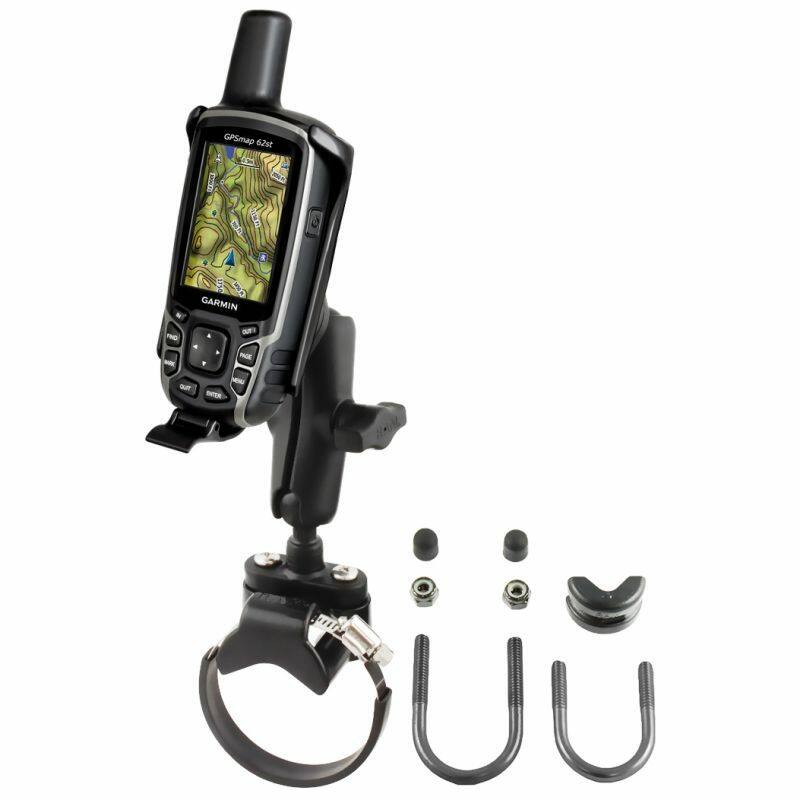

RAM-B-149Z-2-GA41U RAM® ATV/UTV Rail Mount for Garmin Astro 320, GPSMAP 62 + More
Features
* This RAM® GPS Holder was designed specifically for the Garmin Astro 320, GPSMAP 62 & 64 Series GPS devices
* Rail and bar base for UTVs and ATVs includes strap clamp and U-bolt components
* Made of powder-coated, marine-grade aluminum, stainless steel components, and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty
This consists of a steel strap base, u-bolt bases, double socket, diamond adapter base and high strength composite cradle. Designed for a clean installation, the RAM strap mount will accommodate most common roll bar sizes on UTV’s, allowing for the placement of the RAM rubber ball base. This mount can also be attached to smaller diameter handlebars on ATVs using the included hardware. With the ball base in place, you have the foundation for mounting everything from GPS Devices, RAM Aqua Boxes, Spotlights and Radios. The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

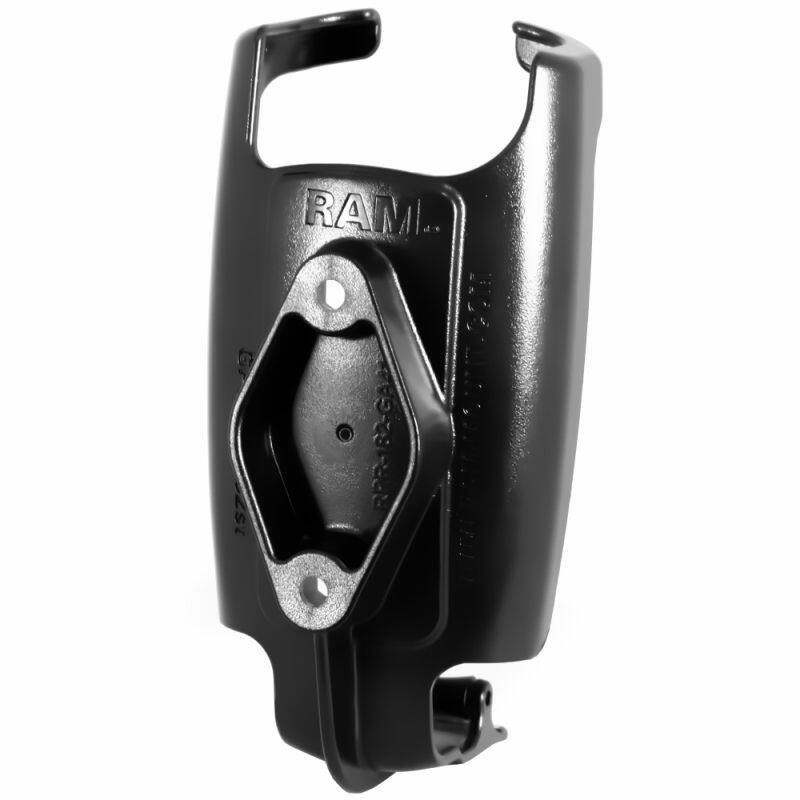

The high strength composite cradle has a hole pattern that attaches to the RAM-B-238U diamond base.
Note: this product does not include the Garmin GPS unit itself
Compatible Devices:
Garmin Astro 320
Garmin Astro 430
Garmin GPSMAP 62
Garmin GPSMAP 62s
Garmin GPSMAP 62sc
Garmin GPSMAP 62st
Garmin GPSMAP 62stc
Garmin GPSMAP 64
Garmin GPSMAP 64s
Garmin GPSMAP 64sc
Garmin GPSMAP 64st
Rail Accommodation Dimensions:
Mount with Strap:
39.9 to 80.01mm (1.57 to 3.15")
Mount with U-Bolt:
12.7 to 31.75mm (0.50 to 1.25"
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Material:
High Strength Composite
Powder Coated Marine Grade Aluminium
Ball Size:
B Size 1" Rubber Ball
Weight:
590 grams (1.3 lbs.)
Components:

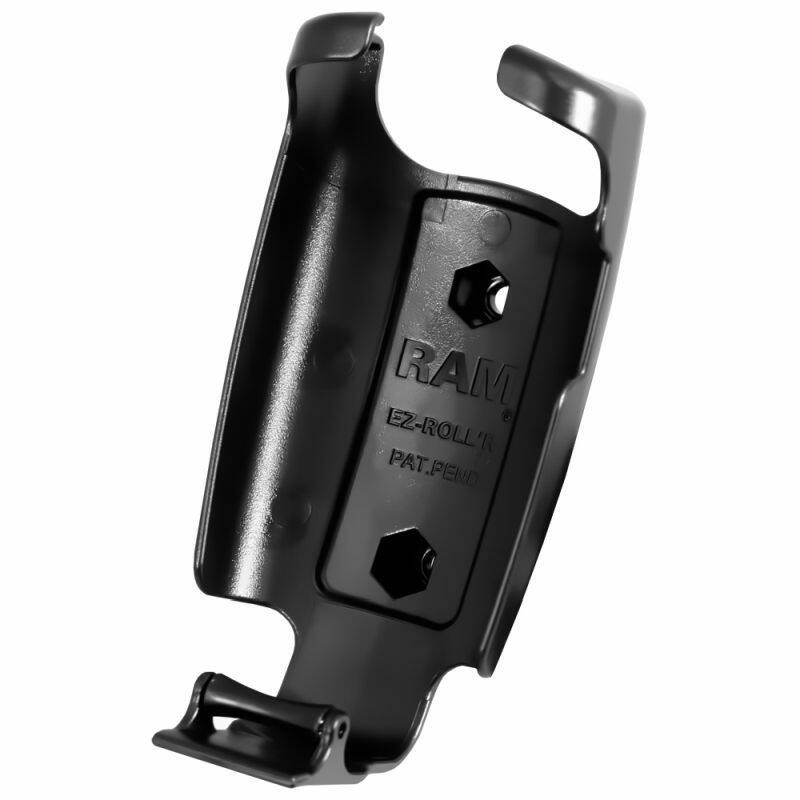

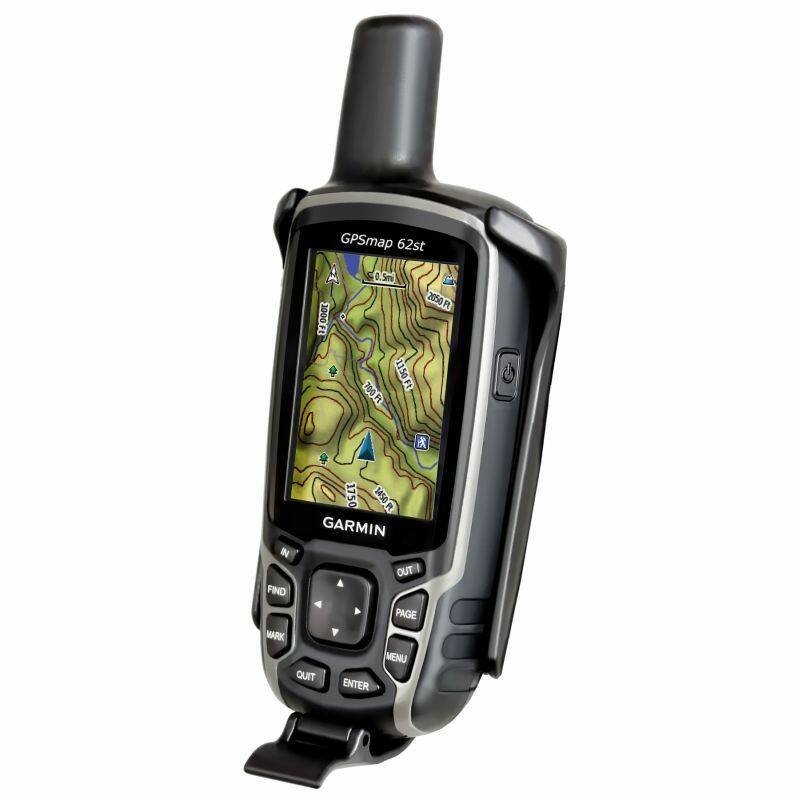

RAM-HOL-GA41U Holder Garmin GPSMAP64 GPS

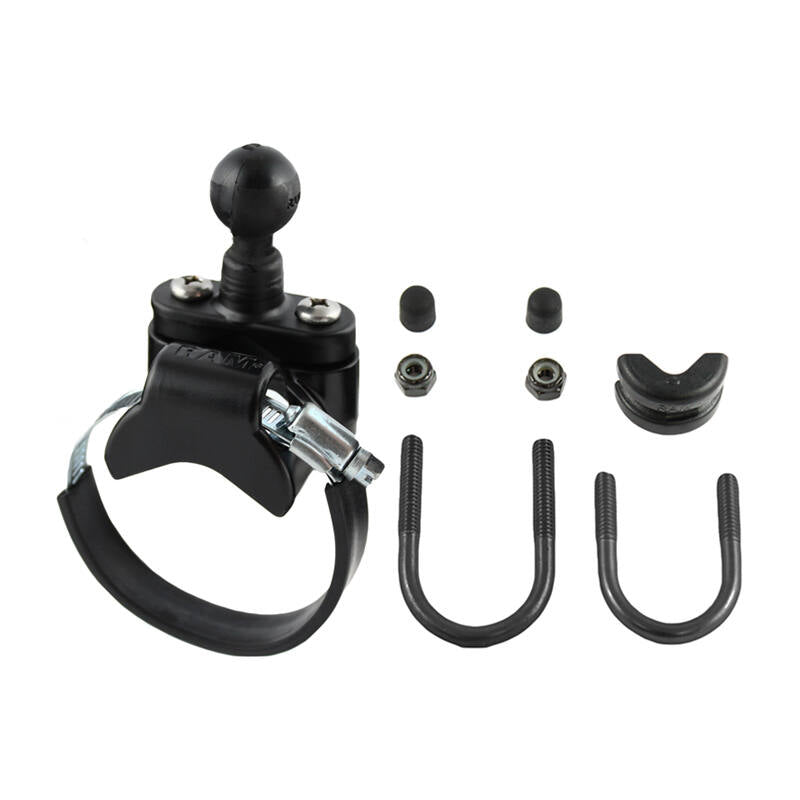

RAM-B-231Z-2U RAM BASE W/ U-BOLT & UTV STRAP BASE
RAM-B-238U 62 X 33mm DIAMOND BASE W/ 1 BALL
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL
YouTube:
https://www.youtube.com/watch?v=iO9NEqm9MJk&t=2s
