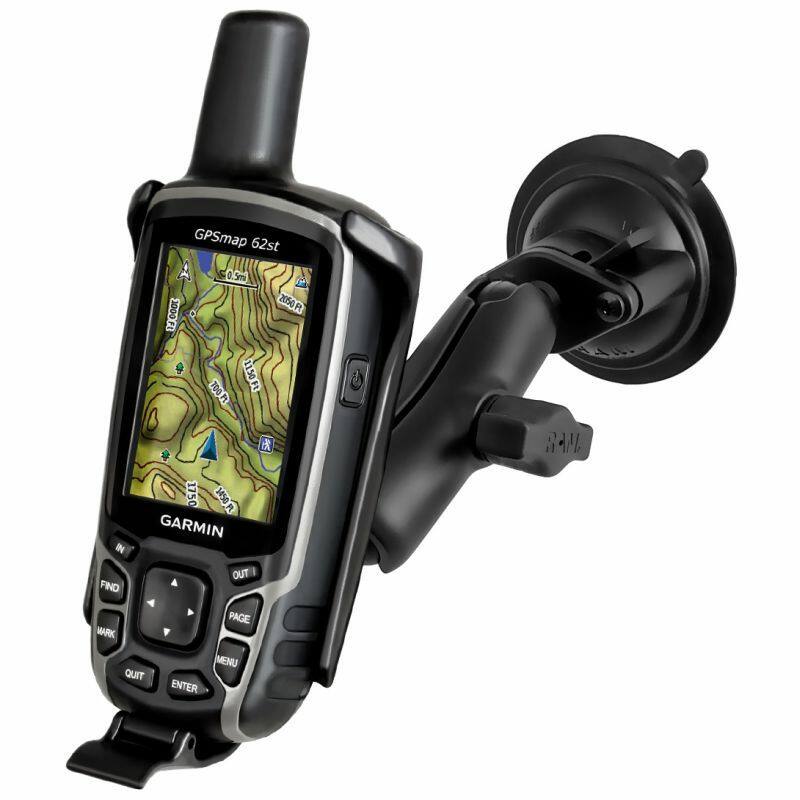

RAP-B-166-GA41 RAM® Twist-Lock™ Composite Suction Cup Mount for Garmin Astro 320 + More
Features
* This RAM® GPS Holder was designed specifically for the Garmin Astro 320, GPSMAP 62 & 64 Series GPS devices
* Twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces
* B size RAM® diamond ball base and arm have ball and socket technology which allows for near-infinite adjustability
* Made of high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

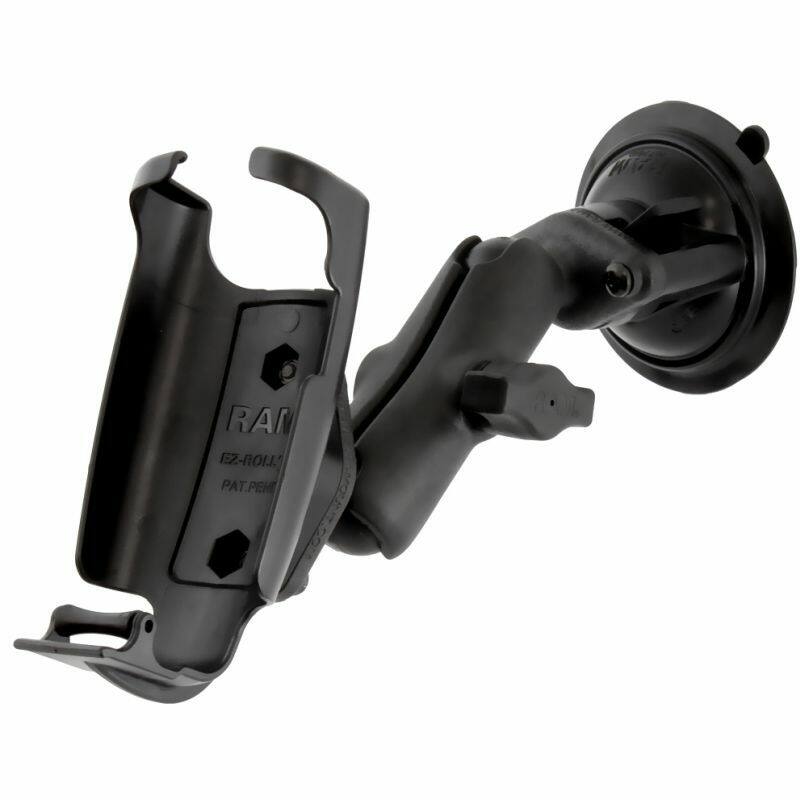

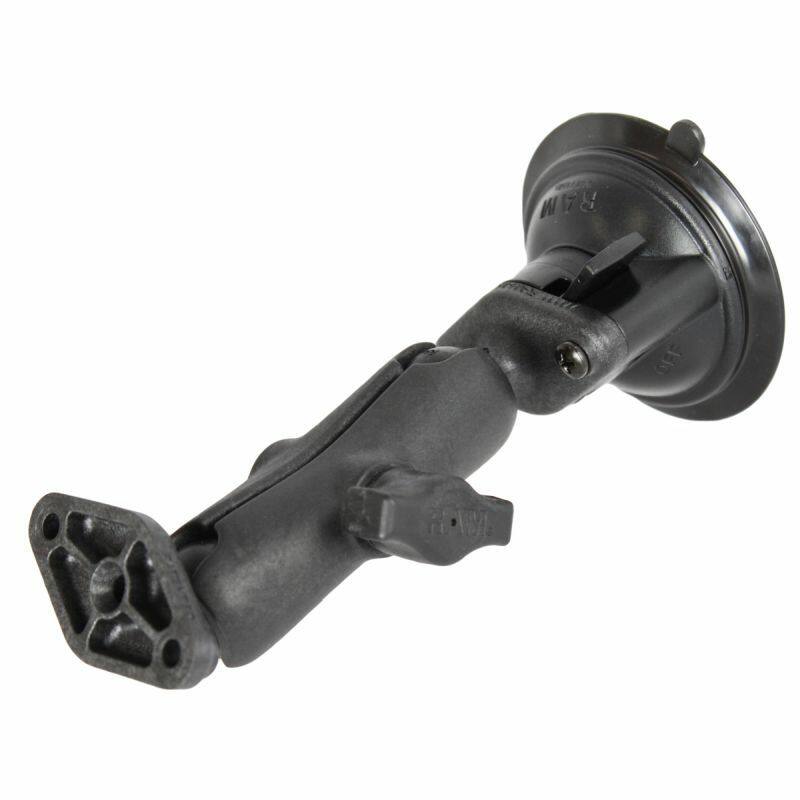

The RAP-B-166-GA41 consists of a 83mm / 3.3" diameter suction cup twist lock base, composite double socket arm and high strength composite cradle. The suction cup, twist lock base is designed to have a strong hold on glass and non-porous plastic surfaces, including RAM adhesive disks. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both ends of the socket arm; this with a twist of the arm knob, allows you to move the mount to your optimum viewing position.
Compatible Devices
Garmin
Astro 320
Astro 430
GPSMAP 62
GPSMAP 62s
GPSMAP 62sc
GPSMAP 62st
GPSMAP 62stc
GPSMAP 64
GPSMAP 64s
GPSMAP 64sc
GPSMAP 64st
Note: this product does not include the Garmin GPS unit itself
Specs & Features
Suction Size
83mm (3.3") Diameter
Arm Dimensions:
Overall Length:
94mm (3.69")
Socket-To-Socket Length:
76mm (3")
Material:
High Strength Composite
Ball Size:
1" Rubber Ball "B" Size
Weight Capacity
907 grams (2 lbs)
Weight:
276 grams (0.61 lb)
Components:

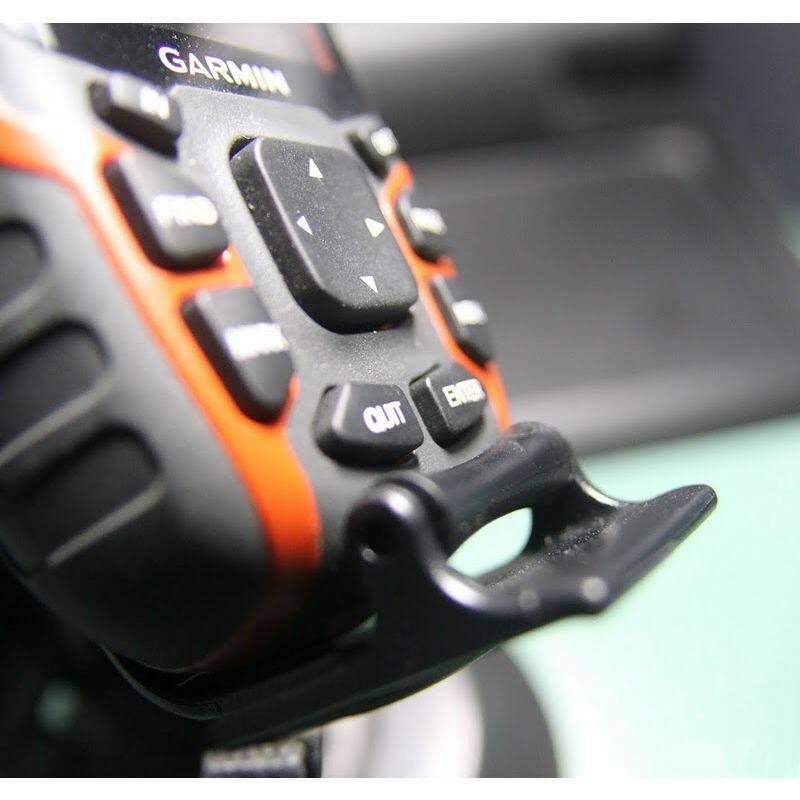

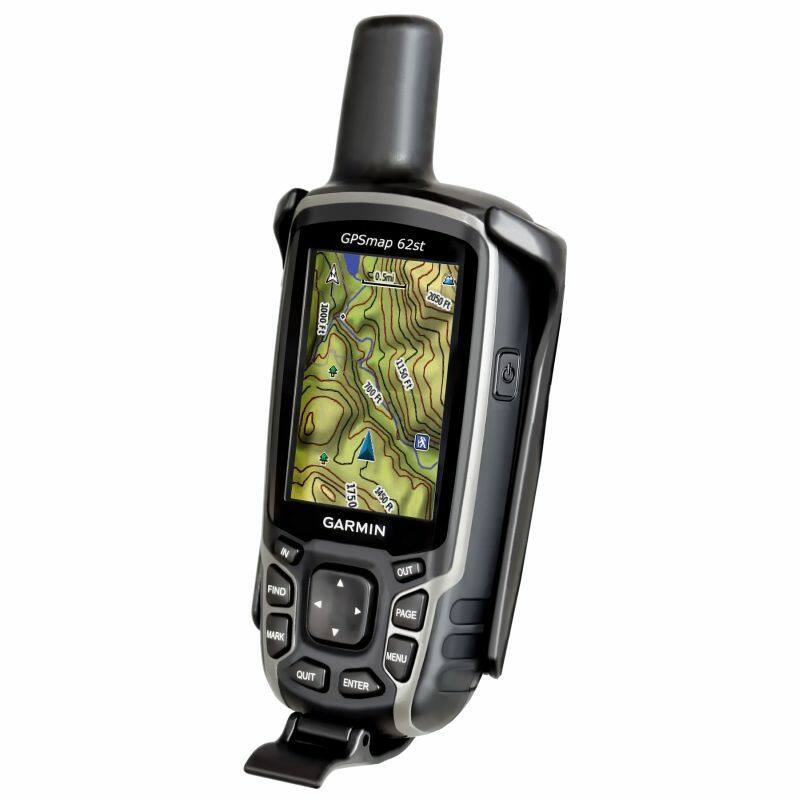

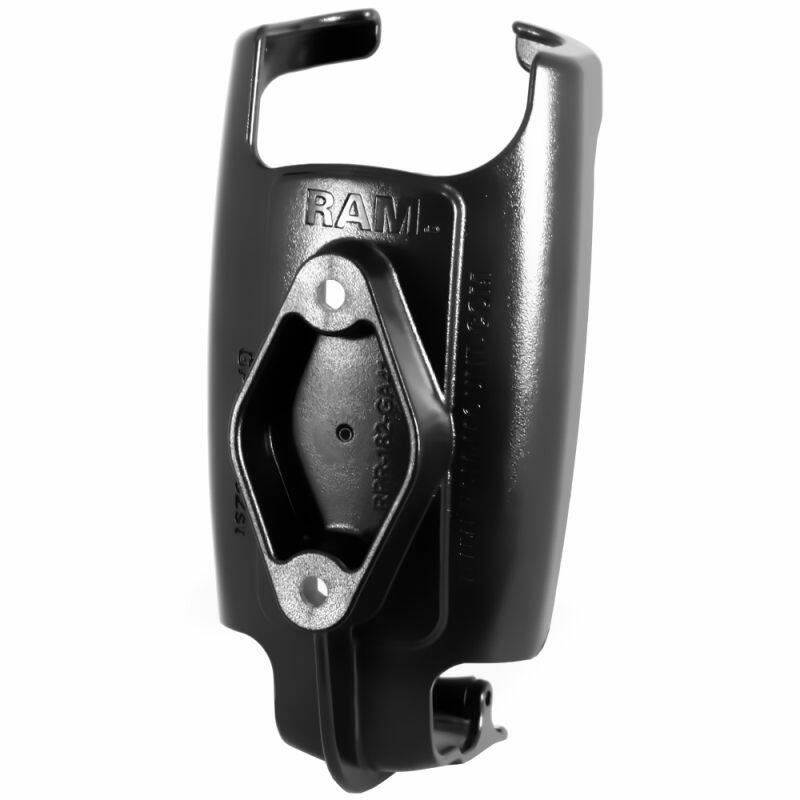

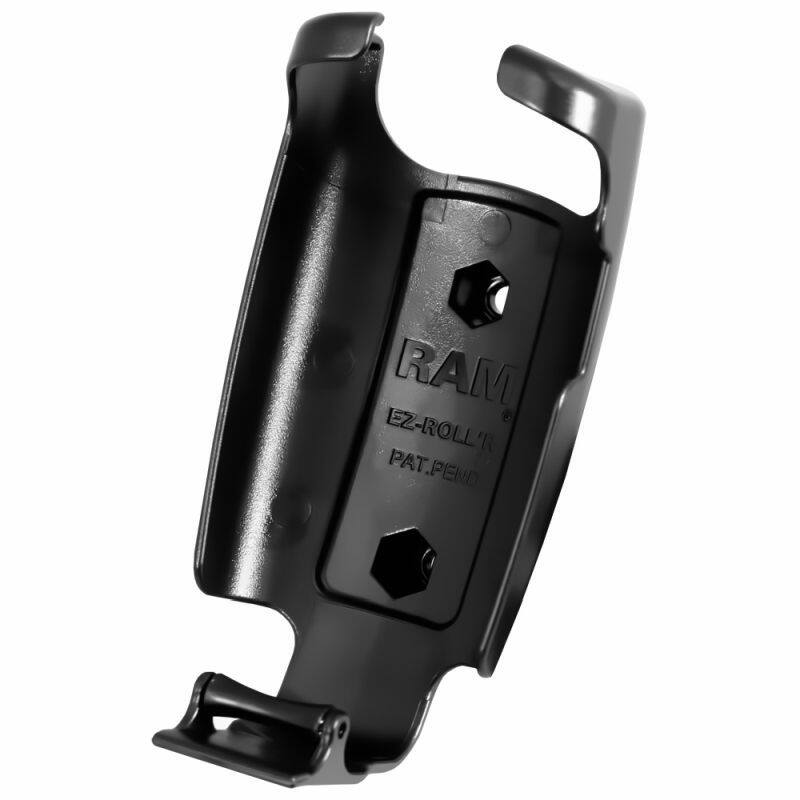

RAM-HOL-GA41U Holder Garmin GPSMAP64 GPS

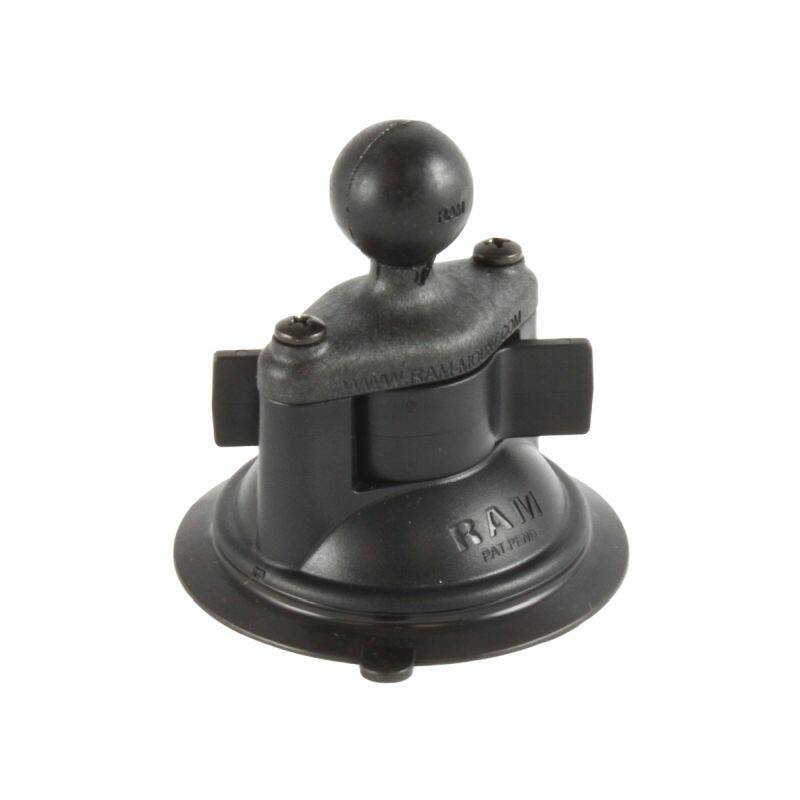

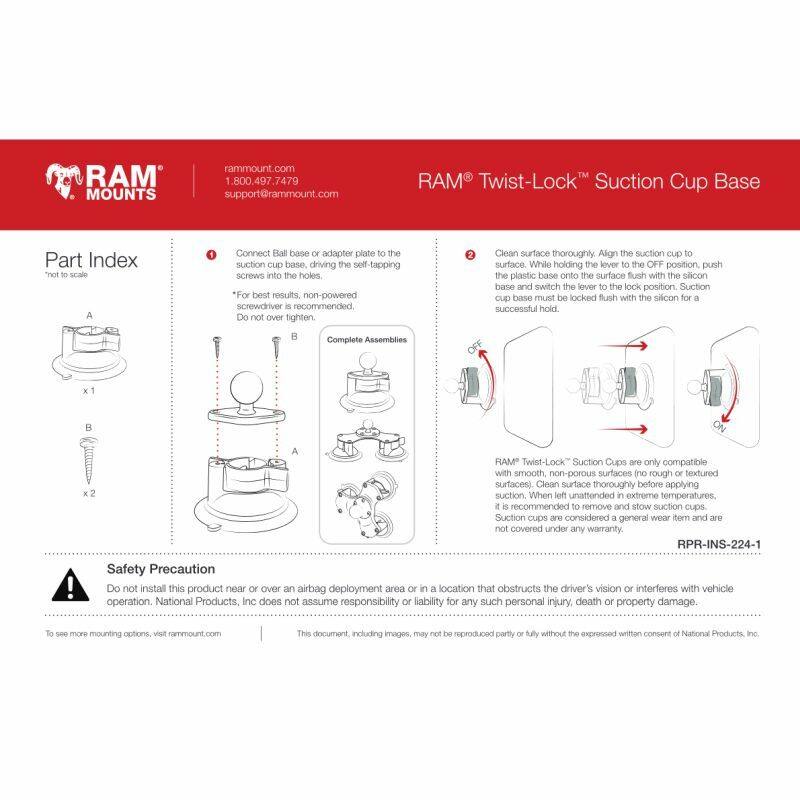

RAP-B-224-1U 3.76mm DIA. SUCT CUP W 1" PLAS BALL

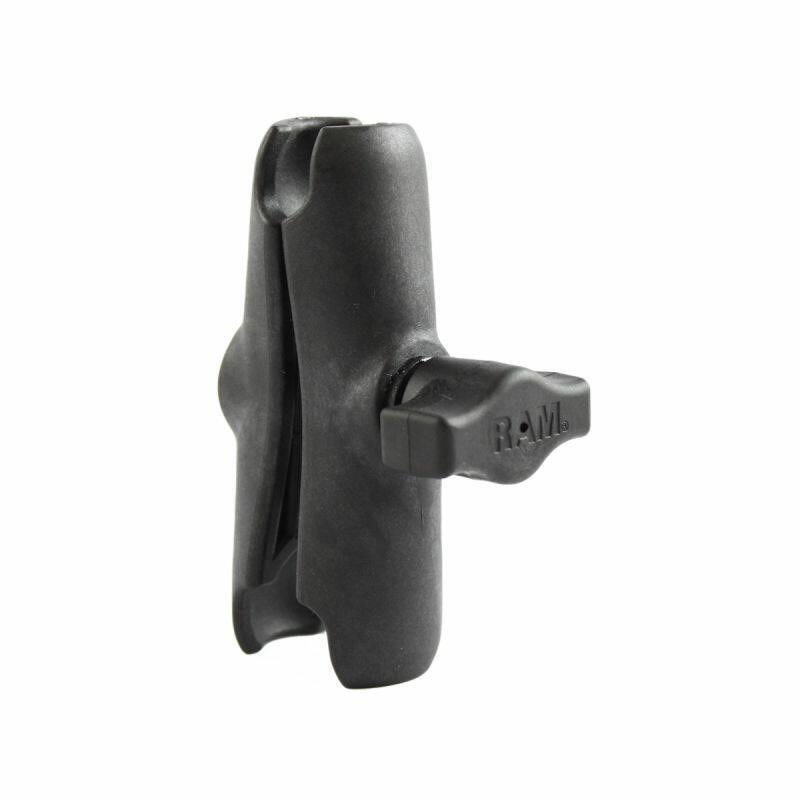

RAP-B-201U DOUBLE SOCKET ARM FOR 1" BALL

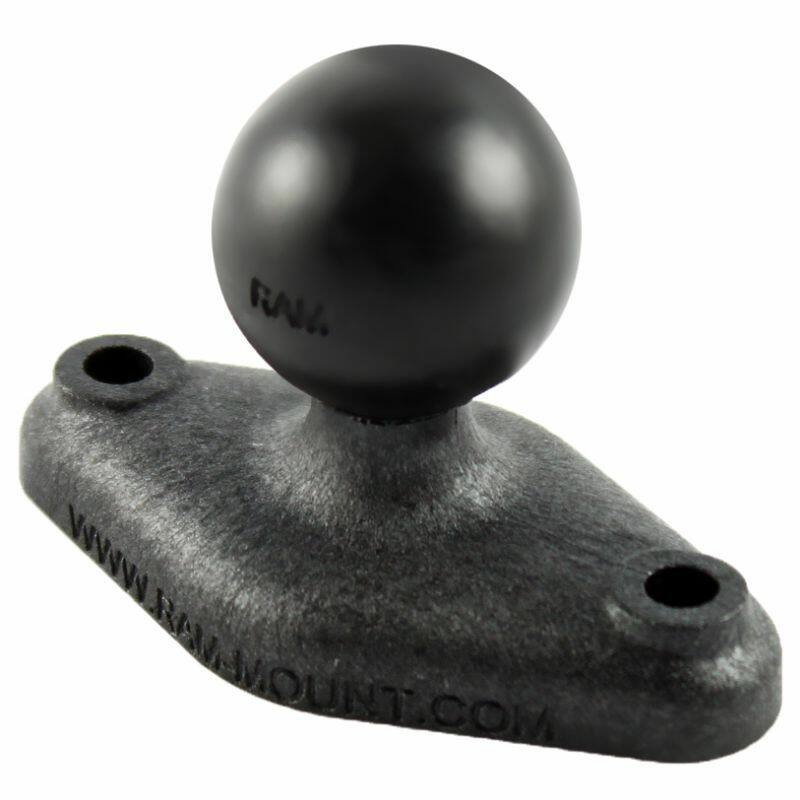

RAP-B-238U 63 X 33mm BASE W/ BALL
