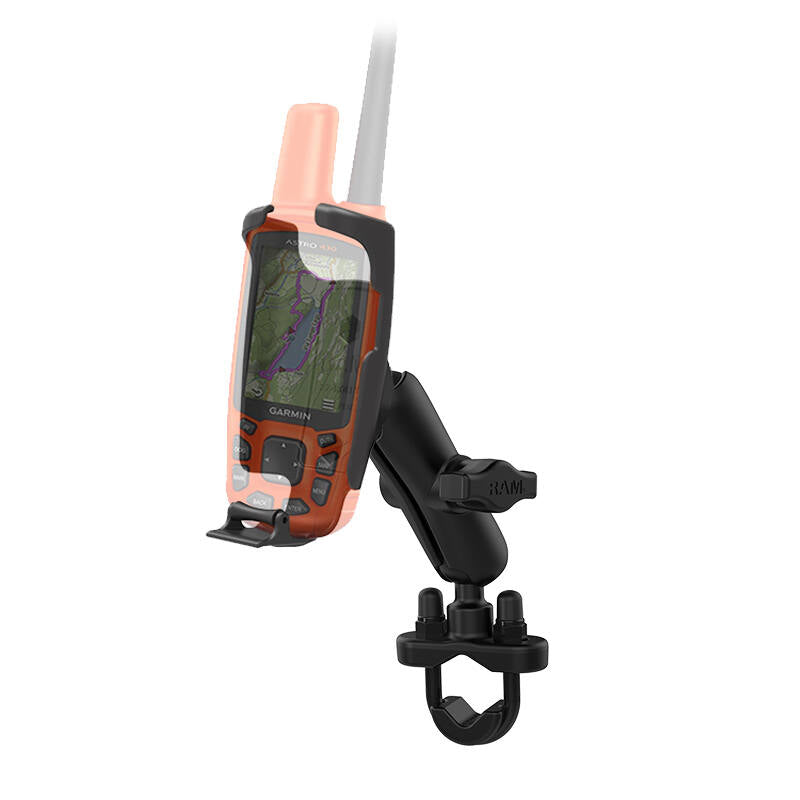

RAM-B-149Z-GA41U RAM® Handlebar U-Bolt Mount for Garmin Astro 320, GPSMAP 62 & 64 Series
Features
* Complete GPS mounting kit for handlebars includes zinc-coated U-bolt base that accommodates rails from 12.7 - 31.75mm in diameter
* Medium length B size RAM® double socket arm, diamond base ball adapter, and form-fit GPS cradle

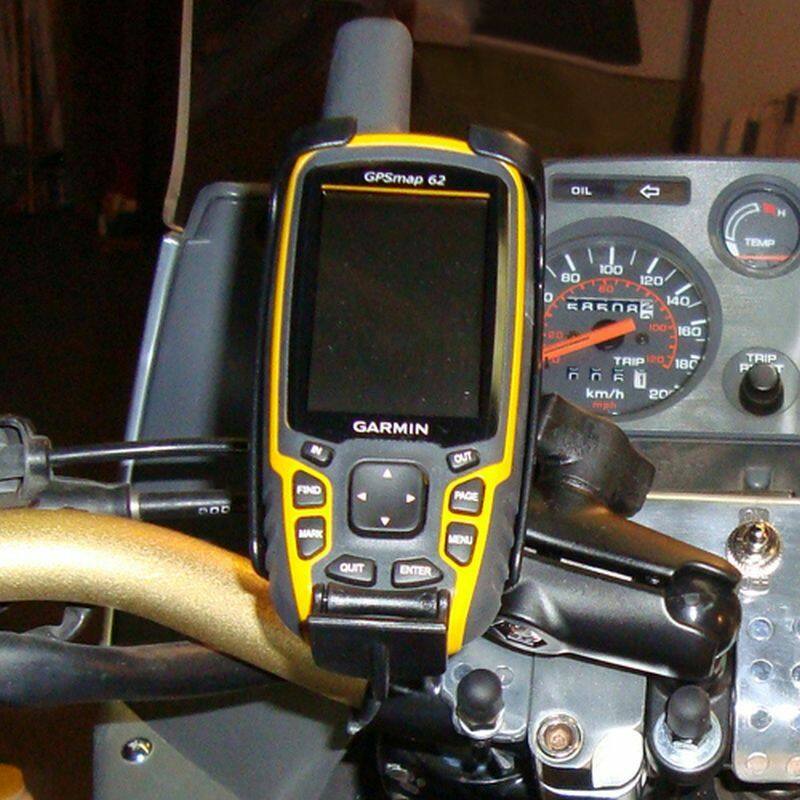

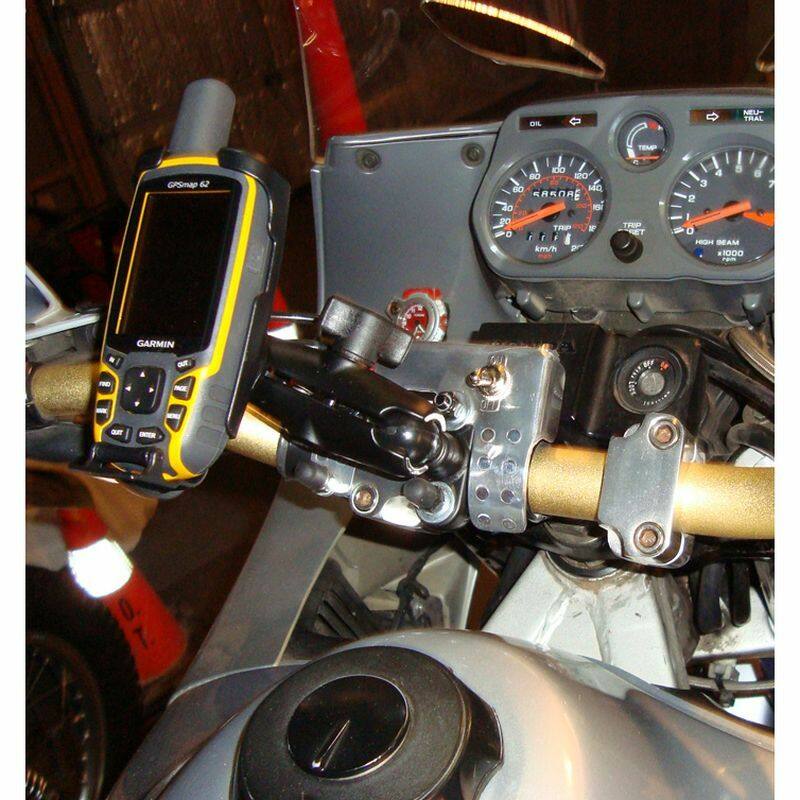

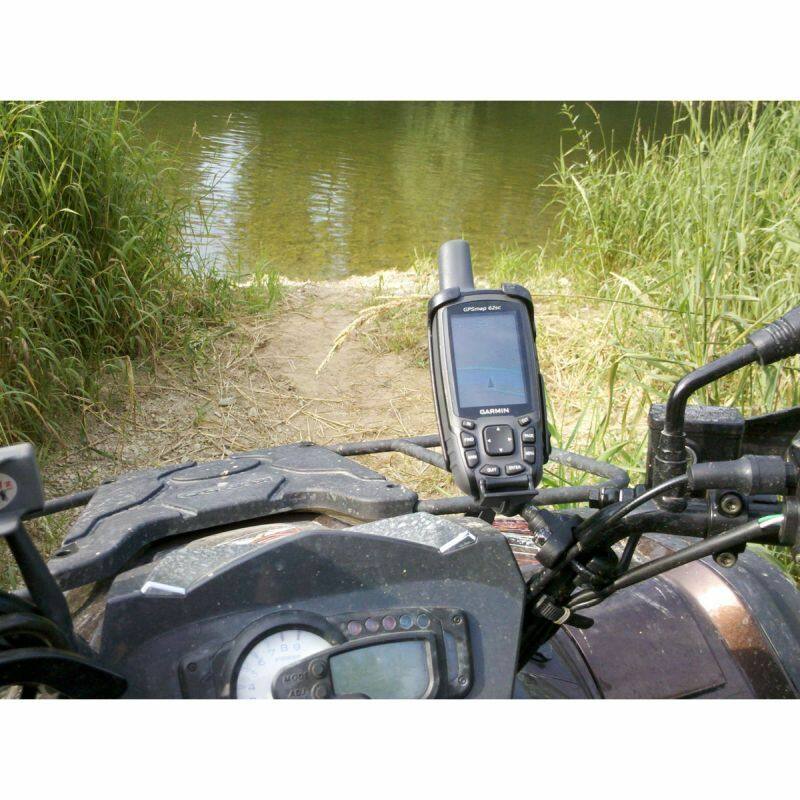

* RAM® Mounts ball and socket technology allows for near-infinite adjustability on bicycle and motorcycle handlebars
* Made of powder-coated, marine-grade aluminum and high-strength composite for durability and reliability in the most demanding environments
* Backed by a lifetime warranty

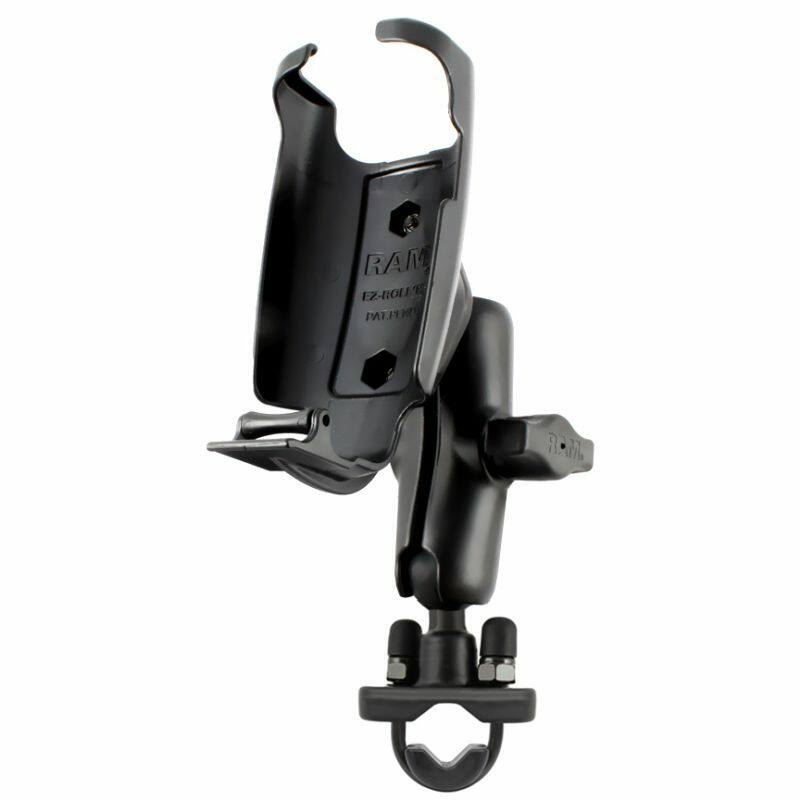

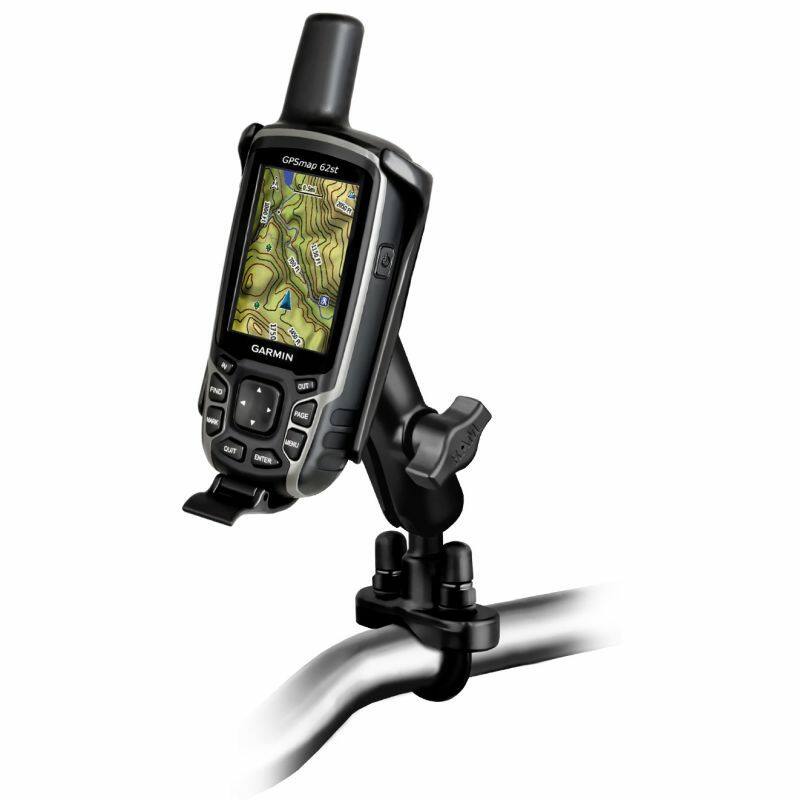

The RAM-B-149Z-GA41U consists of a zinc coated u-bolt base, double socket arm and high strength composite cradle. Included in this package is hardware that will accommodate rails from 12.7 - 31.75mm in diameter. The base includes black cover caps to be placed over the exposed ends of the u-bolt. The included composite rail adapter can narrow the rail to a minimum width of 12.7mm (0.5"). The mount is designed with a RAM 1" diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allowing for almost infinite adjustment and perfect viewing angles.

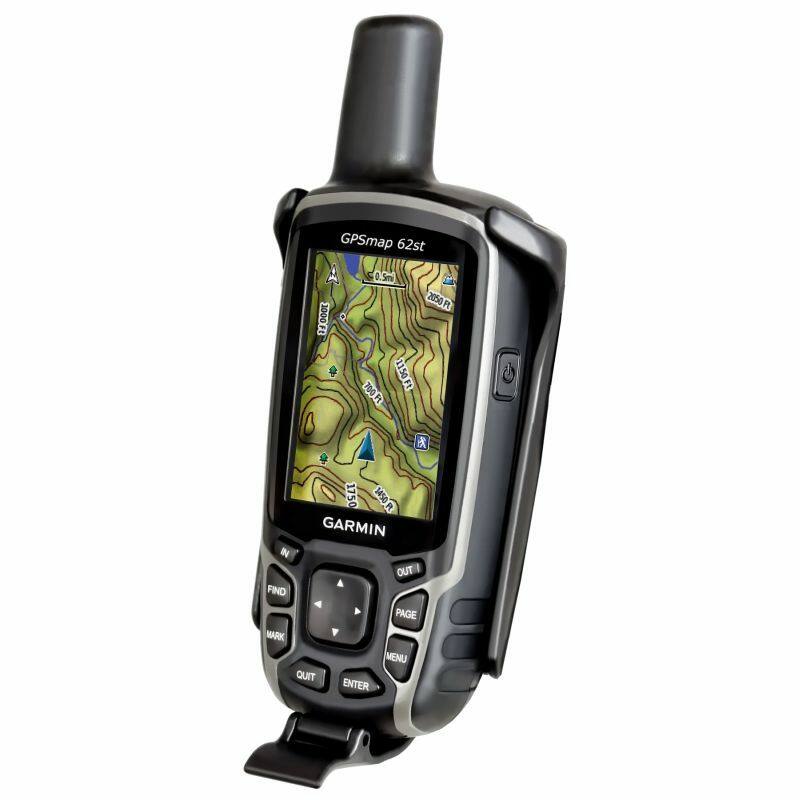

The RAM-HOL-GA41U cradle does not include the Garmin GPS unit itself and is compatible with the following devices:
Compatible Devices:
Astro 320
Astro 430
GPSMAP 62
GPSMAP 62s
GPSMAP 62sc
GPSMAP 62st
GPSMAP 62stc
GPSMAP 64
GPSMAP 64s
GPSMAP 64sc
GPSMAP 64st
U Bolt Dimensions:
12.7 - 31.75mm (0.50" - 1.25")
Material:
High Strength Composite
Powder Coated Marine Grade Aluminium
Ball Size:
B Size 1" Rubber Ball
Weight:
330 grams (0.73 lbs.)
Arm Dimensions:
Overall:
94mm (3.69")
Socket-To-Socket:
76mm (3")
Components:

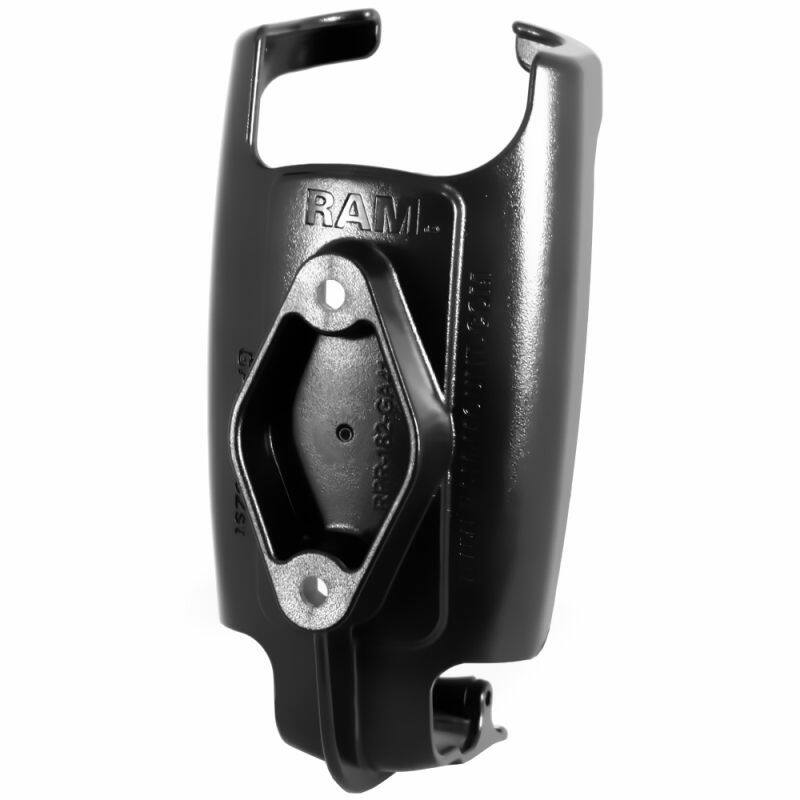

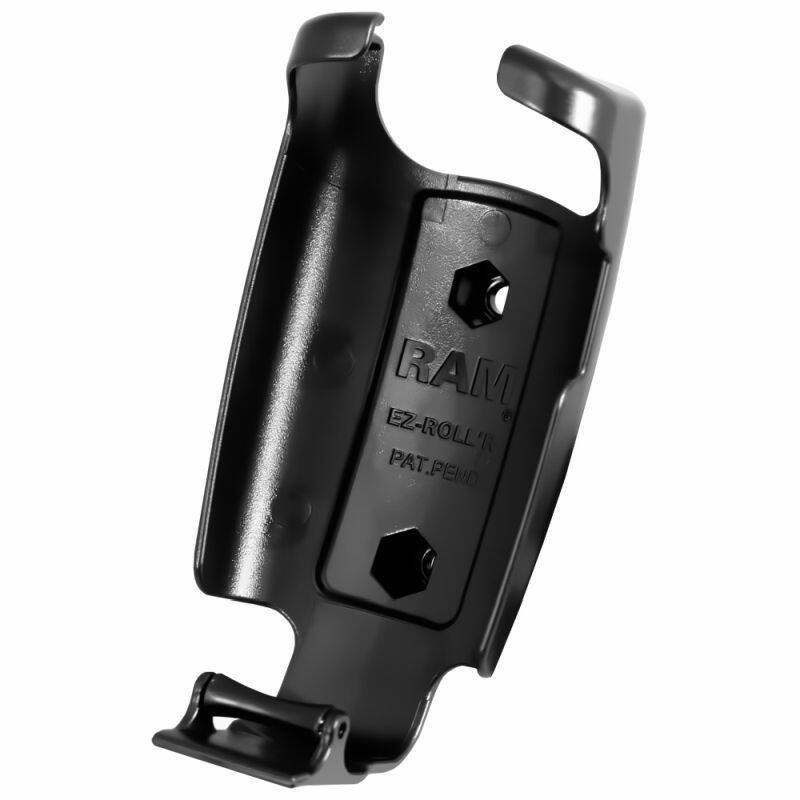

RAM-HOL-GA41U Holder Garmin GPSMAP64 GPS

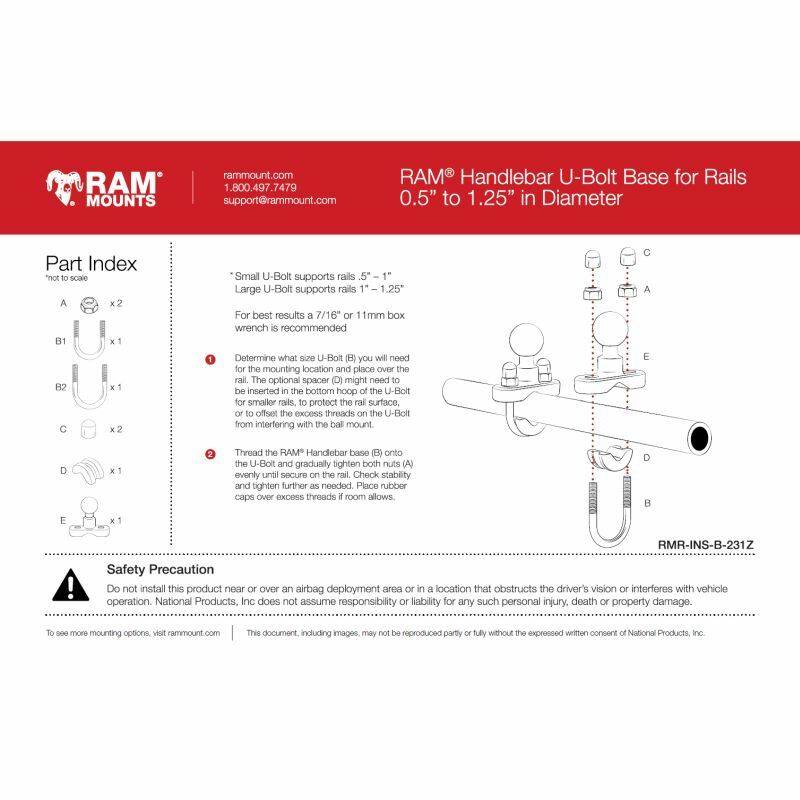

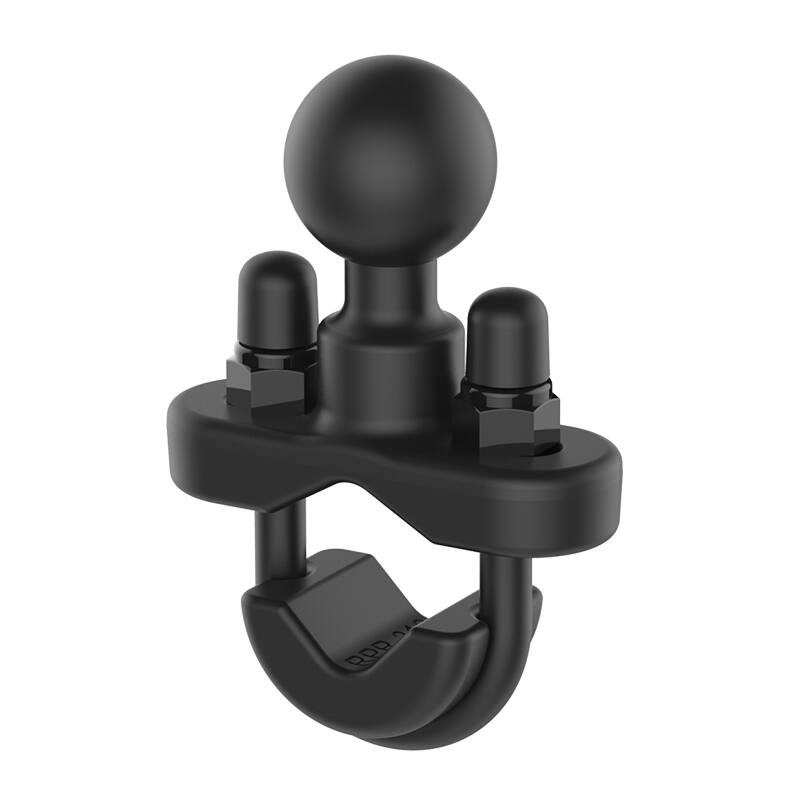

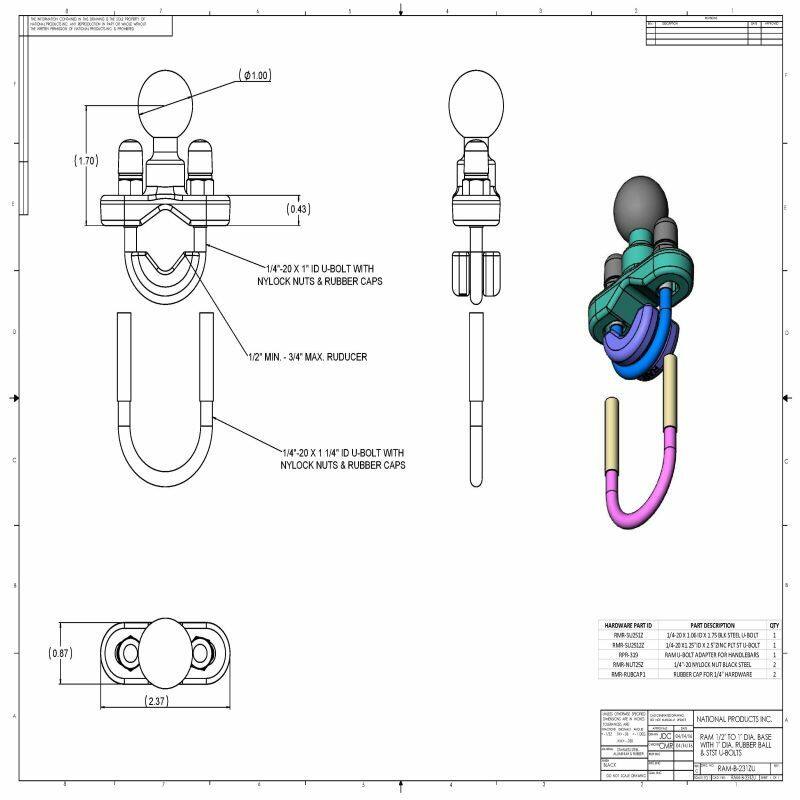

RAM-B-231ZU U-BOLT Base
RAM-B-238U 62 X 33mm DIAMOND BASE W/ 1 BALL
RAM-B-201U DOUBLE SOCKET ARM FOR 1" BALL

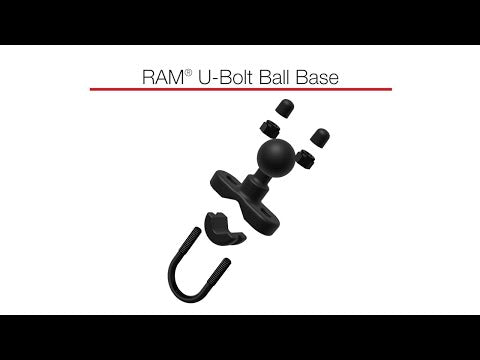

YouTube:
https://www.youtube.com/watch?v=Ip0bJ7nNpLs
