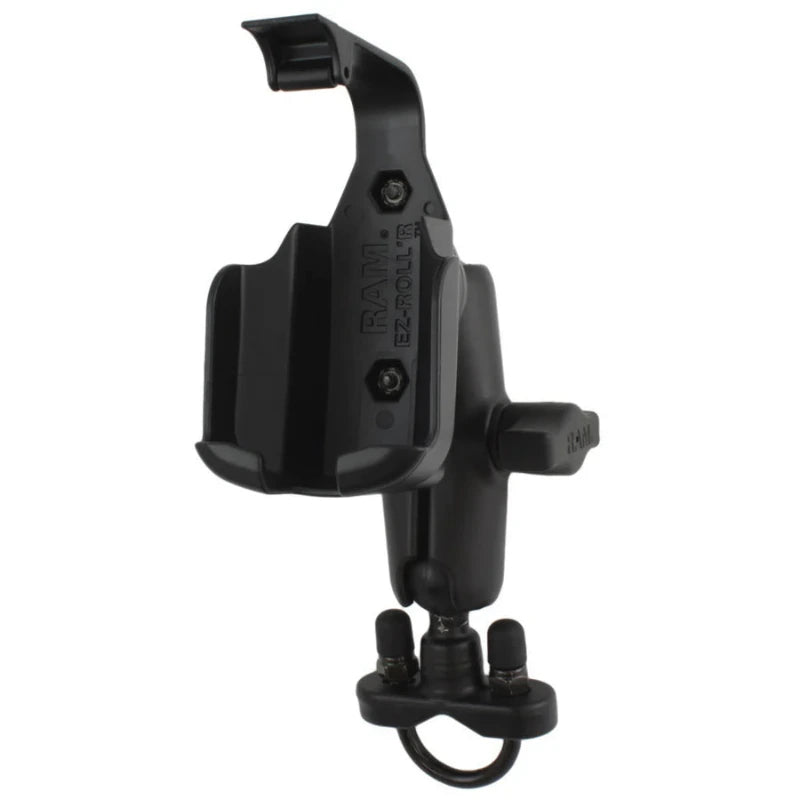

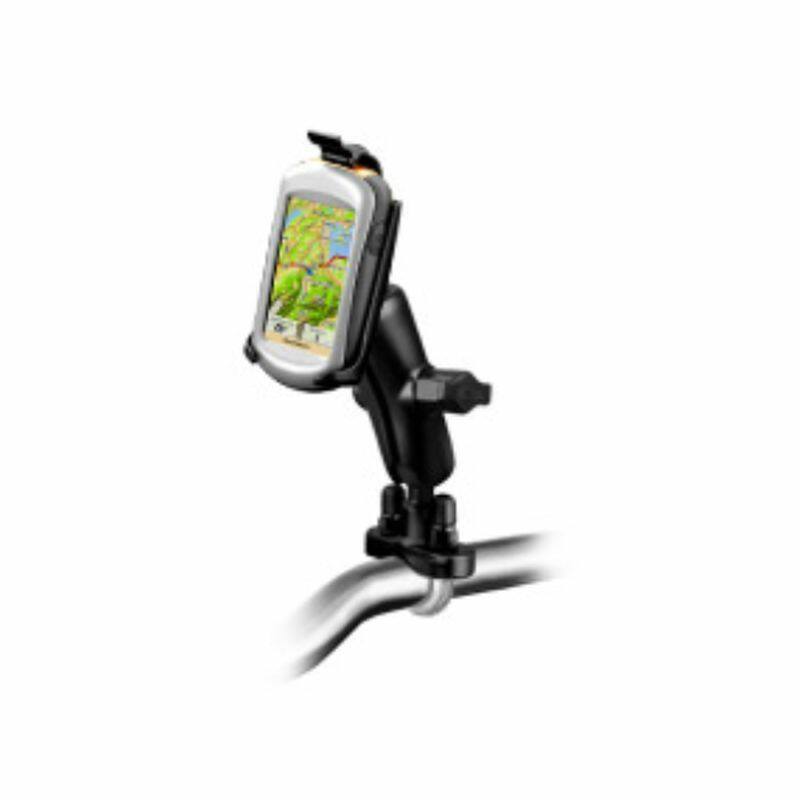

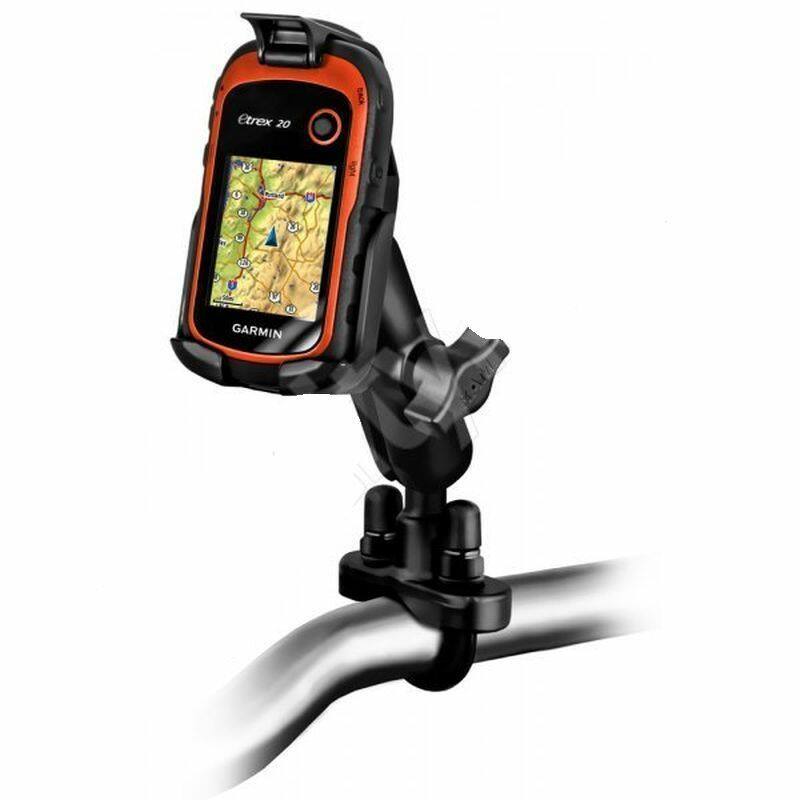

RAM-B-149Z-GA48U RAM® Cradle for Garmin eTrex 10, 20 and 30 series with Handlebar U-Bolt Mount
Features:
* High strength composite cradle for Garmin eTrex 10, 20 & 30
* Full access to all ports

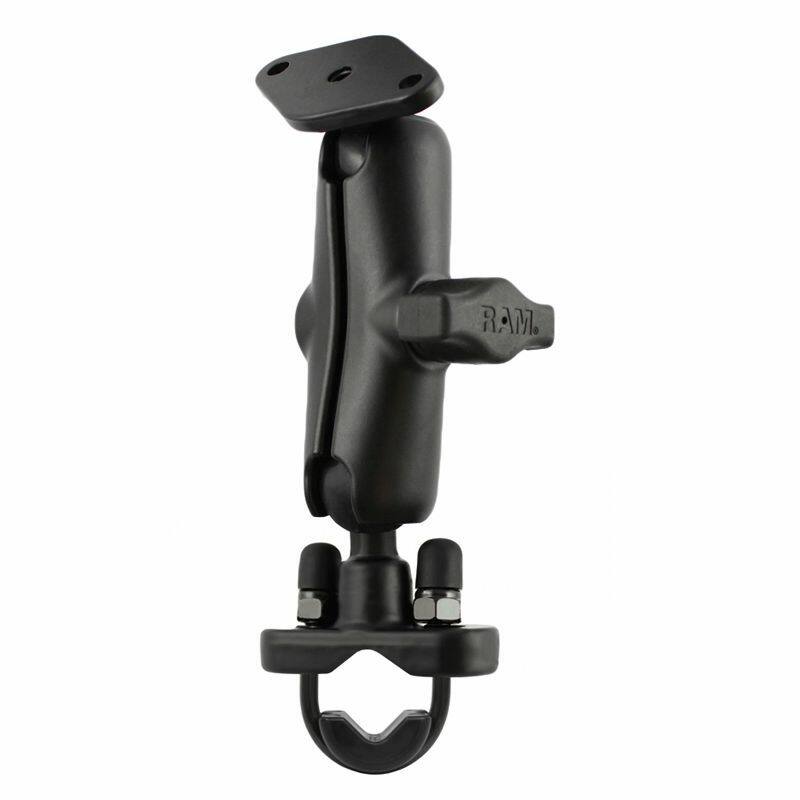

* RAM® double socket arm provides great adjustability
* RAM® rail / bar mount will attach to bars / rails 2.7mm to 32mm diameter
* High strength composite and marine grade alloy construction ensures product longevity
* Lifetime warranty

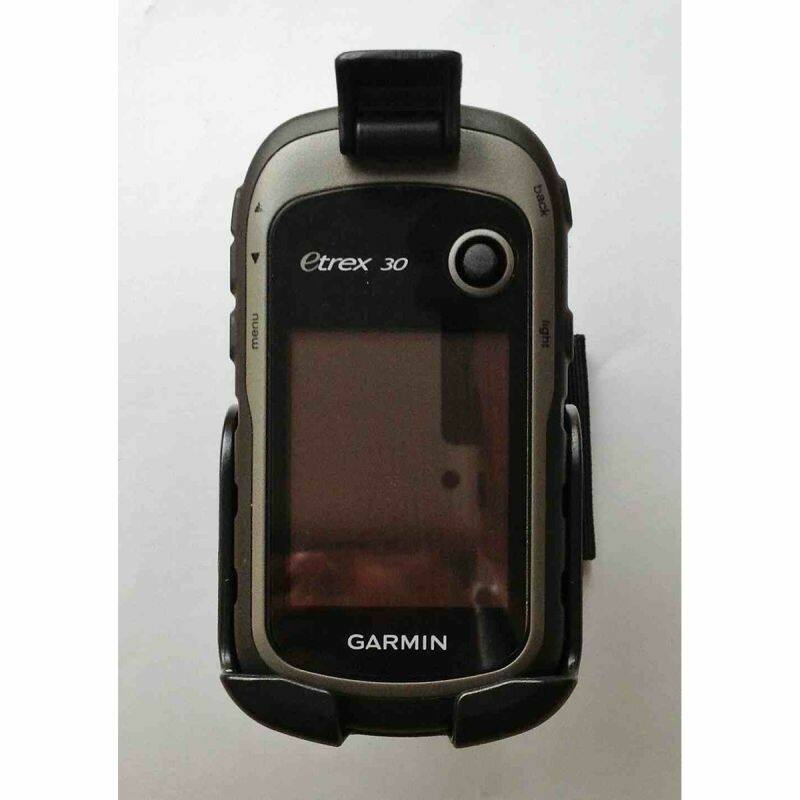

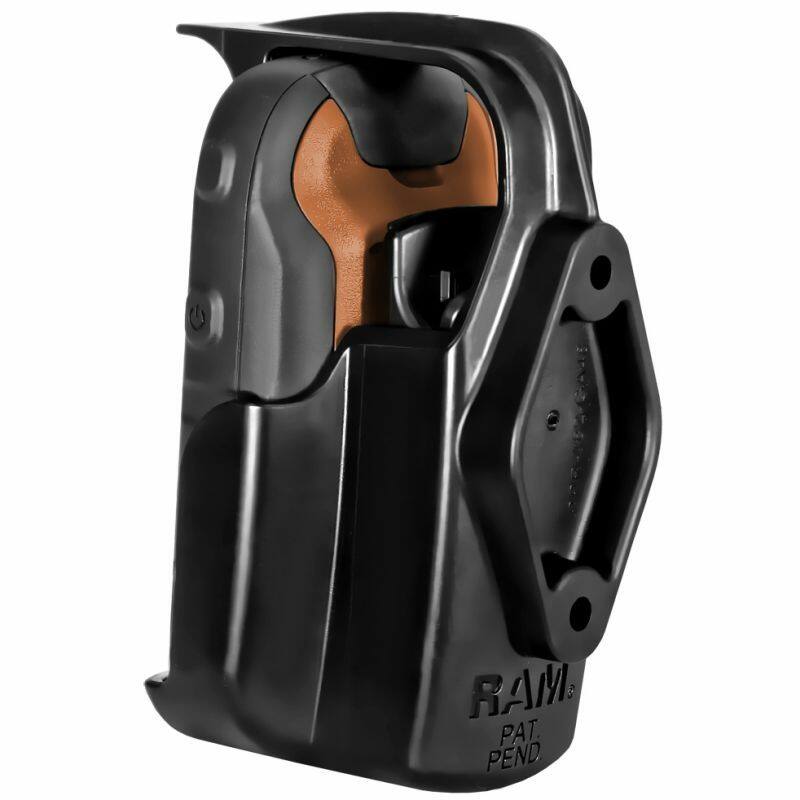

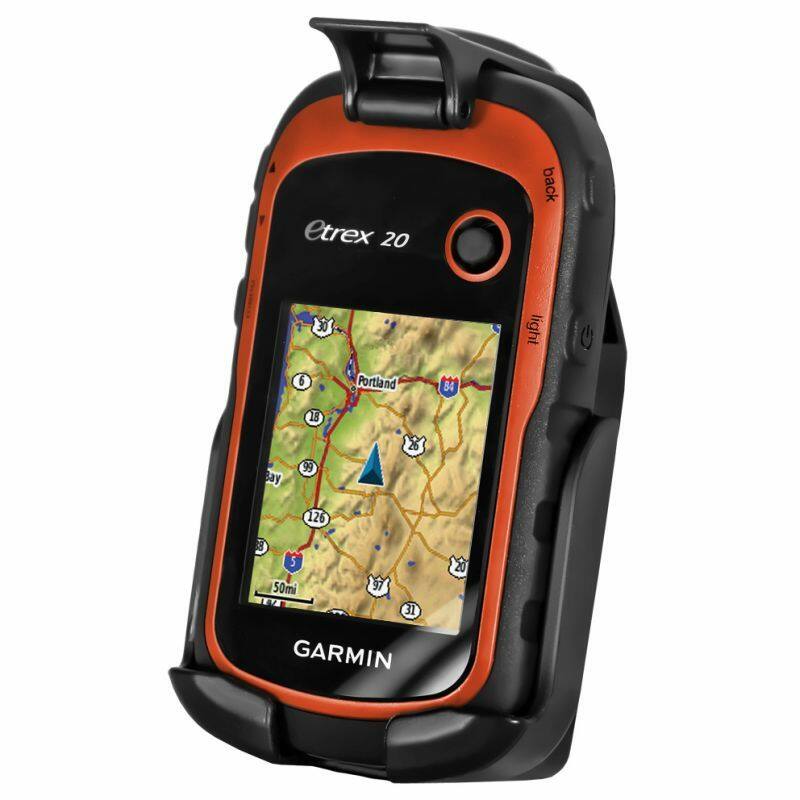

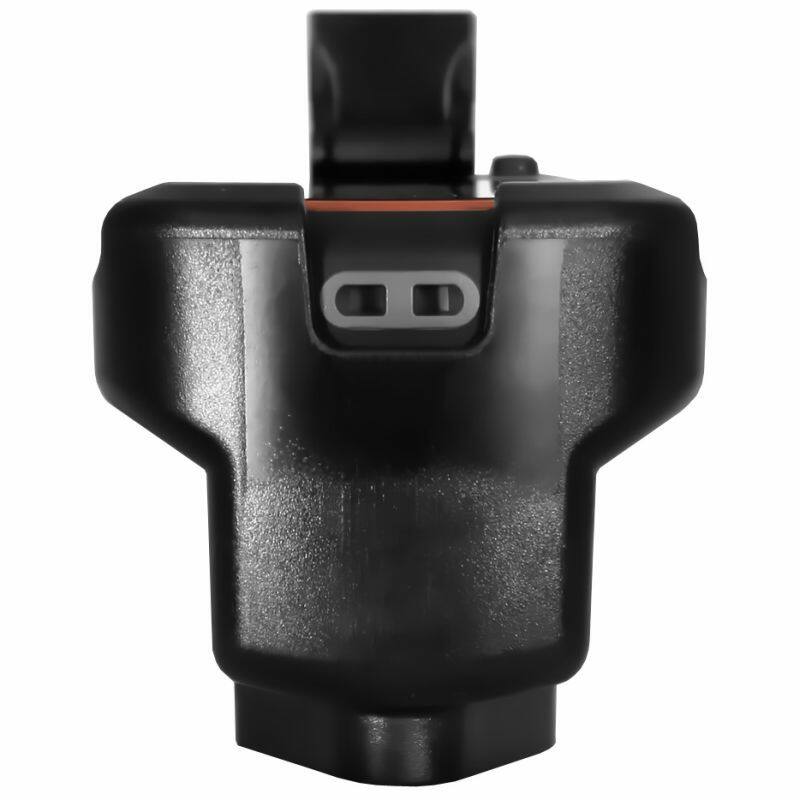

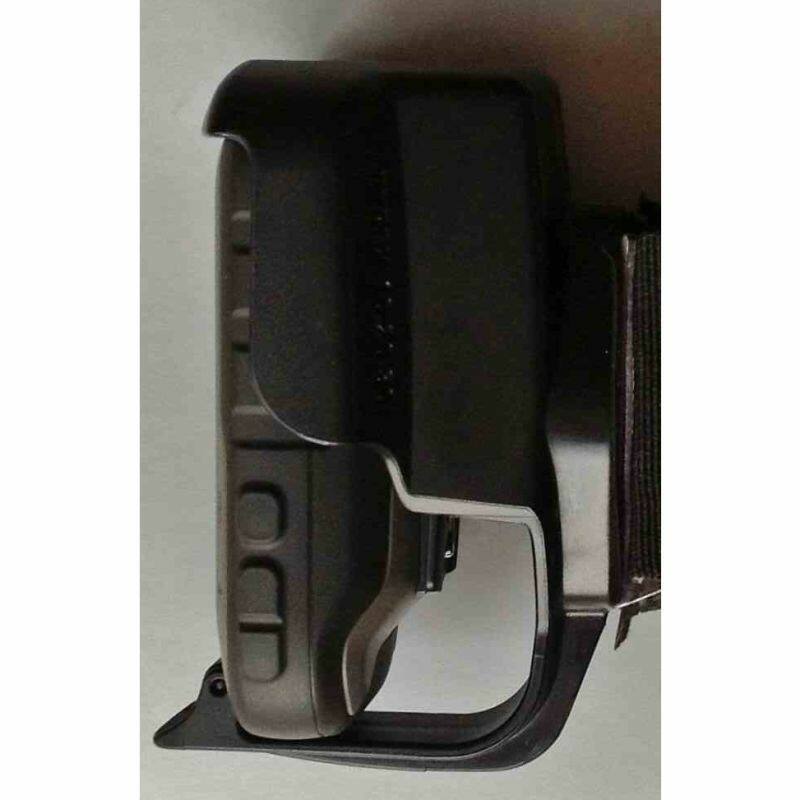

The RAM-HOL-GA48U cradle consists of a high strength composite cradle and hole pattern that will allow the attachment to all RAM components or mounts that contain the universal AMPs hole pattern. Compatible and interchangeable with a wide range of popular RAM Mounting products, this cradle is ready to compliment your GPS and become the most useful accessory in your vehicle.
Included is a set of two nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern.

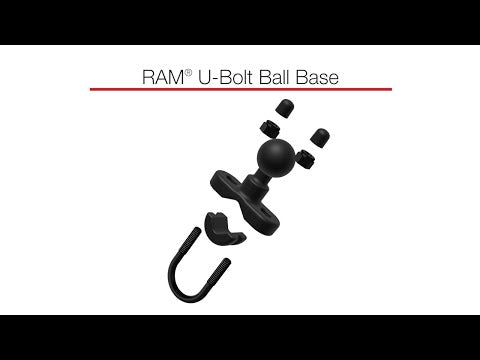

The motorcycle handlebar base with Zinc Coated U-Bolt & 1" Ball for Rails will fit bars 12.7mm to 32mmin Diameter. The zinc coated metal u-bolt will fit all common motorcycle and bicycle handlebars. Includes black cover caps to cover the exposed ends of the u-bolt and a composite adapter that can narrow the rail to a minimum width of 12.7mm (1/2").
Compatible Devices
Garmin
eTrex 10
eTrex 20
eTrex 20x
eTrex 30
eTrex 30x
Note: this is does not include the Garmin GPS unit itself
Arm Dimensions:
Overall Length: 94mm (3.69")
Socket-To-Socket Length: 76mm (3")
Diamond base Hole Pattern
2-Hole AMPs:
1.912” (48.5mm)
U-Bolt Rail Dimensions:
12.7-32mm (0.5" to 1.25") diameter
Material:
High Strength Composite
Marine Grade Aluminium Alloy
Components:
RAM-HOL-GA48U - Garmin Cradle
RAM-B-201U - 94 mm double socket arm
RAM-B-238U - diamond base with 1" ball
RAM-B-231ZU - rail base
YouTube:
https://www.youtube.com/watch?v=Ip0bJ7nNpLs
