RAM-B-149Z-GA16U – RAM® U-Bolt Handlebar Mount for Garmin eTrex Legend, Venture & Vista

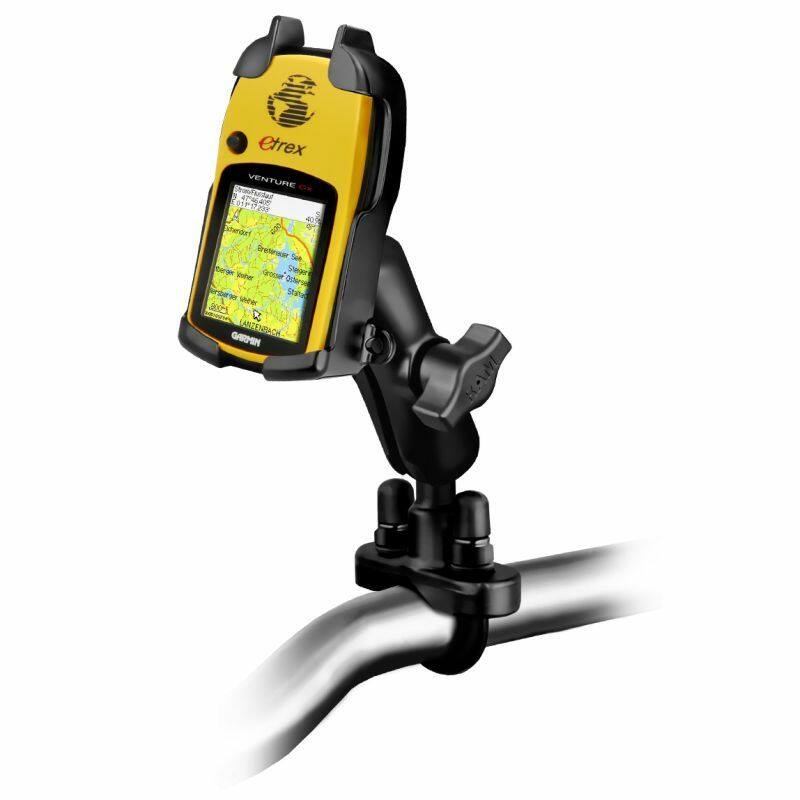

The RAM-B-149Z-GA16U mounts the Garmin eTrex Legend, Venture and Vista series to a handlebar using a zinc-coated U-bolt base, a diamond AMPS adapter and a double socket arm. The U-bolt fits bars 12.7mm to 32mm (0.5" to 1.25") in diameter, with a composite adapter narrowing the fit to 12.7mm (0.5") minimum.
Key Features
Zinc-coated U-bolt base clamps to handlebars, roll bars and similar tubing from 12.7mm to 32mm (0.5" to 1.25")
Diamond adapter base uses the industry-standard 2-hole AMPS pattern
Double socket arm with 1" B-size rubber balls at both ends for near-infinite adjustment
High-strength composite cradle with full access to all ports
Backed by RAM Mounts' lifetime warranty
What's Included

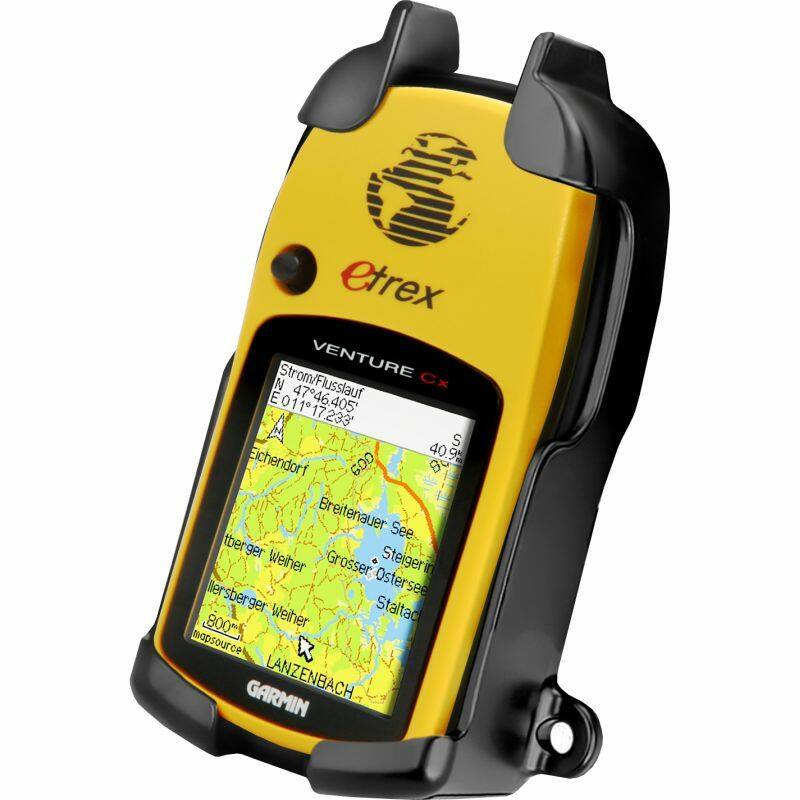

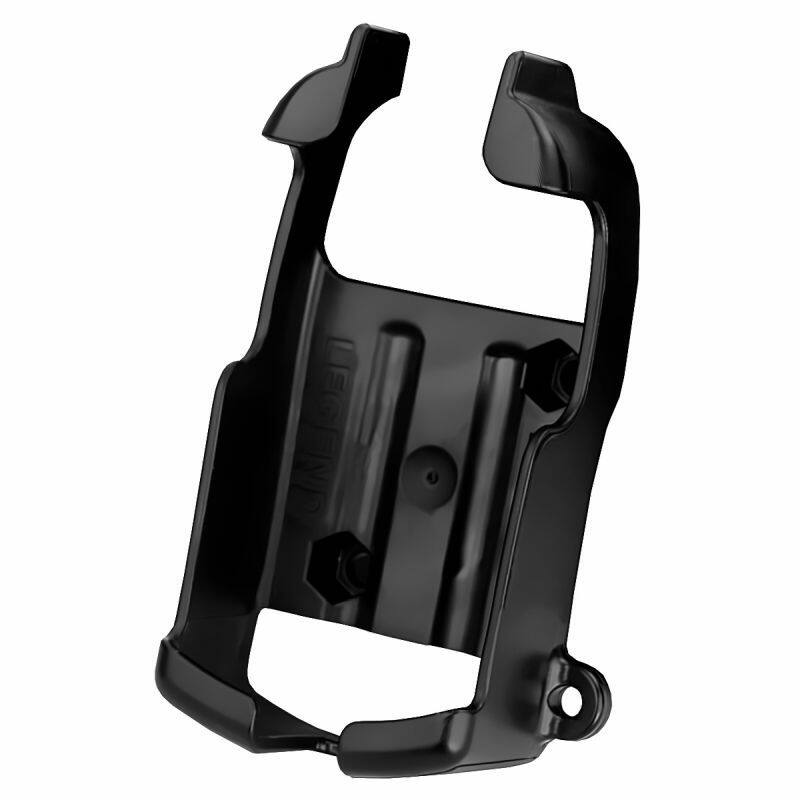

RAM-HOL-GA16U cradle for Garmin eTrex Legend, Venture & Vista

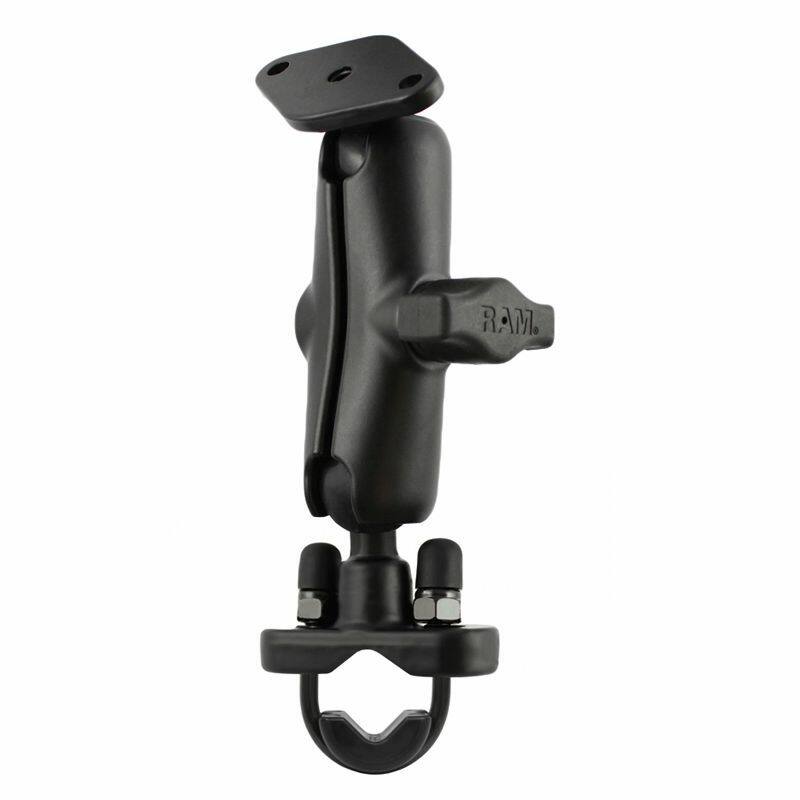

RAM-B-201U double socket arm for 1" ball
RAM-B-238U diamond base with 1" B-size ball

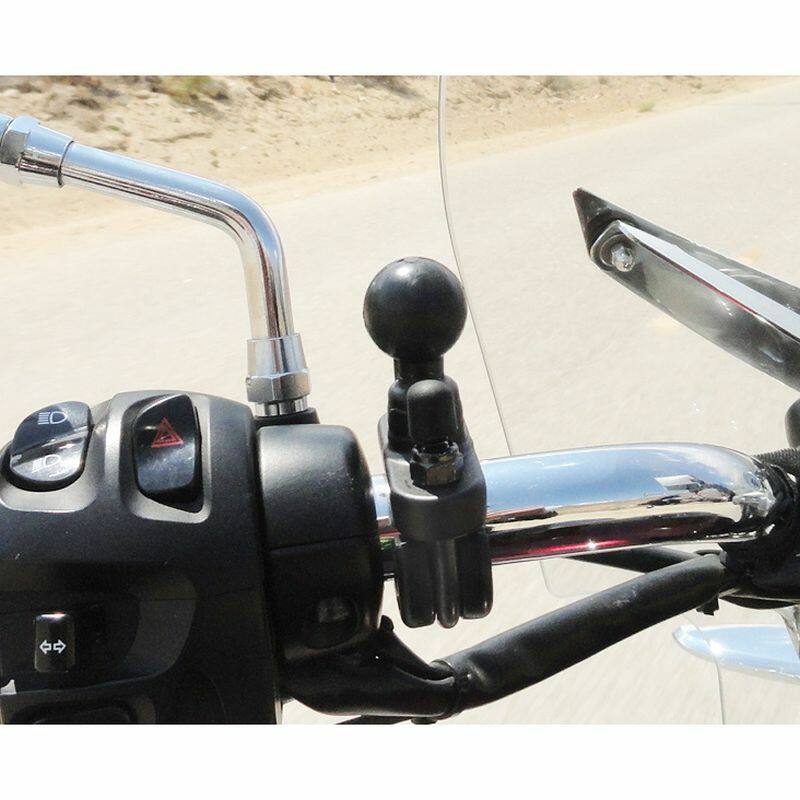

RAM-B-231ZU U-bolt rail base for 12.7-32mm (0.5"-1.25") bars
Dimensions & Specifications
U-bolt clamp range: 12.7mm to 32mm (0.5" to 1.25")
Arm overall length: 94mm (3.69"); socket-to-socket 76mm (3")
Ball size: B size, 1" rubber ball
Weight: 295g (0.65 lb)
Material: high-strength composite (cradle); marine-grade aluminium alloy and steel (base/arm)
