RAP-B-138-GA1U Cradle for the Garmin GPS 12, 12CX, 12XL, 12MAP & 38 with Composite Drill Down Mounts
Features:
* High strength composite cradle for Garmin GPS 12, 12CX, 12XL, 12MAP & 38
* Full access to all ports
* Diamond base adaptor, 94mm double socket arm and drill down round base included
* High strength composite construction ensures product longevity
* Lifetime warranty

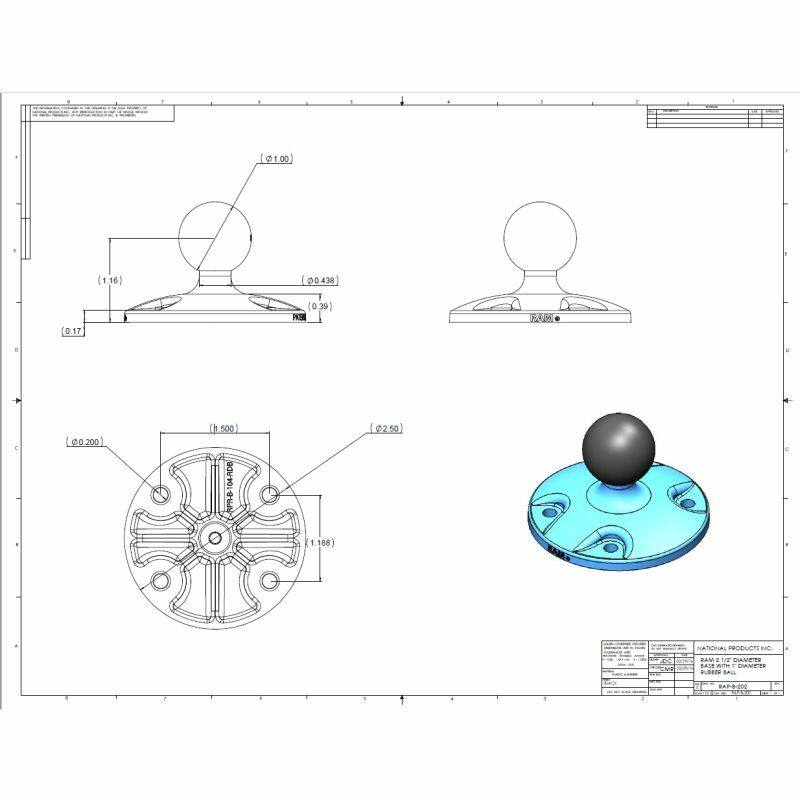

The RAP-B-138U base consists of a 2.5" (63.5mm) diameter round base that contains the universal AMPs hole pattern.
The composite arm measures 94mm overall.
The composite diamond base adapter is 62mm x 33mm.
The mount is designed with a 1" (B Series) diameter patented rubber ball and socket system that has adjustment points at both ends of the double socket arm; this allows for almost infinite adjustment and perfect viewing angles. The hole pattern found on the diamond base adapter will connect to most RAM cradles. The included RAM’s patented design dampens shock and vibration, helping to extend the life of your device.
The diamond base consists of a 1" diameter rubber ball connected to a 61.7mm x 33.3mm diamond base. The base has two holes 48.5mm from centre to centre, matches the industry standard AMPS hole pattern and will connect to a large variety of RAM Mount and third-party cradles.
Compatible Devices:
Garmin
GPS 12
12CX
12XL
12MAP
38
Note: this is does not include the Garmin GPS unit itself
Overall Length:
127.8mm / 5.03"
Material:
High Strength Composite
Weight:
0.32 lbs. (145 grams)
Components
RAM-HOL-GA1U RAM HOLDER GARMIN 12 SERIES
RAP-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL
RAP-B-238U RAM 63 X 33mm BASE W/ BALL
RAP-B-201U RAM DOUBLE SOCKET ARM FOR 1" BALL
